Handmade Eco-Urban Irvine 9 Panel Single Absolute Evokit Pocket Door DD6434 - Colour & Size Options
All pocket cassettes or pocket self assembly kits may be kerbside delivery only and not in to the home..... doors are delivered separately.
We deliver for free to most UK Mainland postcodes and in order to offer best value and safety we include the soft closer.
High-quality British made Industrial style pocket doors made from 40mm thick engineered sustainable solid laminated timber with the warmth that a real wood grained textured door can offer, better than a cold steel feel.
Note: Our glass and panel doors are beaded on one side only, please take care when fitting multiple doors to keep the beads consistently on one side only.
Please use our sample request product should you want to be sure of the colours.
The doors you always wanted for your loft or warehouse conversion are now available.
All doors can slide open left or right, you decide when installing them, delivery will be from two separate suppliers. Read more
2050x1300mm Wide/1981x610mm Door (DD6434-610-ABSPS1)
2050x1480mm Wide/1981x686mm Door (DD6434-686-ABSPS1)
2050x1660mm Wide/1981x762mm Door (DD6434-762-ABSPS1)
2050x1730mm Wide/1981x838mm Door (DD6434-838-ABSPS1)
2110x1320mm Wide/2040x626mm Door (DD6434-626-ABSPS1)
2110x1520mm Wide/2040x726mm Door (DD6434-726-ABSPS1)
2110x1720mm Wide/2040x826mm Door (DD6434-826-ABSPS1)
2110x1920mm Wide/2040x926mm Door (DD6434-926-ABSPS1)
POCKET DOOR SYSTEM:
A router will be required for door(s) installation.
System operation viewed from above:

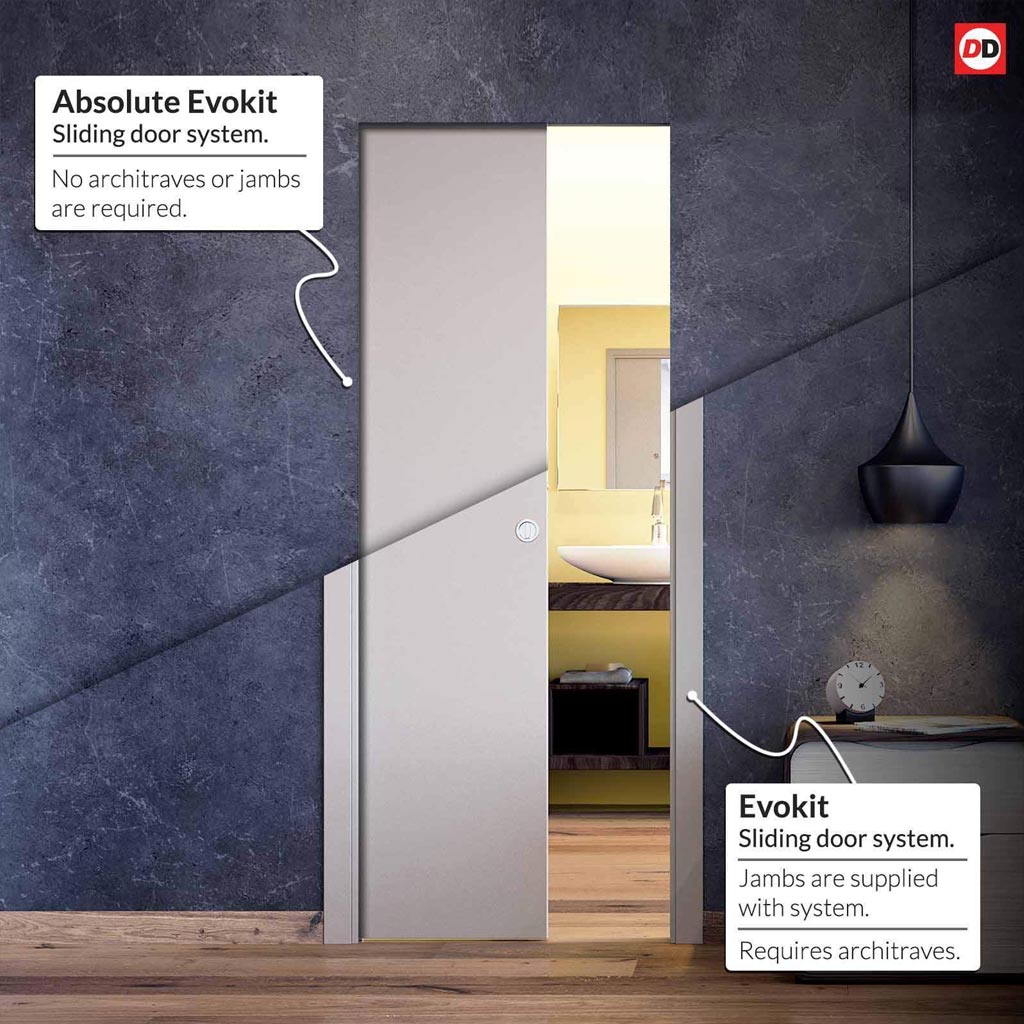

Absolute Evokit, when you don’t want to see any architraves or jambs, just a modern, clean finish allied to a cutting edge system for a truly contemporary feel.
Our all new Ermetika interior single frameless pocket door systems have a free delivery as standard, these pocket doors come with full fitting instructions and the door system allows you to slide the door straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings, the door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.
See our "Dimensions PDF" for all sizes but use as a guide only.
Email firstname.lastname@example.org to receive a quote for any special sizes.
The idea is to build the pocket to the same thickness as the studwork - 75mm (3") which is the standard studwork size generally in use, so that you can directly continue using the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of 100mm (4") four inches.
The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm or 79mm if and when the 125mm cassette system is available.

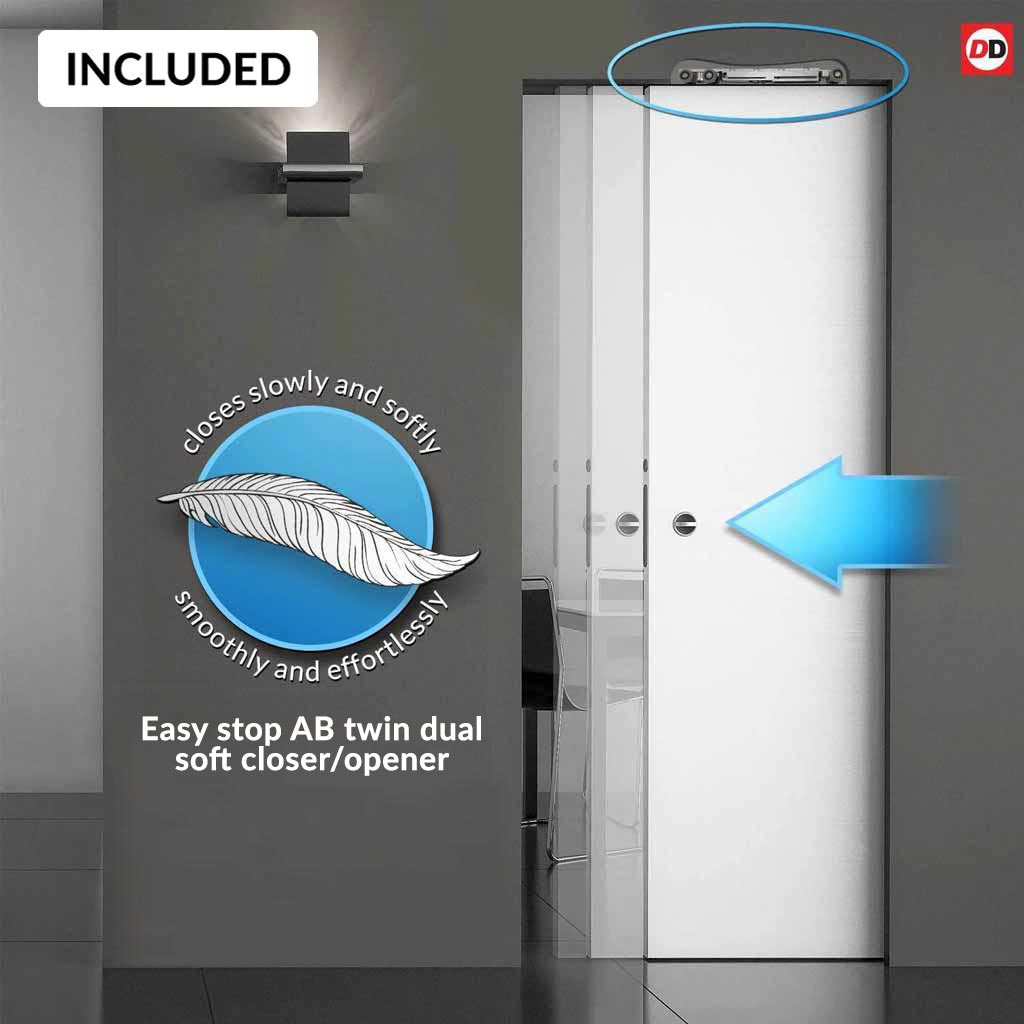

An Easy stop AB twin dual soft closer/opener accessory to close the door slowly and softly is included.
Other items such as flush door pulls and bathroom locks can all be purchased separately, doors will require a routered channel to be created in the bottom of the door to accommodate the supplied track guide.
The pocket door frame must be concealed within your own wall when installing.
The doors are premium primed and need to be finished on site - please refer to the "Door Finish" PDF in the PDFs section.
Eco-Urban Slimline Industrial Door Range: our own UK manufactured range of high-quality hand made interior doors to replace the Weekamp range we have now removed.
All doors from DirectDoors Bespoke Slimline range are 40mm thick, rail & stile breadths are 85mm, astragals are 34x40mm. All dimensions and thicknesses are +/- 2mm.
Please note, the 85mm rails require no more than a 50mm flush handle to be fitted.
All edges and cut-outs should be treated before final fitting, failure to treat bare timber may lead to excessive changes in moisture content which will cause timber to shrink or swell, possibly causing splits or distortion.

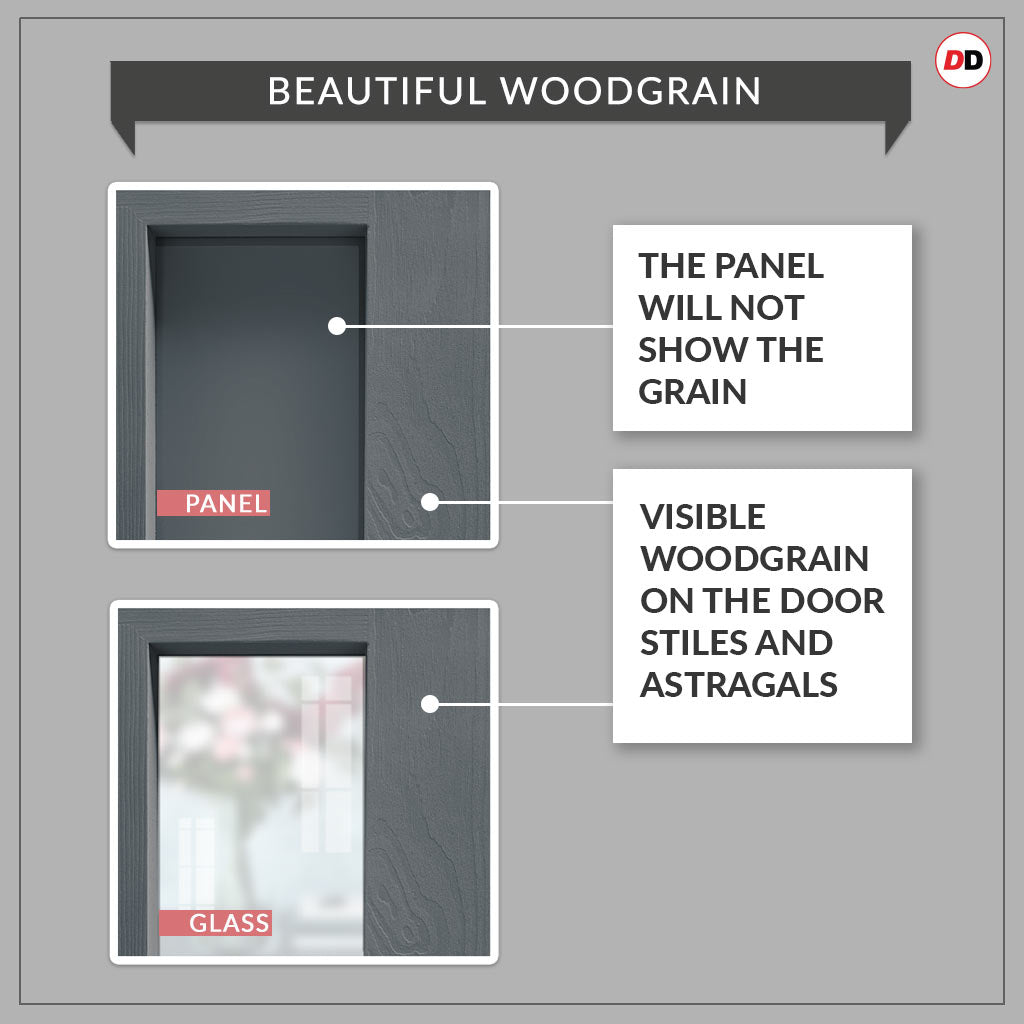

The beauty of the grain may be visible on some of the real wood door material.
|Dimensions||40mm door and a frame section of 100mm - 54mm internal cassette cavity.|
|Notes||The sizes listed above are for the overall door and pocket set which includes the metal pocket frame and the Easy stop AB twin dual soft closer/opener but does not include a plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.|
|Important||All pocket door items are supplied in kit form, any glass is pre-installed in the door.|
|Normal Availability for our Delivery Service||See delivery icon on top of the product page.|
|Assembly||Self Assembly may take 3-4 hours|
|Construction||See core icon on top of the product page.|
|Panels within door||If the panelled door is chosen, the panels will be 9mm thick moisture resistant MDF, recessed within the door thickness.|
|Glass Thickness||Any glazing will be 4mm thick.|
|Door construction||40mm Thick Solid Core with Superior Primed Finish - Ready to Paint|
|Note||Any internal dimensions for panels, lining or glass may vary depending on the door width you require.|
|Price||The price quoted is for the door(s), pocket system frame, all track fittings, soft closer, but no handles, any glass shown is pre-installed in the doors.|
|Suggested Minimum Skill Level||Advanced DIY & Specialist Joinery Tools Required.|
|Adjustment||Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide. All jamb kits are supplied to suit all pocket doors sizes and will therefore need cutting to height and width on site.|
