Exterior Door Frame, made to size, we have allowed for the dimensions (including clearances) of a standard weather bar, if you require us to supply one of these please add the "Exitex Weatherten" bar in the fittings section, the draught proofing to the top and sides is included in the price, any doubts? put your thoughts in the notes section of your order.
- Suggested Minimum Skill Level
- Low DIY & Basic Joinery Tools Required.
- Thresholds
- Please tell us if there is a requirement for a timber threshold/cill between the door and the floor and what the preferred thickness is, we have shown two samples but be aware that dimensions & frame heights will vary if a threshold/cill is chosen.
- Note
- This frame is usually shipped assembled but may be disassembled for delivery purposes. If so, our customer service team will notify you. A 40cm thick cill is included, and a draught bar is available for purchase in add-ons.

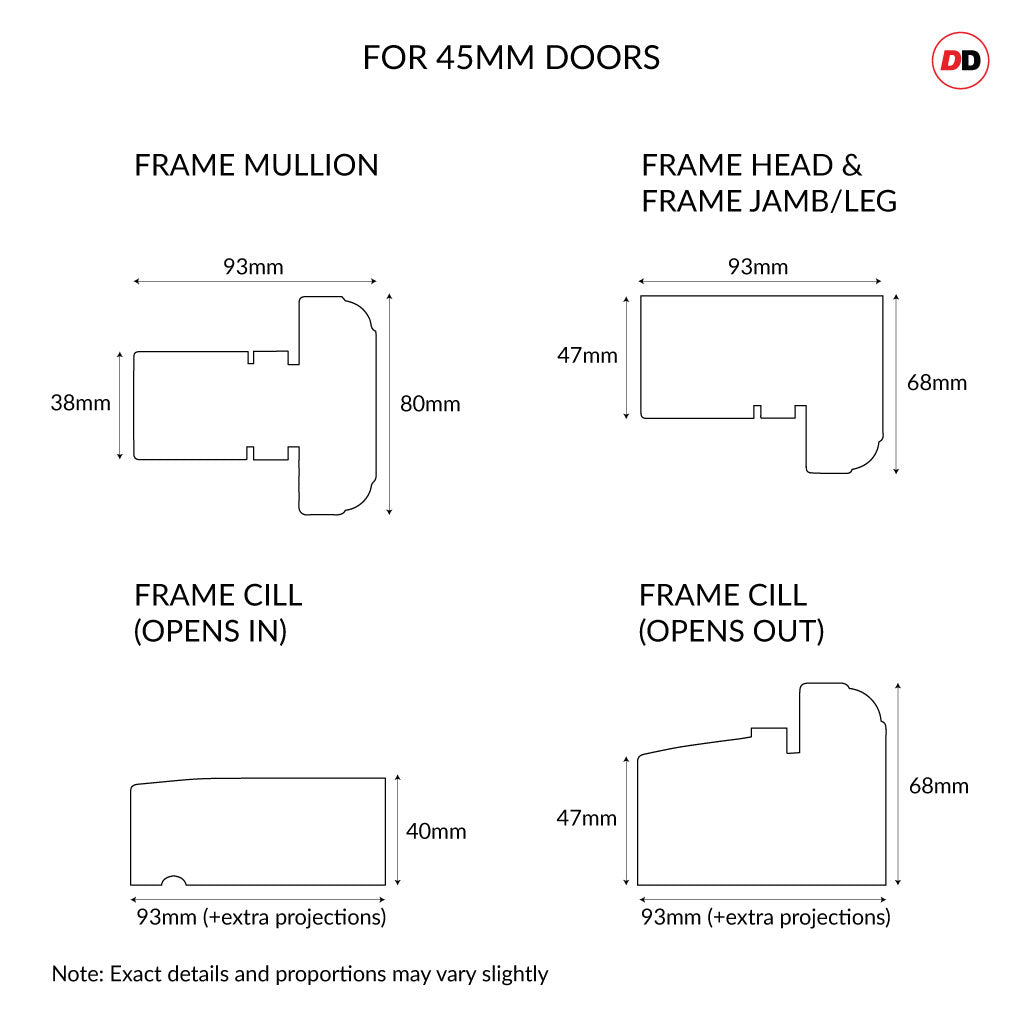

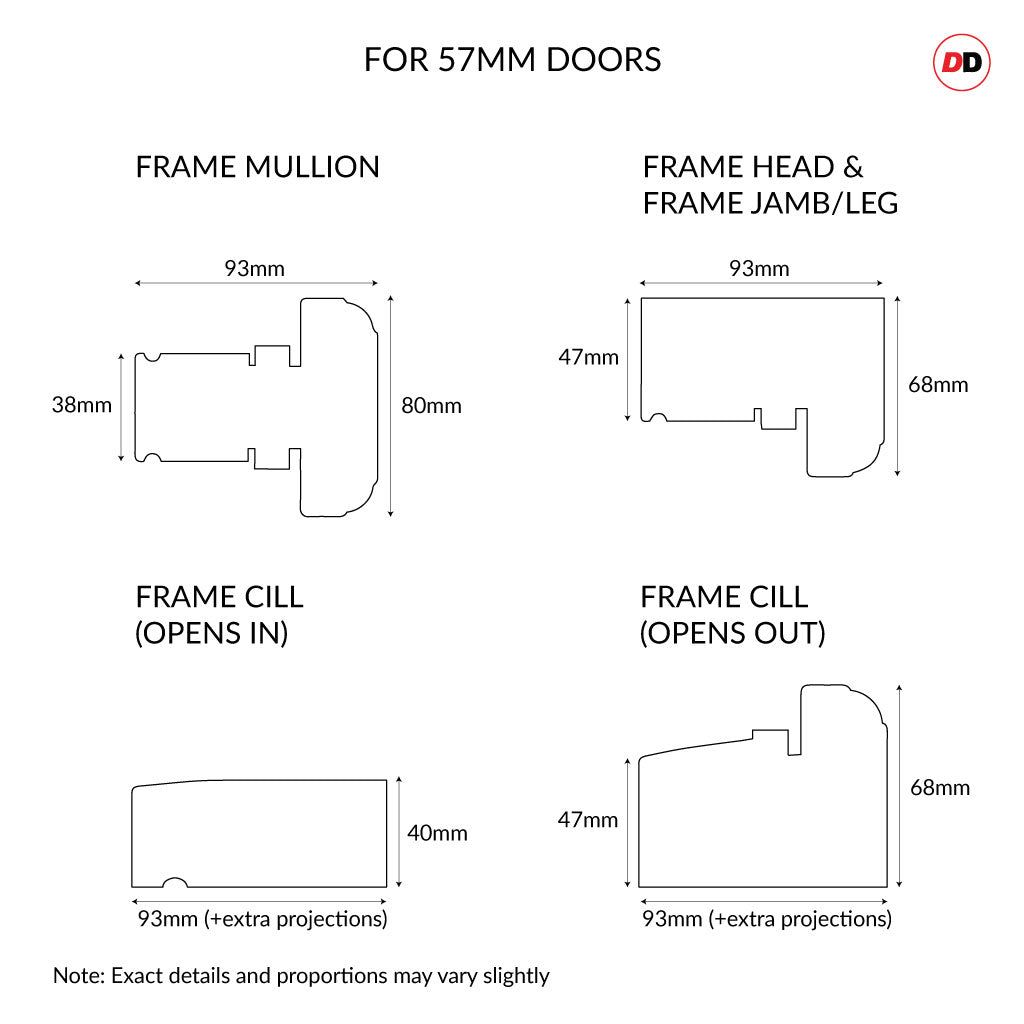

- Frame Breadth
- 93mm.
- Glass
- Not included, but available to order.
- Normal Availability for our Delivery Service
- See delivery icon on top of the product page.
- Guarantee
- 36 months
- Overall Frame Sizes
- For inward opening sets as a general thumb-rule your overall frame size is USUALLY your door height plus 116mm and your door width & side screen width plus 140mm. (116mm = 47mm frame head + 4mm clearance + 25mm draught bar clearance + 40mm cill) (140mm = 47mm x2 frame legs + mullion 38mm + 4mm clearance to either side of the door) For outward opening sets it is USUALLY your door height plus 102mm and your door width & side screen width plus 140mm. (102mm = 47mm frame head + 4mm clearance to top and bottom of the door + 47mm weather cill) (140mm = 47mm x2 frame legs + mullion 38mm + 4mm clearance to either side of the door)
- Sizing
- All sizes are nominal ± 2mm.
DD

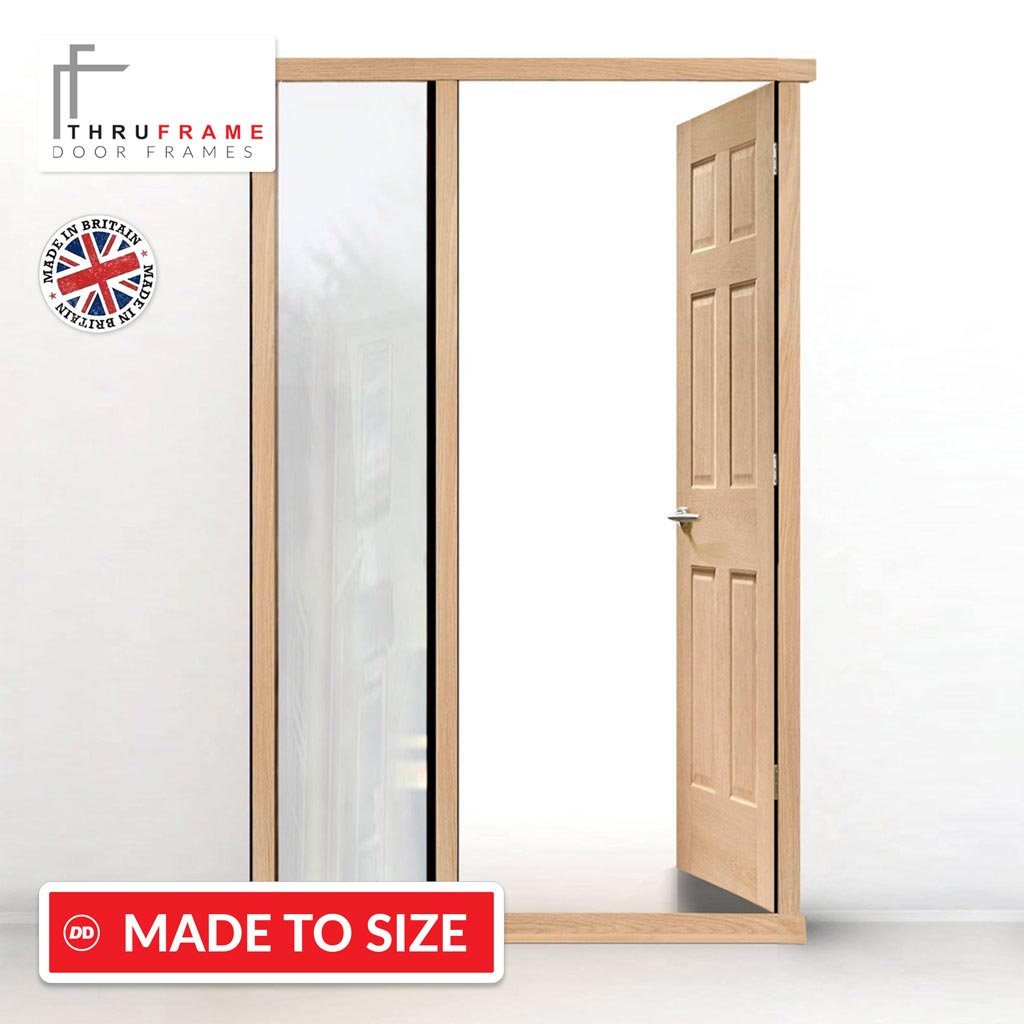

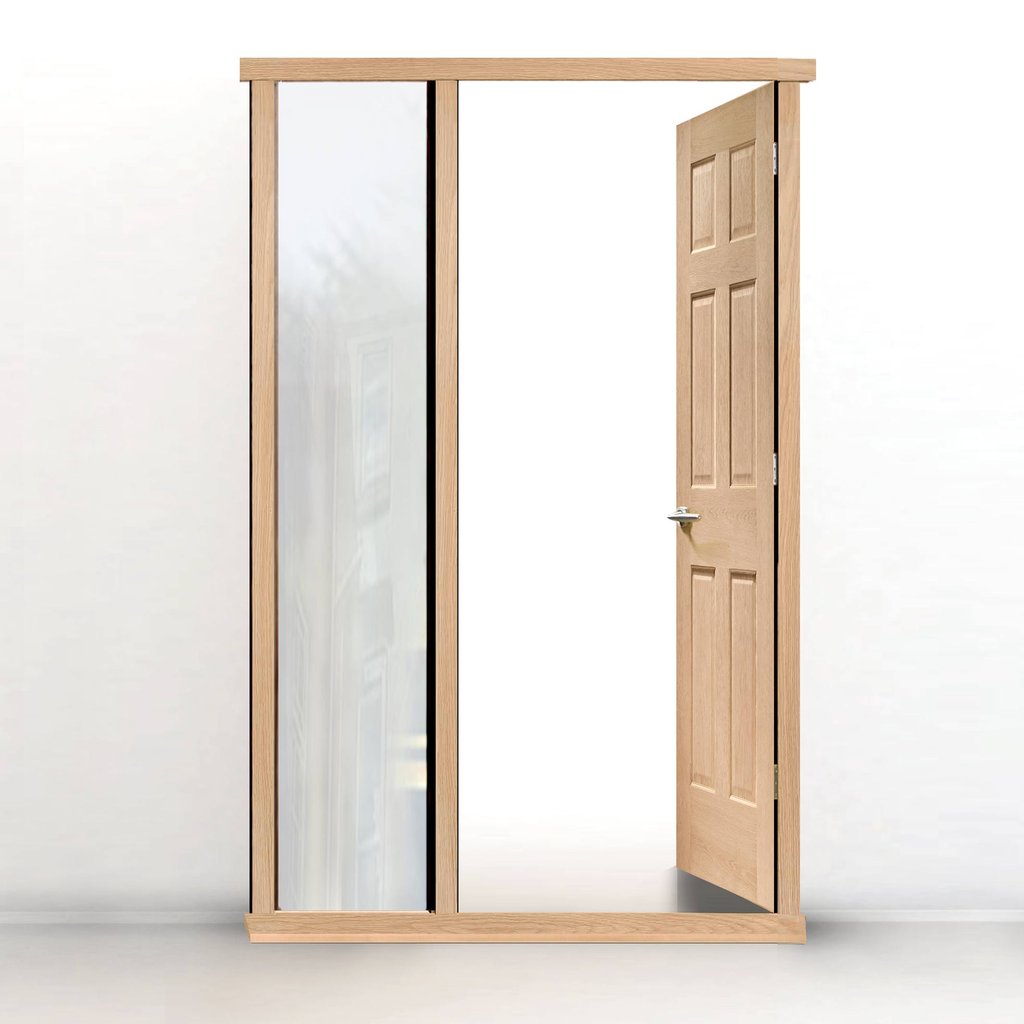

Exterior Door Frame with side glass aperture, Made to size, Type 2 Model 1.
FRAT293MOD1RG
We deliver for a small charge, anywhere in Mainland UK!
Note: Our high-end bespoke wooden frames are intentionally designed for painting as there may be variations in the finish on certain elements due to the natural materials used.
Please note the frame breadth, measured from the inner to outer edge, is 93mm.
The easiest way to order:
- This item is made to order and cannot be cancelled or refunded.
- Glass is not included, but is available to order.
- Choose the best door size from our door selection.
- Give us a note of your intended door size in the door size section.
- In the section below give us your overall frame width from left to right and then give us the height from floor to lintol as required.
We can alter the frame height or adjust the door within reason, we will let you know if your sizes do not work.
Select option:
Choose/Optional Add ons?
Artisanal Frame Premium Primed Finish - Only choose if a frame has been purchased. (7)
Draught Excluders (3)
Door Hinges (6)
Letterboxes (3)
Door Locks, Latches & Bolts (3)
