Wall Mounted Sliding Track

Configuration

Double

Door Quantity

2

Finish

Aluminium

Included Items

• 2x Door
• 1x Track - The track is not supplied pre-drilled. The pelmet to cover the track is not included.
• 2x Soft Closer
• Screws & Fixing (excluding wall fixing)

Handles are not included.

We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see Add-ons section.

Technical Specs

Product Advice:

• The supplied track will have a length equal to 4x the individual door width plus 100mm.
• Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
• The type of architrave used or existing can impact on visible clearances.
• Prices show the door and track combined cost, all prices are inclusive of vat and UK wide delivery which may be from 2 or more suppliers.
• Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are not included.
• There is a maximum 2051mm floor to top of track height requirement for all variations (if using a 1981mm high door) which includes some track adjustable tolerances for discrepancies to wall and floor levels, please note that the surface fix brackets are over and above these height requirements.

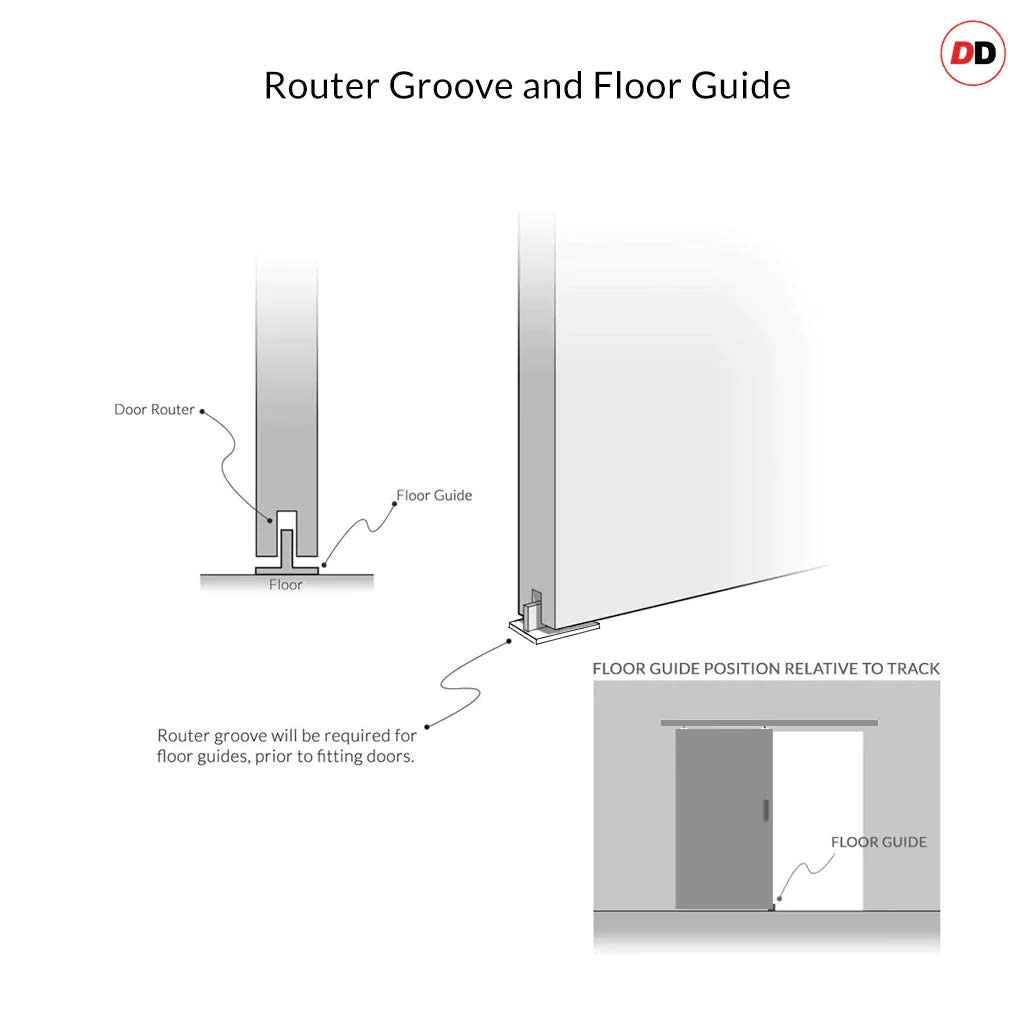

• Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
• Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
• Max door weight: This track is suitable for a maximum weight of 80 kg per door.
• All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.

Additional Information

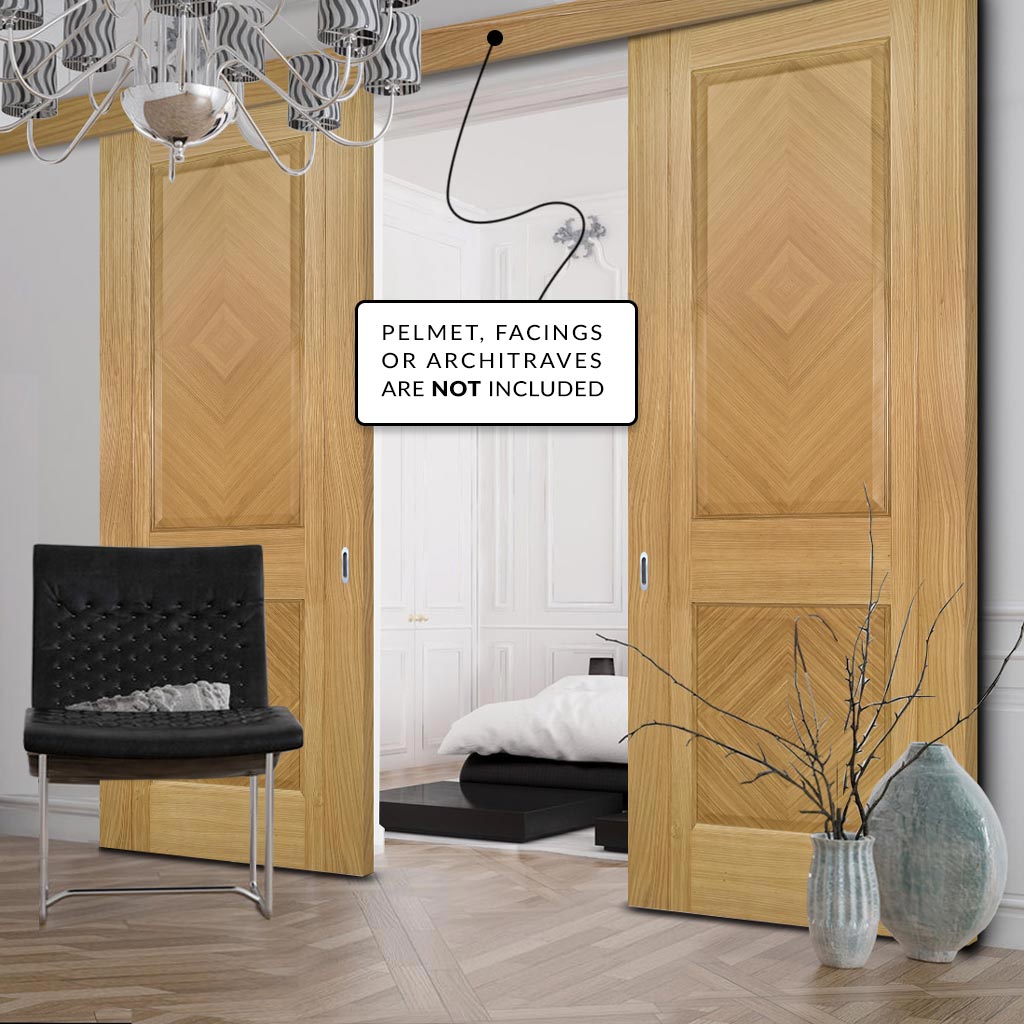

The track provided is not intended to be fully exposed, but to be hidden behind the pelmet. The pelmet is not included with the product, but can be purchased separately in the add-ons section.

Adjustment: Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Note:All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
