Solid
Self Assembly
DOOR TRACK
Product Advice:
- The track is supplied 2000mm long.
- Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening by 30mm all around, we have listed the overall dimensions in the door size options but you can choose to fit them to a smaller opening width/height, be careful as extra work may be required and the door cannot be cut from the size supplied.
- There is a maximum 52mm height requirement over and above any door height to the top of the track pelmet, this requirement for all doors includes some tolerances for discrepancies to wall and floor levels.
- All Premium systems include soft closers but you must set the track door stops to prevent damage/destruction of glass upon closing.
- Prices show the sliding door cost inclusive of the track and wheel options, all prices are inclusive of vat and UK wide delivery which may be from 2 suppliers.
- Aluminium Coloured finish.
- Track is supplied with a small guide channel for fitting at the bottom on the floor below the glass door to facilitate smooth operation, no bottom doorway track is required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
- Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
- See our full range of handles and fittings here.
- Price
- Includes track and soft close.
- Supplier Delivery Timescale
- See delivery icon at the top of the product page.
- Door Thickness
- To suit a 35mm or 40mm door.
- Max Door Weight
- 80kg.
- Guarantee
- 12 months
- Note
- The style of track stops may vary depending on the size chosen.
- Note
- This track is not fire-rated and is not suitable for fire doors.
- Important
- All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
- Suggested Minimum Skill Level
- Advanced DIY & Specialist Joinery Tools Required.
- Adjustment
- Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.
DD

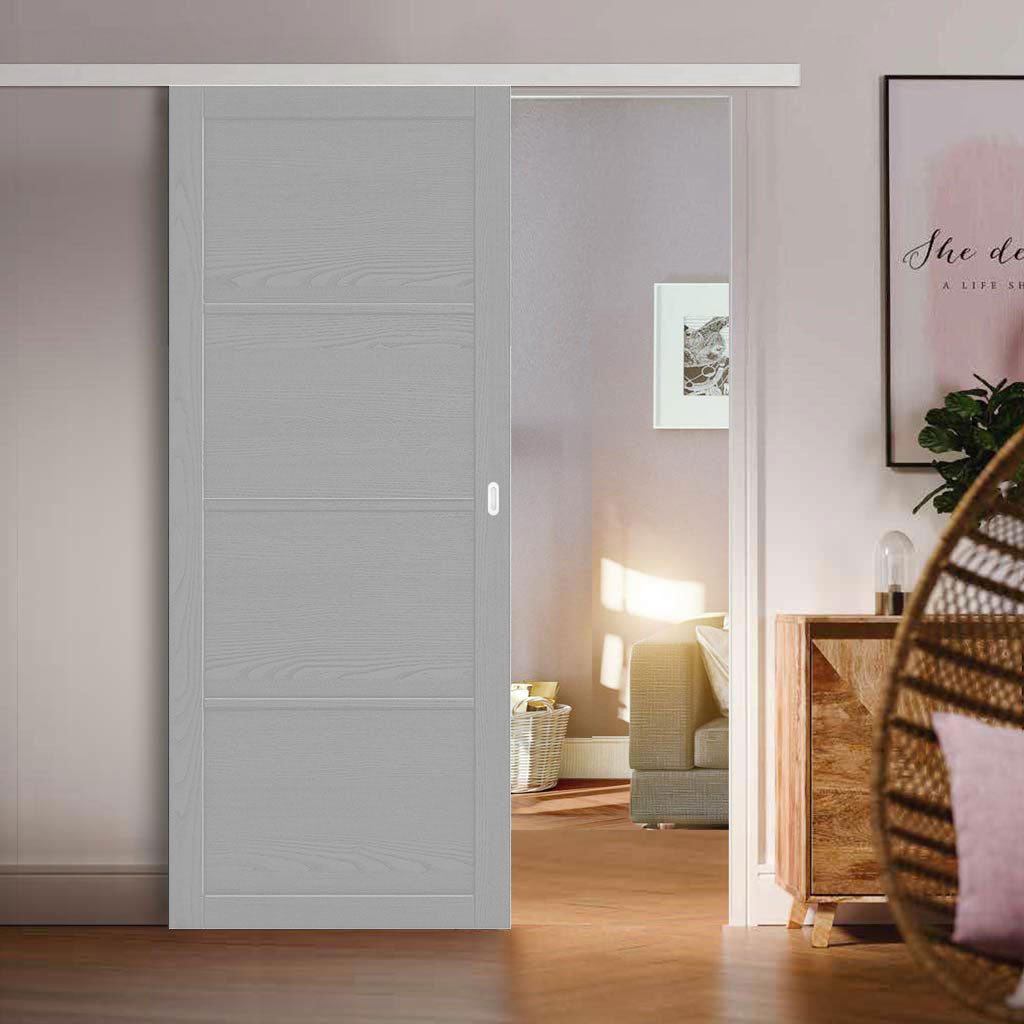

Aluminium Concealed Premium Single Sliding Wall Track for Wooden Doors
PREM-QH-1195-AL-1-0-686
Save 10%
Regular priceWas £278.79
Sale price£250.75
In stock

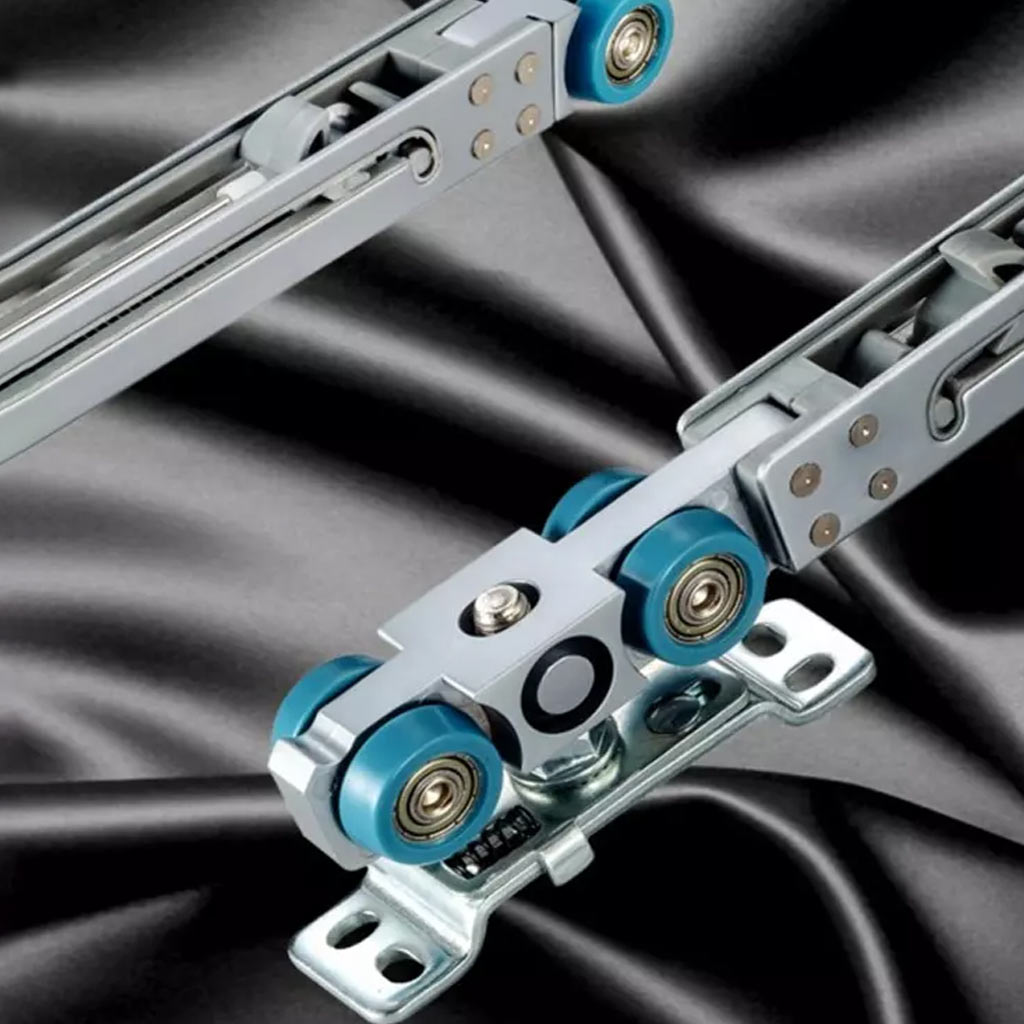

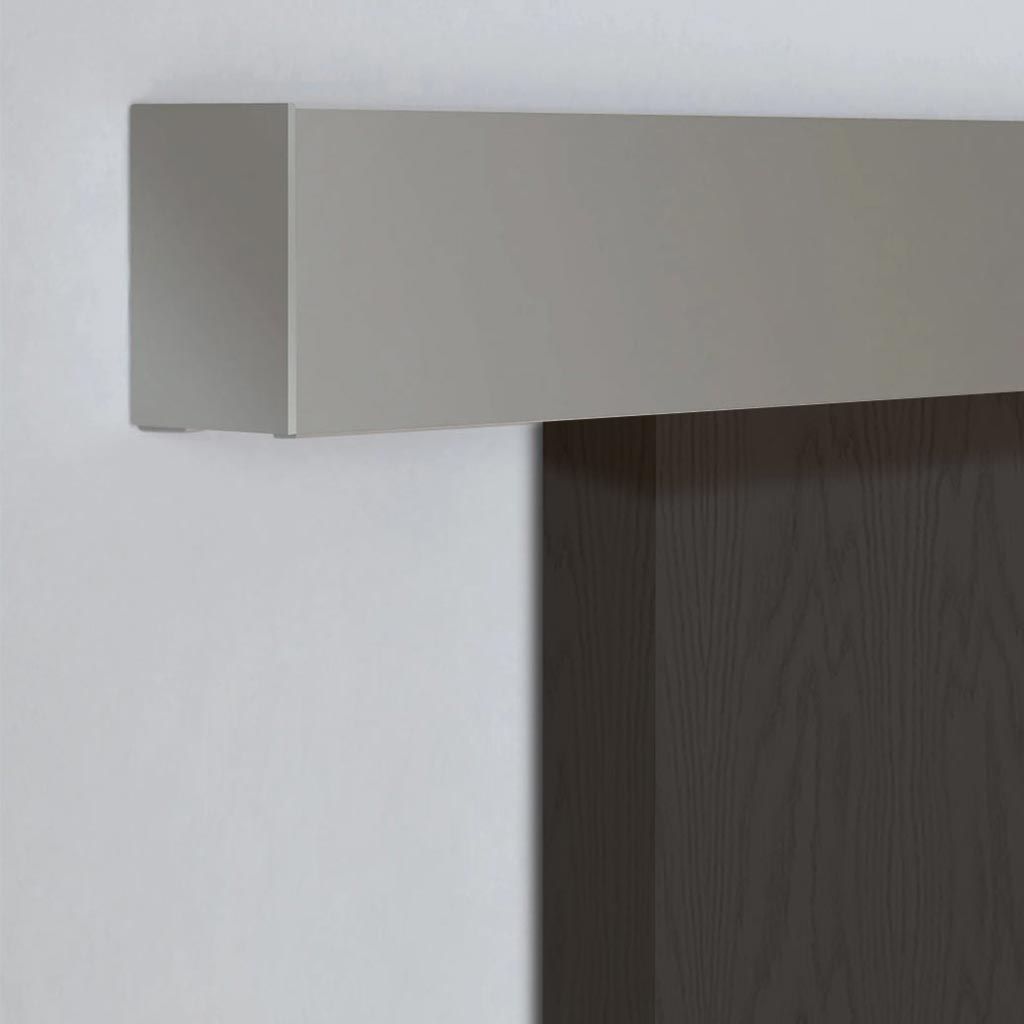

The Premium Single Sliding Track System is a sliding hardware system with concealed fittings and comes with a sleek aluminium plate, adding a modern touch throughout.
Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
Please note you may receive deliveries from 2 or more suppliers.
3-4 working days
Select option:
To suit 686mm Door - For Openings 1970mm High x 666mm Wide
£250.75
RRP
To suit 762mm Door - For Openings 1970mm High x 742mm Wide
£250.75
RRP
To suit 838mm Door - For Openings 1970mm High x 818mm Wide
£250.75
RRP
To suit 626mm Door - For Openings 2030mm High x 606mm Wide
£250.75
RRP
To suit 726mm Door - For Openings 2030mm High x 706mm Wide
£250.75
RRP
To suit 826mm Door - For Openings 2030mm High x 806mm Wide
£250.75
RRP
