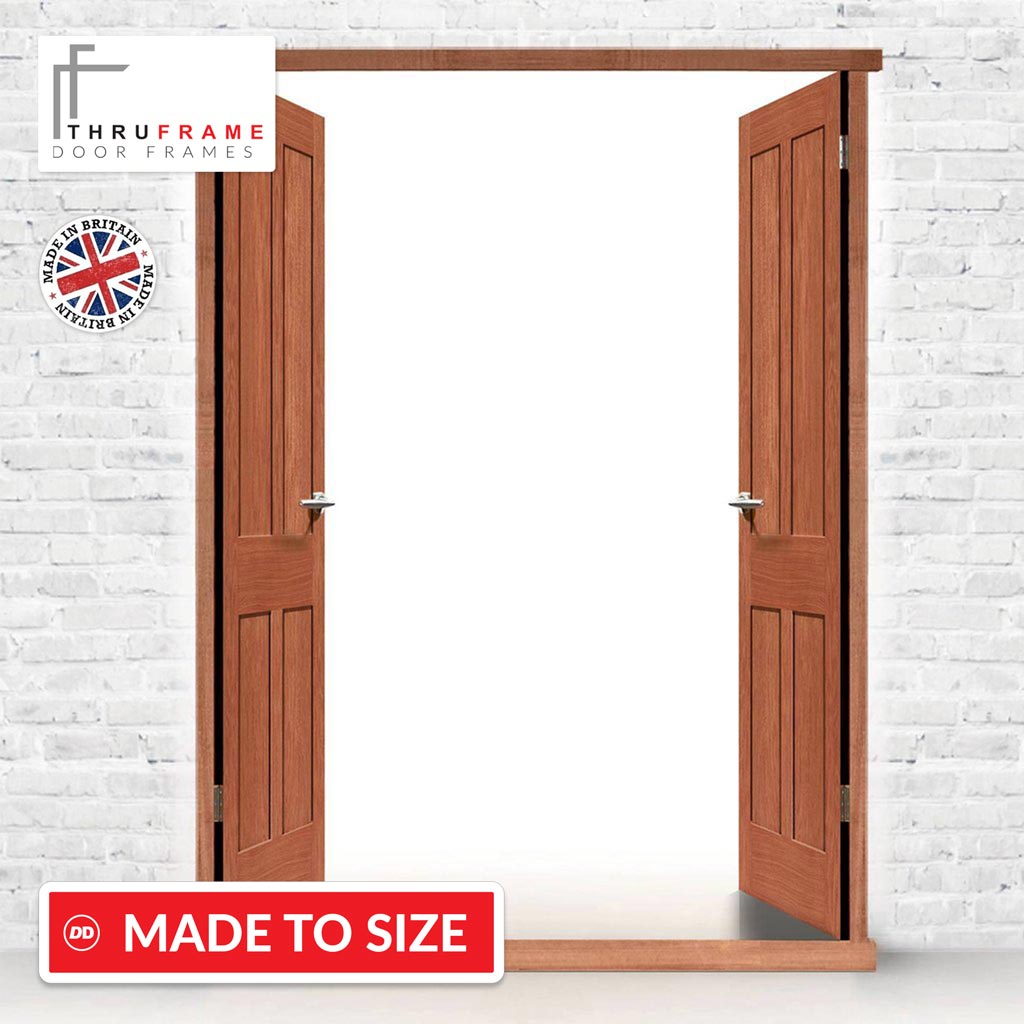

Exterior Double Door Frame, Type 1 for Double Doors, Made to size, with or without threshold or cill.

In Stock

5-7 Weeks

Assembled

We deliver for a small charge, anywhere in Mainland UK!

Note: Our high-end bespoke wooden frames are intentionally designed for painting as there may be variations in the finish on certain elements due to the natural materials used.

Please note the frame breadth, measured from the inner to outer edge, is 93mm.

The easiest way to order:

This item is made to order and cannot be cancelled or refunded.
Choose the best door sizes that you intend to use as a pair from our door selection and then choose this frame.
Give us your overall frame width, from left to right.
Now give us the height from floor to lintol as required in the section below, we can alter the frame height or adjust the door within reason, we will let you know if your sizes do not work.

We can alter the frame height or adjust the door within reason, we will let you know if your sizes do not work. Read more

Made in Grandis Hardwood (FRAT193DDRG)

£852.37 RRP: £910.60

£0.00

Overall Frame Dimensions (required) i

Note:

Please enter the overall required frame dimensions in millimetres.

For inward opening sets: as a general thumb-rule your overall frame size is USUALLY your door height plus 116mm and your door width plus 102mm.

(116mm = 47mm frame head + 4mm clearance + 25mm draught bar clearance + 40mm cill)

(102mm = 47mm frame legs + 4mm clearance to either side of the door)

For outward opening sets: it is USUALLY your door height plus 102mm and your door width plus 102mm

(102mm = 47mm frame head + 4mm clearance to top and bottom of the door + 47mm weather cill)

(102mm = 47mm frame legs + 4mm clearance to either side of the door)

If you need a door that's bigger or smaller than these sizes, enter your required dimensions, choose the rest of your door preferences, and you may be able to get a quotation instead of placing an order.

mm 1000-1929mm

mm 2042-2249mm

Cill Below the Door (required) i

Note:

The cill sizes listed are the sizes of the cill where it projects past the outer face of the frame.

Handing (required) i

Note:

Handing is the term used to describe the indication of whether the door opens inwards or outwards. It is important to keep this in mind when fitting both internal doors and external doors.

Handing is ALWAYS considered from the OUTSIDE of the room or building that the door is for.

P-Seal Colour (required) i

Note: Please choose the required seal colour for the P seals.

Frame Breadth (required) i

Note: This is the overall size of the frame from inside to outside.

Opening (required) i

Note: Please specify if the door fitted will open in or out. Note that if you choose to open out, there will be no space for the draught bar.

Draught Bar Clearance (required) i

Note: Please specify your desired clearance for the draught bar. The draught bar is not included, but it can be purchased separately from the add-on section below. Please choose the "No draught bar" option if you would like your door to open outside.

Please confirm your understanding that full frame painting is required. (required) i

Note: Whilst these frames are meticulously crafted, please note that there may be finish variations in specific components due to the natural materials used. As a result, it is crucial to ensure the frames are fully painted before finishing. Choose our professional finishing service from the add-on options below or opt to complete the finishing process yourself.

This item is a bespoke product. Please click the info button for more details. (required) i

Note: To clarify, this product is a bespoke item and cannot be cancelled or returned after placing your order. This product is made to your chosen dimensions and by ticking this box, you confirm you are happy to proceed with the order and the timescale given with it.
