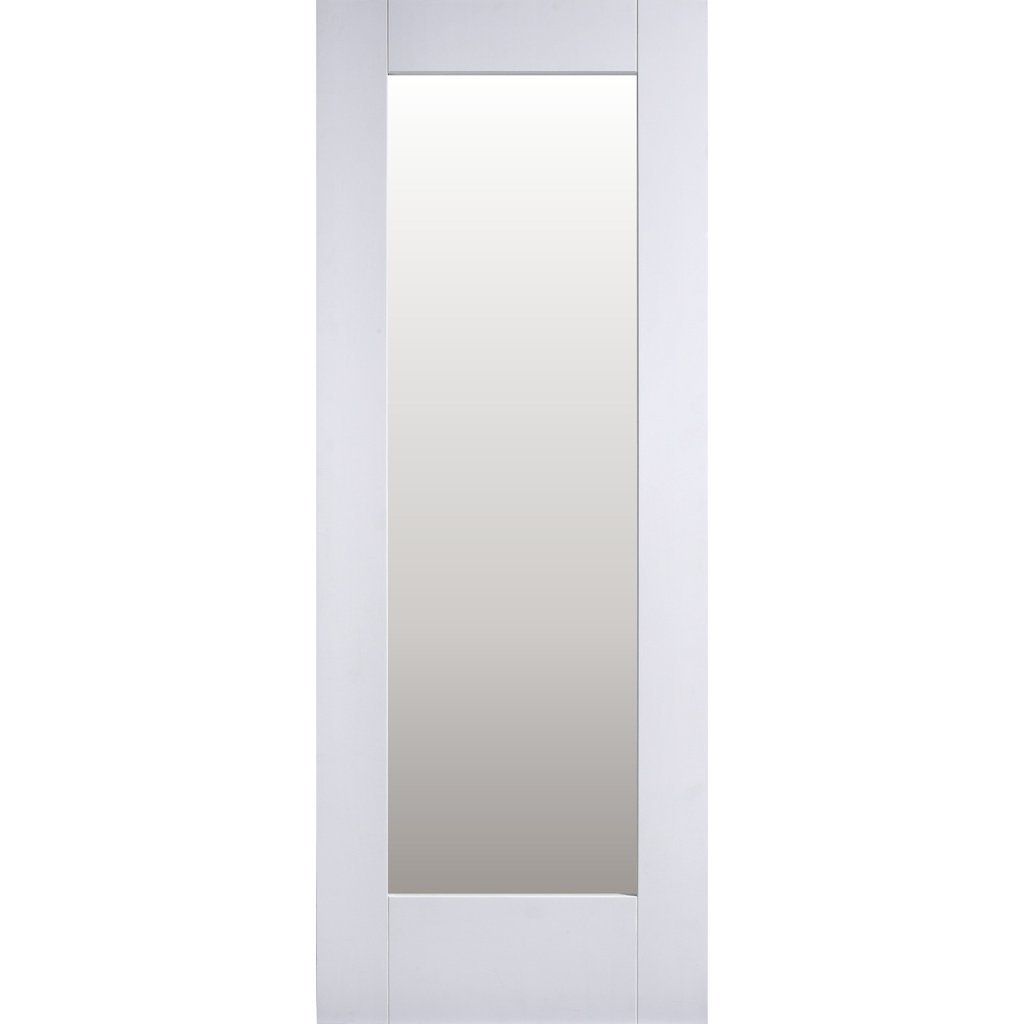

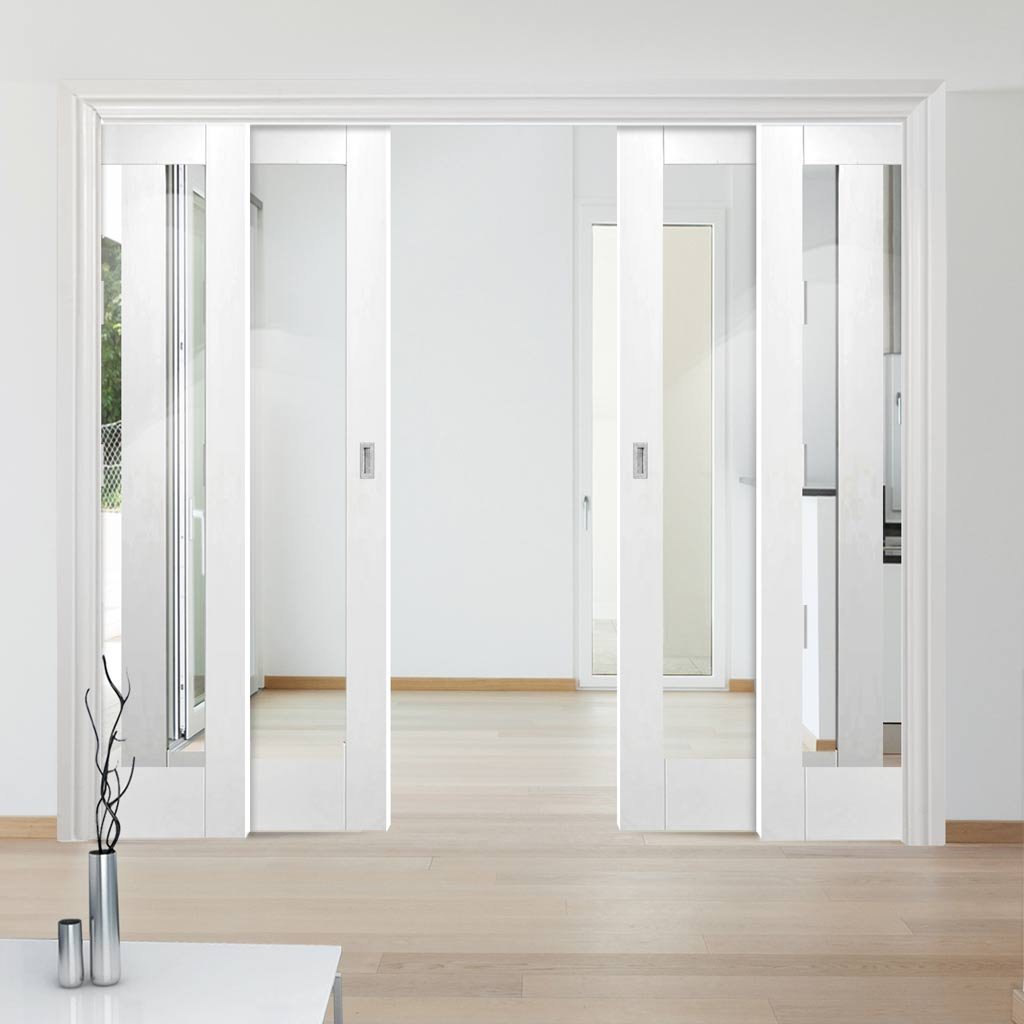

Pattern 10 1L Staffetta Quad Telescopic Pocket Doors - Clear Glass - Primed
All Staffetta telescopic pocket cassettes may be kerbside delivery only and not in to the home..... doors are delivered separately.

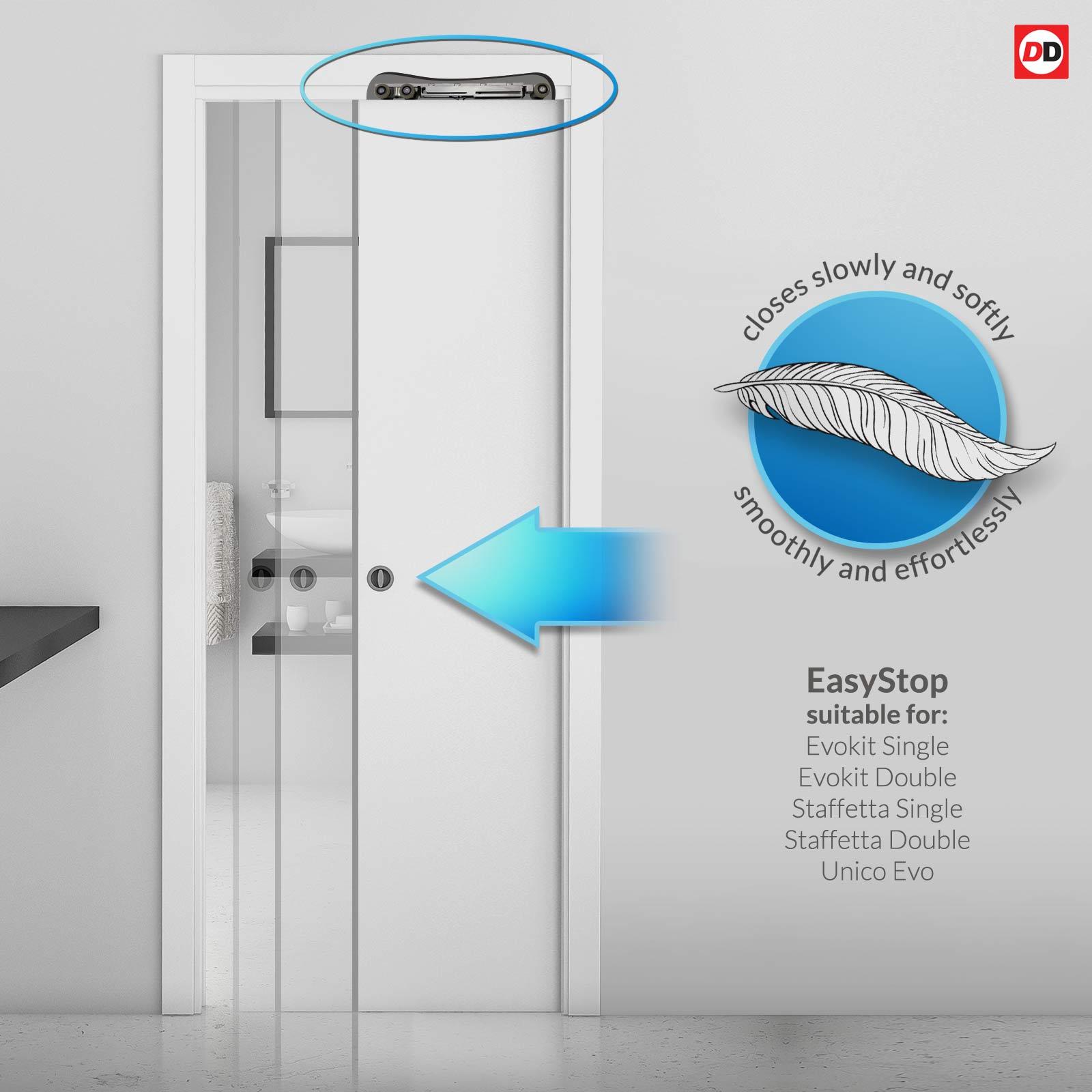

Two 80kg Soft Close accessories to close the doors slowly are included. Read more
2050x3620mm Wide/1981x610mm Doors (GWPP1024C-PSQT)
2050x4120mm Wide/1981x686mm Doors (GWPP1027C-PSQT)
2050x4640mm Wide/1981x762mm Doors (GWPP1030C-PSQT)
2050x4940mm Wide/1981x838mm Doors (GWPP1033C-PSQT)
2110x4280mm Wide/2040x726mm Doors (GWPP10726C-PSQT)
2110x4880mm Wide/2040x826mm Doors (GWPP10826C-PSQT)
A router will be required for door(s) installation.
Please click here to find our manufacturers care and decoration advice for this door.

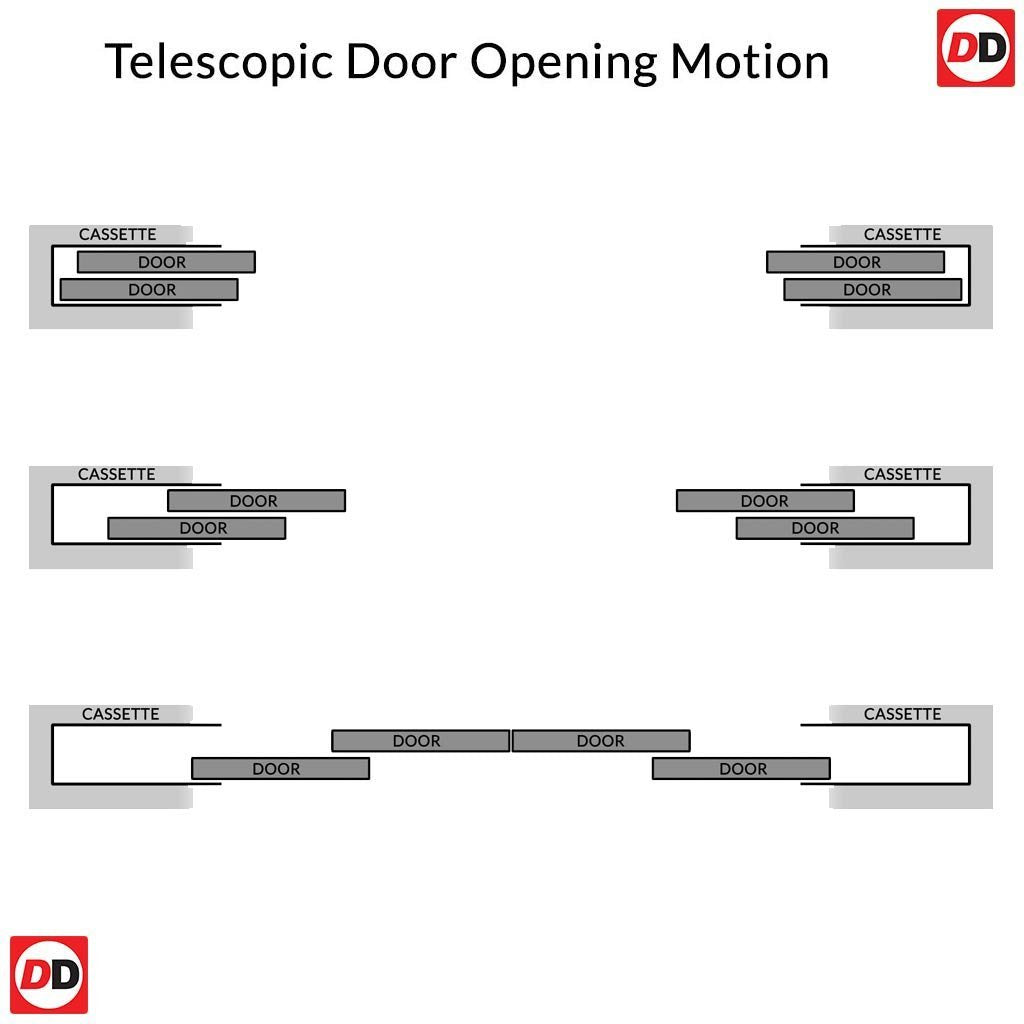

System operation viewed from above:

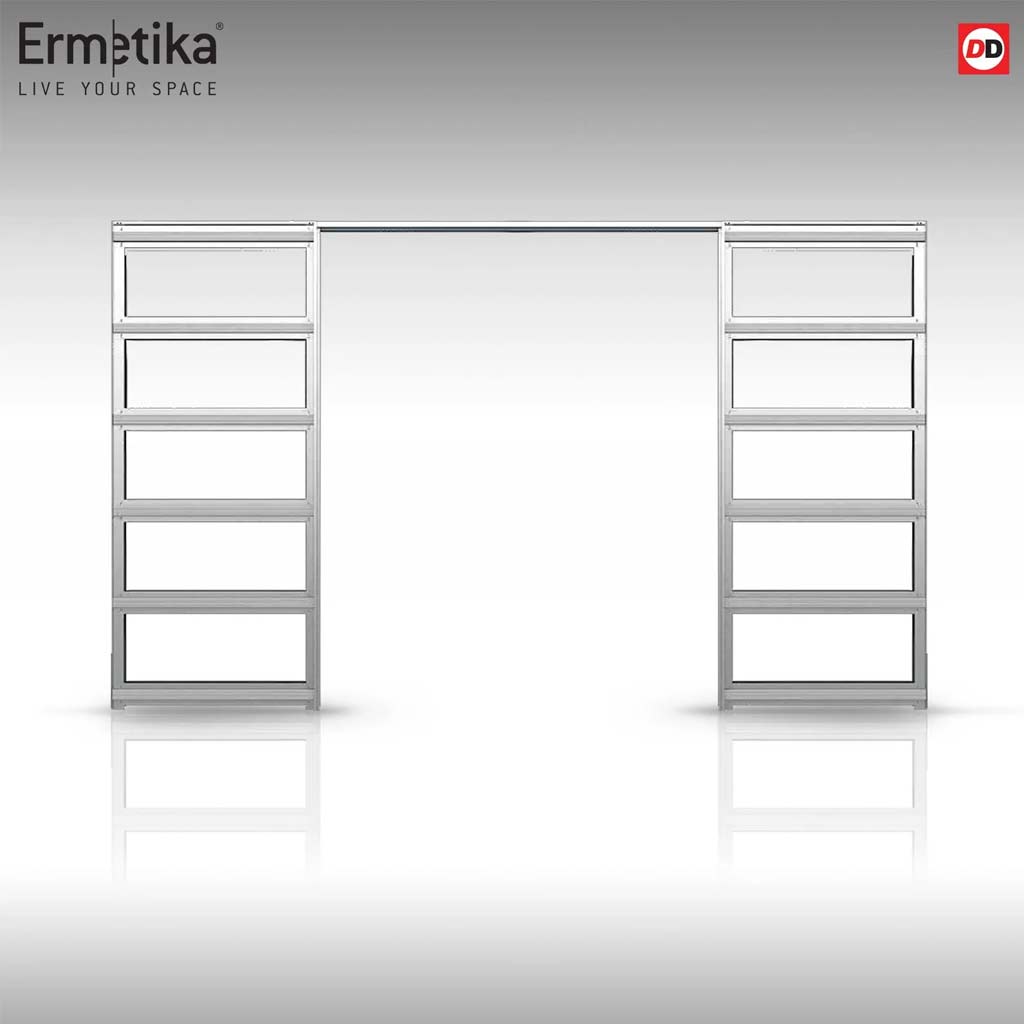

Our all new Ermetika interior two door pocket systems have a free delivery as standard, these pocket doors come with full fitting instructions and the door system allows you to slide the doors straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings and the door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.
See our "Dimensions PDF" for all sizes but use as a guide only.
The Ermetika pockets are available in one standard width for a finished wall thickness of 180mm.
Email firstname.lastname@example.org to receive a quote for any special sizes.
The idea is to build the pocket to the same thickness as the studwork - 155mm (6" approx) so that you can directly fit the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of 180mm (7").
Further layers of plasterboard can be added to increase the overall wall thickness but other joinery work may be required. When fully open the leading door projects 9cm out of the pocket.
When the telescopic doors are fully closed with both doors out of the cassette, the overlap of the doors will be about 5 cm on average.
Bespoke orders or parts thereof will not be cancelled regardless of quoted timescale as this may involve goods travelling from Europe, Indonesia etc and may be in transit or manufacturing may have commenced, charges will apply.

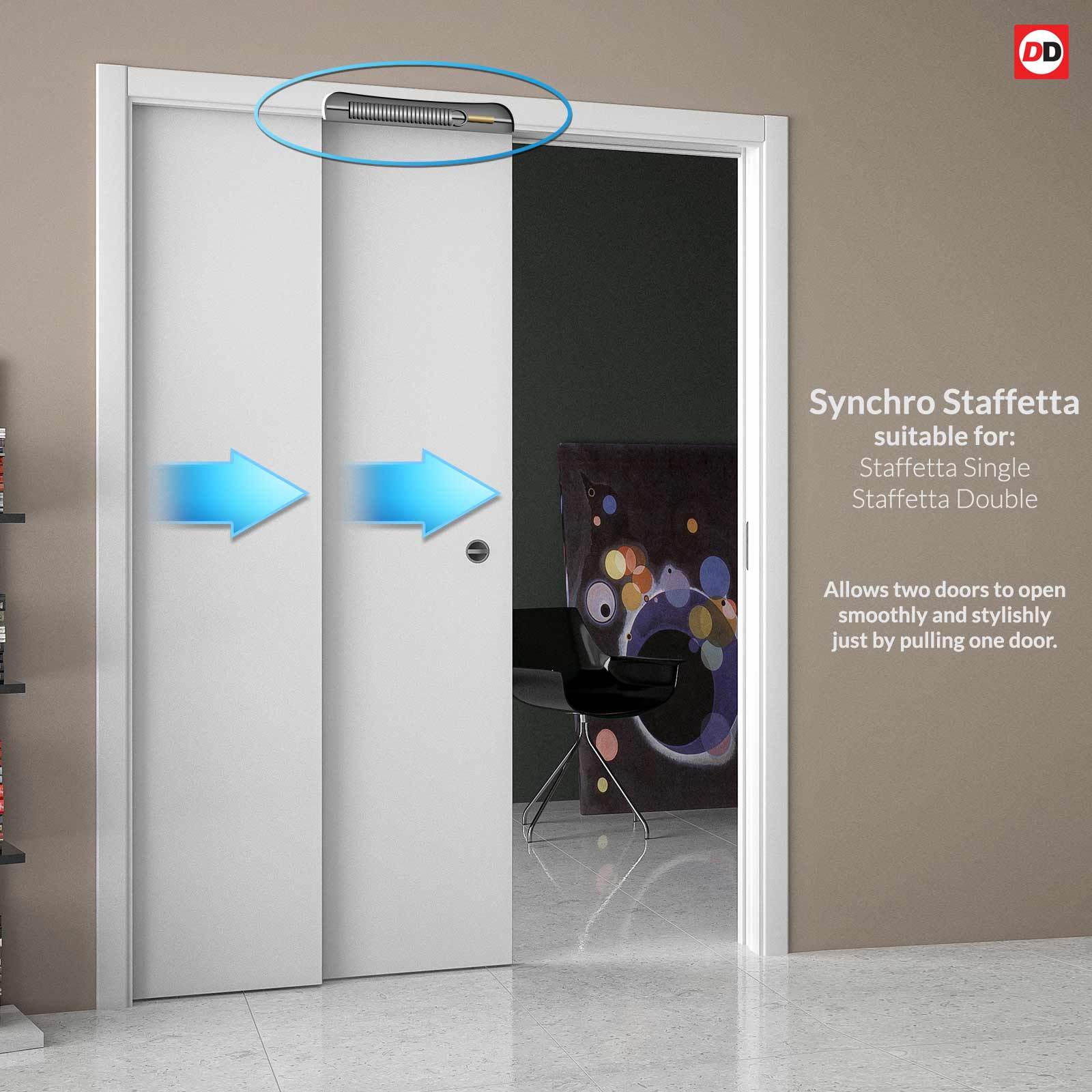

Size limitation: Staffetta Synchroniser accessory cannot be installled on any door below 615mm wide.
All accessories for pocket doors including flush door pulls can be purchased seperately.
Doors will require a routered channel to be created in the bottom of each door to accommodate the supplied track guides.
The pocket door frame must be concealed with your own wall and architraves when installing.
Note: These are four individual doors put together as two pairs and as such we cannot guarantee a perfect colour match.
|Suggested Minimum Skill Level||Advanced DIY & Specialist Joinery Tools Required.|
|Dimensions||35mm or 40mm doors (depending on choice and availability) and a frame section of 180mm.|
|Notes||The sizes listed above are for the overall door and pocket set which includes the metal pocket frame but does not include any architrave or plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.|
|Important||All Staffetta door items are supplied in kit form, any glass is pre-installed in the door.|
|Normal Availability for our Delivery Service||See delivery icon on top of the product page.|
|Adjustment||Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.|
|Assembly||Self Assembly may take 3-4 hours|
|Construction||All doors are 35mm or 40mm thick depending on your choice, cores are semi solid/solid MDF or similar with a quality timber veneer or surface material for painted and white versions.|
|Price||The price quoted is for the door(s), pocket system frame, all track fittings but no handles, any glass shown is pre-installed in the doors.|
