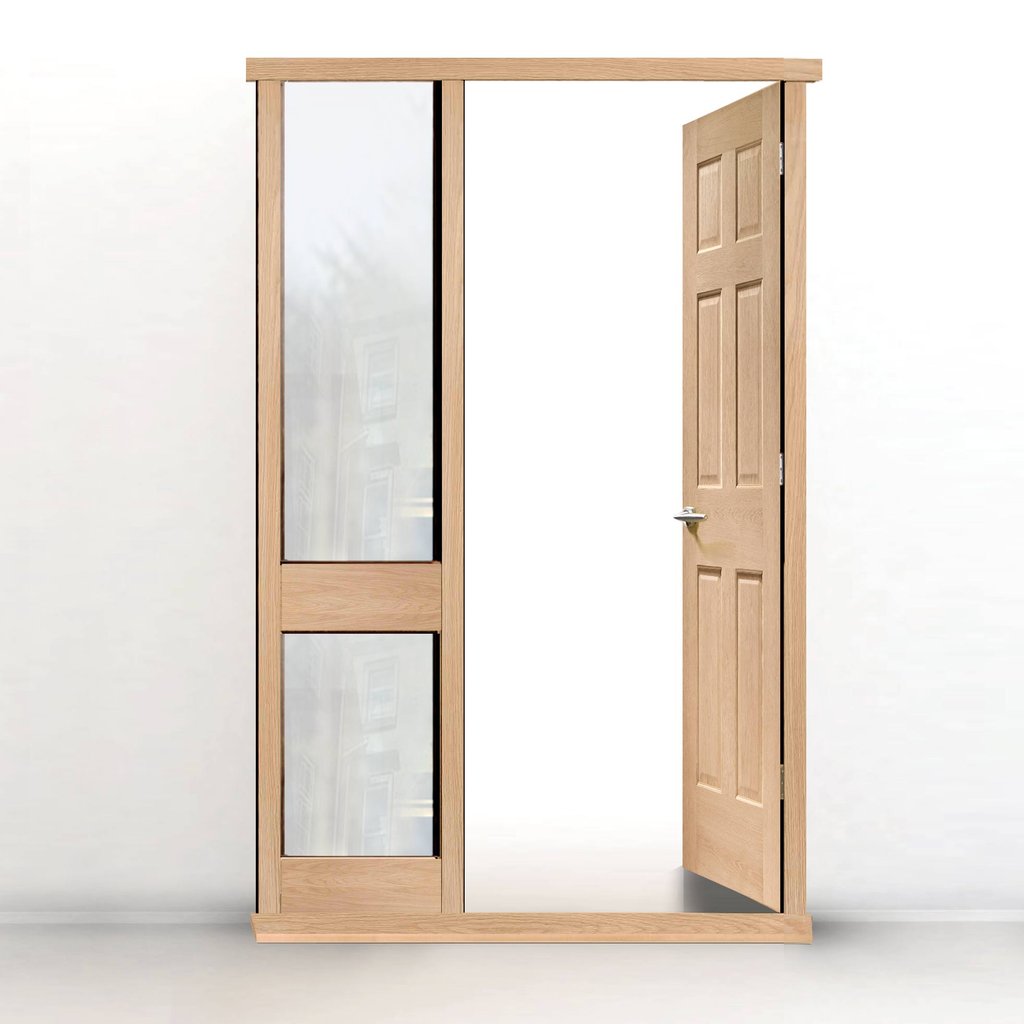

Exterior Frame Type 2 Model 5 Complete Door Set

In Stock

7-8 Weeks

Self Assembly

Note: Our high-end bespoke wooden frames are intentionally designed for painting as there may be variations in the finish on certain elements due to the natural materials used.

One fantastic all inclusive frame price for the following:

  • Hanging the door in the frame on four quality hinges.
  • Fitting the Winkhaus ThunderBolt™ 5-Point Locking System - the lock keepers and plates will be supplied in mill (silver) finish, regardless of the finish chosen for the handle and hinges.
  • High quality handles, hinges, letterbox and Exitex draught excluders.
  • For details on the available finishes of the included ironmongery, please see here.
  • Two man delivery, the door will be removed from the frame for delivery purposes, simply put the door back in the pre-formed hinge positions.
  • Any double glazing for the frame is included and supplied loose for delivery to allow the frame to be fixed to the wall first - just choose your glass.
  • Please advise us if there are any requirements for disabled access for personal or planning purposes.
  • Premium primed and ready for final coating.
  • If you prefer the townhouse lock instead of the standard multipoint lock, please message us when placing your order or contact us in advance at info@directdoors.com.

All sets are inclusive of locks, hinges, handles, letter plate (if chosen), weather bars etc, these are all pre-fitted and ready for installation but some items will be removed to allow for safe transportation and ready for you to easily assemble on site. Read more

Variant

Grandis Hardwood Door Set (EXTT2RGMOD5)

£2,900.30

£0.00

i

Note: The breadth of the frame will be 93mm from inside the house to the outside.

i

Note:

Please enter the overall required frame dimensions in millimetres.



For inward opening sets: as a general thumb-rule your overall frame size is USUALLY your door height plus 116mm and your door width & side screen width plus 140mm.

(116mm = 47mm frame head + 4mm clearance + 25mm draught bar clearance + 40mm cill)

(140mm = 47mm x2 frame legs + mullion 38mm + 4mm clearance to either side of the door)



For outward opening sets: it is USUALLY your door height plus 102mm and your door width & side screen width plus 140mm.

(102mm = 47mm frame head + 4mm clearance to top and bottom of the door + 47mm weather cill)

(140mm = 47mm x2 frame legs + mullion 38mm + 4mm clearance to either side of the door)



If you need a door that's bigger or smaller than these sizes, enter your required dimensions, choose the rest of your door preferences, and you may be able to get a quotation instead of placing an order.

mm 1150-1635mm
mm 2000-2250mm
i

Note:

The cill sizes listed are the sizes of the cill where it projects past the outer face of the frame.

i

Note:

Always view the handing from the outside.Handing is the term used to describe the indication of which side of a door the hinges are placed and whether the door options inwards or outwards, it's very helpful to know this especially when buying an external 'door & frame package' or a pair of doors.

i

Note:

Please choose the required finish - The lock keepers and plates will be supplied in mill (silver) finish, regardless the finish of the handle and hinges. To see the exact style of handle and other ironmongery visit this link.

i

Note:

Please choose your preferred option.

i

Note: Please choose your preferred colour option. The finish is premium primed and therefore the frame(s) need to be finished on site using the paint pot supplied. On average, paint glossiness is 15-20%.

i

Note: Please choose the required seal colour for the P seals.

i

Note:

Please choose if you would like a letterbox, if yes this will be fitted to your chosen door. The color of the letterplates will complement the chosen handle finish, to see the exact style of letterbox, visit this link.

i

Note:

Please specify if you would like a standard draught bar, a lower draught bar, or no draught bar included. Note that if you choose to open out, there will be no draught bar fitted.

i

Note:

Please specify if the door fitted will open in or out. Note that if you choose to open out, there will be no draught bar fitted.

This item is not for individual purchase and must be bought as part of a bundle.
