Home › Single Sliding Door Wall Track
Single Sliding Door Wall Track
Blank
Self Assembly

Give your home a stylish and practical update with this versatile single sliding door wall track. Perfect for bedrooms, kitchens, living rooms or home offices, it offers a clever space-saving alternative to traditional hinged doors. Whether you're creating a cosy private retreat or a more open and connected living space, this sliding track allows you to enjoy flexible room layouts while adding a clean, contemporary touch to your interior.

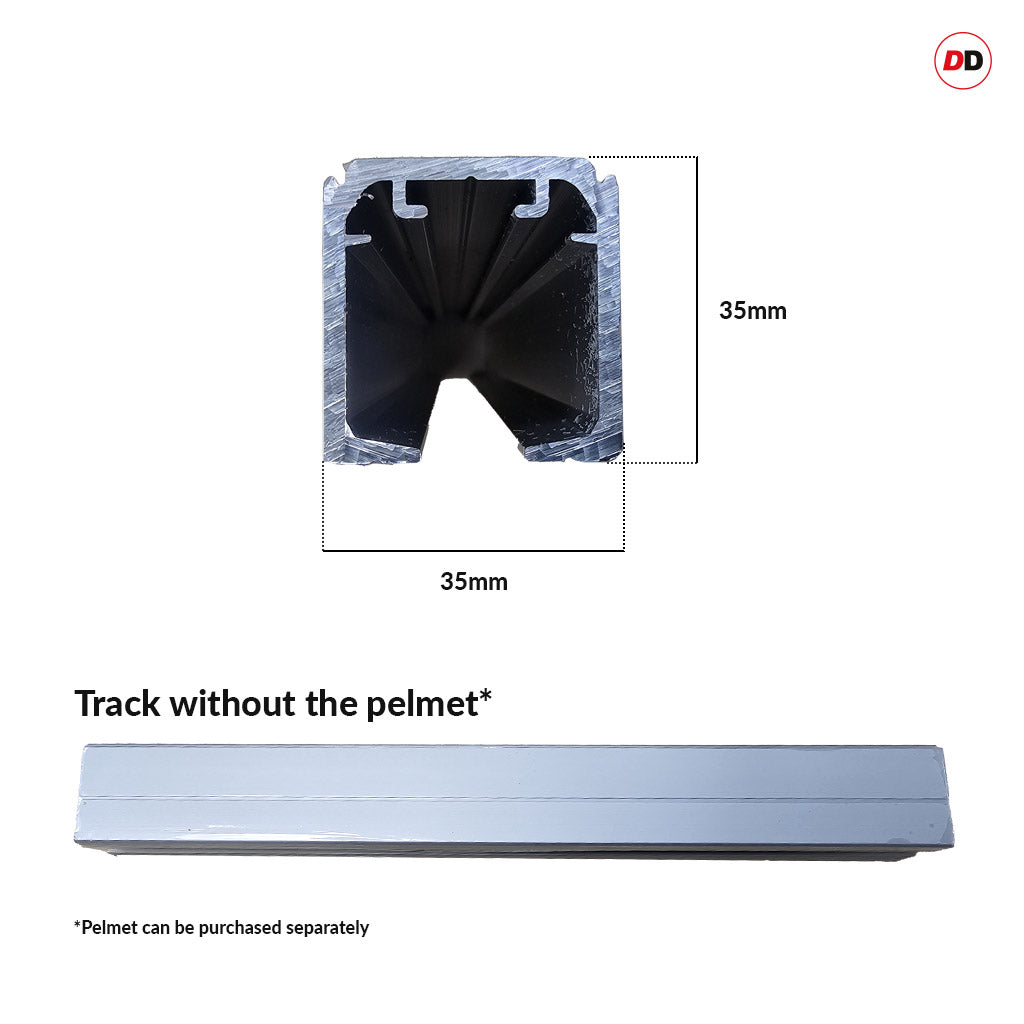

Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Usage
Internal
Guarantee
12 months

Wall Mounted Sliding Track

Configuration
Single
Finish
Aluminium
Included Items
  • 1x Track - The track is not supplied pre-drilled. The pelmet to cover the track is not included.
  • 1x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see Add-ons section.

Technical Specs

Product Advice:

  • The supplied track will have a length equal to 2x the door width plus 100mm.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are available at an extra cost as you go through the buying process, you will require these material sections at some point in the installation process to complete the fitting. Please see pelmet option for material and installation details.
  • There is a maximum 2051mm floor to top of track height requirement for all variations (if using a 1981mm high door) which includes some track adjustable tolerances for discrepancies to wall and floor levels, please note that the surface fix brackets are over and above these height requirements.

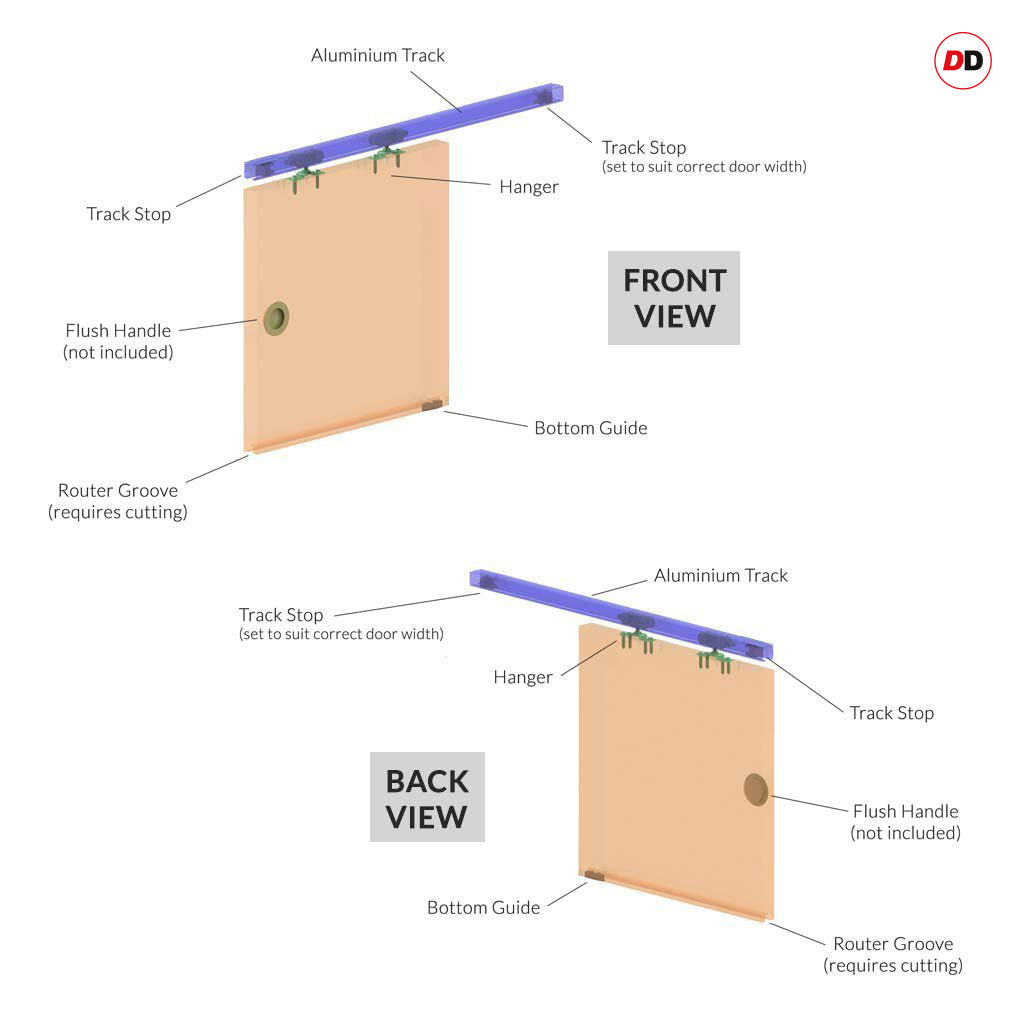

  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
Additional Information

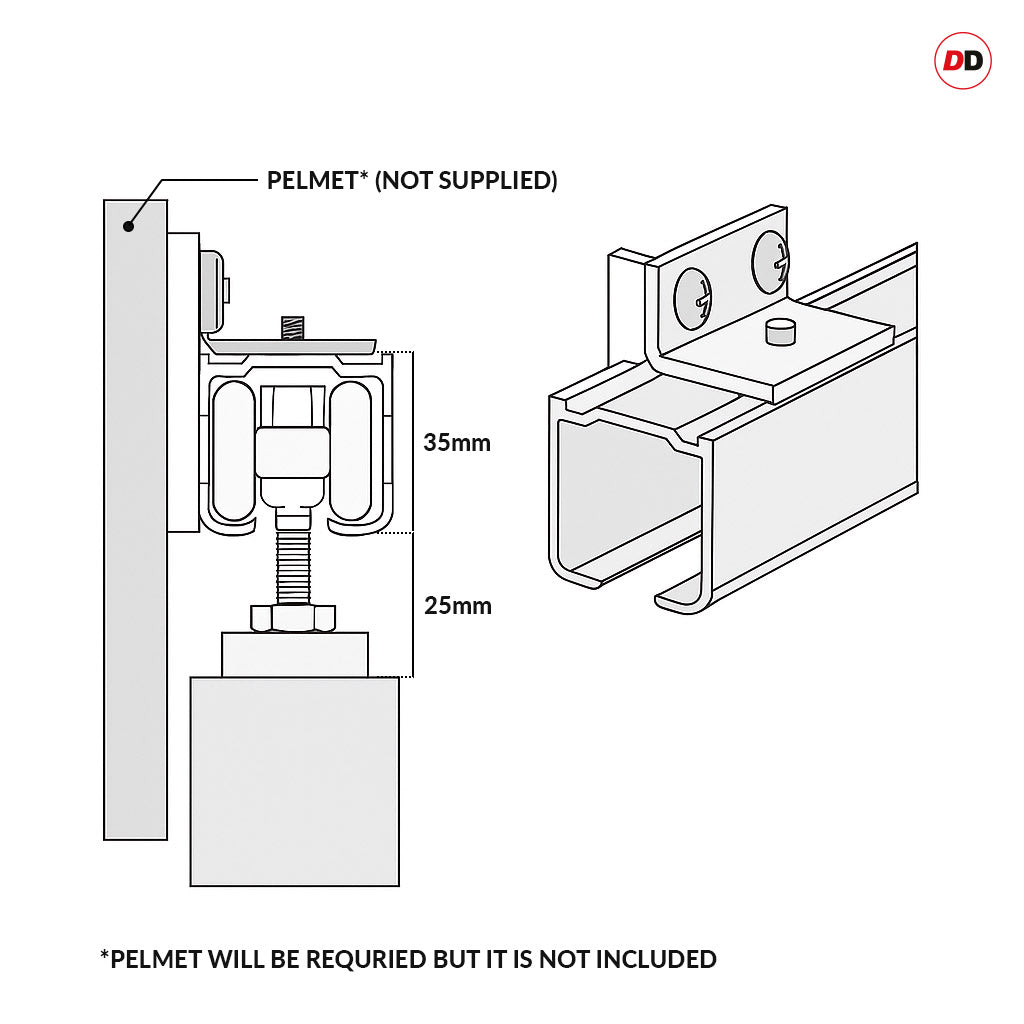

The track provided is not intended to be fully exposed, but to be hidden behind the pelmet. The pelmet is not included with the product, but can be purchased separately in the add-ons section.

Adjustment: Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Fitting Instructions

Soft Closer Fitting Instructions

EC

Single Sliding Door Wall Track

SURF-QH-1195-AL-1-0-KIT|610

£232.72
Made to Order

The Single Sliding Door Wall Track offers excellent design without the high cost, making quality accessible.

Important: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Note: This track will require pelmet, this can be purchased separately in the add-on options.

3-4 Weeks
iwocaPay trade finance options

Select option:
To suit 610mm Door - For Openings 1970mm High x 590mm Wide
£232.72
To suit 686mm Door - For Openings 1970mm High x 666mm Wide
£232.72
To suit 762mm Door - For Openings 1970mm High x 742mm Wide
£232.72
To suit 838mm Door - For Openings 1970mm High x 818mm Wide
£232.72
To suit 626mm Door - For Openings 2030mm High x 606mm Wide
£232.72
To suit 726mm Door - For Openings 2030mm High x 706mm Wide
£232.72
To suit 826mm Door - For Openings 2030mm High x 806mm Wide
£232.72
To suit 926mm Door - For Openings 2030mm High x 906mm Wide
£232.72

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Sliding Door Pelmet

Sliding Door Pelmet (4)

Loading...
Blank
Self Assembly

Give your home a stylish and practical update with this versatile single sliding door wall track. Perfect for bedrooms, kitchens, living rooms or home offices, it offers a clever space-saving alternative to traditional hinged doors. Whether you're creating a cosy private retreat or a more open and connected living space, this sliding track allows you to enjoy flexible room layouts while adding a clean, contemporary touch to your interior.
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Usage
Internal
Guarantee
12 months

Wall Mounted Sliding Track

Configuration
Single
Finish
Aluminium
Included Items
  • 1x Track - The track is not supplied pre-drilled. The pelmet to cover the track is not included.
  • 1x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see Add-ons section.

Technical Specs

Product Advice:

  • The supplied track will have a length equal to 2x the door width plus 100mm.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are available at an extra cost as you go through the buying process, you will require these material sections at some point in the installation process to complete the fitting. Please see pelmet option for material and installation details.
  • There is a maximum 2051mm floor to top of track height requirement for all variations (if using a 1981mm high door) which includes some track adjustable tolerances for discrepancies to wall and floor levels, please note that the surface fix brackets are over and above these height requirements.
  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
Additional Information

The track provided is not intended to be fully exposed, but to be hidden behind the pelmet. The pelmet is not included with the product, but can be purchased separately in the add-ons section.

Adjustment: Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Fitting Instructions

Soft Closer Fitting Instructions
