Home › Premium Single Sliding Door & Wall Track - Chelsea 4 Pane Black Primed Door - Clear Glass

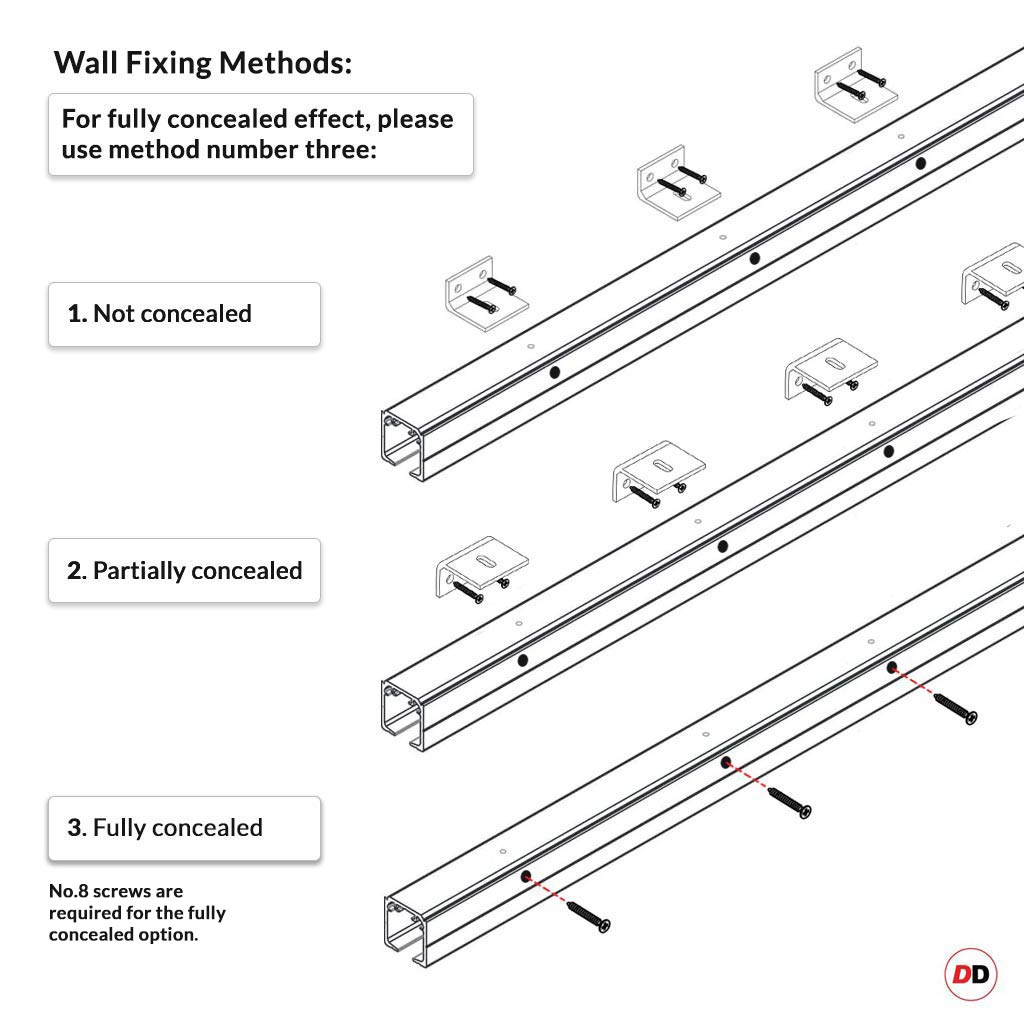

3 Wall Fixing Methods

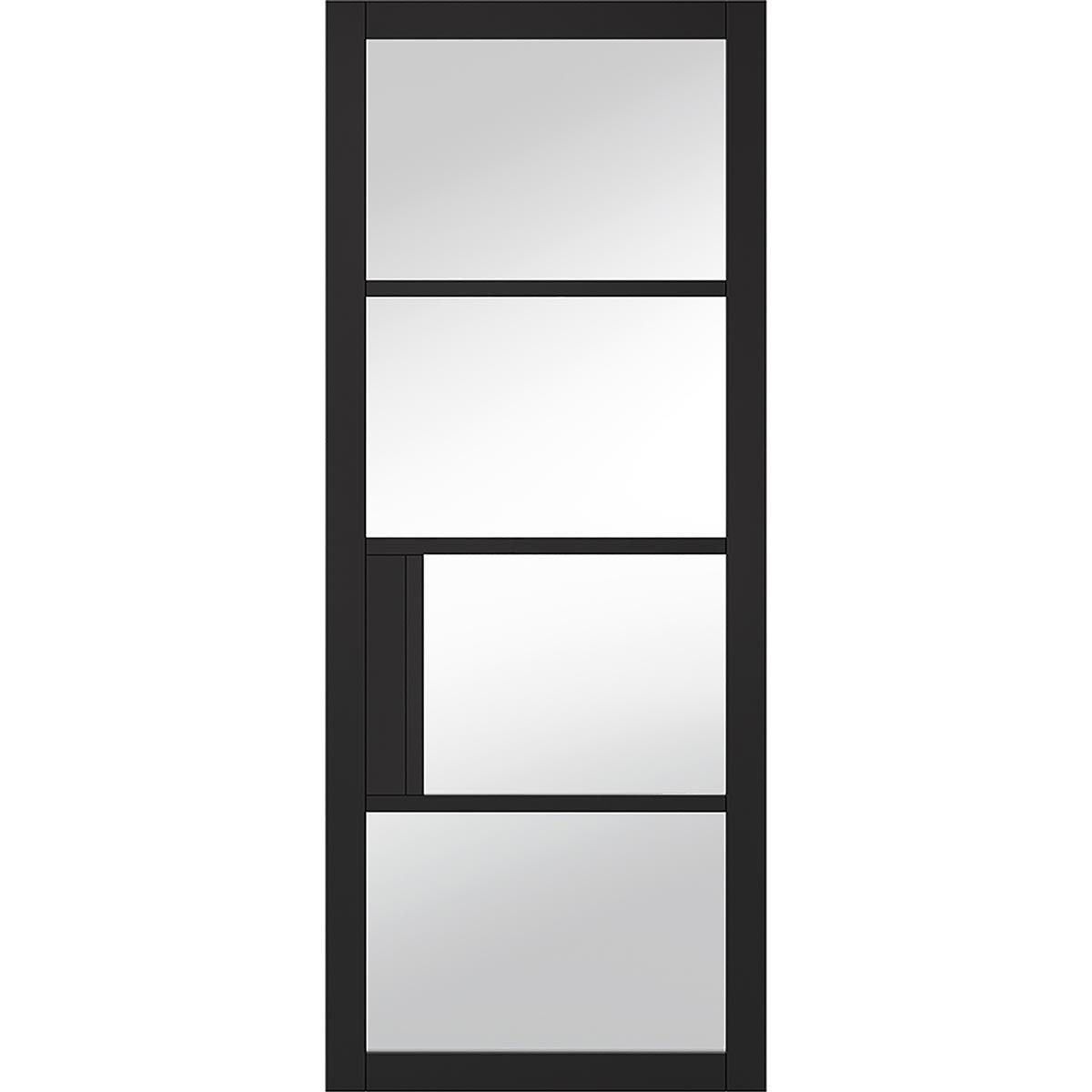

Premium Single Sliding Door & Wall Track - Chelsea 4 Pane Black Primed Door - Clear Glass
3 Wall Fixing Methods
Solid Core
Self-Assembly

Industrial style doors that may not be steel but are the next best thing and made from warm lightly grained wood or wood substitutes and with the warmth that only a wooden door can offer, for those discerning customers that not only want something different but also require something different.

Use the Chelsea 4 Pane Black Primed Door - Clear Glass to create a cleaner sliding opening for rooms where hinged-door swing space is limited, helped by clear glass and a primed surface. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Prefinished
Colour
Black
Face
Painted
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
This door can be trimmed by 5mm on each edge.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Clear
Glazing
Single glazing

Premium Track Fitting Instructions

Configuration
Single
Door Quantity
1
Finish
Black Coated Metal
Included Items
  • 1x Door
  • 1x Track
  • 1x Sof Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • The track is supplied 2000mm long.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening by 30mm all around, we have listed the overall dimensions in the door size options but you can choose to fit them to a smaller opening width/height, be careful as extra work may be required and the door cannot be cut from the size supplied.
  • There is a maximum 52mm height requirement over and above any door height to the top of the track pelmet, this requirement for all doors includes some tolerances for discrepancies to wall and floor levels.
  • All Premium systems include soft closers but you must set the track door stops to prevent damage of doors upon closing.
  • Prices show the sliding door cost inclusive of the track and wheel options, all prices are inclusive of vat and UK wide delivery which may be from 2 suppliers.
  • Anodised Aluminium Coloured finish.
  • Door is supplied with a small guide channel for fitting at the bottom on the floor below the glass door to facilitate smooth operation, no bottom doorway track is required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Safety Glass Fitting Instructions Wall Fixing Methods

LPD

Premium Single Sliding Door & Wall Track - Chelsea 4 Pane Black Primed Door - Clear Glass

CHEBLACLR27-THRPREM

Save 10% Was £563.05 £509.40
In stock

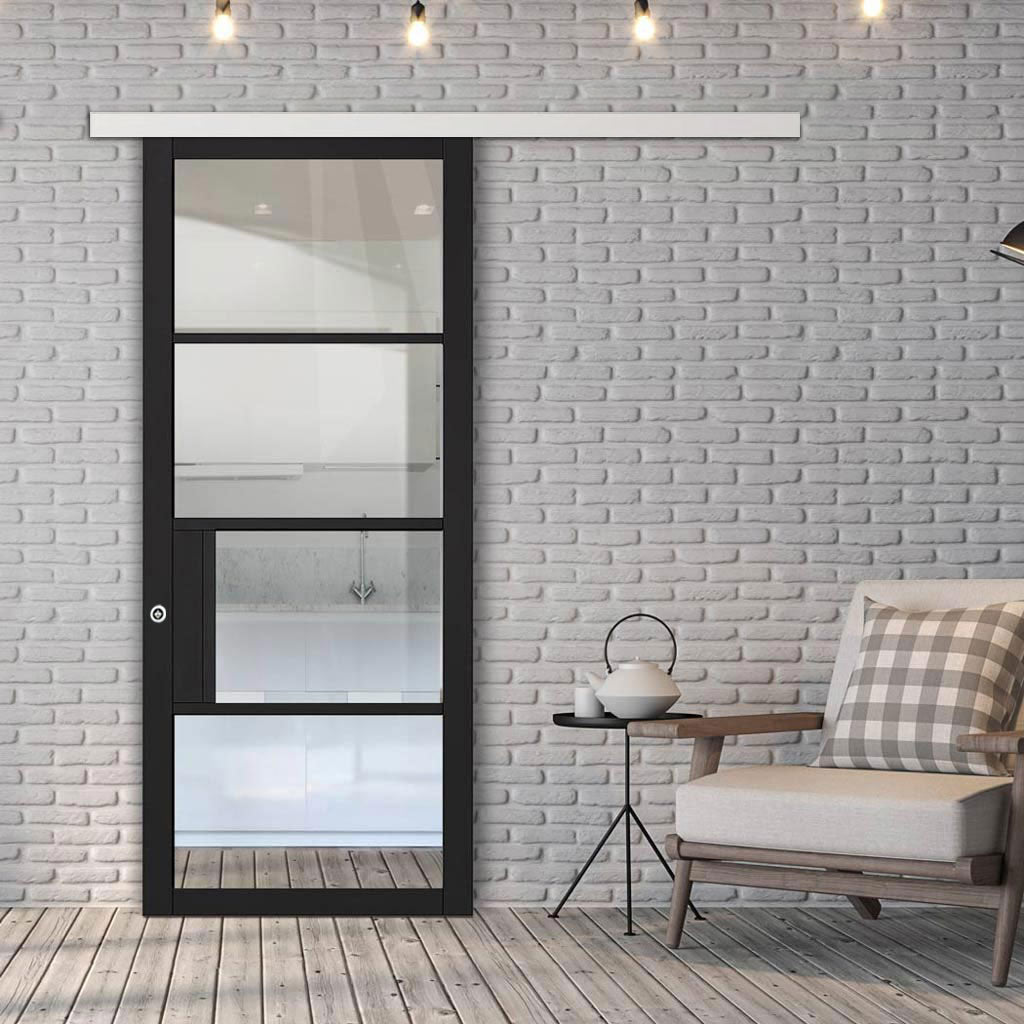

Designed around the wall-mounted sliding door and track set, the Chelsea 4 Pane Black Primed Door - Clear Glass is made for rooms where floor space matters. The sliding format keeps the opening neat and usable, while the door style adds a considered finish rather than feeling purely functional.

The design includes glazing that helps light move between rooms, a primed finish ready for your final colour and a bold black finish, giving the product a clear visual identity while keeping the overall look easy to live with. Supplied as a coordinated sliding set, it is intended to bring together the door and sliding arrangement in one customer-friendly product.

4-7 Working Days

Select option:
1981x686mm Door - For Openings 1970mm High x 666mm Wide
£509.40 RRP £563.05
1981x762mm Door - For Openings 1970mm High x 742mm Wide
£509.40 RRP £563.05
1981x838mm Door - For Openings 1970mm High x 818mm Wide
£509.40 RRP £563.05

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Loading...
Solid Core
Self-Assembly

Industrial style doors that may not be steel but are the next best thing and made from warm lightly grained wood or wood substitutes and with the warmth that only a wooden door can offer, for those discerning customers that not only want something different but also require something different.

Use the Chelsea 4 Pane Black Primed Door - Clear Glass to create a cleaner sliding opening for rooms where hinged-door swing space is limited, helped by clear glass and a primed surface. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Prefinished
Colour
Black
Face
Painted
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
This door can be trimmed by 5mm on each edge.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Clear
Glazing
Single glazing

Premium Track Fitting Instructions

Configuration
Single
Door Quantity
1
Finish
Black Coated Metal
Included Items
  • 1x Door
  • 1x Track
  • 1x Sof Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • The track is supplied 2000mm long.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening by 30mm all around, we have listed the overall dimensions in the door size options but you can choose to fit them to a smaller opening width/height, be careful as extra work may be required and the door cannot be cut from the size supplied.
  • There is a maximum 52mm height requirement over and above any door height to the top of the track pelmet, this requirement for all doors includes some tolerances for discrepancies to wall and floor levels.
  • All Premium systems include soft closers but you must set the track door stops to prevent damage of doors upon closing.
  • Prices show the sliding door cost inclusive of the track and wheel options, all prices are inclusive of vat and UK wide delivery which may be from 2 suppliers.
  • Anodised Aluminium Coloured finish.
  • Door is supplied with a small guide channel for fitting at the bottom on the floor below the glass door to facilitate smooth operation, no bottom doorway track is required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Safety Glass Fitting Instructions Wall Fixing Methods

Frequently asked questions

Please select your door first. Once you have chosen your door, you will then be able to add any add-ons you would like.

No, we are a supply-only company and do not offer a fitting service.

That said, we are experts in our field and are always happy to help with any questions you may have. We can advise on product care, fitting, hinges, locks, frames, and all other aspects of installation.

Please do not worry, deliveries may arrive with two different couriers. If you have received only part of your order, please allow a few more days for the remaining items to arrive.
