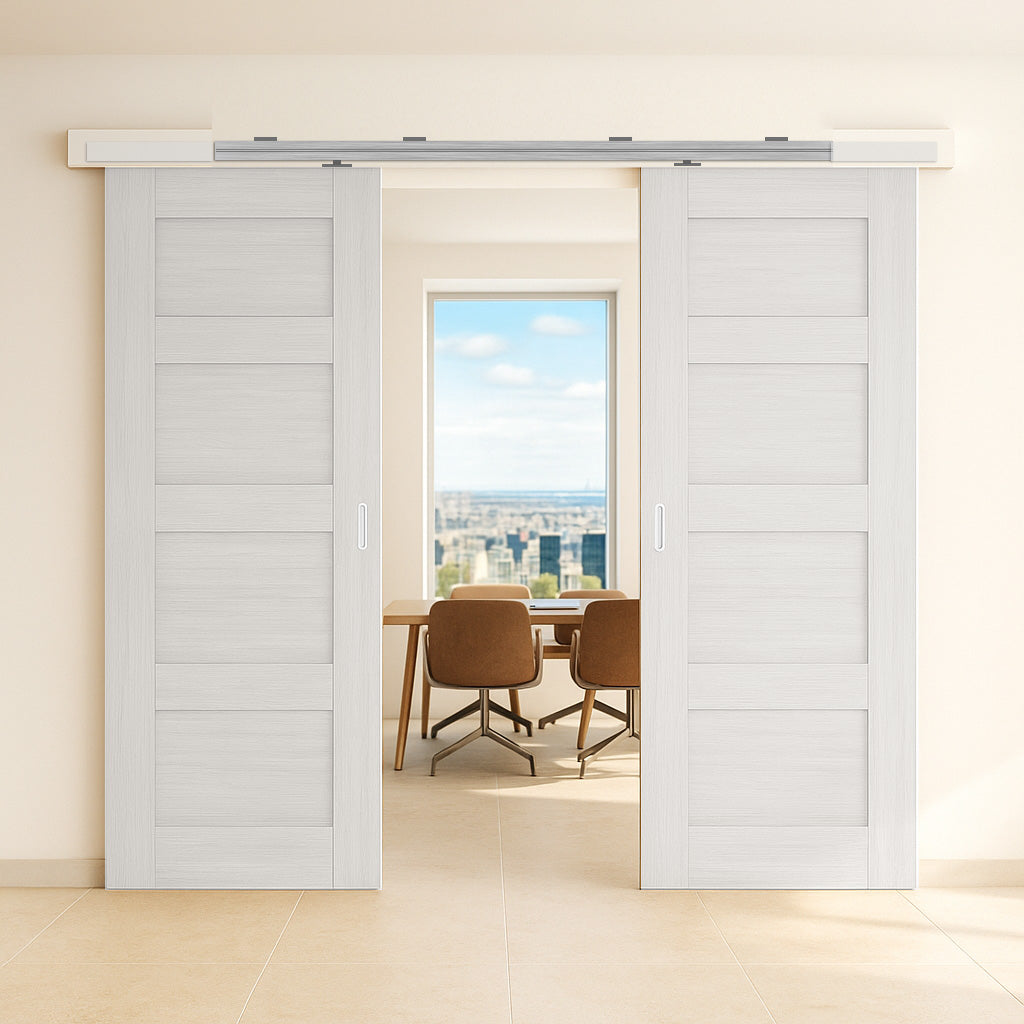

Double Sliding Door Wall Track
The Double Sliding Door Wall Track offers excellent design without the high cost, making quality accessible.
Important: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
Note: This track will require pelmet, this can be purchased separately in the add-on options.
We deliver for a small charge, anywhere Mainland UK! In most instances, delivery will be the next working day if ordered before 11:30AM.
Variant
To suit 610mm Doors - For Openings 1970mm High x 1200mm Wide (SURF-QH-1195-AL-1-1-KIT|610)
£345.51
To suit 686mm Doors - For Openings 1970mm High x 1352mm Wide (SURF-QH-1195-AL-1-1-KIT|686)
£345.51
To suit 762mm Doors - For Openings 1970mm High x 1504mm Wide (SURF-QH-1195-AL-1-1-KIT|762)
£345.51
To suit 838mm Doors - For Openings 1970mm High x 1656mm Wide (SURF-QH-1195-AL-1-1-KIT|838)
£345.51
To suit 626mm Doors - For Openings 2030mm High x 1232mm Wide (SURF-QH-1195-AL-1-1-KIT|626)
£345.51
To suit 726mm Doors - For Openings 2030mm High x 1432mm Wide (SURF-QH-1195-AL-1-1-KIT|726)
£345.51
To suit 826mm Doors - For Openings 2030mm High x 1632mm Wide (SURF-QH-1195-AL-1-1-KIT|826)
£345.51
To suit 926mm Doors - For Openings 2030mm High x 1832mm Wide (SURF-QH-1195-AL-1-1-KIT|926)
£345.51
Add Options
Sliding Door Pelmet (optional)
Our sliding door pelmets fit single and double top-mounted sliding tracks but not certain specialized tracks. Designed for homes with architraves or facings, they may require consultation if no architraves are present before purchasing.
Product Notes & Advice:
- No door included. A door is not part of the set but can be purchased separately.
- The supplied track will have a length equal to 4x the individual door (not included) width plus 100mm.
- Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
- All fittings such as track, guides, track stops and a soft close mechanism to prevent slamming are included, main screws/fixings are also included, handles are not included but can be added as you go through the buying process.
- Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are available at an extra cost as you go through the buying process, you will require these material sections at some point in the installation process to complete the fitting.
- Sliding Track widths (length of track) are 2mts for the single door widths, the double door widths use a 3.6mt track.
- Internal Sliding Doors can open left or right but please refer to the diagrams and PDF for more clarity regarding track stop positions, you simply decide when you install them.
- Setting the track position, there should not be any need for adjusting the door height or width with these tracks as each track requires fitting to the wall surface, tracks should be set to overlap the opening width by an equal margin to provide the best aesthetics.
- Door(s) used with this track will require a groove to be routered in the bottom of them to suit the floor guide, no bottom track required to allow for a clear threshold so no trip hazard is encountered with this track.
- Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
- The type of architrave used or existing can impact on visible clearances.
- Precisely machined steel strap nylon wheels providing smooth operation.
- Solid feel with face fixed wall brackets to the top of the track.
- See our full range of handles and fittings here.
| Price | Includes track, guides, track stops, soft close mechanism, main screws/fixings. We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see "Fittings" below. |
| Sliding Track | The track is not supplied pre-drilled. |
| Supplier Delivery Timescale | See delivery icon at the top of the product page. |
| Max Door Weight | 80kg per door. |
| Dimensions | Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require. |
| Guarantee | 12 months |
| Important | All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DIrectDoors.com. |
| Suggested Minimum Skill Level | Advanced DIY & Specialist Joinery Tools Required. |
| Adjustment | Any doors fitted with this track will require a routered groove to be created in the bottom of the door to accommodate the door channel. |
