Home › Galway American Oak Veneer Staffetta Quad Telescopic Pocket Doors Unfinished

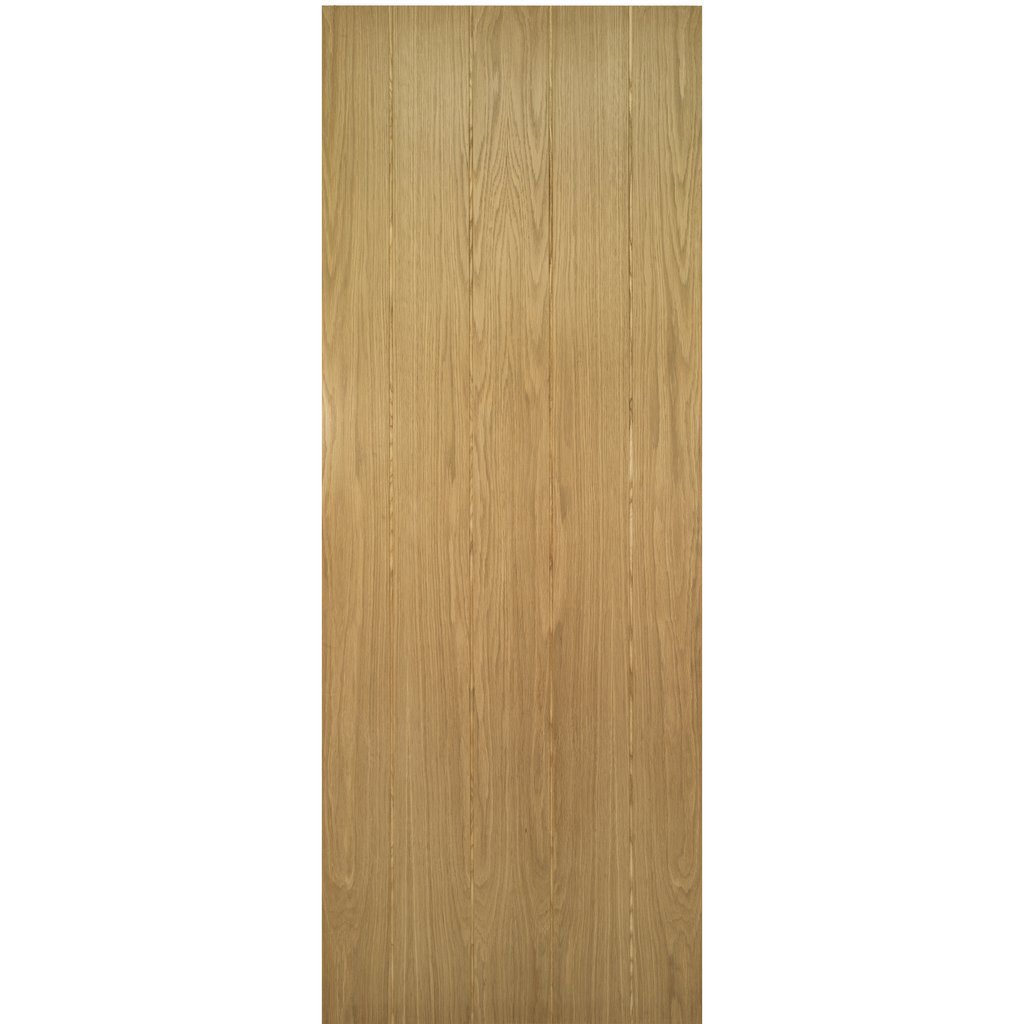

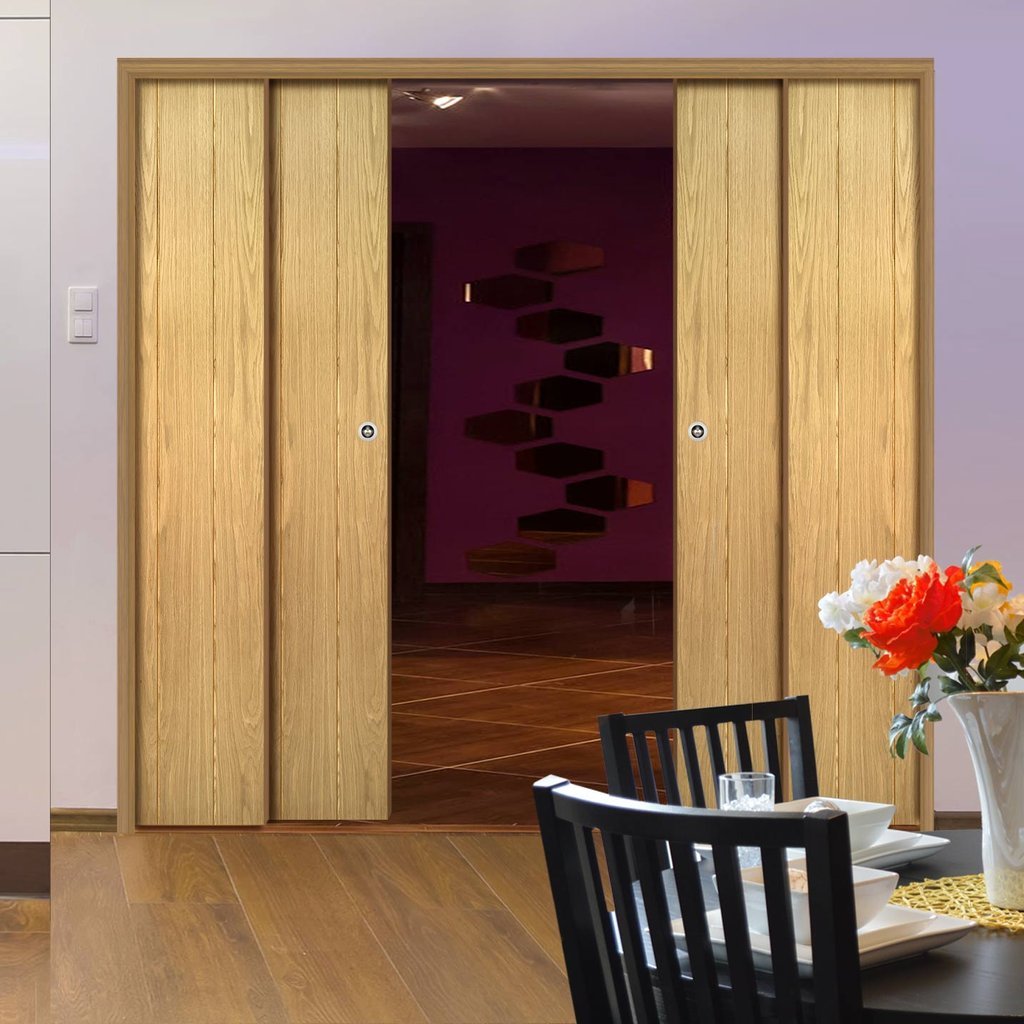

Galway American Oak Veneer Staffetta Quad Telescopic Pocket Doors Unfinished

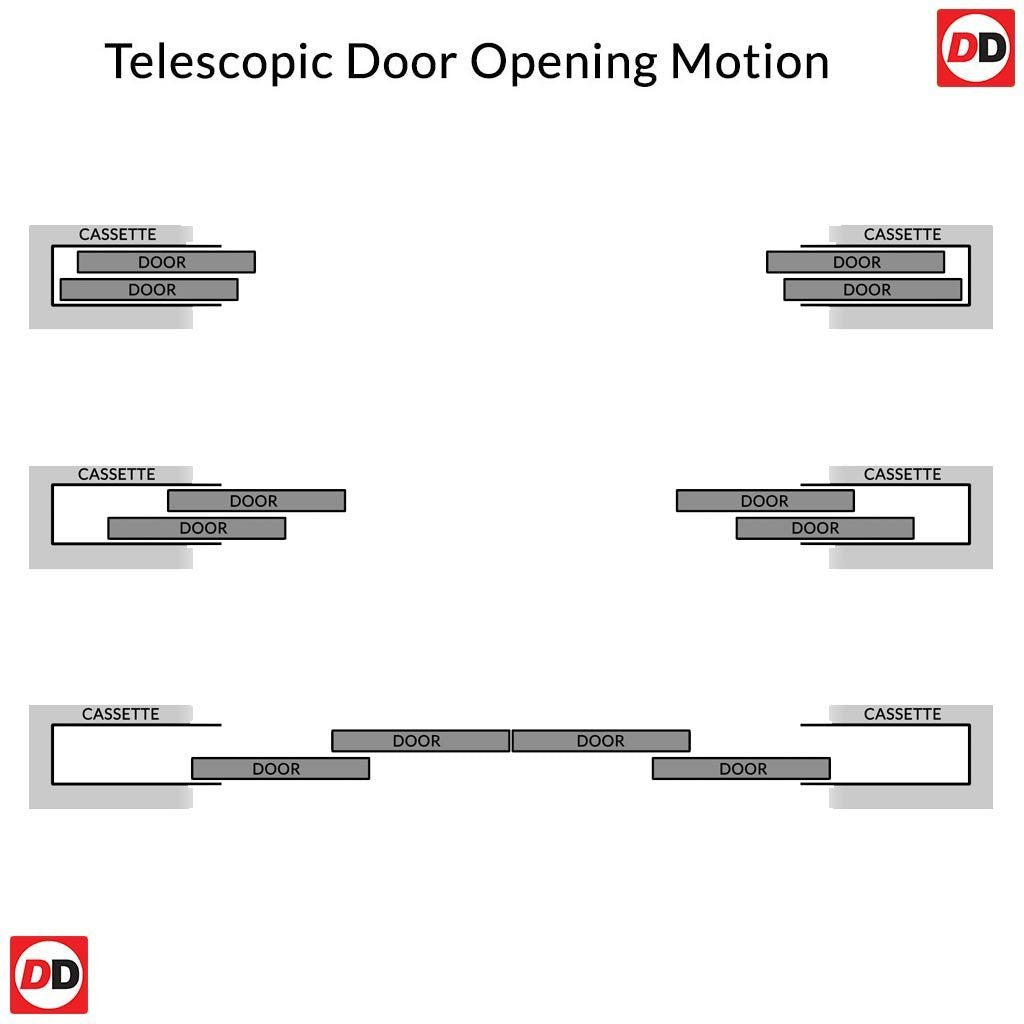

Motion diagrams of Ermetika telescopic pocket system
Galway American Oak Veneer Staffetta Quad Telescopic Pocket Doors Unfinished

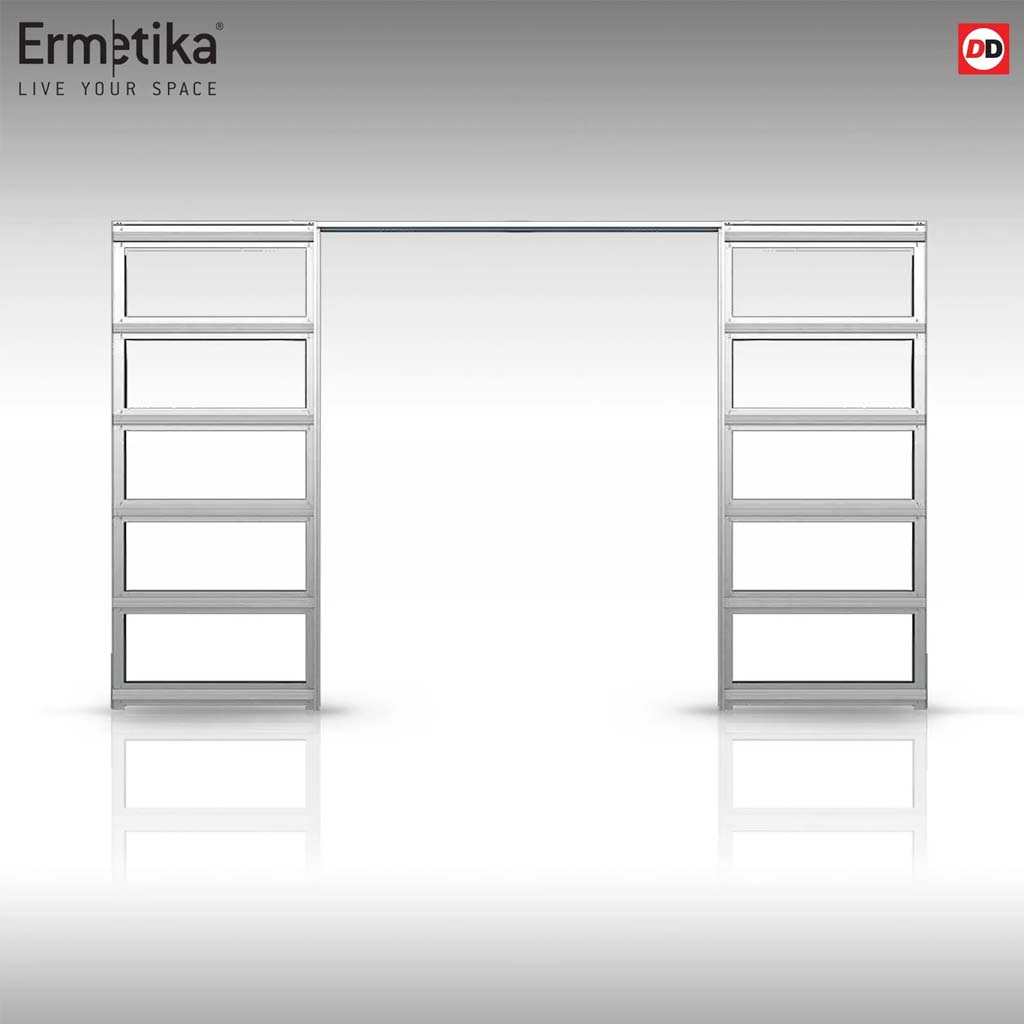

Ermetika telescopic door system cassette

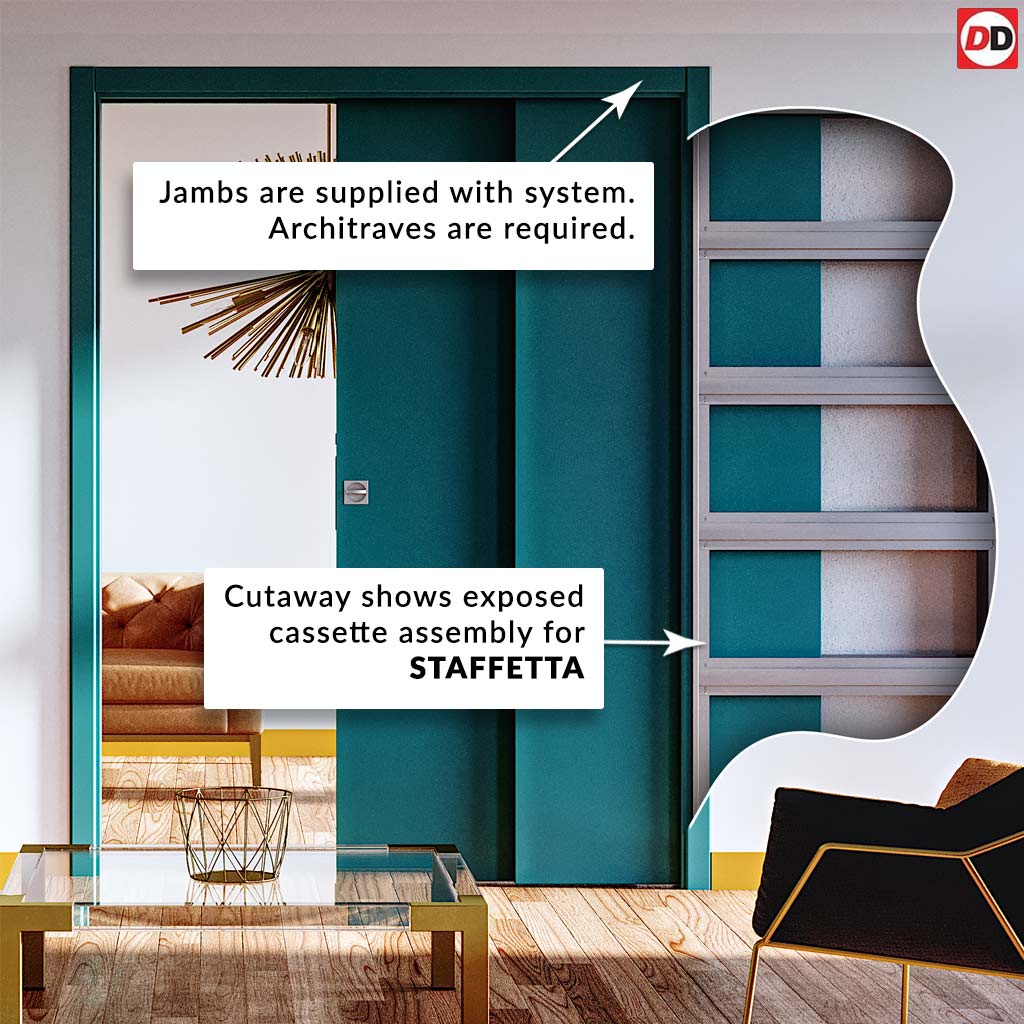

Staffetta pocket door system into the plasterboard wall
Router groove and router channel required for Ermetika pocket door system

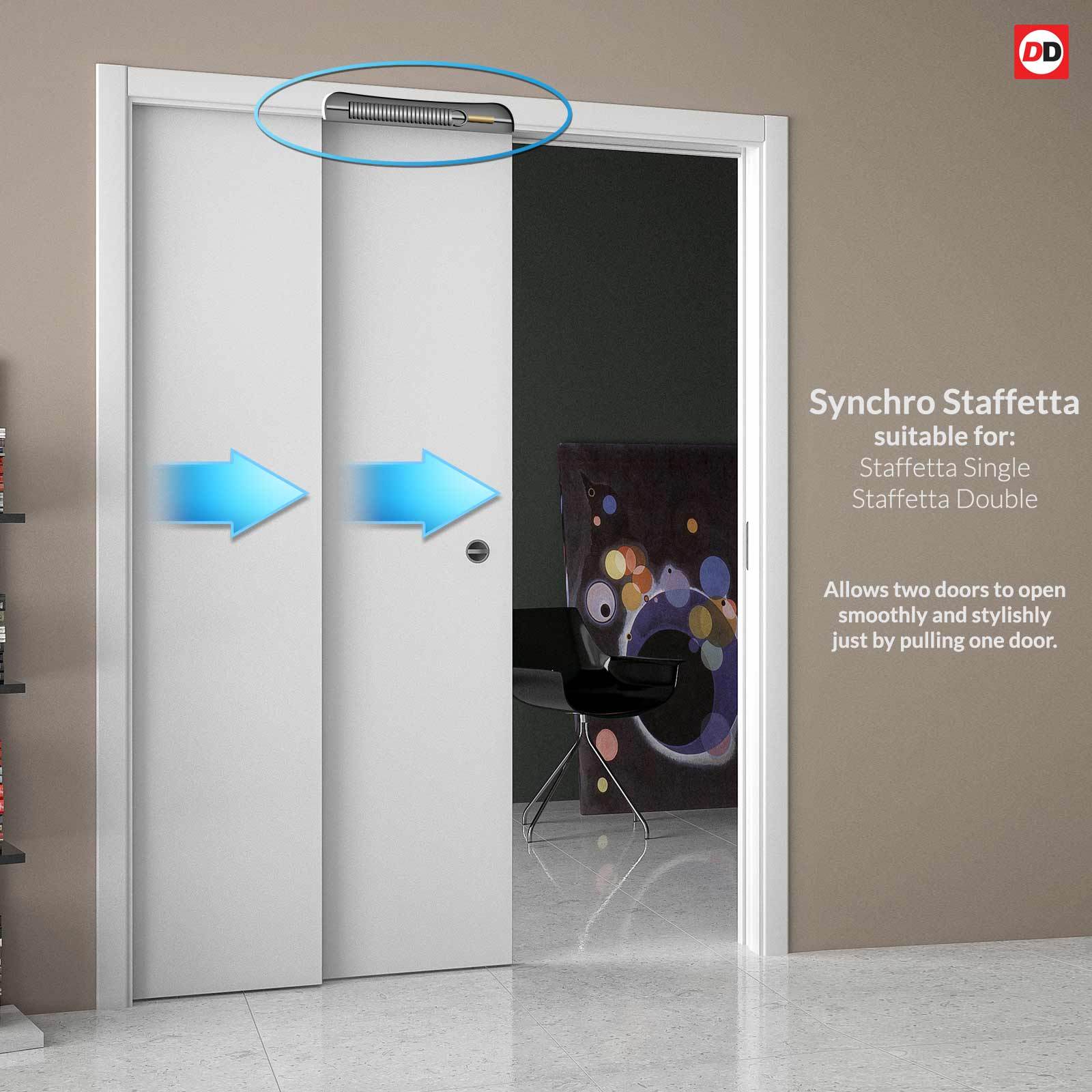

Image showing Syncro Safetta system which allows two doors to open smoothly together

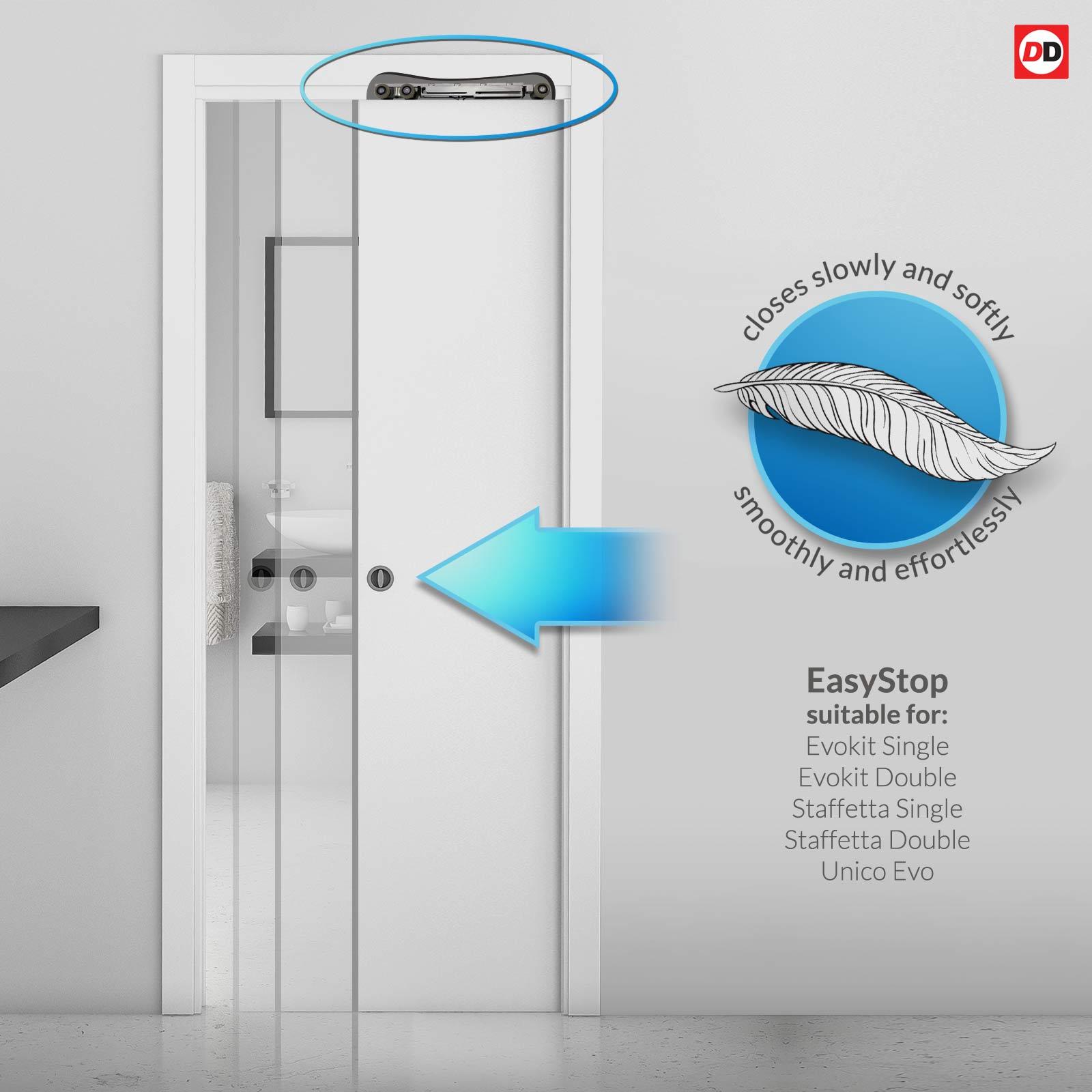

Image of Easy Stop functionality
Galway American Oak Veneer Staffetta Quad Telescopic Pocket Doors Unfinished
Galway American Oak Veneer Staffetta Quad Telescopic Pocket Doors Unfinished
Motion diagrams of Ermetika telescopic pocket system
Galway American Oak Veneer Staffetta Quad Telescopic Pocket Doors Unfinished
Ermetika telescopic door system cassette
Staffetta pocket door system into the plasterboard wall
Router groove and router channel required for Ermetika pocket door system
Image showing Syncro Safetta system which allows two doors to open smoothly together
Image of Easy Stop functionality
Solid Core
Self Assembly 3-4 Hours

A router will be required for door(s) installation.

System operation viewed from above:

These pocket doors are supplied in kit form with fitting instructions. The cassette and track system allows the door(s) to slide into a cavity in a preformed wall aperture.

Door handles, architrave and plasterboard are not included.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Guarantee
12 months
Manufacturer Advice
Find the manufacturers care and decoration advice for this door.

Staffetta Quad Telescopic Pocket System

Configuration
Quad
Door Quantity
2
Included Items
  • 4x Door
  • 1x Telescopic System Cassette
  • All track fittings

Handles, architraves, & plasterboard and simultaneous opener are not included.

Size limitation: Staffetta Synchroniser accessory cannot be installed on any door below 615 wide.

The pocket door frame must be concealed with your own wall and architraves when installing.

Note: These are two individual doors put together as one pair and as such we cannot guarantee a perfect colour match.

Technical Specs

See our "Dimensions PDF" for all sizes but use as a guide only.

Email info@directdoors.com to receive a quote for any special sizes.

35mmor40mm doors (depending on choice and availability) and a frame section of 180mm.

The idea is to build the pocket to the same thickness as the studwork - 155mm(6" approx.) so that you can directly fit the standard 12.5mmplasterboard over the pocket, providing the finished wall thickness of 180mm (7").

Further layers of plasterboard can be added to increase the overall wall thickness but other joinery work may be required. When fully open the leading door projects 9cm out of the pocket.

When the telescopic doors are fully closed with both doors out of the cassette, the overlap of the doors will be about 5 cm on average.

These pocket doors come with full fitting instructions and the door system allows you to slide the doors straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings and the door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.

See our ""Dimensions PDF"" for all sizes but use as a guide only.

All Staffetta door items are supplied in kit form, any glass is pre-installed in the door.

The pocket door frame must be concealed with your own wall and architraves when installing.

Additional Information

Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

The sizes listed above are for the overall door and pocket set which includes the metal pocket frame but does not include any architrave or plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.
Ermetika Pocket Door Systems Warranty Technical Specifications EasyStop Installation Fitting Instructions Cassette Dimensions

DEA

Galway American Oak Veneer Staffetta Quad Telescopic Pocket Doors Unfinished

35GALUNX610-PSQT

Save 2% Was £2,371.27 From £2,312.31
In stock

The Galway American Oak Veneer Unfinished brings unfinished oak ready for your chosen finish to a space saving sliding opening, supplied here as a Staffetta quad telescopic pocket door set.

Soft close hardware is included for a smoother closing action, while the pocket system lets the door slide into a wall cavity to free up usable floor space.

Note: Care needed, sharp edges.

14-16 weeks
iwocaPay trade finance options

Select option:
2050x3620mm Wide/1981x610mm doors
£2,312.31 RRP £2,371.27
2050x4120mm Wide/1981x686mm Doors
£2,379.51 RRP £2,440.87
2050x4640mm Wide/1981x762mm Doors
£2,449.23 RRP £2,513.08
2050x4940mm Wide/1981x838mm Doors
£2,452.59 RRP £2,516.56

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (27)

Pocket Door Fittings

Pocket Door Fittings (1)

Loading...
Solid Core
Self Assembly 3-4 Hours

A router will be required for door(s) installation.

System operation viewed from above:

These pocket doors are supplied in kit form with fitting instructions. The cassette and track system allows the door(s) to slide into a cavity in a preformed wall aperture.

Door handles, architrave and plasterboard are not included.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Guarantee
12 months
Manufacturer Advice
Find the manufacturers care and decoration advice for this door.

Staffetta Quad Telescopic Pocket System

Configuration
Quad
Door Quantity
2
Included Items
  • 4x Door
  • 1x Telescopic System Cassette
  • All track fittings

Handles, architraves, & plasterboard and simultaneous opener are not included.

Size limitation: Staffetta Synchroniser accessory cannot be installed on any door below 615 wide.

The pocket door frame must be concealed with your own wall and architraves when installing.

Note: These are two individual doors put together as one pair and as such we cannot guarantee a perfect colour match.

Technical Specs

See our "Dimensions PDF" for all sizes but use as a guide only.

Email info@directdoors.com to receive a quote for any special sizes.

35mmor40mm doors (depending on choice and availability) and a frame section of 180mm.

The idea is to build the pocket to the same thickness as the studwork - 155mm(6" approx.) so that you can directly fit the standard 12.5mmplasterboard over the pocket, providing the finished wall thickness of 180mm (7").

Further layers of plasterboard can be added to increase the overall wall thickness but other joinery work may be required. When fully open the leading door projects 9cm out of the pocket.

When the telescopic doors are fully closed with both doors out of the cassette, the overlap of the doors will be about 5 cm on average.

These pocket doors come with full fitting instructions and the door system allows you to slide the doors straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings and the door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.

See our ""Dimensions PDF"" for all sizes but use as a guide only.

All Staffetta door items are supplied in kit form, any glass is pre-installed in the door.

The pocket door frame must be concealed with your own wall and architraves when installing.

Additional Information

Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

The sizes listed above are for the overall door and pocket set which includes the metal pocket frame but does not include any architrave or plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.
Ermetika Pocket Door Systems Warranty Technical Specifications EasyStop Installation Fitting Instructions Cassette Dimensions

Frequently asked questions

Please select your door first. Once you have chosen your door, you will then be able to add any add-ons you would like.

No, we are a supply-only company and do not offer a fitting service.

That said, we are experts in our field and are always happy to help with any questions you may have. We can advise on product care, fitting, hinges, locks, frames, and all other aspects of installation.

Please do not worry, deliveries may arrive with two different couriers. If you have received only part of your order, please allow a few more days for the remaining items to arrive.

There are many suggestions online that oil can be used on these doors, based on our experience, we recommend not applying oil.

The final colour can vary between individual doors, making it difficult to achieve a consistent finish.

This is particularly important when purchasing doors for a pair or a system that uses multiple doors.

We believe door veneers can in certain circumstances where oil has been used lead to the veneer splitting.
