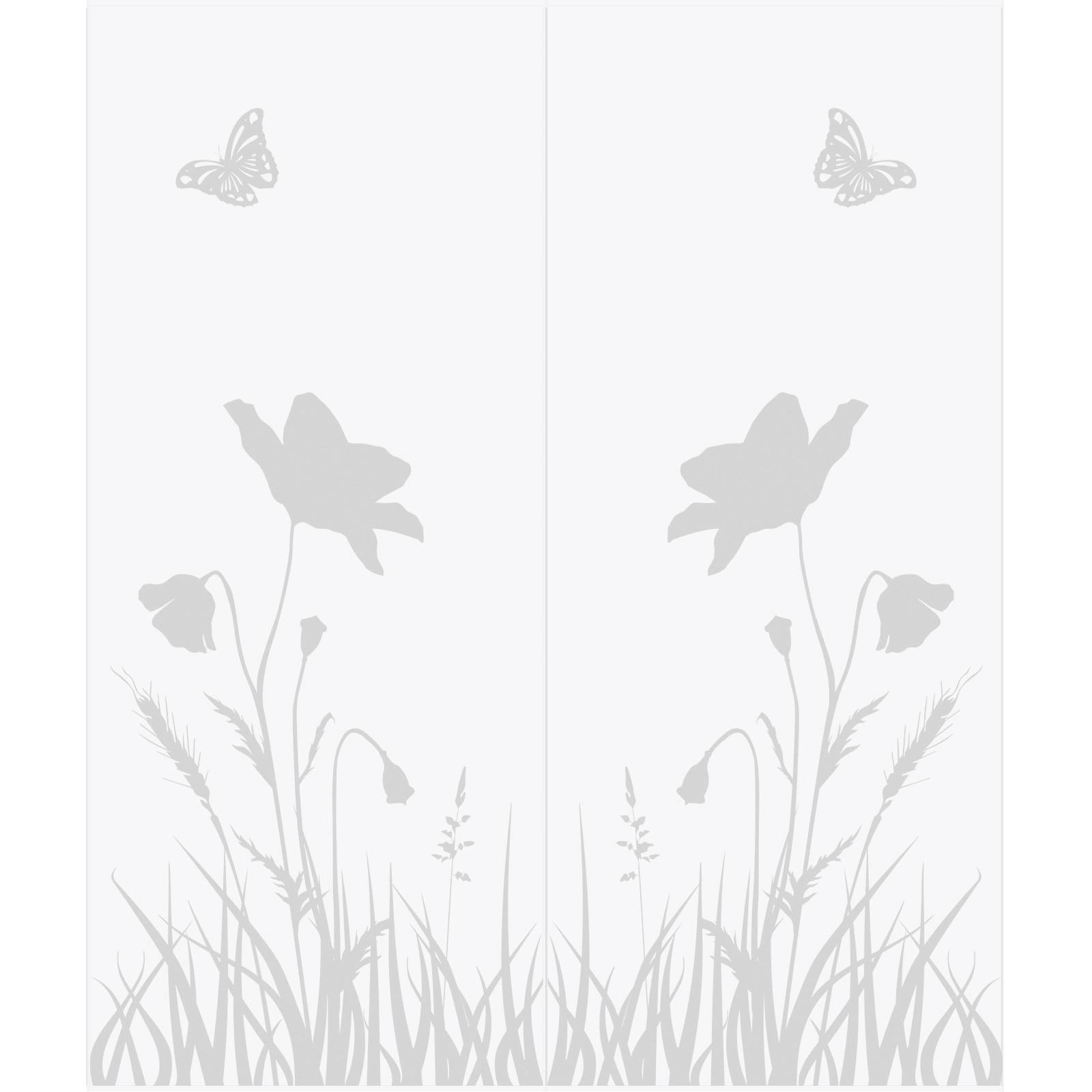

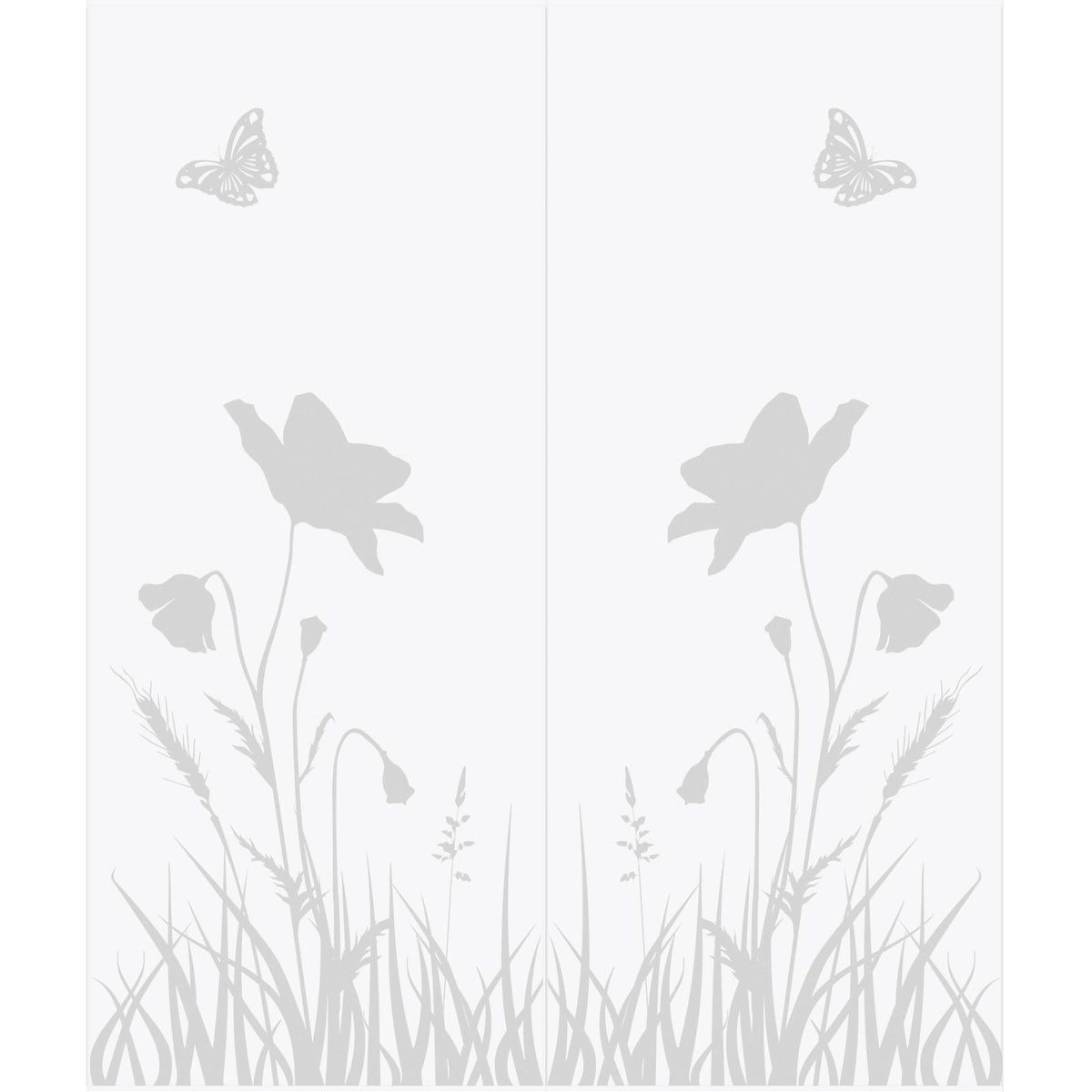

Butterfly 8mm Obscure Glass - Obscure Printed Design - Double Evokit Glass Pocket Door
All pocket cassettes may be kerbside delivery only and not in to the home..... glass doors are delivered separately.
All these items are supplied in kit form and not assembled. Any add on options like handles, skirtings etc are an extra cost, simply look at the options below your choice of door style/size.
All doors slide open left and right, delivery will be from at least two separate suppliers. Read more
2060x2490mm Wide/610mm Doors (BUTOOD24-PS2)
2060x2830mm Wide/686mm Doors (BUTOOD27-PS2)
2060x3190mm Wide/762mm Doors (BUTOOD30-PS2)
2060x3330mm Wide/838mm Doors (BUTOOD33-PS2)
2120x2510mm Wide/626mm Doors (BUTOOD626-PS2)
2120x2910mm Wide/726mm Doors (BUTOOD726-PS2)
2120x3310mm Wide/826mm Doors (BUTOOD826-PS2)
2120x3710mm Wide/926mm Doors (BUTOOD926-PS2)
System operation viewed from above:

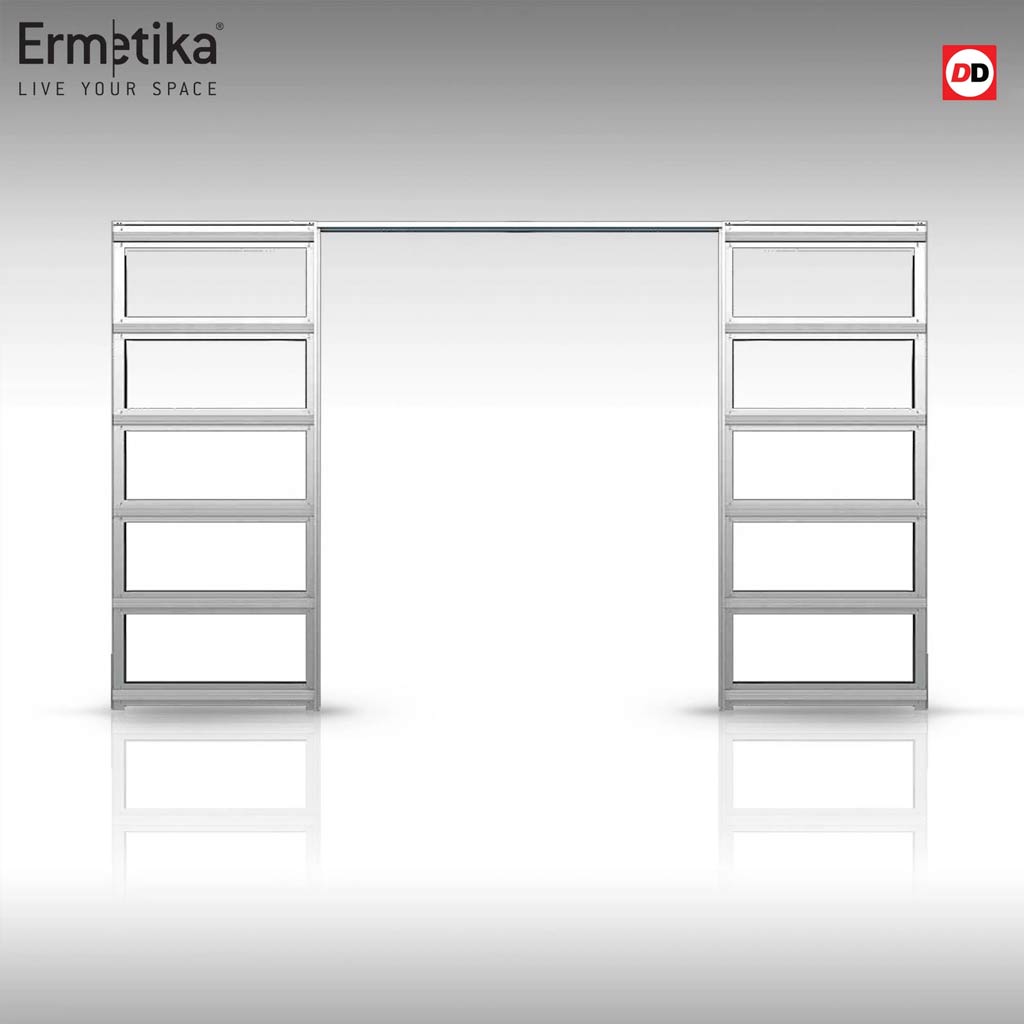

Our new Ermetika interior double glass pocket door systems have free delivery as standard, these pocket doors come with full fitting instructions and the door system allows you to slide the doors straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings, the glass door is ready to fit but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details. All glass doors are 8mm thick safety glass.
See our "Dimensions PDF" for all sizes but use as a guide only.
The Ermetika pockets are available in two standard widths for a finished wall thickness of either 100mm or 125mm.
Email firstname.lastname@example.org to receive a quote for any special sizes.
The idea is to build the pocket to the same thickness as the studwork - 75mm (3") or 100mm (4") - which are the two standard studwork sizes generally in use, so that you can directly continue the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of either 100mm (4") or 125mm (5").
Further layers of plasterboard can be added to increase the overall wall thickness, but other joinery work may be required. The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm or 79mm.
This system uses a standard pocket system kit but includes a kit for glass doors which includes clamps, floor guide and the set-up hardware, this allows you to fit the glass door onto the standard pocket system.

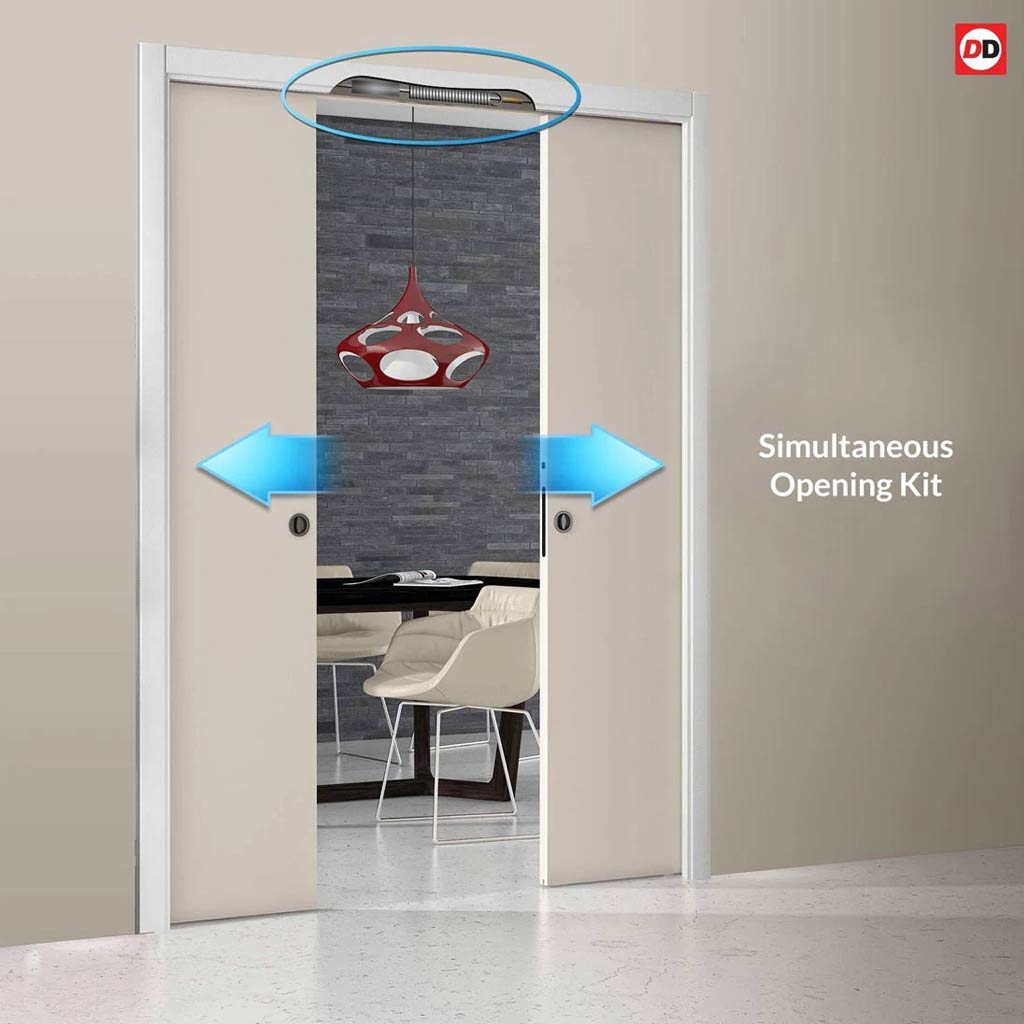

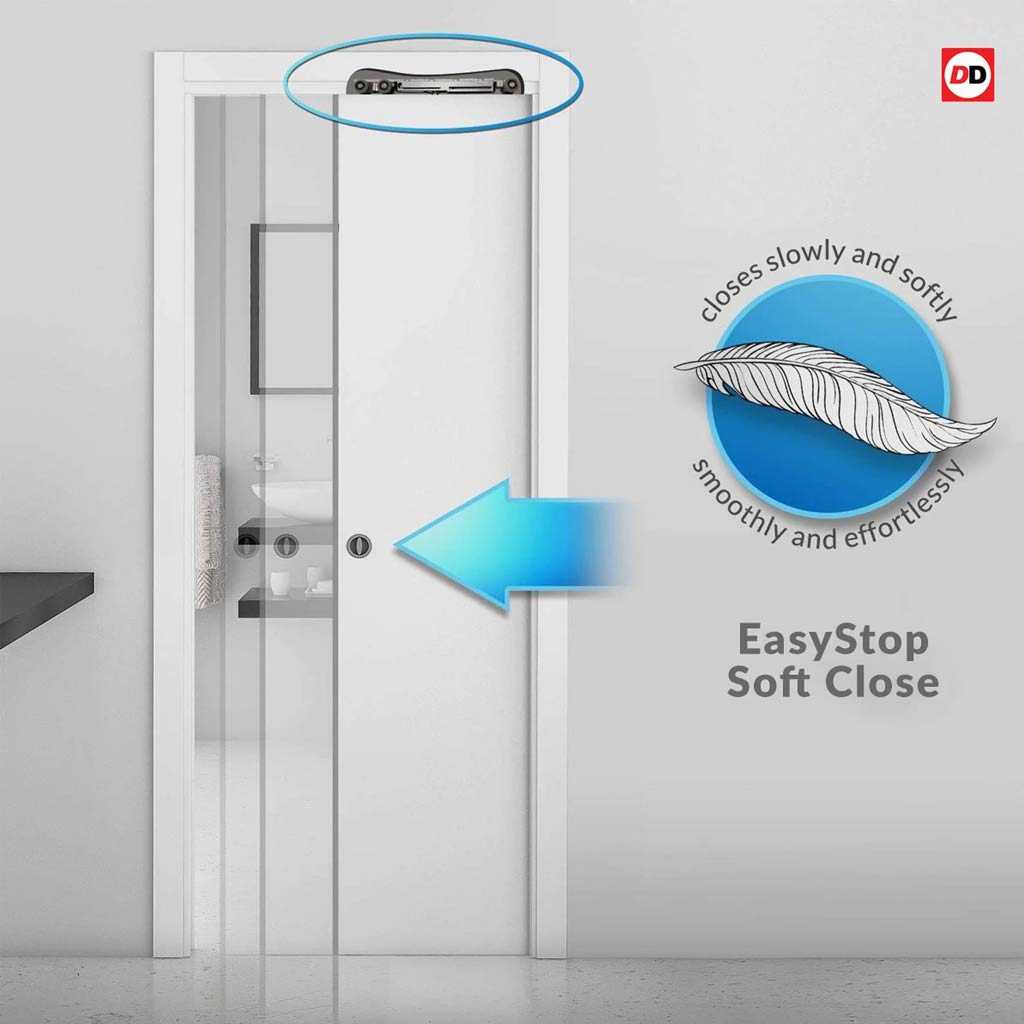

Size limitation: Soft Close and Simultaneous Opener accessories are included in the price with the exception of any doors below 615mm wide.
All accessories including flush door handles can be purchased separately.
The double pocket door frame must be concealed with your own wall and architraves when installing.
|Suggested Minimum Skill Level||Advanced DIY & Specialist Joinery Tools Required.|
|Glass||Our glass doors are supplied toughened but not laminated.|
|Dimensions||8mm glass door and a frame section of 100mm or 125mm external dimensions/54mm or 79mm internal cassette cavity.|
|Notes||The sizes listed above are for the overall glass door and pocket set which includes the metal pocket frame but does not include any architrave or plasterboard.|
|Important||All pocket door items are supplied in kit form.|
|Normal Availability for our Delivery Service||See delivery icon on top of the product page.|
|Adjustment||All jamb kits supplied to suit all pocket doors sizes and will therefore need cutting to height and width on site.|
|Price||The price quoted is for the door(s), pocket system frame, all track fittings but no handles.|
