• 1x Made to Measure Door
• 1x Track - The track is not supplied pre-drilled. The pelmet to cover the track is not included.
• 1x Soft Closer
• Screws & Fixing (excluding wall fixing)

Handles are not included.

We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see Add-ons section.

A router will be required for door(s) installation.

Configurations & Advice:

• The supplied track will have a length equal to 2x the door width plus 100mm.
• Measuring for a single surface sliding door:
• Height Note: Please enter the overall door width and height that you want, nothing extra but be very careful with the door dimensions to allow the door to cover the actual opening by a MINIMUM of 10mm each side and at the top. All dimensions are required in millimeters.
• Width Note: Just give us the door size you want and we will make it to that dimension.
• Wall space requirement: You need the same amount of wall space as your door width to one side of the door opening to allow the door to slide across effectively, anything less will encroach on the opening available to walk through, your wall height needs 76mm above the door.
• Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are available at an extra cost as you go through the buying process, you will require these material sections at some point in the installation process to complete the fitting.
• Any mention of pre-finishing is to the door, the track is supplied unfinished, all fittings such as track, track guides, guide channel, soft close anti-slam components and door track stops are all supplied.
• No wall fixings, MDF frame screws, fixings or your choice of handles are included.
• The door can open left or right but please refer to the diagrams and PDF for more clarity.
• Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track is required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
• No handles supplied, please buy the handles you require separately.
• All doors are 35mm thick or 40mm thick as noted on each product and have a clearly marked solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
• Max door weight: This track is suitable for a maximum weight of 80 kg per door.

This made to measure option is now available for these doors;

Oak unfinished, Oak prefinished, Walnut prefinished, White primed and Prefinished White door ranges.

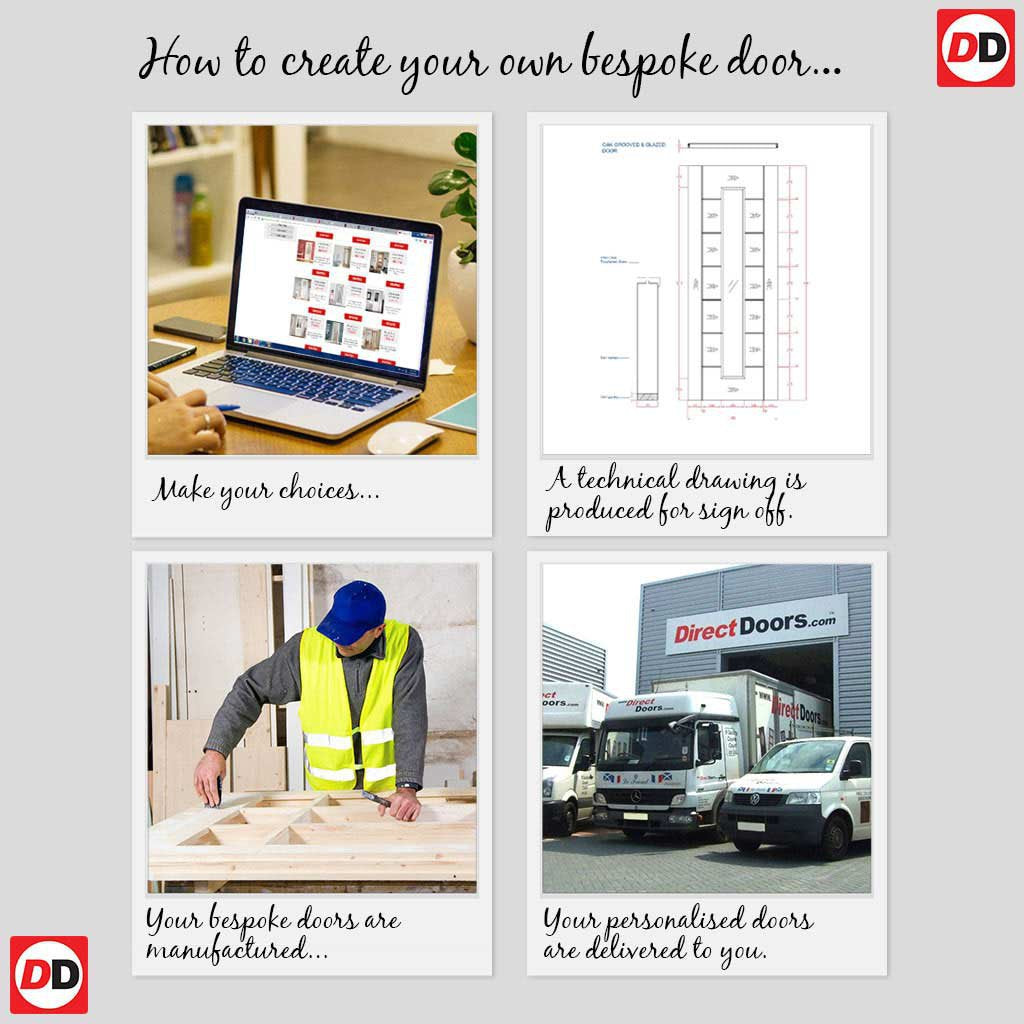

The process is simple and as follows;

• Make your choices as you go through the buying process and place your order.
• In some circumstances we may produce a CAD drawing for sign off but this is only supplied if we feel we need to clarify some internal proportions of your door, our suppliers technical team is on hand to produce a detailed CAD drawing outlining your specifications and requirements but on most occasions your involvement in this is not required.
• Your bespoke doors sare manufactured using the CAD drawing as a guide will build your doors to specification, using rigorous quality control to make sure every inch of your doors is made to perfection.
• Your doors are delivered to you using our own fleet of wagons or a third party courier, we're able to deliver without any extra charges anywhere on the UK mainland.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Please note that this purchase cannot be cancelled or returned after placing you order. Although there is a long lead time, the schedule is due to shipment & customs timescales rather than the door manufacturing process.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

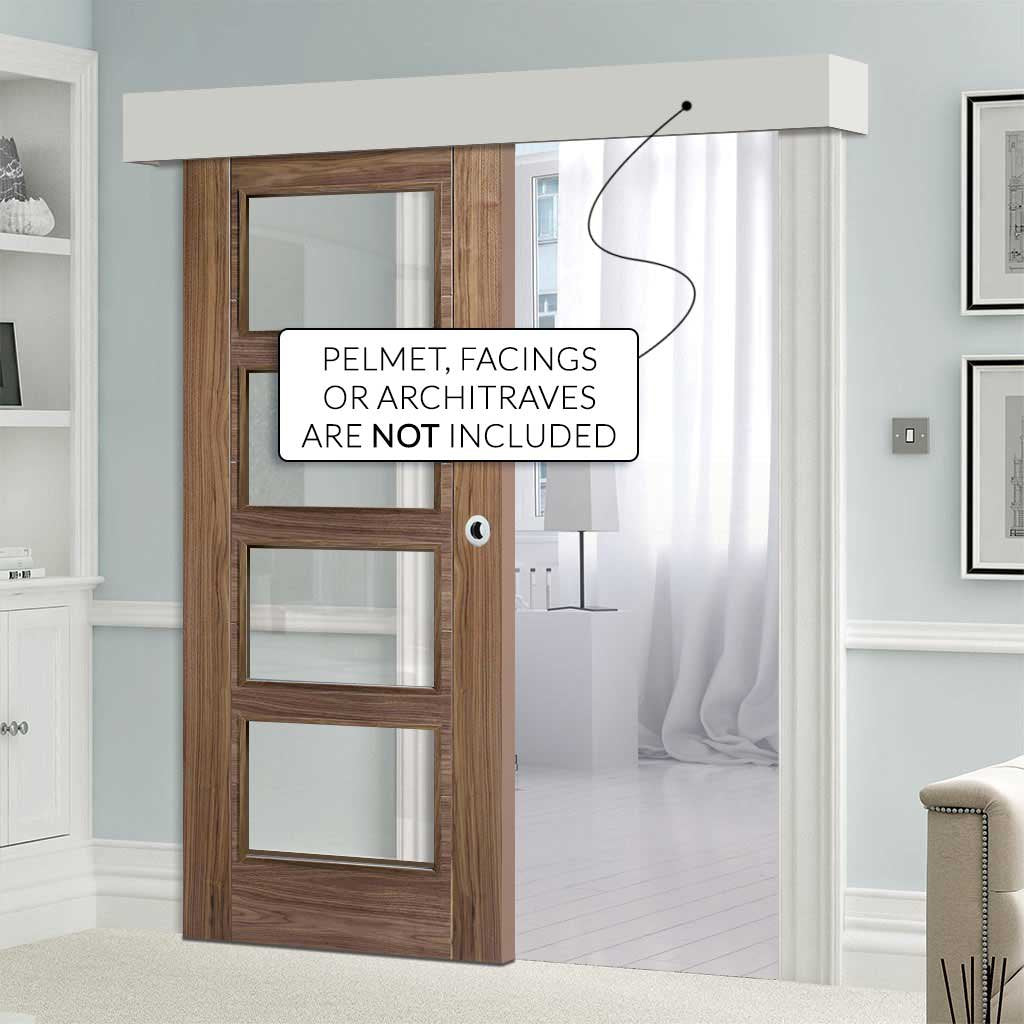

The track provided is not intended to be fully exposed, but to be hidden behind the pelmet. The pelmet is not included with the product, but can be purchased separately in the add-ons section.

Adjustment: Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.

Important: Do not exert any pressure on the door when closing it. Allow the soft close mechanism to function to avoid damaging the system. All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
