Black Single Sliding Track for Wooden Doors - Top Mounted
We deliver for a small charge, anywhere Mainland UK! In most instances, delivery will be the next working day if ordered before 11:30AM.
Important: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
Note: For 35mm and 40mm doors. The price shown is for the track only, the door is not included. Read more
Variant
To suit 686mm Door - For Openings 1970mm High x 666mm Wide (BDH-A05-1500-MBLK-686-1)
£95.05 RRP: £123.67
To suit 762mm Door - For Openings 1970mm High x 742mm Wide (BDH-A05-1830-MBLK-762-1)
£97.23 RRP: £126.81
To suit 838mm Door - For Openings 1970mm High x 818mm Wide (BDH-A05-1830-MBLK-838-1)
£97.23 RRP: £126.81
To suit 926mm Door - For Openings 2030mm High x 906mm Wide (BDH-A05-2100-MBLK-838-1)
£135.84
Add Options
Flush Pull Handle Pack (optional)
A range of flush pull handles perfect to match your sliding, folding or pocket doors.
A router will be required for door installation.
Product Advice:
- Depending on availability, a longer track may be supplied which suits all sizes.
- Suits one door that weighs up to 50kg.
- Only suitable for doors with a semi-solid or solid core. Not suitable for doors with a hollow core.
- Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width/height.
- The prices shown include of track, all prices are inclusive of vat and delivery is free to most UK Mainland postcodes.

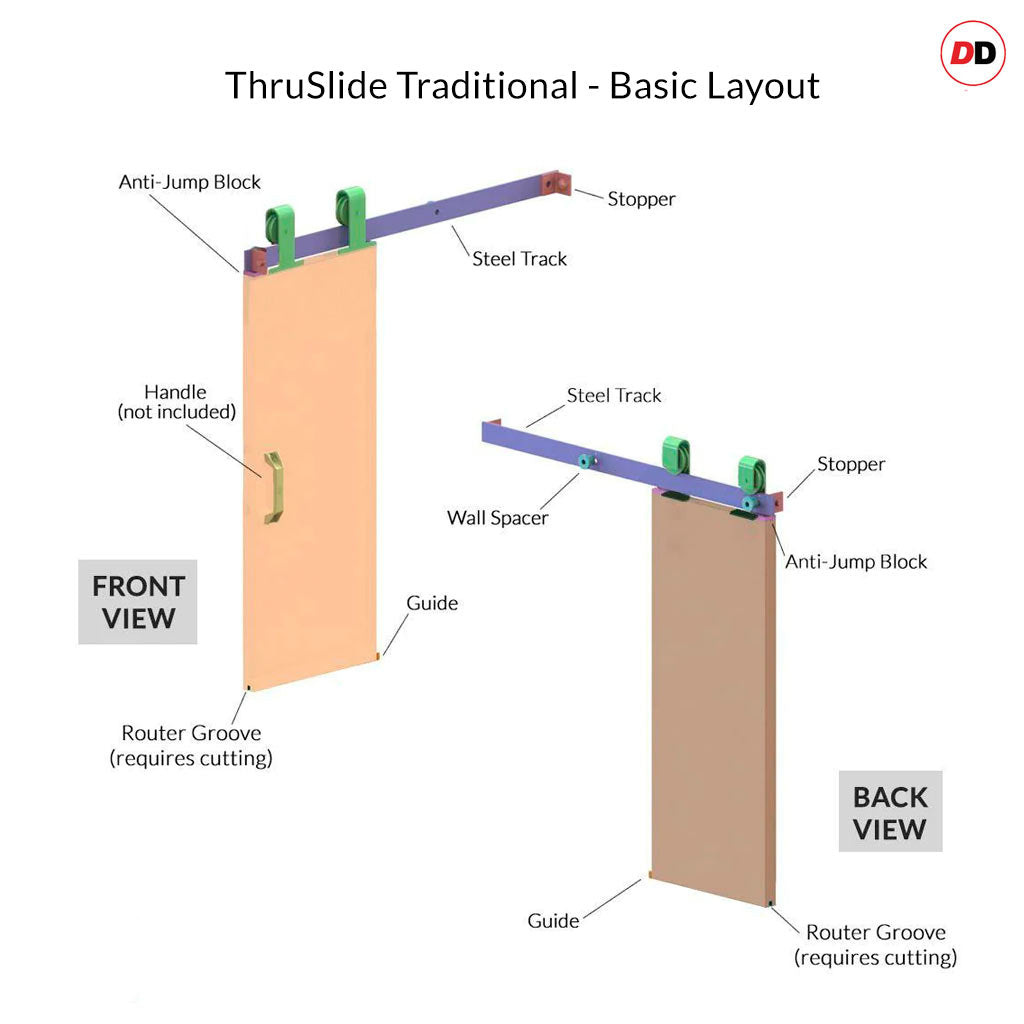

- A high quality top mounted sliding track system finished in black, the top mounted track is screwed directly into the top of the door which gives the whole system a very sleek look.
- There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
- Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
- For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
- Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
- See our full range of handles and fittings here.
Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
Suggested Minimum Skill Level | Advanced DIY & Specialist Joinery Tools Required. |
Price | Includes the track and soft close. |
Supplier Delivery Timescale | See delivery icon at the top of the product page. |
Compatibility | To suit 35mm thick doors only. |
Guarantee | 12 months |
Note | This track is not fire-rated and is not suitable for fire doors. |
Important | All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DIrectDoors.com. |
Suggested Minimum Skill Level | Advanced DIY & Specialist Joinery Tools Required. |
Adjustment | Doors used with this track will require a routered channel to be created in the bottom of the door to accommodate the track guide. |
Track Fitting | For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best. |
