Two Sliding Doors and Frame Kit - Soho 4 Pane Door - Clear Glass - Black Primed
Two Sliding Doors and Frame Kit - Soho 4 Pane Door - Clear Glass - Black Primed
Router Groove and Floor Guide Diagram
Pelmet Diagram

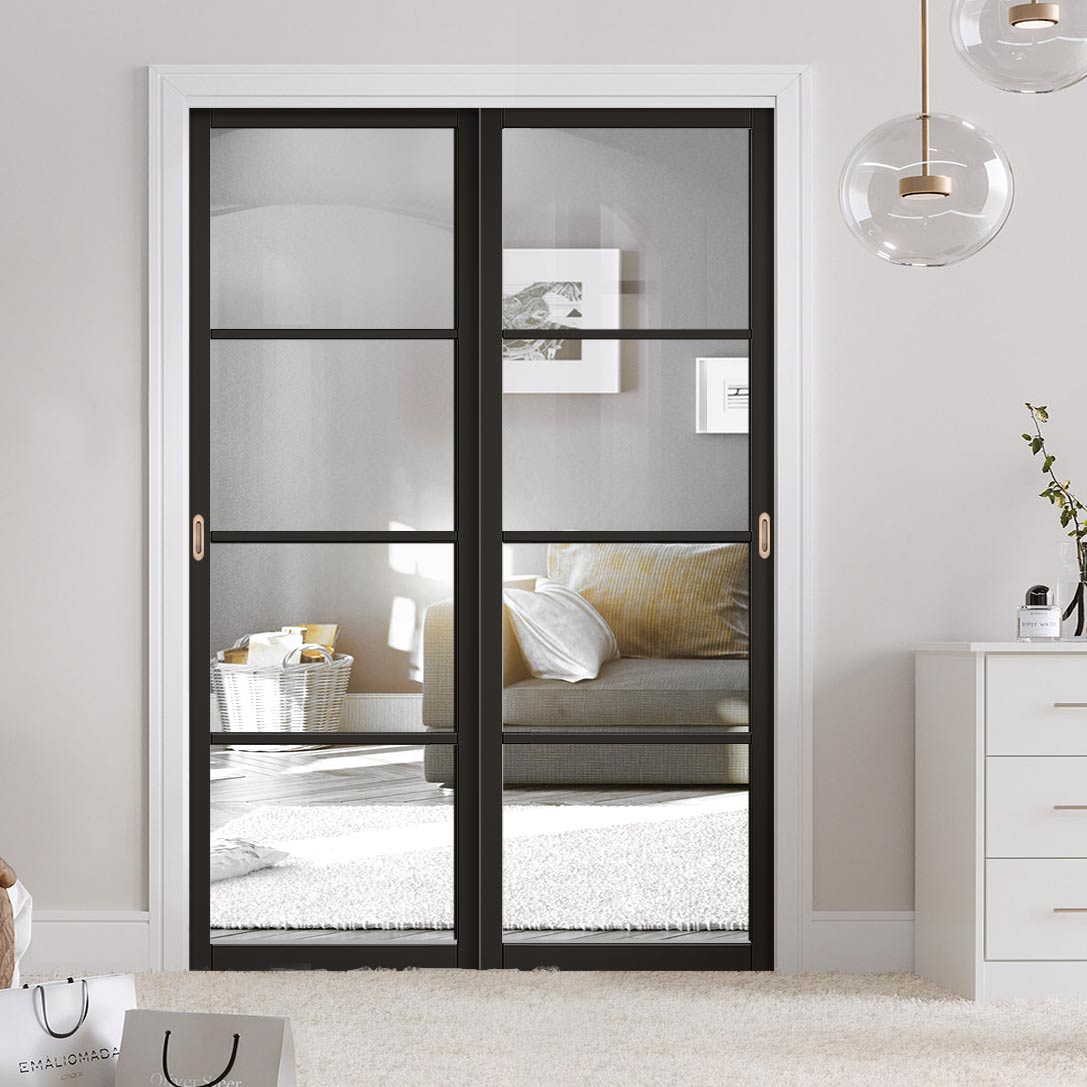

Two Sliding Doors and Frame Kit - Soho 4 Pane Door - Clear Glass - Black Primed
Two Sliding Doors and Frame Kit - Soho 4 Pane Door - Clear Glass - Black Primed
Two Sliding Doors and Frame Kit - Soho 4 Pane Door - Clear Glass - Black Primed

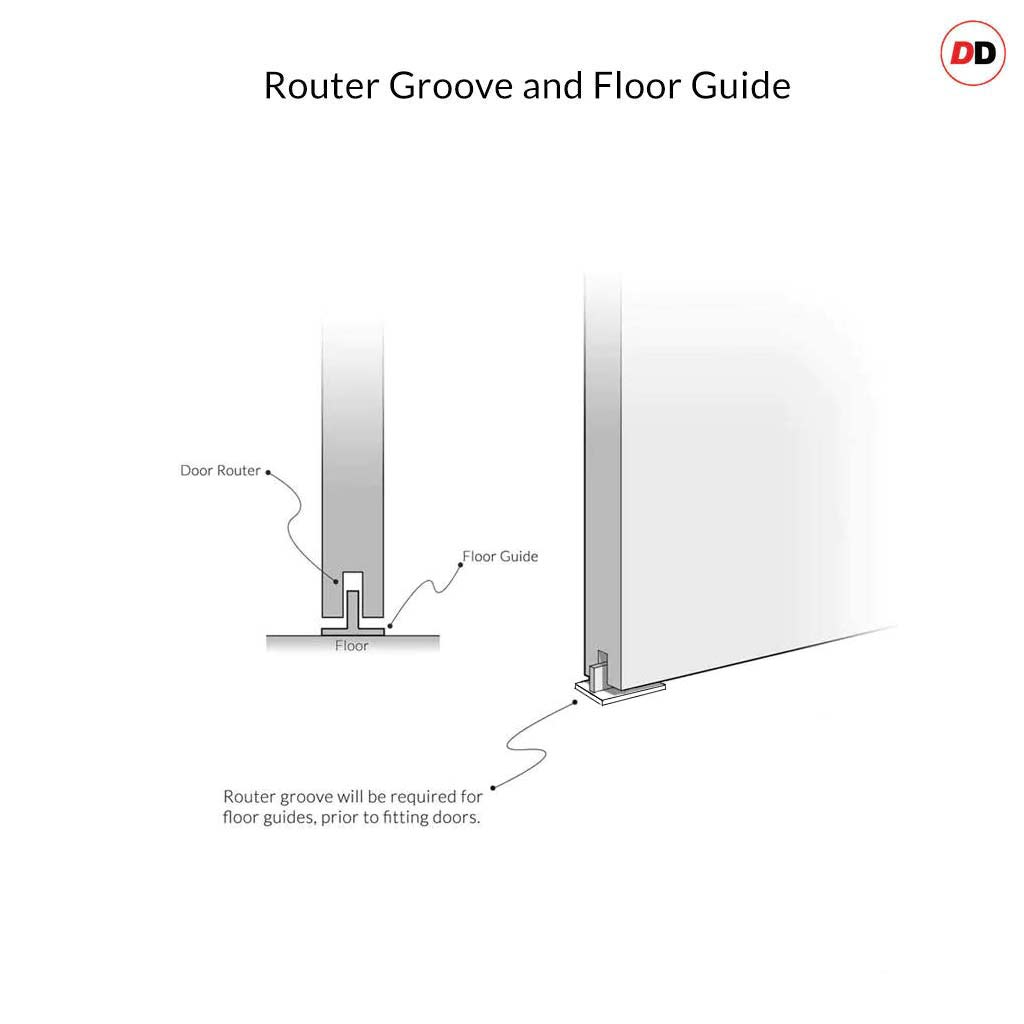

Router Groove and Floor Guide Diagram

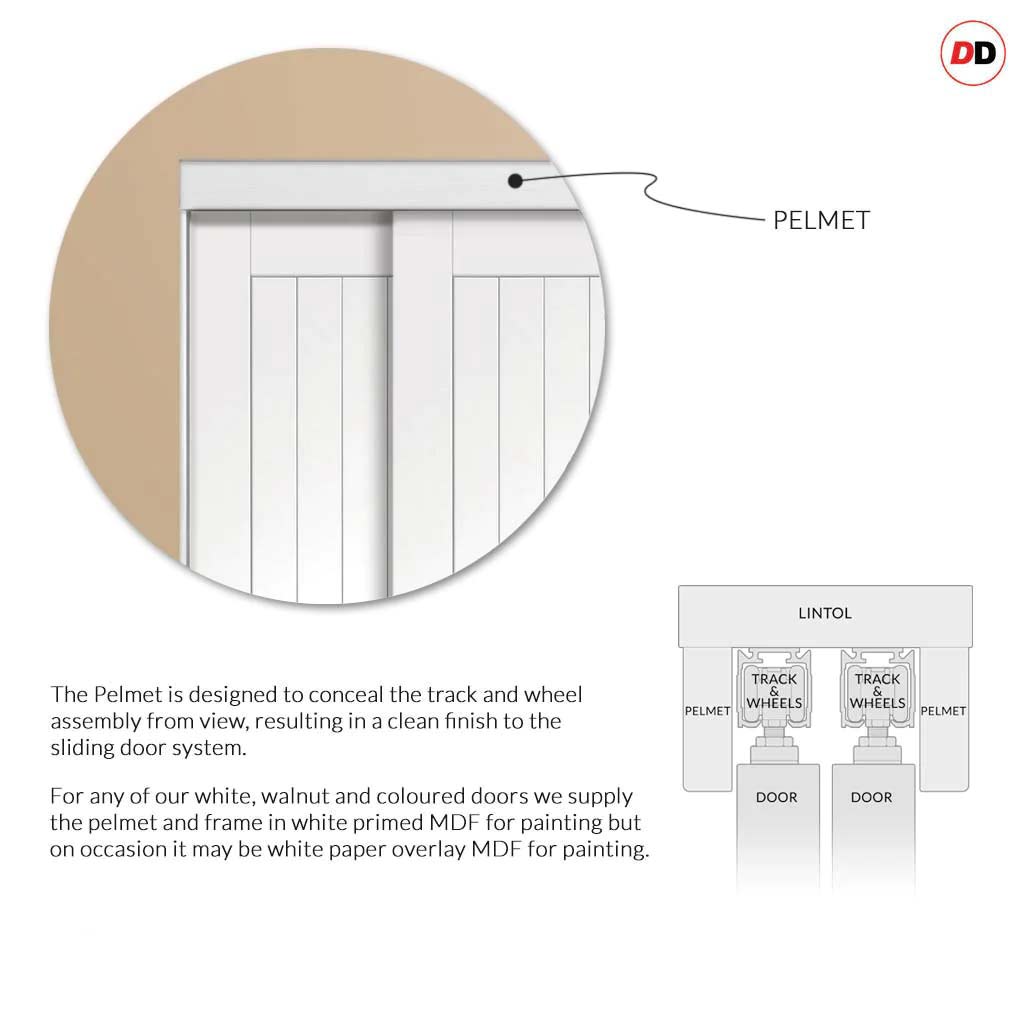

Pelmet Diagram
Solid Core
Self Assembly

Industrial style doors that may not be steel but are the next best thing and made from warm lightly grained wood or wood substitutes and with the warmth that only a wooden door can offer, for those discerning customers that not only want something different but also require something different.

The Soho 4 Pane Door - Clear Glass - Black Painted is a practical option for wider openings and room-dividing layouts, bringing together the chosen door style and sliding arrangement in one product with clear glass, a finished surface and black styling. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Prefinished
Colour
Black
Face
Painted
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment

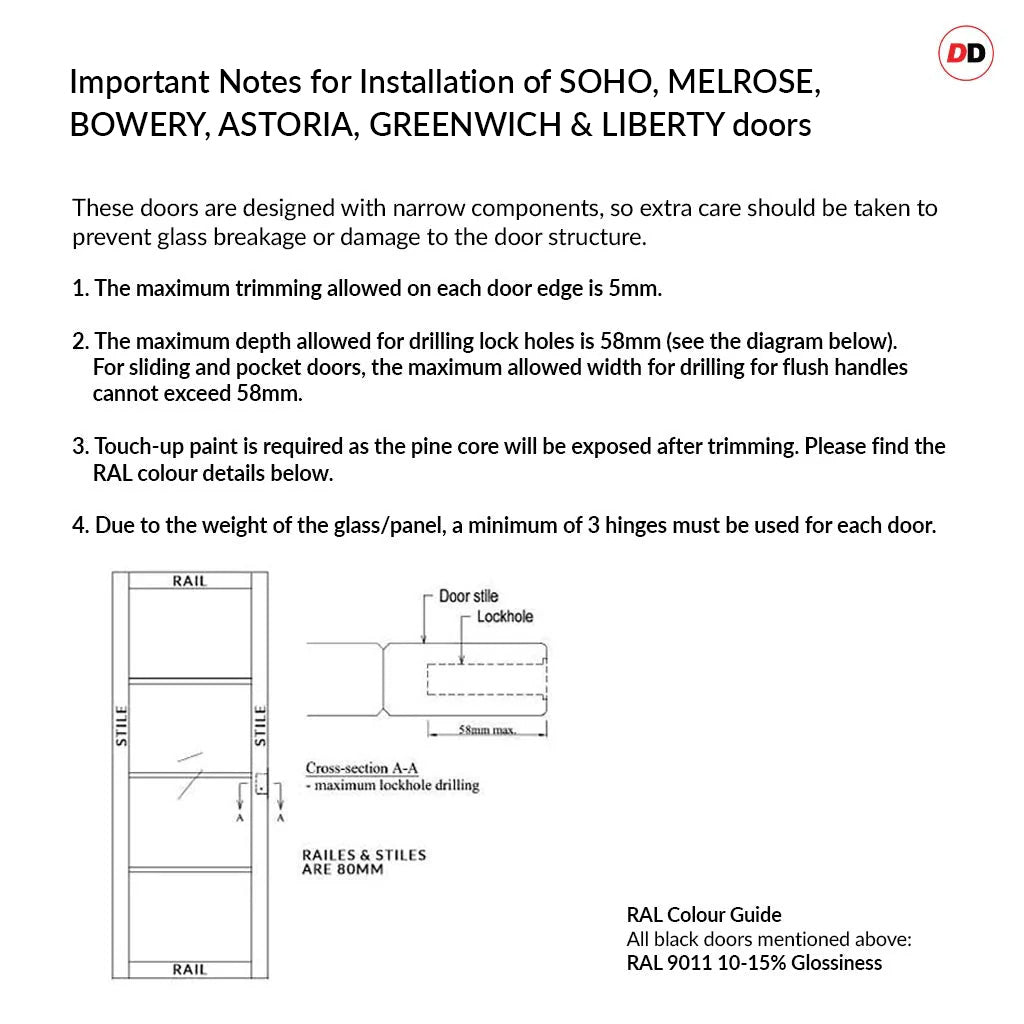

This door can be trimmed by 5mm on each edge.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Clear
Glazing
Single glazing

Pass-Easi Two Sliding Doors and Frame Kit

Configuration
2 Door
Door Quantity
2
Finish
Stainless Steel
Included Items
  • 2x Door
  • 1x Track & Track Fixing (excluding wall fixing)
  • 2x Soft Closer
  • 1x Frame (frame items are supplied in kit form without fixings, not assembled)
  • 1x Lintol Plate

Architraves & Handles are not included.

Technical Specs

Configurations & Advice:

  • Tracks length: Track will be supplied to suit each configuration.
  • Door / Frame Finishes: Prefinished oak doors have unfinished oak frame materials, Unfinished Oak doors have unfinished oak frame materials, Prefinished walnut, white primed, black primed and black prefinished doors have white primed frame materials.
  • Any mention of pre-finishing is to the door, the frame is supplied unfinished, all fittings such as track, track guides, guide channel, soft close anti-slam components, door track stops as well as the MDF frame components are all supplied. Sizes have allowed for a 20mm door overlap.
  • No wall fixings, MDF frame screws, fixings or your choice of handles are included.
  • All doors can open left or right but please refer to the diagrams and PDF for more clarity. You simply decide when you install them and discard the track door stops that can be used to keep a door or doors in the fixed position should you so wish.
  • Frame linings are 133mm broad and 30mm thick and once again have an MDF solid core construction, kits are supplied with two lintel pelmet to cover the track face and the space between the top of the door and the underside of the track.
  • All sliding doors can be trimmed but remember you will also need to cut the frame to suit the reduced doors, this will not be difficult, no handles supplied, please buy the handle you require separately.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
  • See our full range of handles and fittings here.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Important: Do not exert any pressure on the door when closing it. Allow the soft close mechanism to function to avoid damaging the system. All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.
Safety Glass Fitting Instructions

Soft Closer Fitting Instructions

LPD

Pass-Easi Two Sliding Doors and Frame Kit - Soho 4 Pane Door - Clear Glass - Black Painted

SOHBLA27-THR-2

Save 1% Was £1,176.75 £1,165.21
Made to Order

This Pass-Easi sliding door and frame kit pairs everyday practicality with a door style that can become part of the room rather than just a space-saving compromise. The Soho 4 Pane Door - Clear Glass - Black Painted gives you a tidier opening and a more flexible layout.

The design includes glazing that helps light move between rooms and a bold black finish, giving the product a clear visual identity while keeping the overall look easy to live with. Supplied as a coordinated sliding set, it is intended to bring together the door and sliding arrangement in one customer-friendly product.

Supplied in kit form and not assembled, so installation should be planned before ordering. A router is required for installation. Because applicable products are cut to size after order, cancellation restrictions may apply.

4-7 Working Days

Select option:
1981x686mm Doors, 2081mm High x 1412mm Wide Overall
£1,165.21 RRP £1,176.75
1981x762mm Doors, 2081mm High x 1564mm Wide Overall
£1,165.21 RRP £1,176.75
1981x838mm Doors, 2081mm High x 1716mm Wide Overall
£1,165.21 RRP £1,176.75

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Loading...
Solid Core
Self Assembly

Industrial style doors that may not be steel but are the next best thing and made from warm lightly grained wood or wood substitutes and with the warmth that only a wooden door can offer, for those discerning customers that not only want something different but also require something different.

The Soho 4 Pane Door - Clear Glass - Black Painted is a practical option for wider openings and room-dividing layouts, bringing together the chosen door style and sliding arrangement in one product with clear glass, a finished surface and black styling. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Prefinished
Colour
Black
Face
Painted
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
This door can be trimmed by 5mm on each edge.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Clear
Glazing
Single glazing

Pass-Easi Two Sliding Doors and Frame Kit

Configuration
2 Door
Door Quantity
2
Finish
Stainless Steel
Included Items
  • 2x Door
  • 1x Track & Track Fixing (excluding wall fixing)
  • 2x Soft Closer
  • 1x Frame (frame items are supplied in kit form without fixings, not assembled)
  • 1x Lintol Plate

Architraves & Handles are not included.

Technical Specs

Configurations & Advice:

  • Tracks length: Track will be supplied to suit each configuration.
  • Door / Frame Finishes: Prefinished oak doors have unfinished oak frame materials, Unfinished Oak doors have unfinished oak frame materials, Prefinished walnut, white primed, black primed and black prefinished doors have white primed frame materials.
  • Any mention of pre-finishing is to the door, the frame is supplied unfinished, all fittings such as track, track guides, guide channel, soft close anti-slam components, door track stops as well as the MDF frame components are all supplied. Sizes have allowed for a 20mm door overlap.
  • No wall fixings, MDF frame screws, fixings or your choice of handles are included.
  • All doors can open left or right but please refer to the diagrams and PDF for more clarity. You simply decide when you install them and discard the track door stops that can be used to keep a door or doors in the fixed position should you so wish.
  • Frame linings are 133mm broad and 30mm thick and once again have an MDF solid core construction, kits are supplied with two lintel pelmet to cover the track face and the space between the top of the door and the underside of the track.
  • All sliding doors can be trimmed but remember you will also need to cut the frame to suit the reduced doors, this will not be difficult, no handles supplied, please buy the handle you require separately.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
  • See our full range of handles and fittings here.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Important: Do not exert any pressure on the door when closing it. Allow the soft close mechanism to function to avoid damaging the system. All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.
Safety Glass Fitting Instructions

Soft Closer Fitting Instructions

Frequently asked questions

Please select your door first. Once you have chosen your door, you will then be able to add any add-ons you would like.

No, we are a supply-only company and do not offer a fitting service.

That said, we are experts in our field and are always happy to help with any questions you may have. We can advise on product care, fitting, hinges, locks, frames, and all other aspects of installation.

Please do not worry, deliveries may arrive with two different couriers. If you have received only part of your order, please allow a few more days for the remaining items to arrive.
