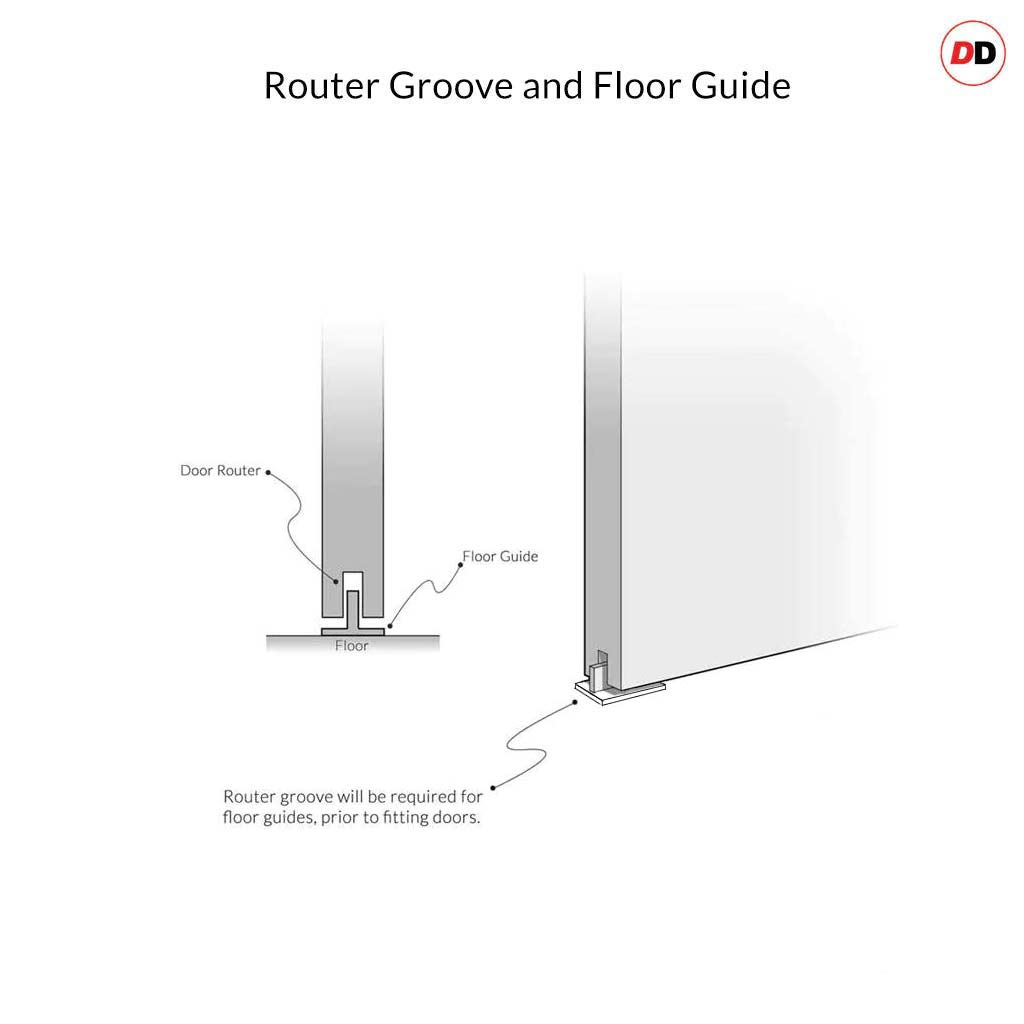

Router Groove and Floor Guide Diagram

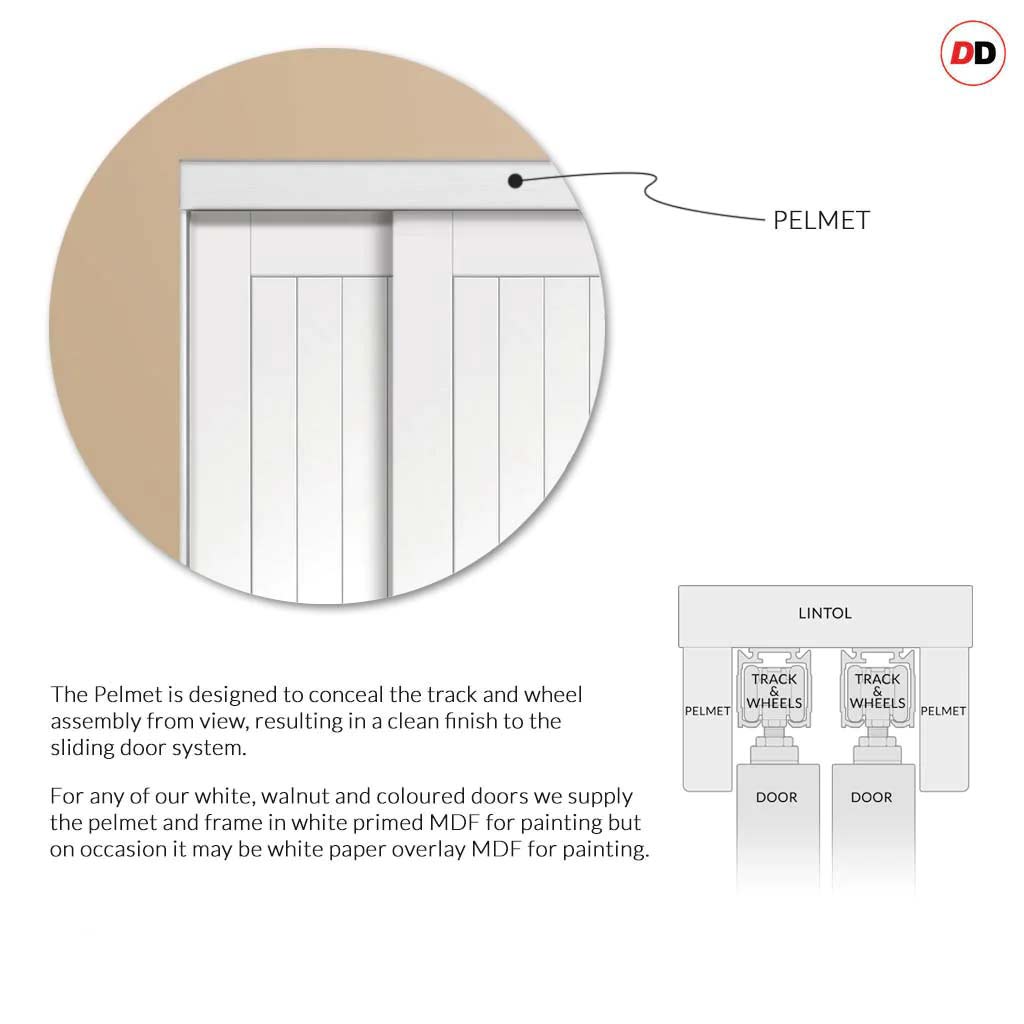

Pelmet Diagram
Pass-Easi Two Sliding Doors and Frame Kit - Coventry Prefinished Walnut Shaker Style Door - Clear Glass
Router Groove and Floor Guide Diagram
Pelmet Diagram
Solid Core
Self Assembly

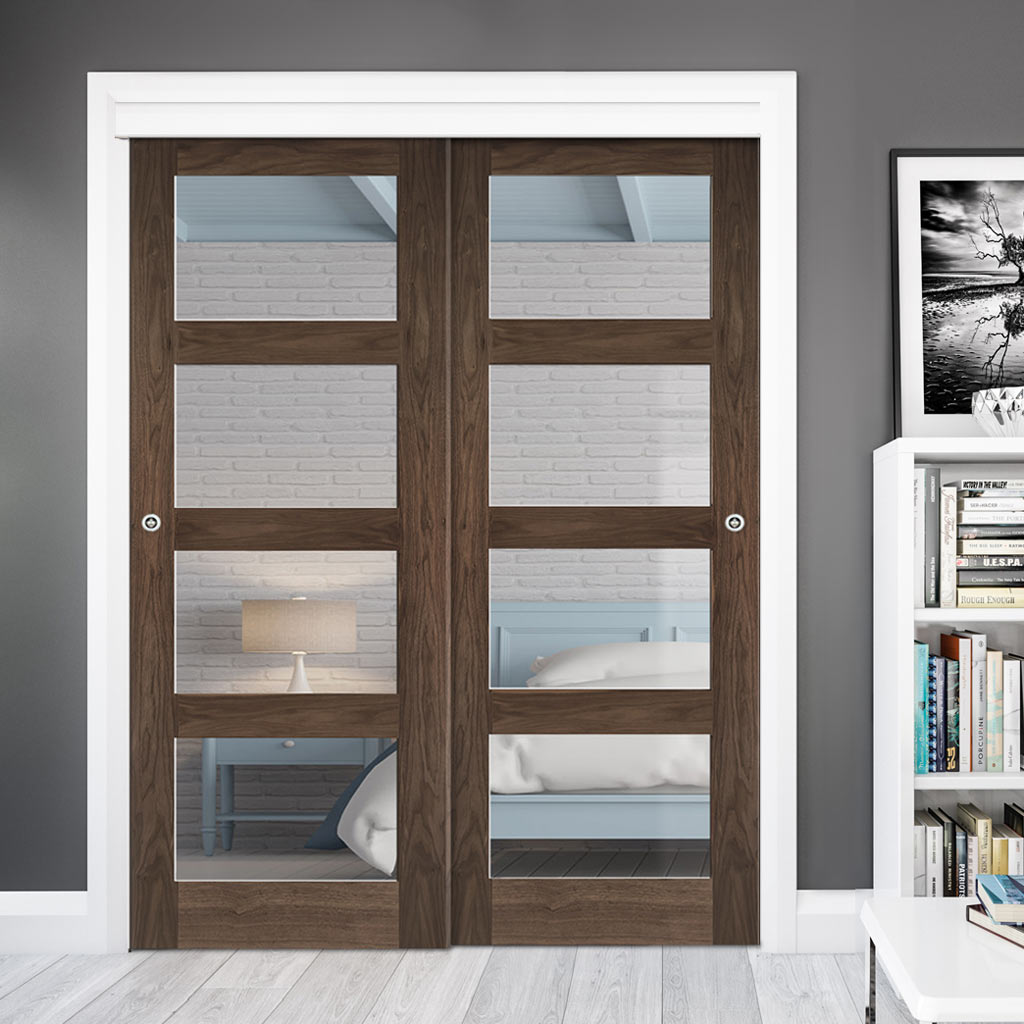

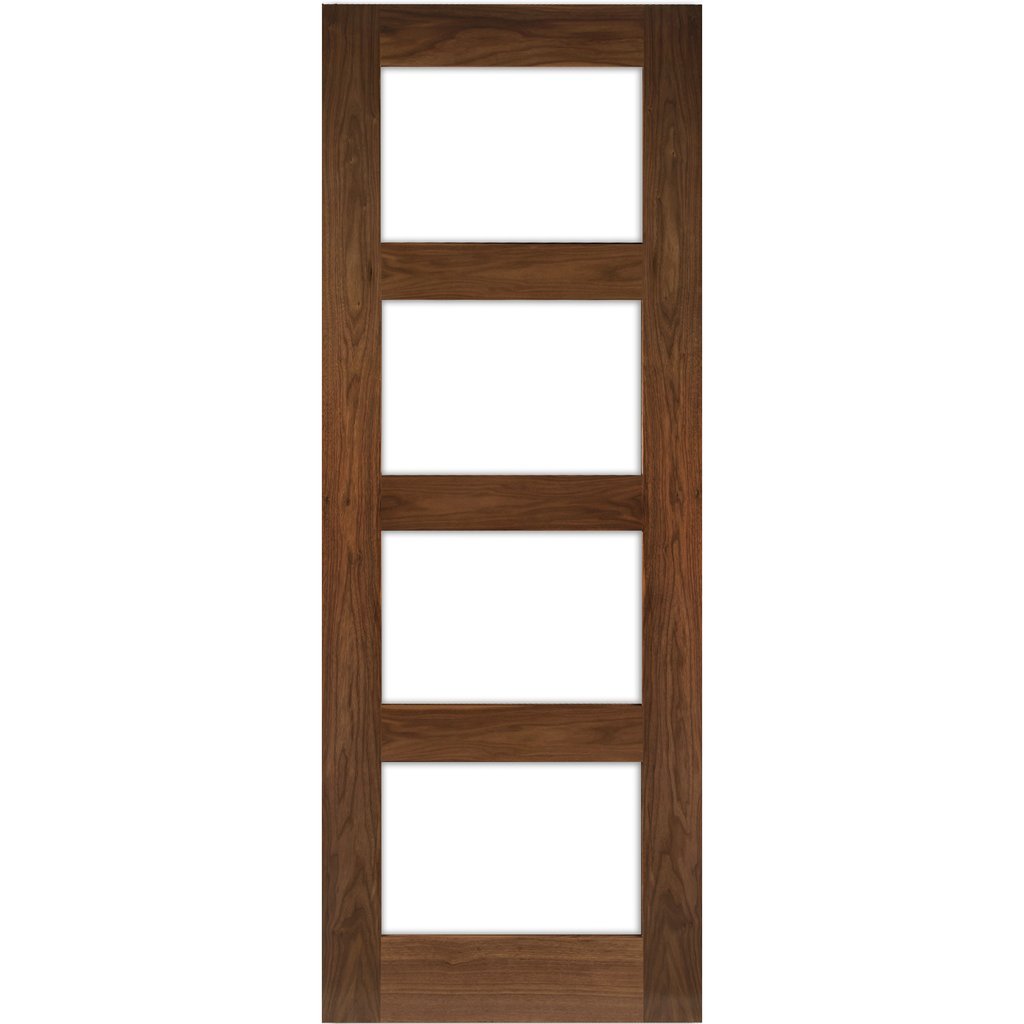

The minimalist style of this door is at once classic and contemporary; striking and understated; rustic and sleek. The clear glazed door features four evenly sized panels of clear toughened glass within a simple veneer surround. It is supplied here with a Pass-Easi frame, giving the doorway a cleaner sliding arrangement.
Finish
Prefinished
Face
Walnut
Material
Wood Veneer
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Clear
Glazing
Single glazing

Pass-Easi Two Sliding Doors and Frame Kit

Configuration
2 Door
Door Quantity
2
Finish
Stainless Steel
Included Items
  • 2x Door
  • 1x Track & Track Fixing (excluding wall fixing)
  • 2x Soft Closer
  • 1x Frame (frame items are supplied in kit form without fixings, not assembled)
  • 1x Lintol Plate

Architraves & Handles are not included.

Technical Specs

Configurations & Advice:

  • Tracks length: Track will be supplied to suit each configuration.
  • Door / Frame Finishes: Prefinished oak doors have unfinished oak frame materials, Unfinished Oak doors have unfinished oak frame materials, Prefinished walnut, white primed, black primed and black prefinished doors have white primed frame materials.
  • Any mention of pre-finishing is to the door, the frame is supplied unfinished, all fittings such as track, track guides, guide channel, soft close anti-slam components, door track stops as well as the MDF frame components are all supplied. Sizes have allowed for a 20mm door overlap.
  • No wall fixings, MDF frame screws, fixings or your choice of handles are included.
  • All doors can open left or right but please refer to the diagrams and PDF for more clarity. You simply decide when you install them and discard the track door stops that can be used to keep a door or doors in the fixed position should you so wish.
  • Frame linings are 133mm broad and 30mm thick and once again have an MDF solid core construction, kits are supplied with two lintel pelmet to cover the track face and the space between the top of the door and the underside of the track.
  • All sliding doors can be trimmed but remember you will also need to cut the frame to suit the reduced doors, this will not be difficult, no handles supplied, please buy the handle you require separately.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
  • See our full range of handles and fittings here.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Important: Do not exert any pressure on the door when closing it. Allow the soft close mechanism to function to avoid damaging the system. All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.
Safety Glass Fitting Instructions

Soft Closer Fitting Instructions

DEA

Pass-Easi Two Sliding Doors and Frame Kit - Coventry Prefinished Walnut Shaker Style Door - Clear Glass

35HP1WGCX686FSC-THR-2

Save 1% Was £1,222.83 £1,211.29
Made to Order

Coventry Prefinished Walnut Shaker Style Door - Clear Glass has Crown Cut American Black Prefinished Walnut, FSC® Certified sustainable timber and Fitted with clear toughened glass. With the Pass-Easi frame, it becomes a useful sliding option for wider openings or room dividers.

Please use our sample request product if you wish to order a colour sample.

4-7 working days

Select option:
1981x686mm Doors, 2081mm High x 1412mm Wide Overall
£1,211.29 RRP £1,222.83
1981x762mm Doors, 2081mm High x 1564mm Wide Overall
£1,211.29 RRP £1,222.83
1981x838mm Doors, 2081mm High x 1716mm Wide Overall
£1,211.29 RRP £1,222.83

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Loading...
Solid Core
Self Assembly

The minimalist style of this door is at once classic and contemporary; striking and understated; rustic and sleek. The clear glazed door features four evenly sized panels of clear toughened glass within a simple veneer surround. It is supplied here with a Pass-Easi frame, giving the doorway a cleaner sliding arrangement.
Finish
Prefinished
Face
Walnut
Material
Wood Veneer
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Clear
Glazing
Single glazing

Pass-Easi Two Sliding Doors and Frame Kit

Configuration
2 Door
Door Quantity
2
Finish
Stainless Steel
Included Items
  • 2x Door
  • 1x Track & Track Fixing (excluding wall fixing)
  • 2x Soft Closer
  • 1x Frame (frame items are supplied in kit form without fixings, not assembled)
  • 1x Lintol Plate

Architraves & Handles are not included.

Technical Specs

Configurations & Advice:

  • Tracks length: Track will be supplied to suit each configuration.
  • Door / Frame Finishes: Prefinished oak doors have unfinished oak frame materials, Unfinished Oak doors have unfinished oak frame materials, Prefinished walnut, white primed, black primed and black prefinished doors have white primed frame materials.
  • Any mention of pre-finishing is to the door, the frame is supplied unfinished, all fittings such as track, track guides, guide channel, soft close anti-slam components, door track stops as well as the MDF frame components are all supplied. Sizes have allowed for a 20mm door overlap.
  • No wall fixings, MDF frame screws, fixings or your choice of handles are included.
  • All doors can open left or right but please refer to the diagrams and PDF for more clarity. You simply decide when you install them and discard the track door stops that can be used to keep a door or doors in the fixed position should you so wish.
  • Frame linings are 133mm broad and 30mm thick and once again have an MDF solid core construction, kits are supplied with two lintel pelmet to cover the track face and the space between the top of the door and the underside of the track.
  • All sliding doors can be trimmed but remember you will also need to cut the frame to suit the reduced doors, this will not be difficult, no handles supplied, please buy the handle you require separately.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
  • See our full range of handles and fittings here.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Important: Do not exert any pressure on the door when closing it. Allow the soft close mechanism to function to avoid damaging the system. All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.
Safety Glass Fitting Instructions

Soft Closer Fitting Instructions
