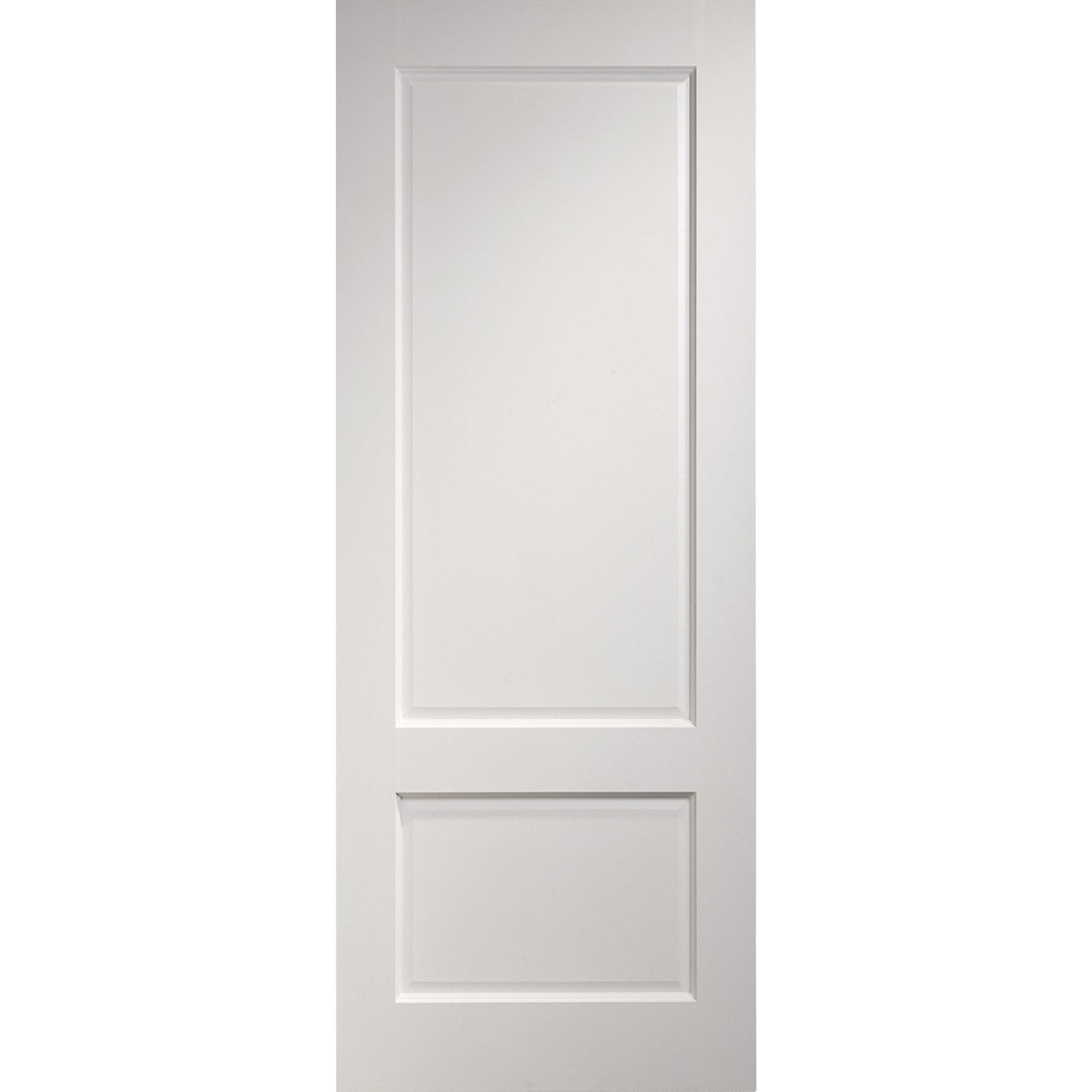

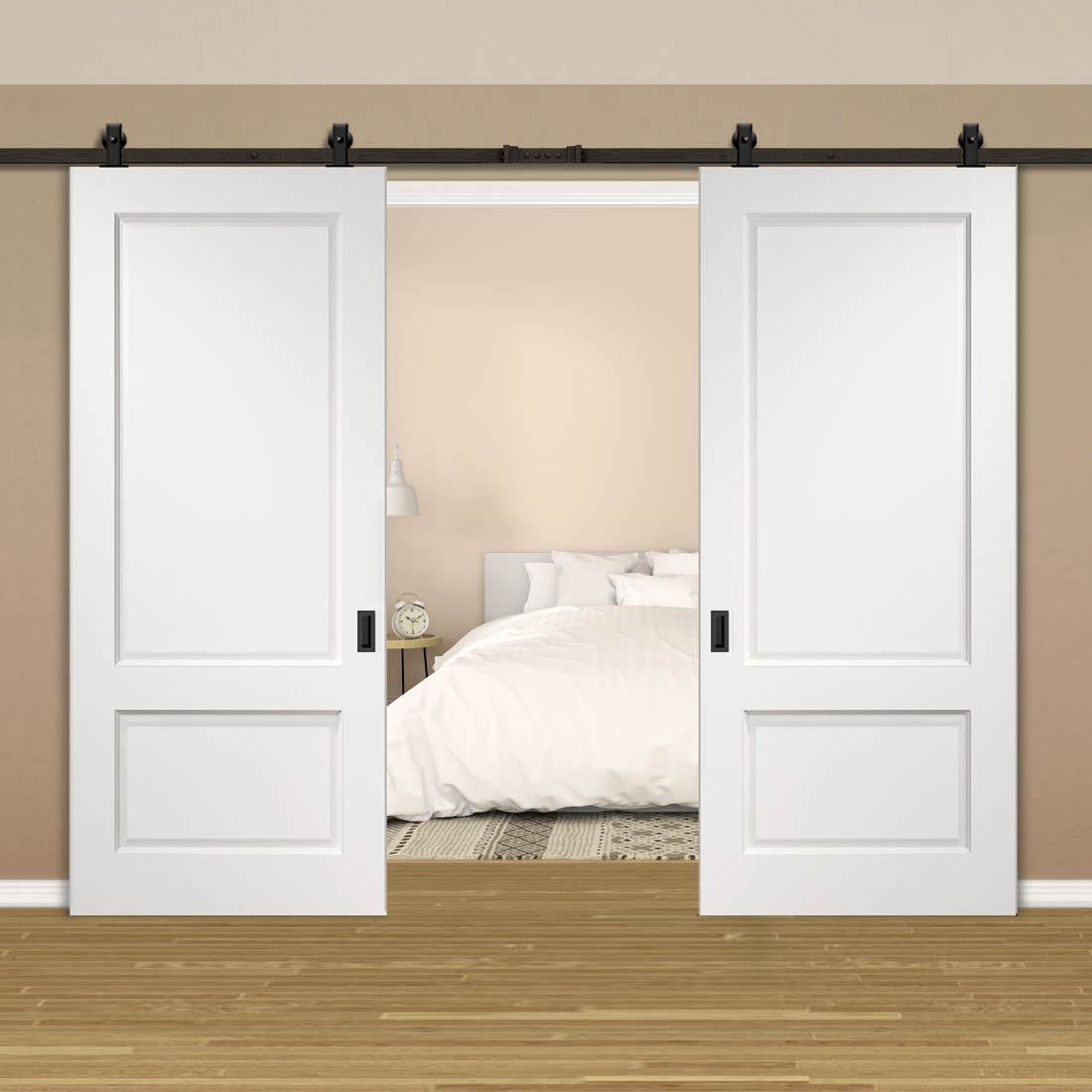

Top Mounted Sliding Track & Madison White Primed Panel Double Door
Delivery as per our Delivery Icon above - Excellent
All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
We deliver for free to most UK Mainland postcodes, please note you may receive deliveries from 2 or more suppliers.
PayPal Credit and Pay in 3 Instalments available for Paypal users.
1981x686mm Doors - For Openings 1970mm High x 1352mm Wide (35NM3WHP686-THRMIN-DBL)
1981x762mm Doors - For Openings 1970mm High x 1504mm Wide (35NM3WHP762-THRMIN-DBL)
1981x838mm Doors - For Openings 1970mm High x 1656mm Wide (35NM3WHP838-THRMIN-DBL)
A router will be required for door installation.
Please click here to find our manufacturers care and decoration advice for this door.

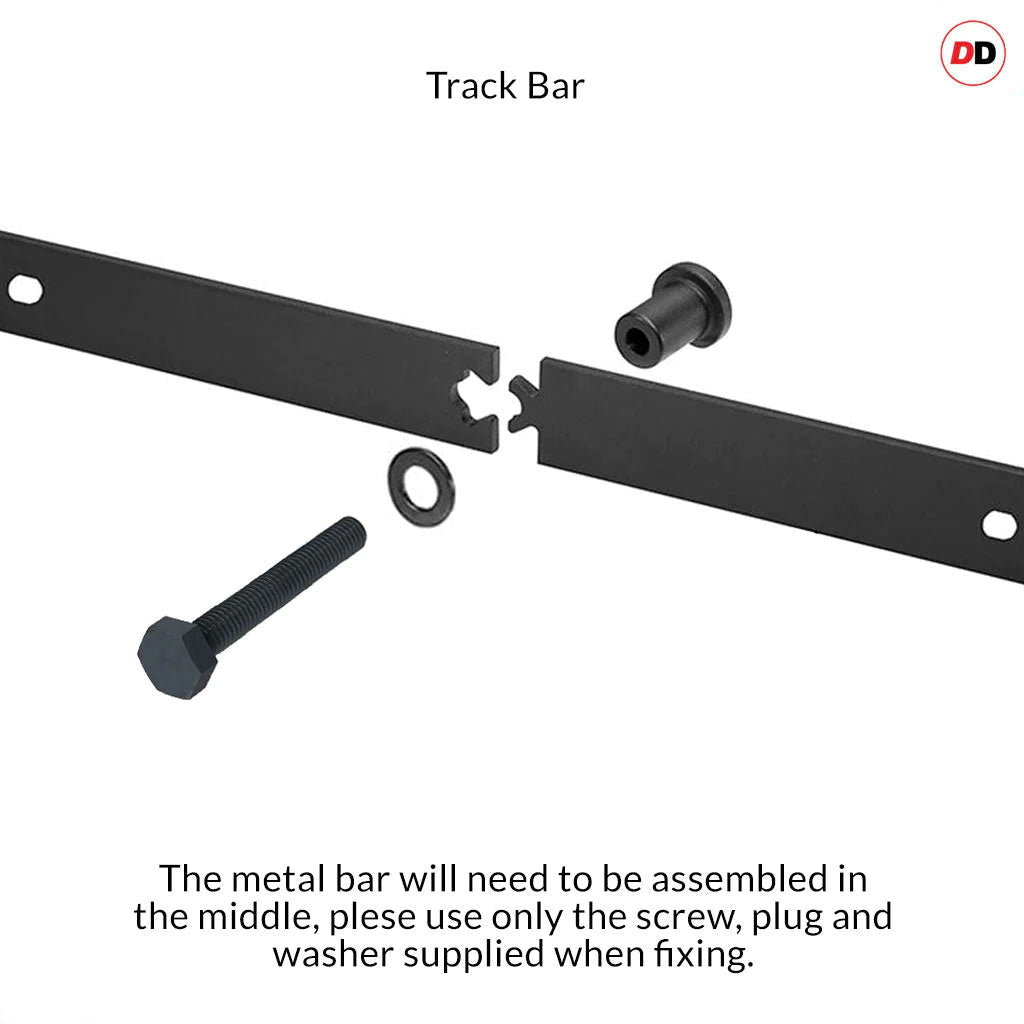

- We will always endeavour to supply the best size track available relative to the door size, 2x 1500mm tracks are supplied for 686mm doors but maybe supplied 2x 2000mm long giving more overhang for the track, example: 2x 686mm wide doors need approximately 686mm each of wall space when open, add these dimensions together = 2774mm, this means on both sides doors will have 128mm overhang.
|1500mm track overhang(L & R)
128mm (L & R) - 2x 686mm wide door
2000mm track overhang(L & R)
|628mm (L & R) - 2x 686mm wide door 476mm (L & R) - 2x 762mm wide door 324mm (L & R) - 2x 838mm wide door|
- Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door pair size so the doors "cover" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
- The prices shown include the door pair and track, all prices are inclusive of vat and delivery is free to most UK Mainland postcodes, delivery may be from 2 suppliers.

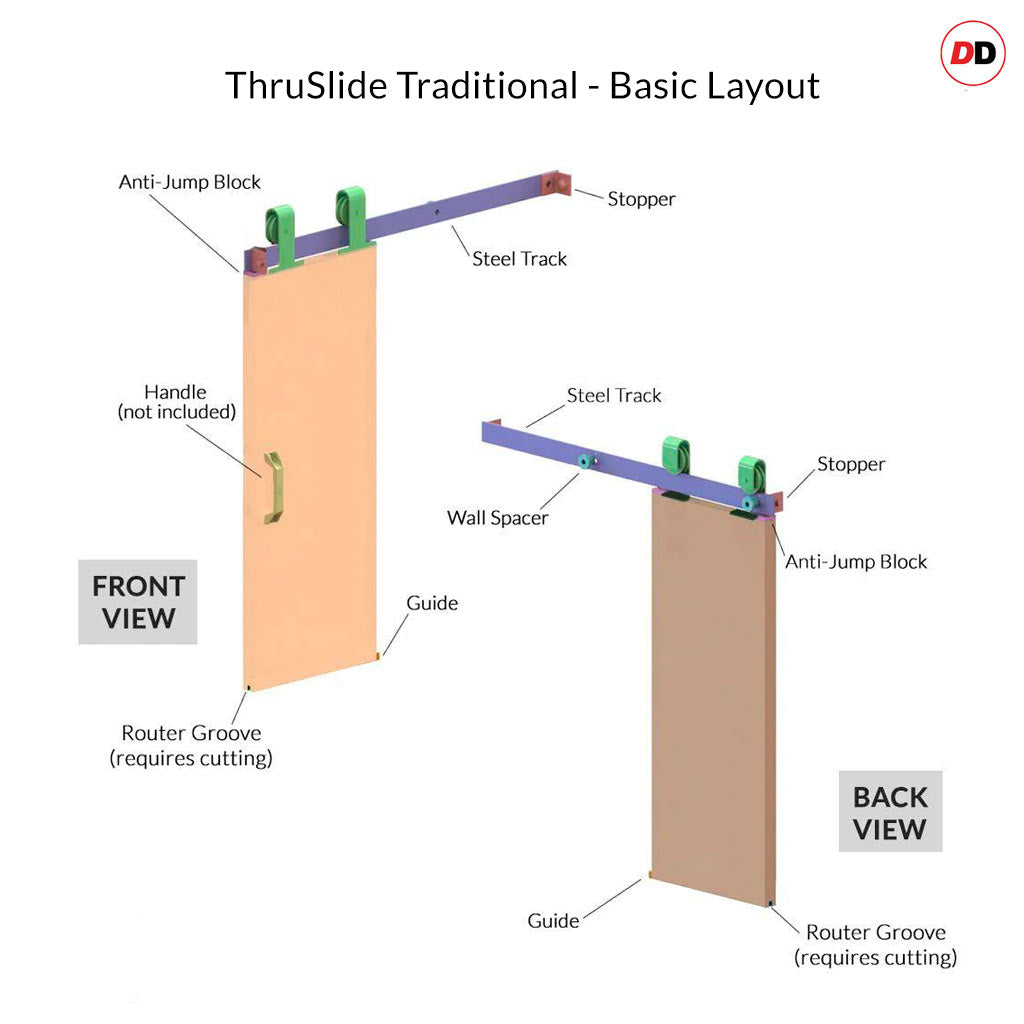

- A high-quality top mounted sliding track system finished in black, the top mounted track is screwed directly into the top of the door which gives the whole system a very sleek look.
- There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
- Doors will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
- Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
- All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
- See our full range of handles and fittings here.
Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as bespoke items created and manufactured by DirectDoors.com.
Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features are not uncommon.
|Suggested Minimum Skill Level||Advanced DIY & Specialist Joinery Tools Required.|

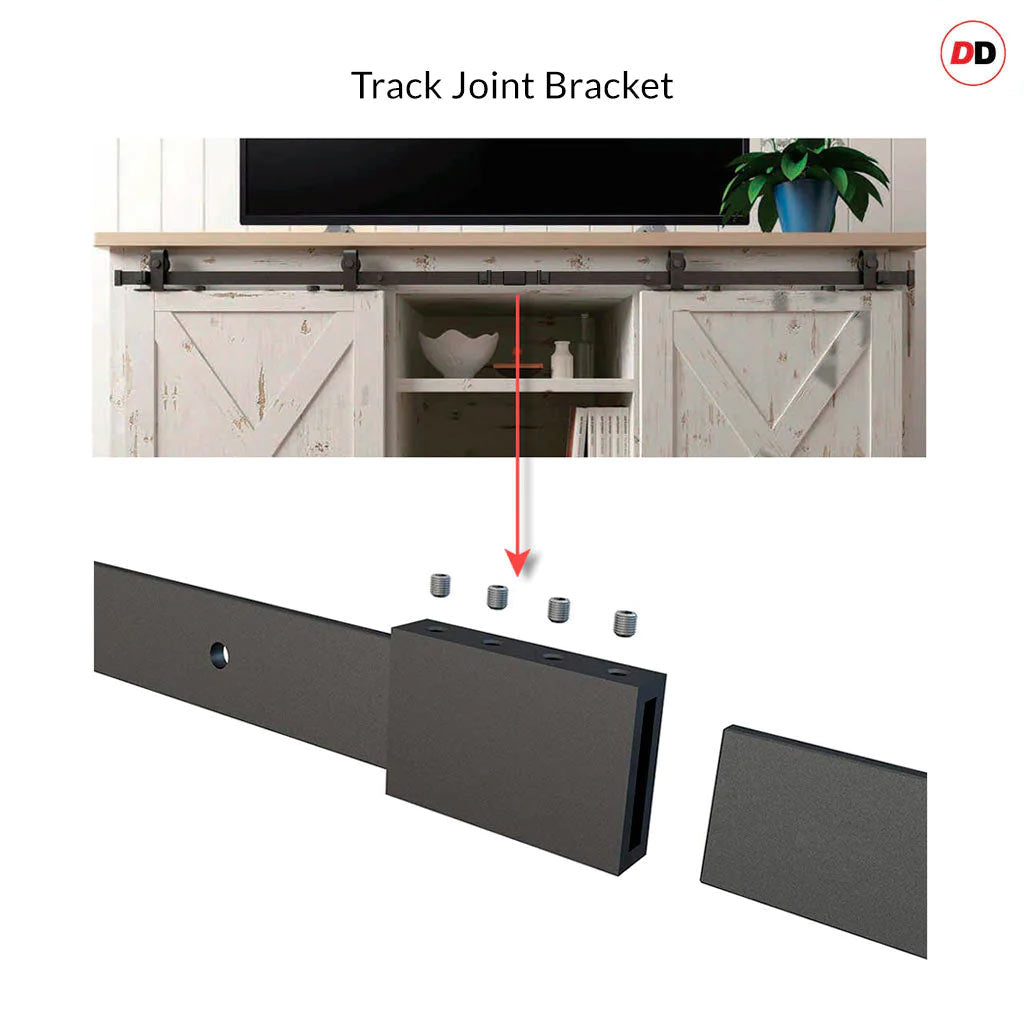

|Price||Includes the doors, tracks, soft closers and joining bracket.|
|Supplier Delivery Timescale||See delivery icon at the top of the product page.|
|Dimensions||Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.|
|Important||All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as bespoke items created and manufactured by DIrectDoors.com.|
