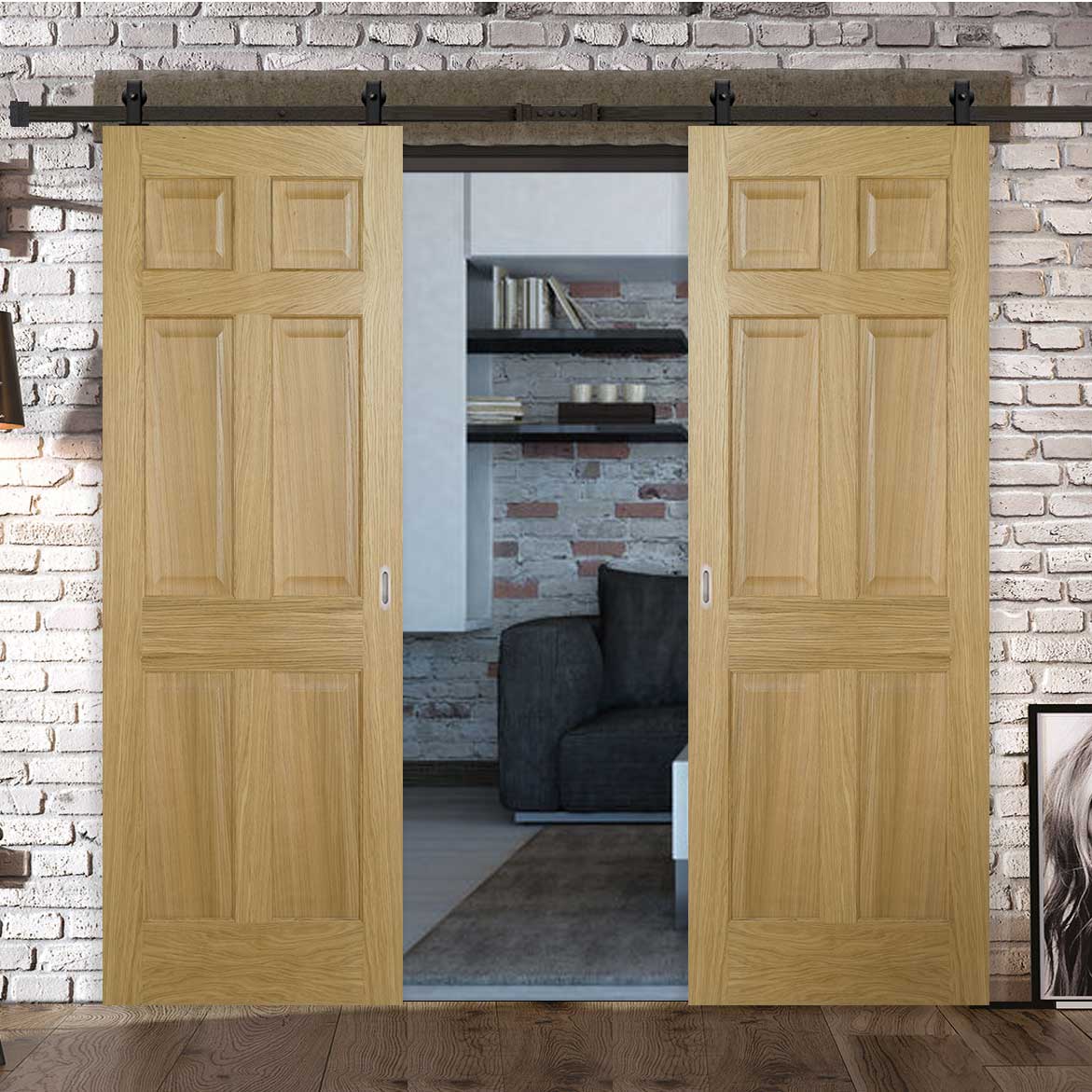

Top Mounted Black Sliding Track & Double Door - Regency 6 Panel Oak Doors - Prefinished
Barn Style Top Mounted Track Image with Dimensions
Image showing how to connect Top Mouted Sliding Track Elements
Diagram explaining the floor guide groove in the bottom of the door
Diagram showing layout of the sliding track with doors
Track Joint Bracket
Solid Core
Self-Assembly

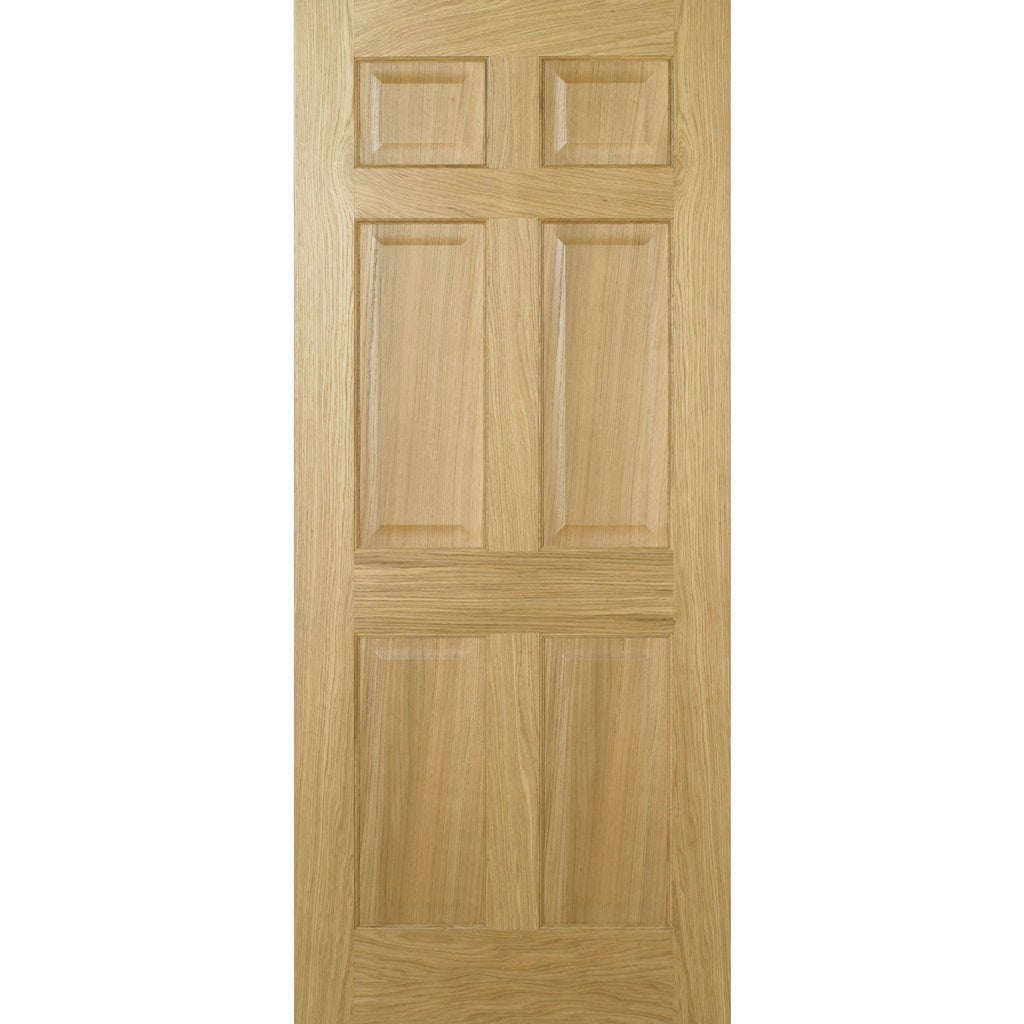

The Regency 6 Panel Oak Doors - Prefinished is a practical option for wider openings and room-dividing layouts, bringing together the chosen door style and sliding arrangement in one product with a finished surface, oak styling and panel detailing. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Prefinished
Face
Oak
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
This door can be trimmed by 8mm on each edge.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Double Black Top Mounted Sliding Track

Configuration
Double
Door Quantity
2
Finish
Black Coated Metal
Included Items
  • 2x Door
  • 2x Track - Please note the style of track stops may vary depending on the size chosen.
  • 1x Track Joint Bracket
  • 2x Sof Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.



Technical Specs

Product Advice:

  • Depending on availability, a longer track may be supplied which suits all sizes.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door pair size so the doors "cover" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • The prices shown include the door pair and track, all prices are inclusive of vat and delivery is free to most UK Mainland postcodes, delivery may be from 2 suppliers.
  • A high-quality top mounted sliding track system finished in black, the top mounted track is screwed directly into the top of the door which gives the whole system a very sleek look. This track is suitable for a maximum weight of 80 kg per door.
  • There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
  • Doors will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • All doors are 35mm or 40mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Top Mounted Track - 1500mm Fitting Instructions Top Mounted Track - 1830mm Fitting Instructions Top Mounted Track - 2100mm Fitting Instructions Top Mounted Track - Soft Closer Fitting Trak Overlap Guide

Soft Closer Fitting Video

LPD

Top Mounted Black Sliding Track & Double Door - Regency 6 Panel Oak Doors - Prefinished

PFOREG24-THRMIN-DBL

From £504.59
In stock

This top-mounted sliding track and door set pairs everyday practicality with a door style that can become part of the room rather than just a space-saving compromise. The Regency 6 Panel Oak Doors - Prefinished gives you a tidier opening and a more flexible layout.

The design includes a prefinished door surface, oak styling and a bold black finish, giving the product a clear visual identity while keeping the overall look easy to live with. Supplied as a coordinated sliding set, it is intended to bring together the door and sliding arrangement in one customer-friendly product.

Supplied in kit form and not assembled, so installation should be planned before ordering. A router is required for installation. Because applicable products are cut to size after order, cancellation restrictions may apply.

4-7 Working Days

Select option:
1981x610mm Doors - For Openings 1970mm High x 1200mm Wide
£504.59
1981x686mm Doors - For Openings 1970mm High x 1352mm Wide
£504.59
1981x762mm Doors - For Openings 1970mm High x 1504mm Wide
£508.43
1981x838mm Doors - For Openings 1970mm High x 1656mm Wide
£508.43

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Loading...
Solid Core
Self-Assembly

The Regency 6 Panel Oak Doors - Prefinished is a practical option for wider openings and room-dividing layouts, bringing together the chosen door style and sliding arrangement in one product with a finished surface, oak styling and panel detailing. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Prefinished
Face
Oak
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
This door can be trimmed by 8mm on each edge.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Double Black Top Mounted Sliding Track

Configuration
Double
Door Quantity
2
Finish
Black Coated Metal
Included Items
  • 2x Door
  • 2x Track - Please note the style of track stops may vary depending on the size chosen.
  • 1x Track Joint Bracket
  • 2x Sof Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.



Technical Specs

Product Advice:

  • Depending on availability, a longer track may be supplied which suits all sizes.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door pair size so the doors "cover" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • The prices shown include the door pair and track, all prices are inclusive of vat and delivery is free to most UK Mainland postcodes, delivery may be from 2 suppliers.
  • A high-quality top mounted sliding track system finished in black, the top mounted track is screwed directly into the top of the door which gives the whole system a very sleek look. This track is suitable for a maximum weight of 80 kg per door.
  • There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
  • Doors will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • All doors are 35mm or 40mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Top Mounted Track - 1500mm Fitting Instructions Top Mounted Track - 1830mm Fitting Instructions Top Mounted Track - 2100mm Fitting Instructions Top Mounted Track - Soft Closer Fitting Trak Overlap Guide

Soft Closer Fitting Video

Frequently asked questions

Please select your door first. Once you have chosen your door, you will then be able to add any add-ons you would like.

No, we are a supply-only company and do not offer a fitting service.

That said, we are experts in our field and are always happy to help with any questions you may have. We can advise on product care, fitting, hinges, locks, frames, and all other aspects of installation.

Please do not worry, deliveries may arrive with two different couriers. If you have received only part of your order, please allow a few more days for the remaining items to arrive.
