Sirius Tubular Stainless Steel Sliding Track & Belize Oak Door - Unfinished
Router Groove Required - Top Mounted Door DirectDoors
Solid Core
Self Assembly

This sliding door set is designed for rooms where hinged-door swing space is limited, giving the door a tidy sliding action and an unfinished surface and oak styling. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
Top & Bottom Rail Trimming Allowance: 3mm, Side Rails/Stiles Trimming Allowance: 5mm
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Sirius Tubular Top Mounted Sliding Track

Configuration
Single
Door Quantity
1
Finish
Stainless Steel
Included Items
  • 1x Door
  • 1x Track - Please note the style of track stops may vary depending on the size chosen.
  • 1x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • We will always endeavour to supply the best size track available relative to the door size, 1500mm tracks are supplied for 686mm doors, 1830mm for 762 doors and 1830mm for 838 doors.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width/height.
  • The type of architrave used or existing can impact on visible clearances.
  • The prices shown include the door and track, all prices are inclusive of vat and delivery is free to most UK Mainland postcodes, delivery may be from 2 suppliers.

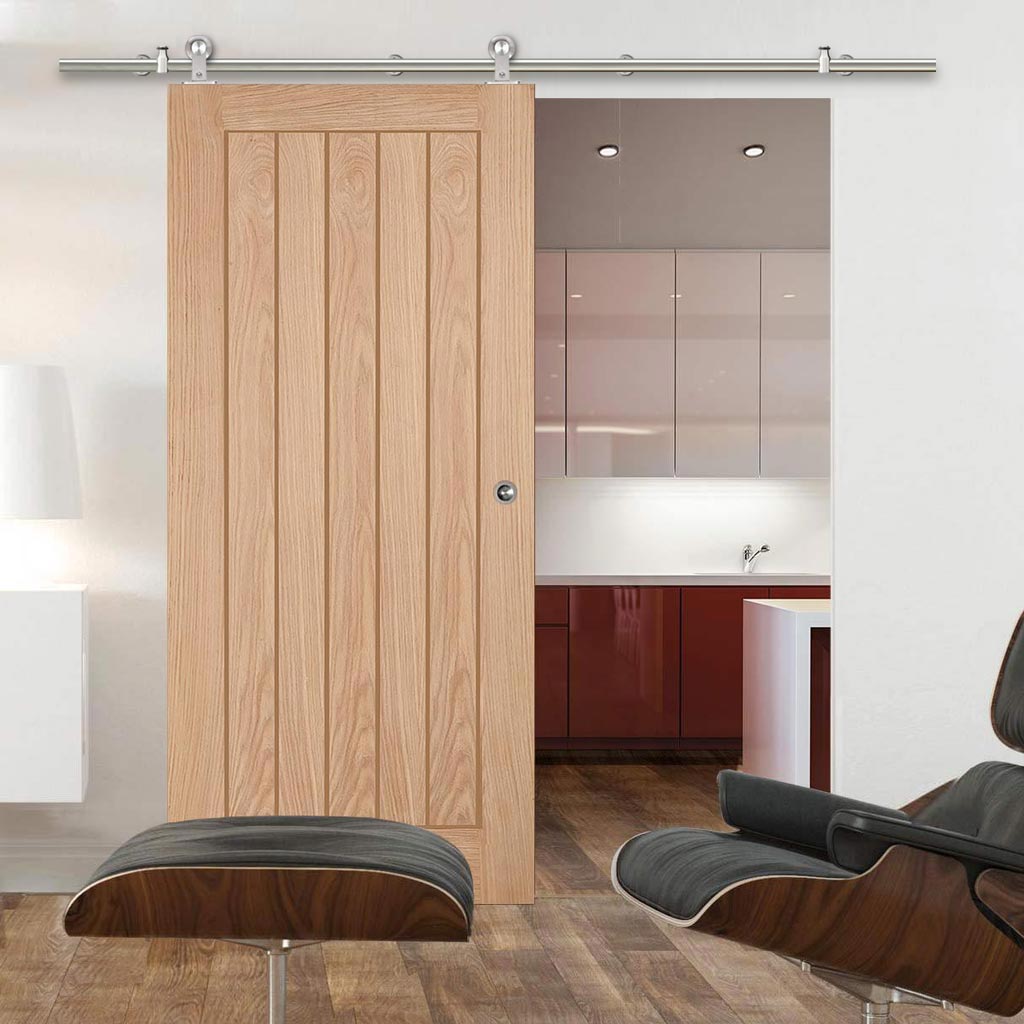

  • A high-quality top mounted stainless steel sliding track system, the top-mounted track is screwed directly into the top of the door which gives the whole system a very sleek look. Maximum weight: 80 kg per door.
  • There is an approx maximum of 2130mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track is required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • All doors are 35mm thick and have a solid or semi-solid core covered with a quality timber veneer or surface material for painted and white versions.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Component List 1500mm Fitting Instructions 1830mm Fitting Instructions Trak Overlap Guide

Soft Closer Fitting Video

LPD

Sirius Tubular Stainless Steel Sliding Track & Belize Oak Door - Unfinished

OBEL27-VS1TM

Save 24% Was £338.54 From £258.22
In stock

With Unfinished, the focus is on creating a cleaner, easier-to-use opening with an unfinished surface ready for your chosen finish, oak styling. It suits projects where you want the practicality of a sliding system without losing the character of a proper door design.

The design includes an unfinished surface ready for your chosen finish and oak styling, giving the product a clear visual identity while keeping the overall look easy to live with. Supplied as a coordinated sliding set, it is intended to bring together the door and sliding arrangement in one customer-friendly product.

Supplied in kit form and not assembled, so installation should be planned before ordering. A router is required for installation. Because applicable products are cut to size after order, cancellation restrictions may apply.

4-7 Working Days

Select option:
1981x686mm Door - For Openings 1970mm High x 666mm Wide
£258.22 RRP £338.54
1981x762mm Door - For Openings 1970mm High x 742mm Wide
£261.63 RRP £344.82
1981x838mm Door - For Openings 1970mm High x 818mm Wide
£261.63 RRP £344.82

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Loading...
Solid Core
Self Assembly

This sliding door set is designed for rooms where hinged-door swing space is limited, giving the door a tidy sliding action and an unfinished surface and oak styling. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
Top & Bottom Rail Trimming Allowance: 3mm, Side Rails/Stiles Trimming Allowance: 5mm
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Sirius Tubular Top Mounted Sliding Track

Configuration
Single
Door Quantity
1
Finish
Stainless Steel
Included Items
  • 1x Door
  • 1x Track - Please note the style of track stops may vary depending on the size chosen.
  • 1x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • We will always endeavour to supply the best size track available relative to the door size, 1500mm tracks are supplied for 686mm doors, 1830mm for 762 doors and 1830mm for 838 doors.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width/height.
  • The type of architrave used or existing can impact on visible clearances.
  • The prices shown include the door and track, all prices are inclusive of vat and delivery is free to most UK Mainland postcodes, delivery may be from 2 suppliers.
  • A high-quality top mounted stainless steel sliding track system, the top-mounted track is screwed directly into the top of the door which gives the whole system a very sleek look. Maximum weight: 80 kg per door.
  • There is an approx maximum of 2130mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track is required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • All doors are 35mm thick and have a solid or semi-solid core covered with a quality timber veneer or surface material for painted and white versions.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Component List 1500mm Fitting Instructions 1830mm Fitting Instructions Trak Overlap Guide

Soft Closer Fitting Video

Frequently asked questions

Please select your door first. Once you have chosen your door, you will then be able to add any add-ons you would like.

No, we are a supply-only company and do not offer a fitting service.

That said, we are experts in our field and are always happy to help with any questions you may have. We can advise on product care, fitting, hinges, locks, frames, and all other aspects of installation.

Please do not worry, deliveries may arrive with two different couriers. If you have received only part of your order, please allow a few more days for the remaining items to arrive.
