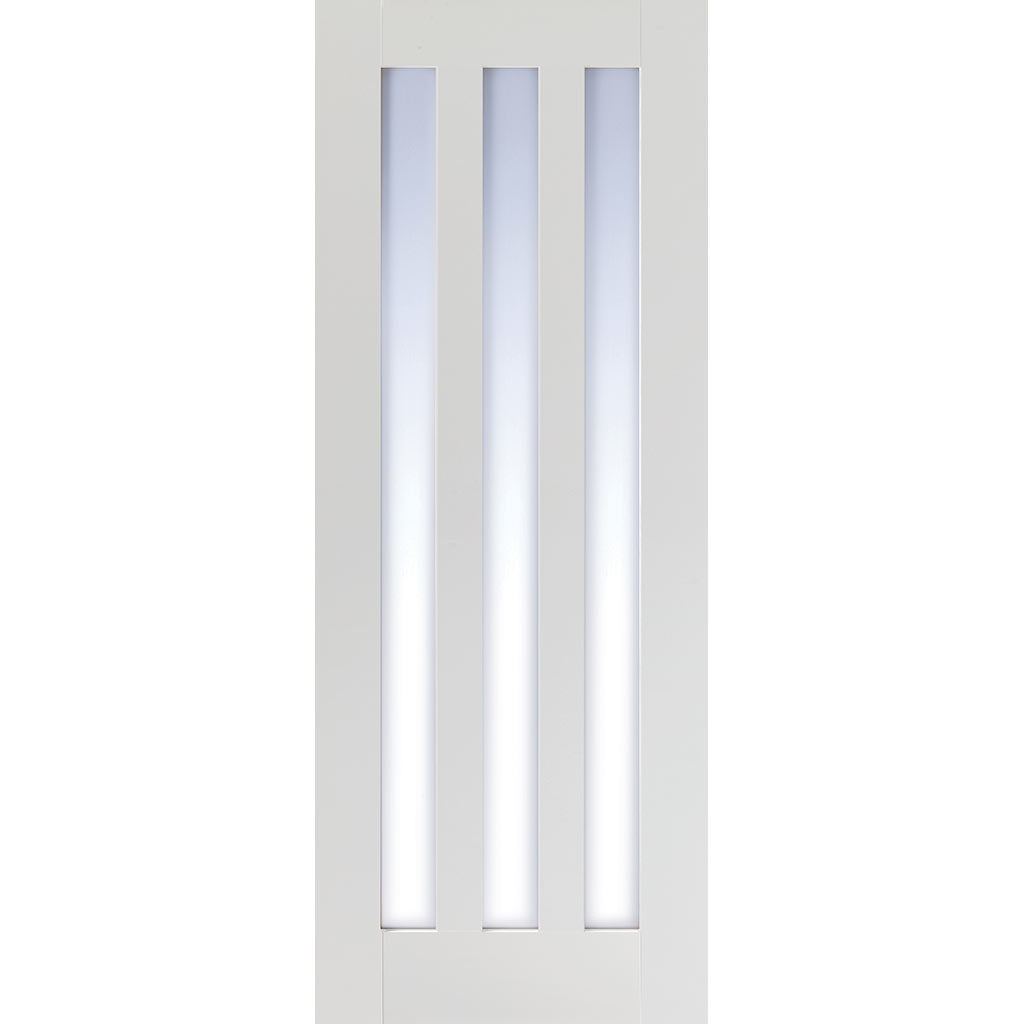

Single Sliding Door & Track - Utah 3 Pane Door - Clear Glass - White Primed

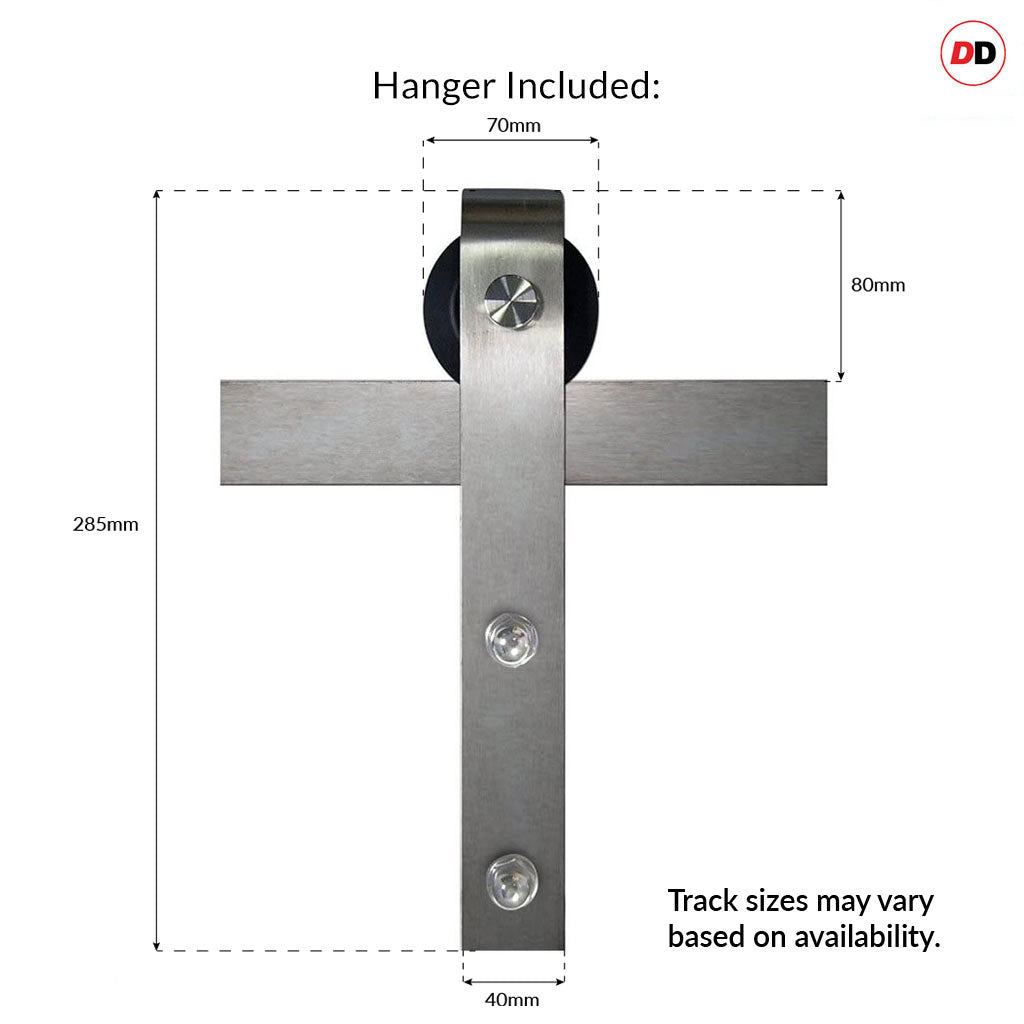

Stainless Steel Bracket, Modern Sliding door Barn style on the white background

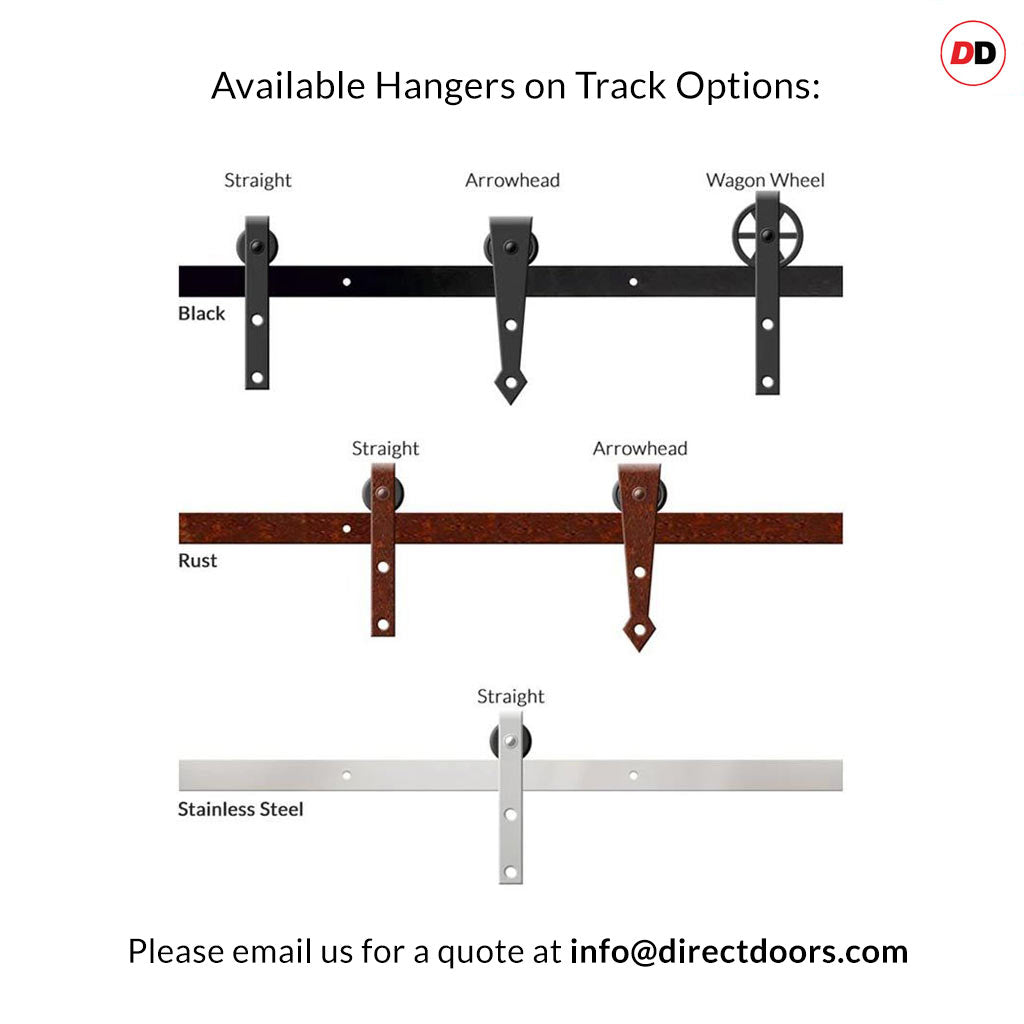

6 finishes of sliding door barn style tracks in 3 rows, 3 x black 2x rust 1x steel finish
Single Sliding Door & Track - Utah 3 Pane Door - Clear Glass - White Primed

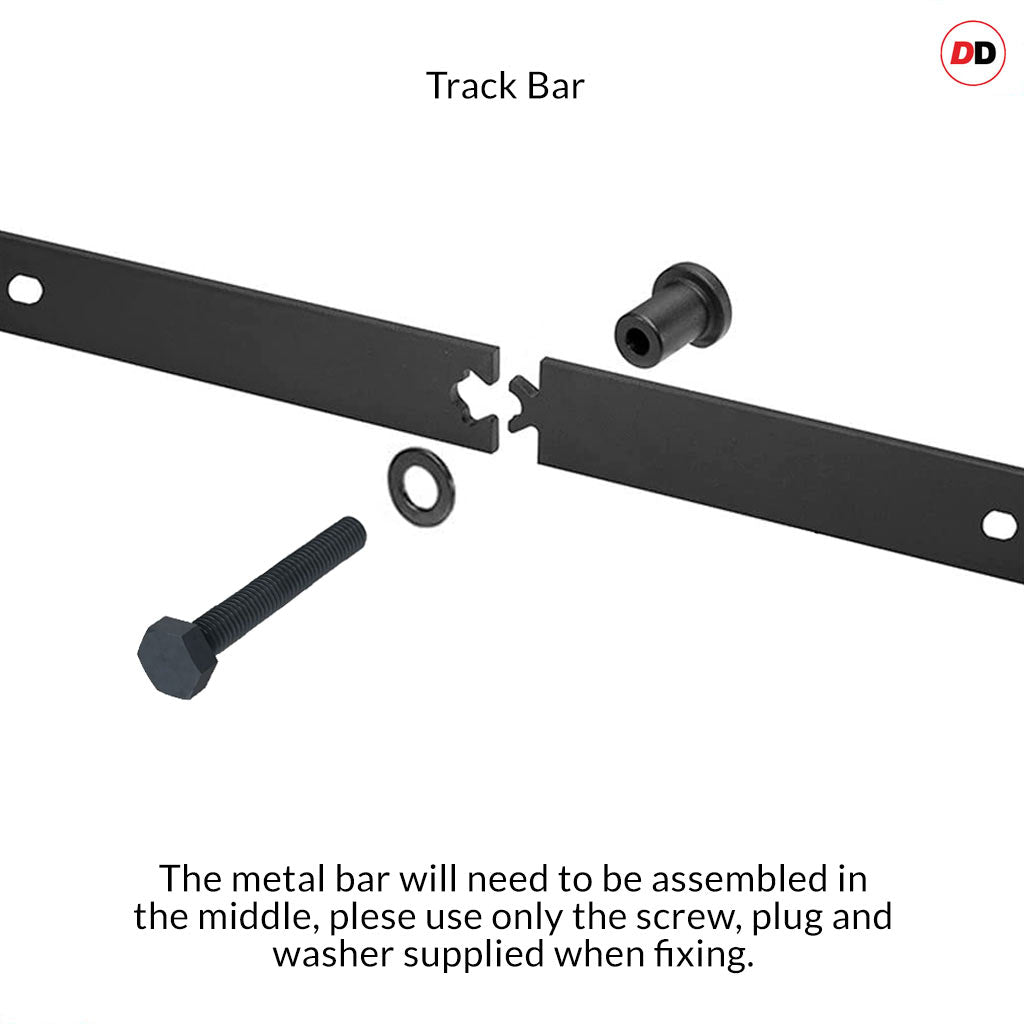

Track Bar Assembly
Single Sliding Door & Track - Utah 3 Pane Door - Clear Glass - White Primed

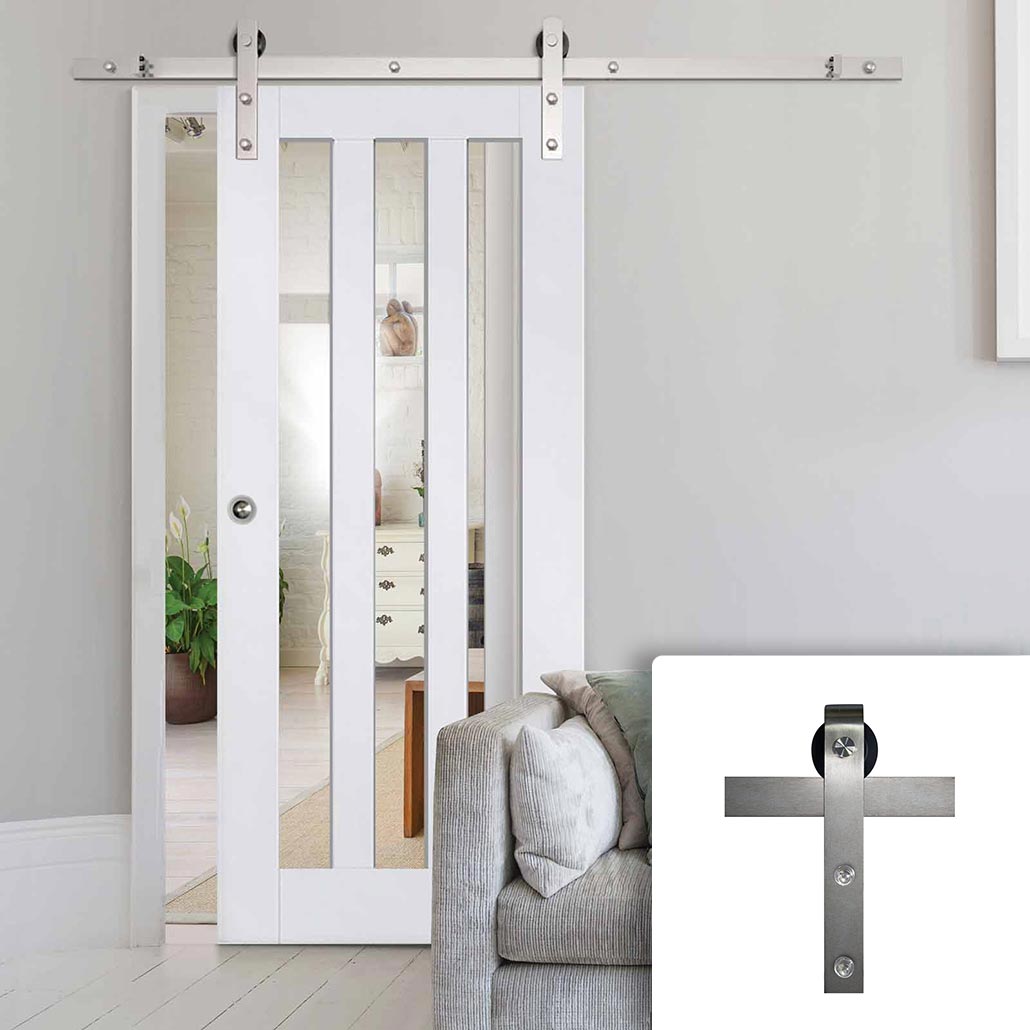

Single Sliding Door & Stainless Steel Barn Track - Utah 3 Pane Door - Clear Glass - White Primed
Single Sliding Door & Track - Utah 3 Pane Door - Clear Glass - White Primed
Stainless Steel Bracket, Modern Sliding door Barn style on the white background
6 finishes of sliding door barn style tracks in 3 rows, 3 x black 2x rust 1x steel finish
Single Sliding Door & Track - Utah 3 Pane Door - Clear Glass - White Primed
Track Bar Assembly
Single Sliding Door & Track - Utah 3 Pane Door - Clear Glass - White Primed
Solid Core
Self Assembly

The Utah 3 Pane Door - Clear Glass - White Primed gives you a single sliding door set for rooms where hinged-door swing space is limited, with clear glass, a primed surface and a white finish. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Unfinished
Colour
White
Face
Primed
Thickness
35mm, 40mm
Adjustment
This door can be trimmed by 8mm on each edge.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Clear
Glazing
Single glazing

Stainless Steel Front Mounted Sliding Track

Configuration
Single
Door Quantity
1
Finish
Stainless Steel
Included Items
  • 1x Door
  • 1x Track - Please note the style of track stops may vary depending on the size chosen.
  • 1x Sof Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • We will always endeavour to supply the best size track available relative to the door size, 1500mm tracks are supplied for 686mm doors, 1830mm tracks are supplied for 762mm and 838mm doors.1500mm track overhang (L & R)
    64mm (L & R) - 686mm wide door1830mm track overhang (L & R)153mm (L & R) - 762mm wide door 77mm (L & R) - 838mm wide door
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • Prices show the door, track and wheel cost, all prices are inclusive of vat and UK wide delivery which may be from 2 suppliers.
  • There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.

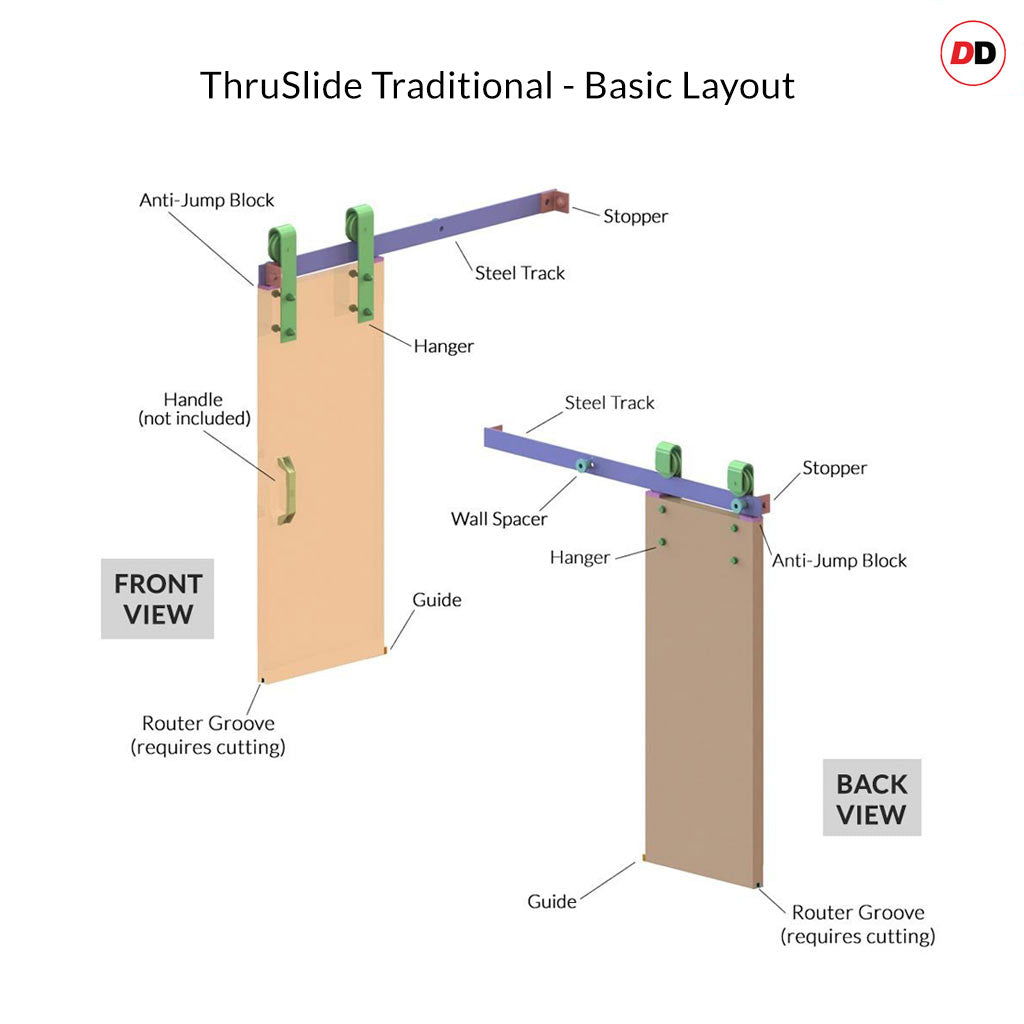

  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • All doors are 35mm or 40mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Safety Glass Trak Overlap Guide 1500mm Fitting Instructions 1800mm Fitting Instructions Soft Closer Fitting Instructions

LPD

Single Sliding Door & Stainless Steel Barn Track - Utah 3 Pane Door - Clear Glass - White Primed

WFUTAH27-SSST

Save 6% Was £329.74 From £311.38
Pre-Order

The Utah 3 Pane Door - Clear Glass - White Primed brings a practical sliding solution into the home, combining the look of door with a space-saving opening style. It is a strong choice where a hinged door would take up too much room, while still giving the doorway or wardrobe run a more finished appearance.

The design includes glazing that helps light move between rooms, a primed finish ready for your final colour and a clean white look, giving the product a clear visual identity while keeping the overall look easy to live with. Supplied as a coordinated sliding set, it is intended to bring together the door and sliding arrangement in one customer-friendly product.

Supplied in kit form and not assembled, so installation should be planned before ordering. A router is required for installation. Because applicable products are cut to size after order, cancellation restrictions may apply.
