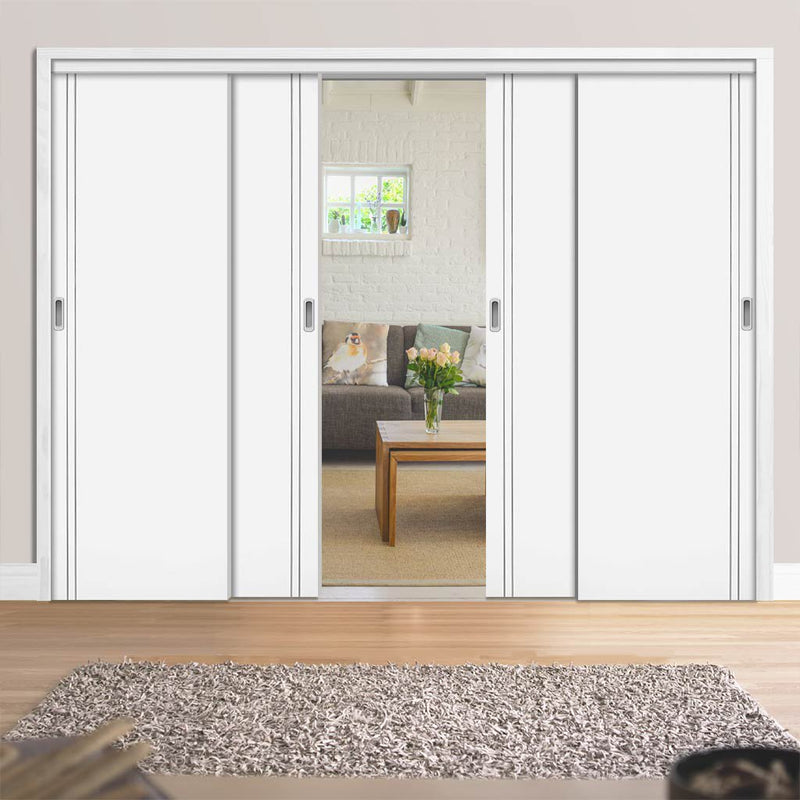

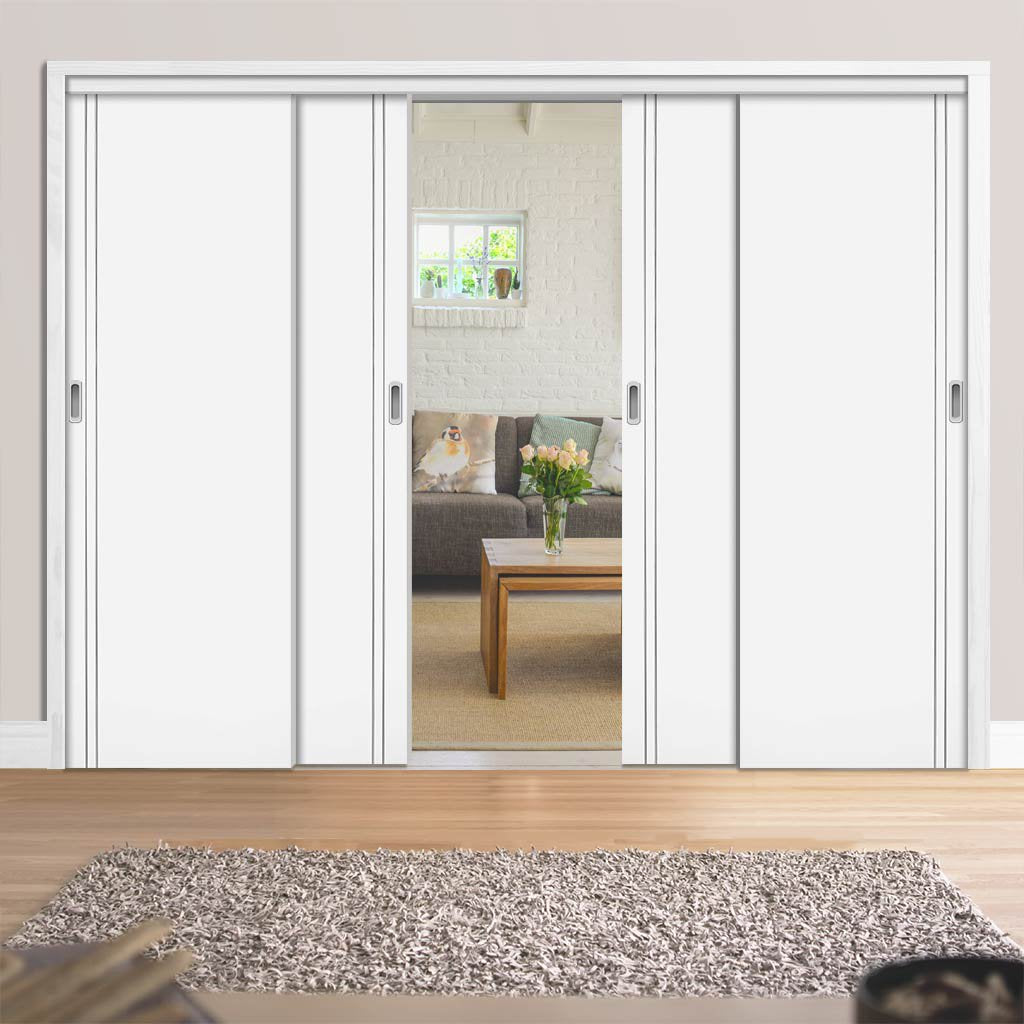

Pass-Easi Four Sliding Doors and Frame Kit

Configuration

4 Door

Door Quantity

4

Finish

Stainless Steel

Included Items

• 4x Door
• 1x Track & Track Fixing (excluding wall fixing)
• 4x Soft Closer
• 1x Frame (frame items are supplied in kit form without fixings, not assembled)
• 1x Lintol Plate

Architraves & Handles are not included.

Technical Specs

Configurations & Advice:

• Tracks length: Track will be supplied to suit each configuration.
• Door / Frame Finishes: Prefinished oak doors have unfinished oak frame materials, Unfinished Oak doors have unfinished oak frame materials, Prefinished walnut, white primed, black primed and black prefinished doors have white primed frame materials.
• Any mention of pre-finishing is to the door, the frame is supplied unfinished, all fittings such as track, track guides, guide channel, soft close anti-slam components, door track stops as well as the MDF frame components are all supplied. Sizes have allowed for a 20mm door overlap.
• No wall fixings, MDF frame screws, fixings or your choice of handles are included.
• All doors can open left or right but please refer to the diagrams and PDF for more clarity.

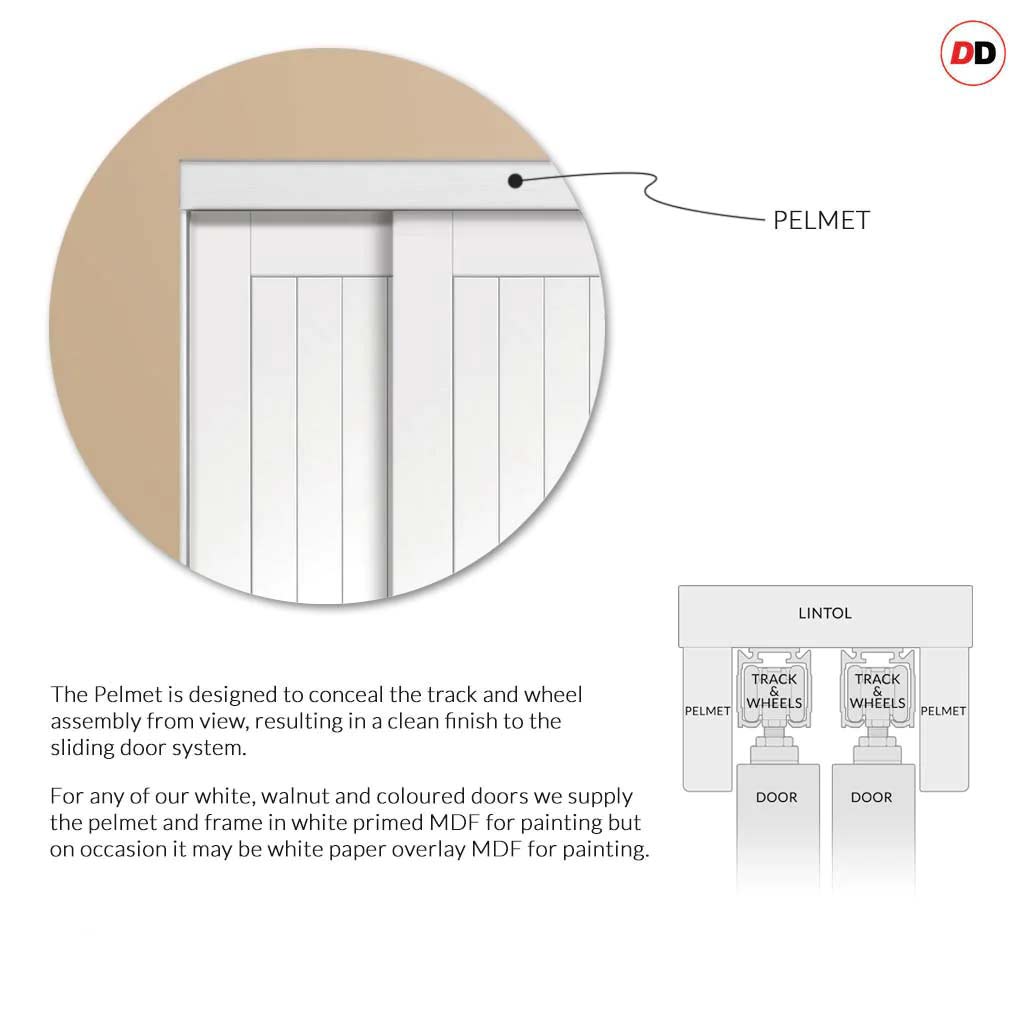

• Frame linings are 133mm broad and 30mm thick and once again have an MDF solid core construction, kits are supplied with two lintel pelmet to cover the track face and the space between the top of the door and the underside of the track.
• All sliding doors can be trimmed but remember you will also need to cut the frame to suit the reduced doors, this will not be difficult, no handles supplied, please buy the handle you require separately.
• All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
• See our full range of handles and fittings.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Additional Information

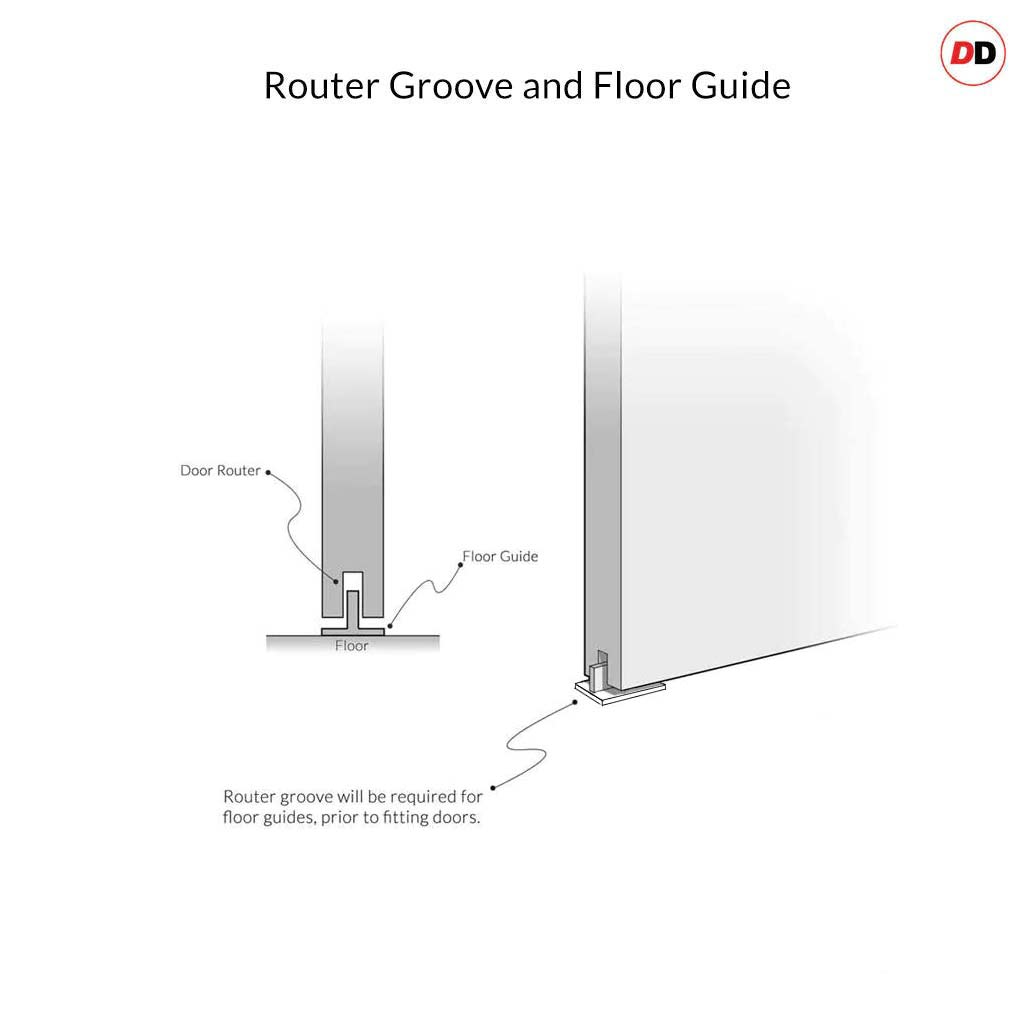

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Important: Do not exert any pressure on the door when closing it. Allow the soft close mechanism to function to avoid damaging the system. All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.
