Home › Pass-Easi Three Sliding Doors and Frame Kit - Belize Oak Door - Silkscreen Etched Clear Glass - Unfinished

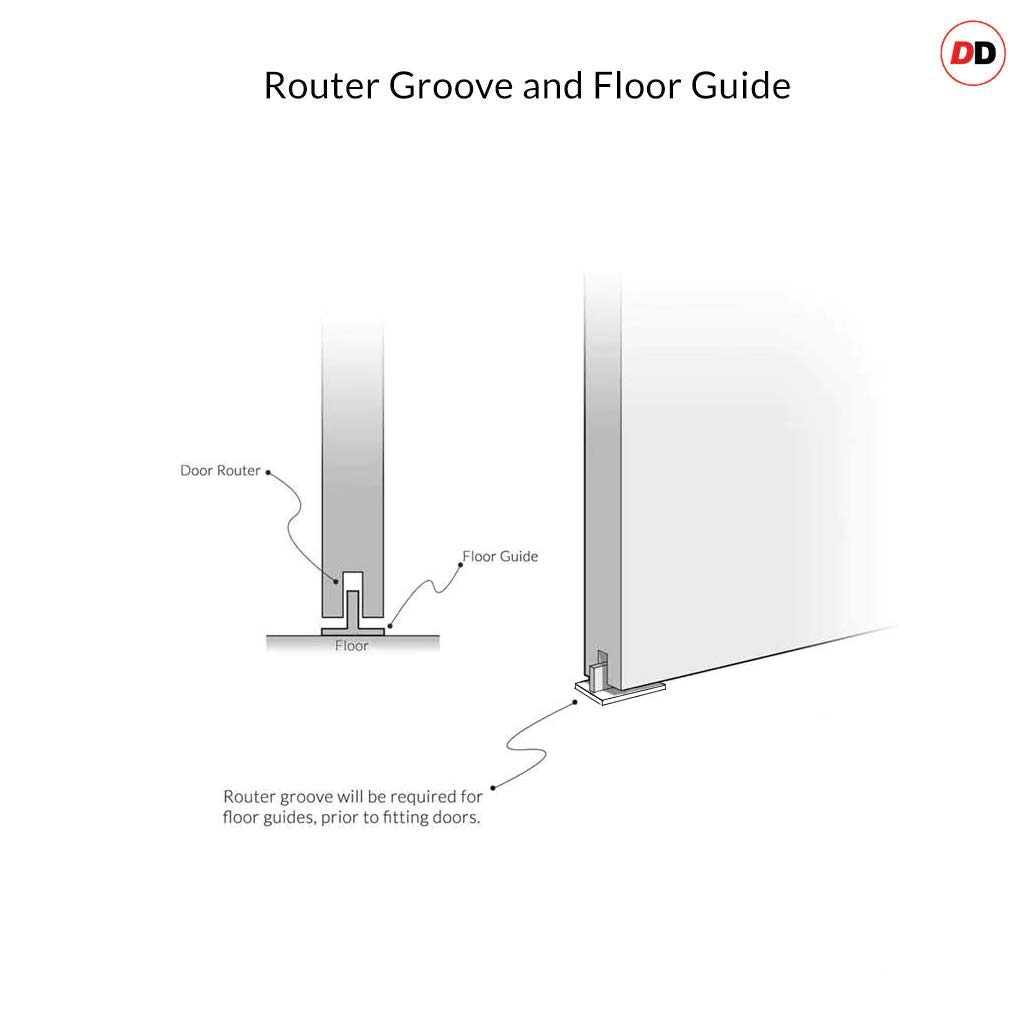

Router Groove and Floor Guide Diagram

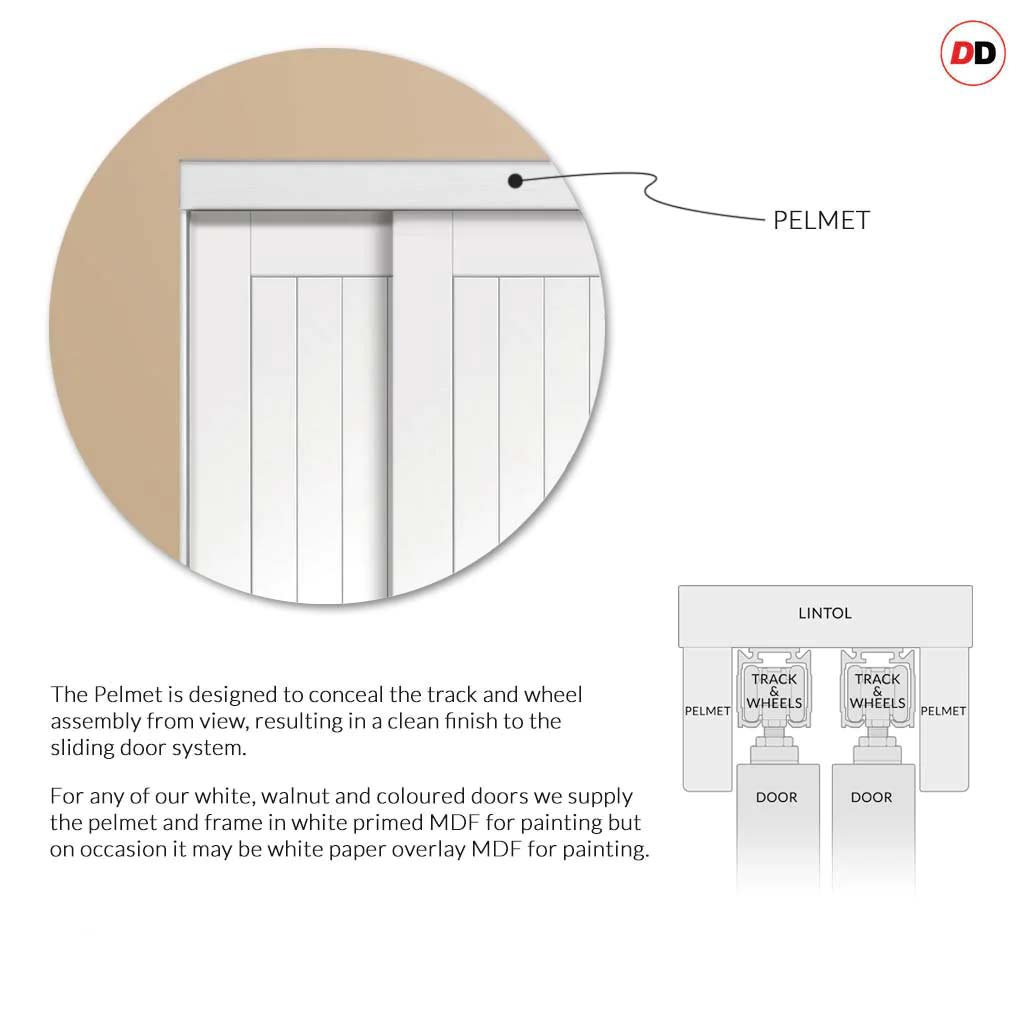

Pelmet Diagram

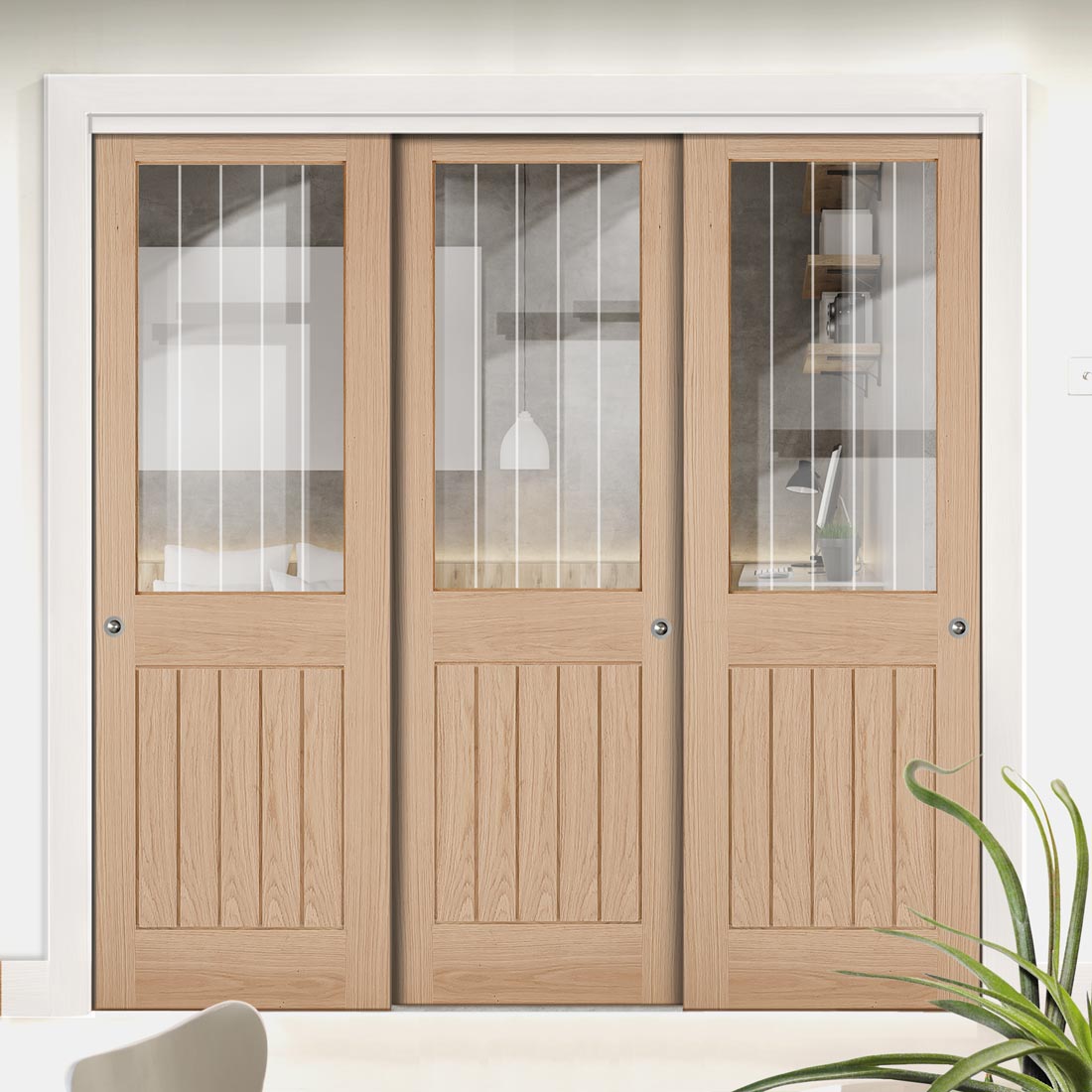

Pass-Easi Three Sliding Doors and Frame Kit - Belize Oak Door - Silkscreen Etched Clear Glass - Unfinished
Router Groove and Floor Guide Diagram
Pelmet Diagram
Solid Core
Self Assembly

Use the Belize Oak Door - Silkscreen Etched Clear Glass - Unfinished to create a cleaner sliding opening for wider openings and room-dividing layouts, helped by clear glass, an unfinished surface and oak styling. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
Top & Bottom Rail Trimming Allowance: 3mm, Side Rails/Stiles Trimming Allowance: 5mm
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Designer
Glazing
Single glazing

Pass-Easi Three Sliding Doors and Frame Kit

Configuration
3 Door
Door Quantity
3
Included Items
  • 3x Door
  • 1x Track & Track Fixing (excluding wall fixing)
  • 3x Soft Closer
  • 1x Frame (frame items are supplied in kit form without fixings, not assembled)
  • 1x Lintol Plate

Architraves & Handles are not included.

Technical Specs

Configurations & Advice:

  • Tracks length: Track will be supplied to suit each configuration.
  • Door / Frame Finishes: Prefinished oak doors have unfinished oak frame materials, Unfinished Oak doors have unfinished oak frame materials, Prefinished walnut, white primed, black primed and black prefinished doors have white primed frame materials.
  • Any mention of pre-finishing is to the door, the frame is supplied unfinished, all fittings such as track, track guides, guide channel, soft close anti-slam components, door track stops as well as the MDF frame components are all supplied. Sizes have allowed for a 20mm door overlap.
  • No wall fixings, MDF frame screws, fixings or your choice of handles are included.
  • All doors can open left or right but please refer to the diagrams and PDF for more clarity. You simply decide when you install them and discard the track door stops that can be used to keep a door or doors in the fixed position should you so wish.
  • Frame linings are 133mm broad and 30mm thick and once again have an MDF solid core construction, kits are supplied with two lintel pelmet to cover the track face and the space between the top of the door and the underside of the track.
  • All sliding doors can be trimmed but remember you will also need to cut the frame to suit the reduced doors, this will not be difficult, no handles supplied, please buy the handle you require separately.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
  • See our full range of handles and fittings here.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Important: Do not exert any pressure on the door when closing it. Allow the soft close mechanism to function to avoid damaging the system. All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.
Safety Glass Fitting Instructions

Soft Closer Fitting Instructions

LPD

Pass-Easi Three Sliding Doors and Frame Kit - Belize Oak Door - Silkscreen Etched Clear Glass - Unfinished

OBELG27-THR-3

Save 1% Was £1,607.90 £1,588.31
Made to Order

Designed around the Pass-Easi sliding door and frame kit, the Belize Oak Door - Silkscreen Etched Clear Glass - Unfinished is made for rooms where floor space matters. The sliding format keeps the opening neat and usable, while the door style adds a considered finish rather than feeling purely functional.

The design includes glazing that helps light move between rooms, an unfinished surface ready for your chosen finish and oak styling, giving the product a clear visual identity while keeping the overall look easy to live with. Supplied as a coordinated sliding set, it is intended to bring together the door and sliding arrangement in one customer-friendly product.

4-7 Working Days

Select option:
1981x686mm Doors, 2081mm High x 2078mm Wide Overall
£1,588.31 RRP £1,607.90
1981x762mm Doors, 2081mm High x 2306mm Wide Overall
£1,588.31 RRP £1,607.90
1981x838mm Doors, 2081mm High x 2534mm Wide Overall
£1,588.31 RRP £1,607.90

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Loading...
Solid Core
Self Assembly

Use the Belize Oak Door - Silkscreen Etched Clear Glass - Unfinished to create a cleaner sliding opening for wider openings and room-dividing layouts, helped by clear glass, an unfinished surface and oak styling. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
Top & Bottom Rail Trimming Allowance: 3mm, Side Rails/Stiles Trimming Allowance: 5mm
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Designer
Glazing
Single glazing

Pass-Easi Three Sliding Doors and Frame Kit

Configuration
3 Door
Door Quantity
3
Included Items
  • 3x Door
  • 1x Track & Track Fixing (excluding wall fixing)
  • 3x Soft Closer
  • 1x Frame (frame items are supplied in kit form without fixings, not assembled)
  • 1x Lintol Plate

Architraves & Handles are not included.

Technical Specs

Configurations & Advice:

  • Tracks length: Track will be supplied to suit each configuration.
  • Door / Frame Finishes: Prefinished oak doors have unfinished oak frame materials, Unfinished Oak doors have unfinished oak frame materials, Prefinished walnut, white primed, black primed and black prefinished doors have white primed frame materials.
  • Any mention of pre-finishing is to the door, the frame is supplied unfinished, all fittings such as track, track guides, guide channel, soft close anti-slam components, door track stops as well as the MDF frame components are all supplied. Sizes have allowed for a 20mm door overlap.
  • No wall fixings, MDF frame screws, fixings or your choice of handles are included.
  • All doors can open left or right but please refer to the diagrams and PDF for more clarity. You simply decide when you install them and discard the track door stops that can be used to keep a door or doors in the fixed position should you so wish.
  • Frame linings are 133mm broad and 30mm thick and once again have an MDF solid core construction, kits are supplied with two lintel pelmet to cover the track face and the space between the top of the door and the underside of the track.
  • All sliding doors can be trimmed but remember you will also need to cut the frame to suit the reduced doors, this will not be difficult, no handles supplied, please buy the handle you require separately.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
  • See our full range of handles and fittings here.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Important: Do not exert any pressure on the door when closing it. Allow the soft close mechanism to function to avoid damaging the system. All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.
Safety Glass Fitting Instructions

Soft Closer Fitting Instructions
