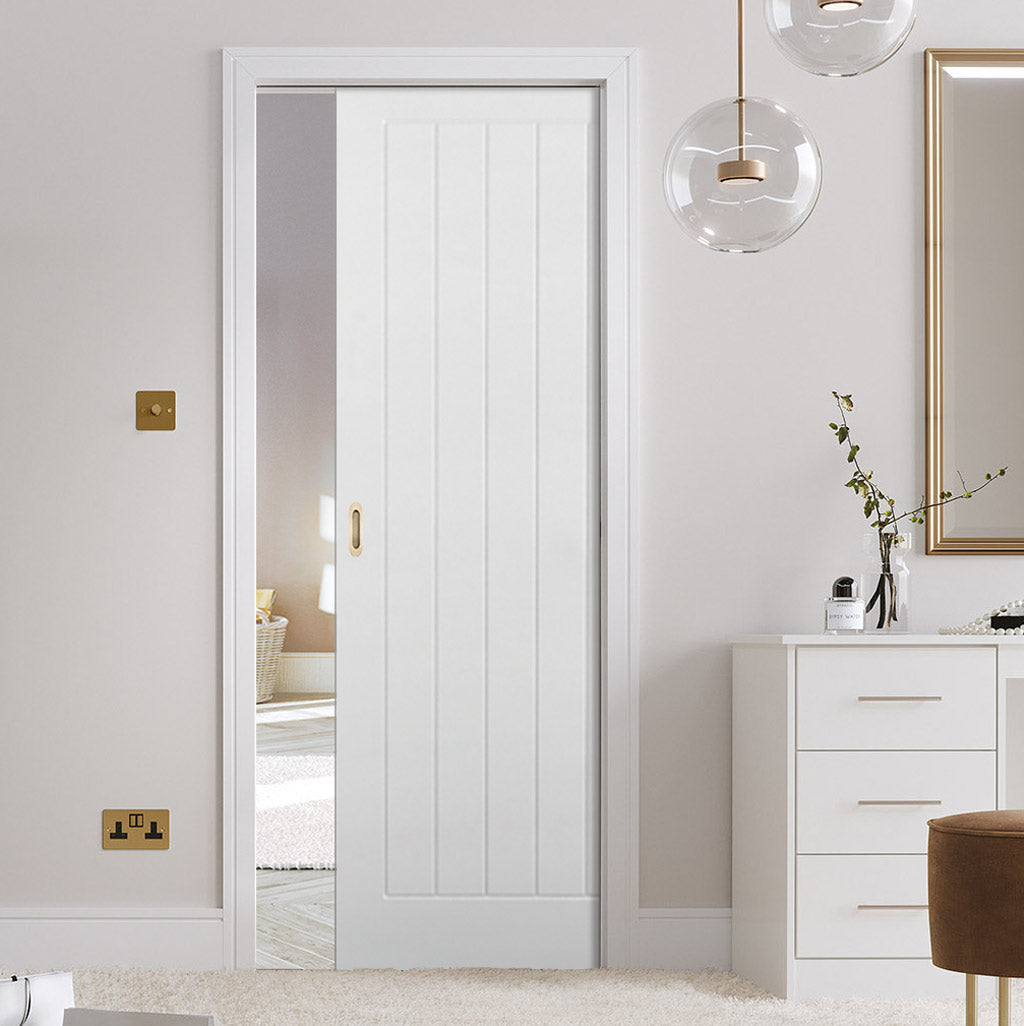

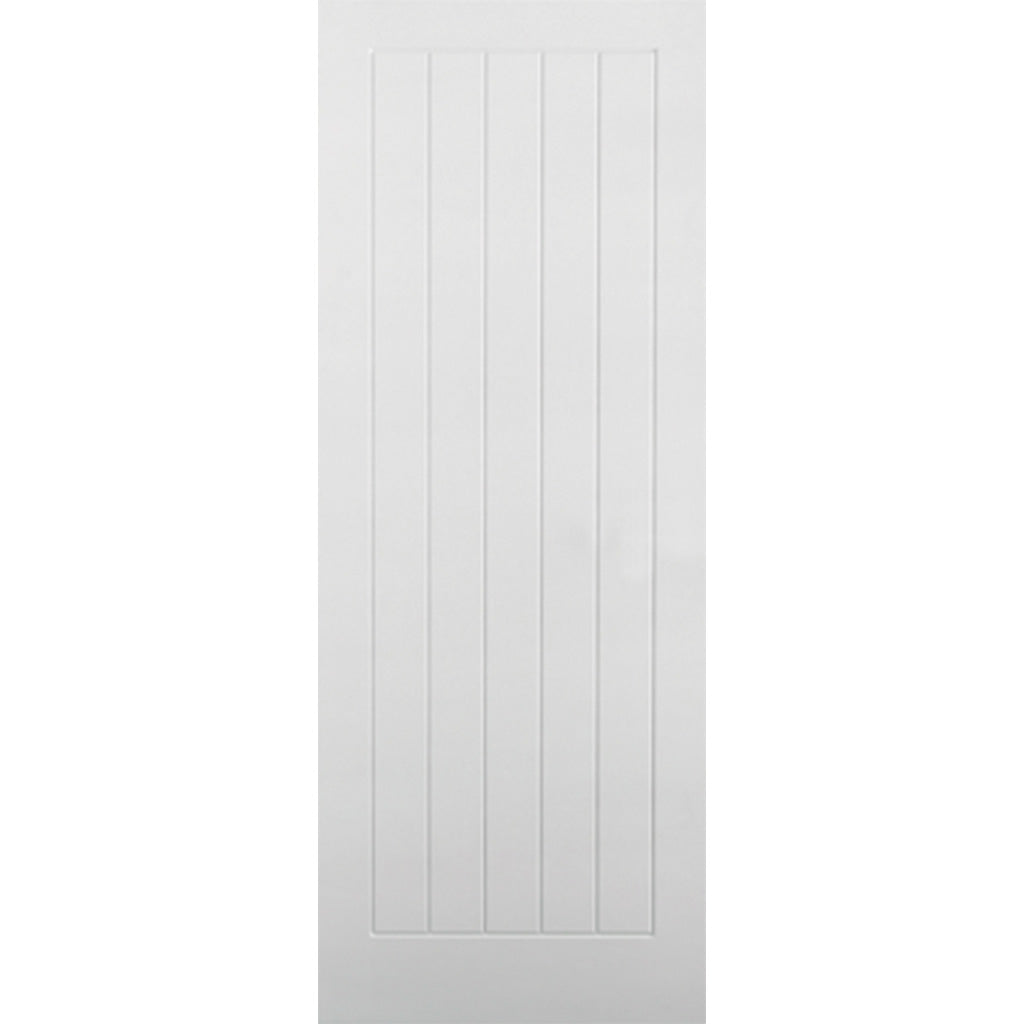

Textured Vertical 5 Panel Evokit Pocket Fire Door - 30 Minute Fire Rated
All pocket cassettes may be kerbside delivery only and not in to the home..... doors are delivered separately.
We deliver for free to most UK Mainland postcodes.
All doors can slide open left or right, you decide when installing them, delivery will be from two separate suppliers. Read more
2062x1470mm Wide/1981x686mm Door (FCTEXV5P27-PS1FD)
2062x1650mm Wide/1981x762mm Door (FCTEXV5P30-PS1FD)
2062x1720mm Wide/1981x838mm Door (FCTEXV5P33-PS1FD)
A range of flush pull handles perfect to match your sliding, folding or pocket doors.
A router will be required for door(s) installation.
Please click here to find our manufacturers care and decoration advice for this door.
System operation viewed from above:
The Ermetika pocket fire doors are available in standard widths for a finished wall thickness of 100mm, the door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, the fire frame does have a fire retardant coating which if being redecorated must also be a fire retardant coating. Fireboard (plasterboard) for the wall and architraves are not supplied.
Nobody does it better, our fire rated pocket door system is supplied with:
- Fire rated wooden jamb kit
- Intumescent fire seals
- Fire rated self closer
- Full accreditation to suit the UK market
Sliding pocket door system for FD30 rated doors, Fully tested and approved sliding pocket door system for use with FD30 fire doors. Approved by Exova Warrington Fire Research.
Our all new Interior Single Pocket Door Fire Systems have free delivery as standard, these pocket doors come with full fitting instructions and the door system allows you to slide the door straight in to a cavity in a preformed wall aperture.
The system incorporates a galvanised factory constructed steel cassette section and a track set with all fittings, the timber jamb sections are supplied fully machined in kit form, doors may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.
See our "Dimensions PDF" for all sizes but use as a guide only.
Email email@example.com to receive a quote for any special sizes.
The idea is to build the pocket to the same thickness as the studwork - 75mm (3") so that you can directly continue the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of 100mm (4").
Further layers of plasterboard can be added to increase the overall wall thickness, but other joinery work may be required. The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm.
Other items such as flush door pulls and bathroom locks can all be purchased separately, doors will require a routered channel to be created in the bottom of the door to accommodate the supplied track guide.
The pocket door frame must be concealed with your own wall and architraves when installing and every effort should be made to make sure any work is fully compliant.
|Suggested Minimum Skill Level
|Advanced DIY & Specialist Joinery Tools Required.
|44mm door and frame section of 100mm external dimensions/54mm internal cassette cavity.
|The sizes listed above are for the overall door and pocket set which includes the metal pocket frame but does not include any architrave or plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.
|All pocket door items are supplied in kit form, any glass is pre-installed in the door.
|Normal Availability for our Delivery Service
|See delivery icon on top of the product page.
|Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.
|Self Assembly may take 3-4 hours
|Solid or semi-solid core may consist of chipboard, MDF or flax board which is then surface finished as shown.
|The price quoted is for the door(s), pocket system frame, all track fittings but no handles, any glass shown is pre-installed in the doors.
