Home › Single Sliding Door & Wall Track - Galway Oak Glazed Door - Clear Glass - Unfinished
Router Groove Requirement Diagram
Single Sliding Door & Wall Track - Galway Oak Glazed Door - Clear Glass - Unfinished
Router Groove Requirement Diagram
Solid Core
Self Assembly

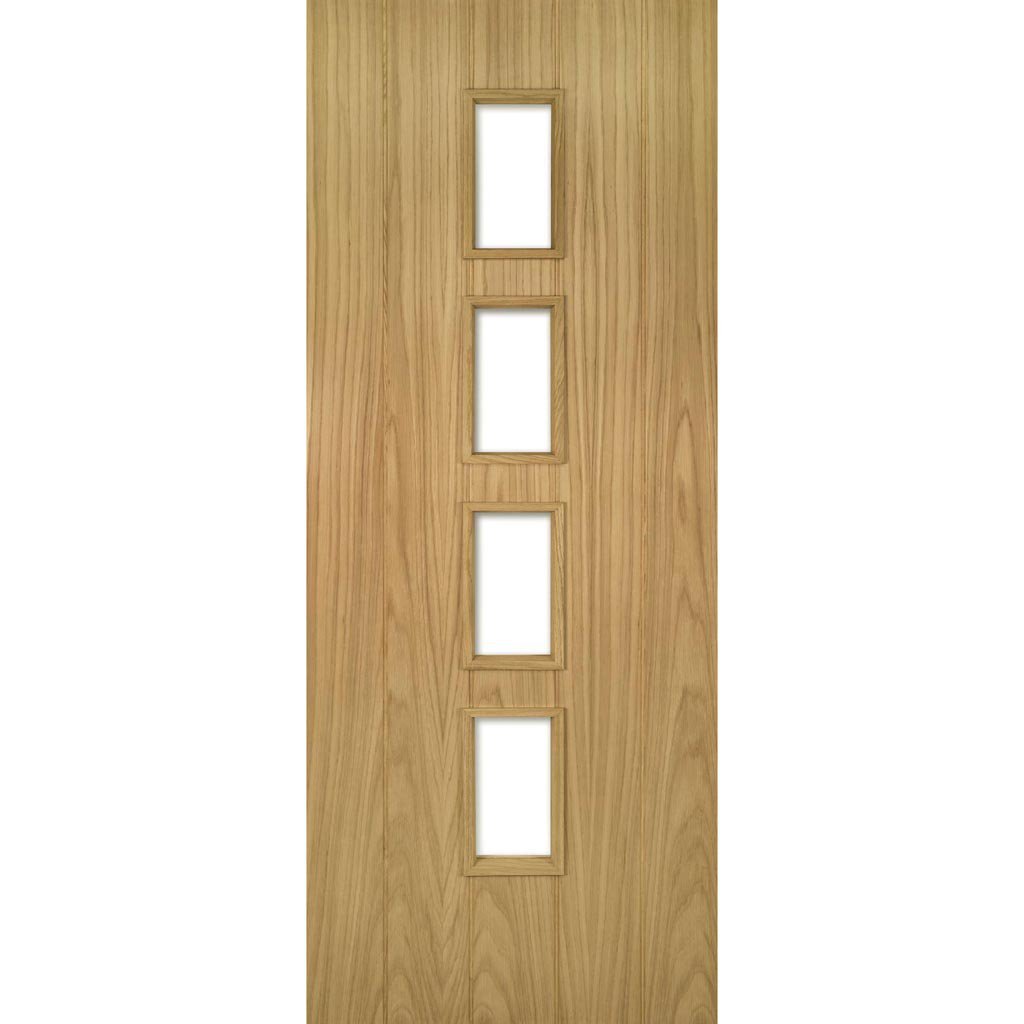

With beautiful crown cut oak veneer overlaying a solid core, the Galway oak door is the perfect combination of strength and good looks. The glazed door features four panes of clear toughened glass set into the central panel. This version uses a wall mounted track, making it a good fit for rooms where a hinged door would take up too much space.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Clear
Glazing
Single glazing

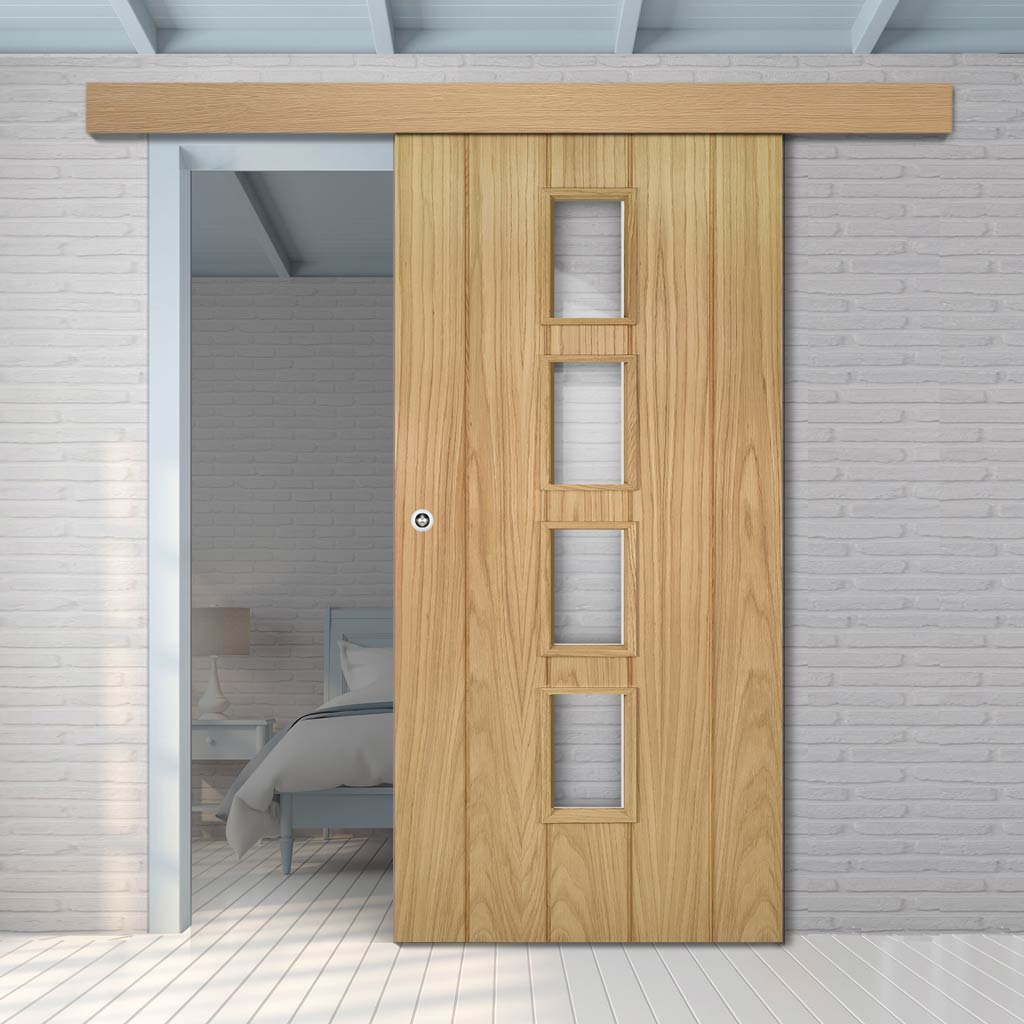

Wall Mounted Sliding Track

Configuration
Single
Door Quantity
1
Finish
Aluminium
Included Items
  • 1x Door
  • 1x Track - The track is not supplied pre-drilled. The pelmet to cover the track is not included.
  • 1x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see Add-ons section.

Technical Specs

Product Advice:

  • The supplied track will have a length equal to 2x the door width plus 100mm.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • Prices show the door and track combined cost, all prices are inclusive of vat and UK wide delivery which may be from 2 or more suppliers.
  • Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are available at an extra cost as you go through the buying process, you will require these material sections at some point in the installation process to complete the fitting. Please see pelmet option for material and installation details.
  • There is a maximum 2051mm floor to top of track height requirement for all variations (if using a 1981mm high door) which includes some track adjustable tolerances for discrepancies to wall and floor levels, please note that the surface fix brackets are over and above these height requirements.
  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
Additional Information

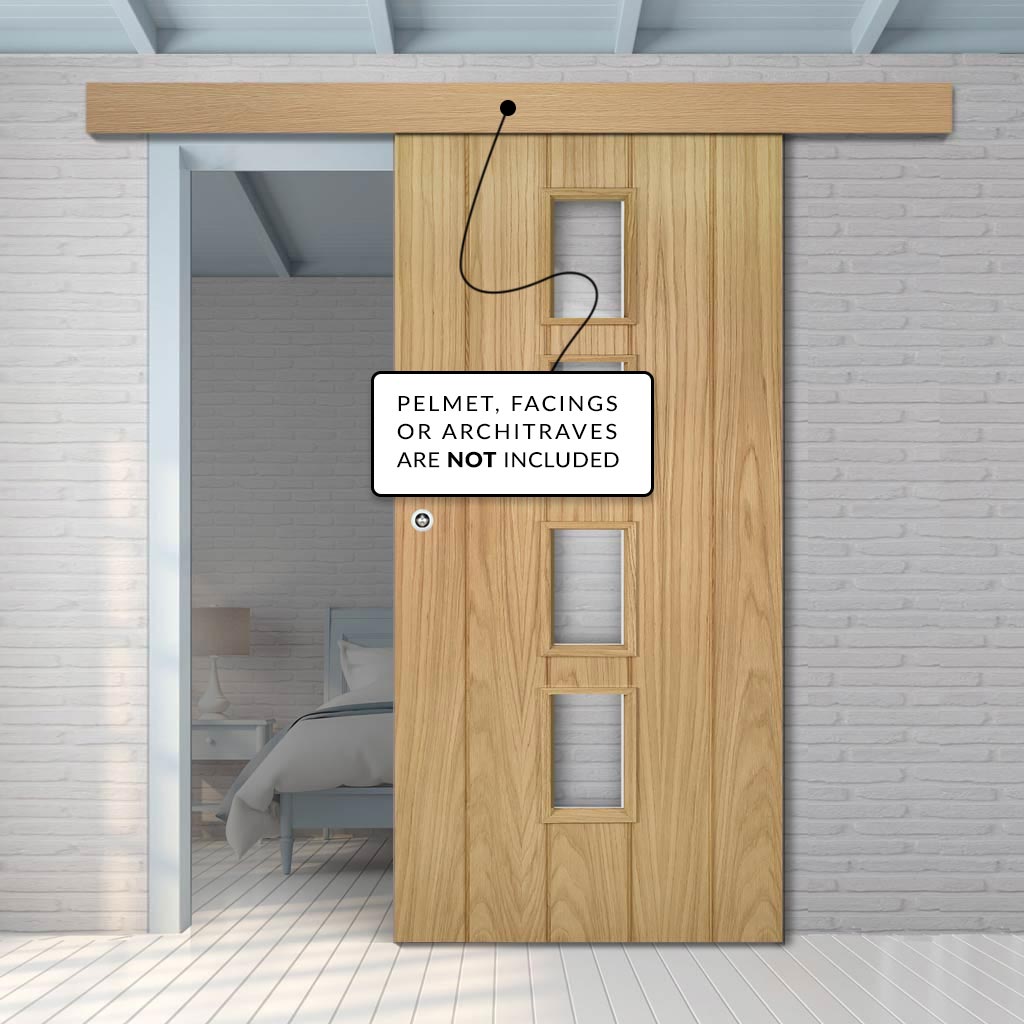

The track provided is not intended to be fully exposed, but to be hidden behind the pelmet. The pelmet is not included with the product, but can be purchased separately in the add-ons section.

Adjustment: Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Safety Glass Fitting Instructions

Soft Closer Fitting Instructions

DEA

Single Sliding Door & Wall Track - Galway Oak Glazed Door - Clear Glass - Unfinished

35GALCGUNX686-THRSUR-1

Save 2% Was £497.88 £486.74
In stock

With beautiful crown cut oak veneer overlaying a solid core, the Galway oak door is the perfect combination of strength and good looks. The glazed door features four panes of clear toughened glass set into the central panel. It works here as a single sliding door set, helped by the wall mounted track.

4-7 working days

Select option:
1981x686mm Door - For Openings 1970mm High x 666mm Wide
£486.74 RRP £497.88
1981x762mm Door - For Openings 1970mm High x 742mm Wide
£486.74 RRP £497.88
1981x838mm Door - For Openings 1970mm High x 818mm Wide
£486.74 RRP £497.88

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Sliding Door Pelmet

Sliding Door Pelmet (4)

Loading...
Solid Core
Self Assembly

With beautiful crown cut oak veneer overlaying a solid core, the Galway oak door is the perfect combination of strength and good looks. The glazed door features four panes of clear toughened glass set into the central panel. This version uses a wall mounted track, making it a good fit for rooms where a hinged door would take up too much space.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Glass

Glass Options
Clear
Glazing
Single glazing

Wall Mounted Sliding Track

Configuration
Single
Door Quantity
1
Finish
Aluminium
Included Items
  • 1x Door
  • 1x Track - The track is not supplied pre-drilled. The pelmet to cover the track is not included.
  • 1x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see Add-ons section.

Technical Specs

Product Advice:

  • The supplied track will have a length equal to 2x the door width plus 100mm.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • Prices show the door and track combined cost, all prices are inclusive of vat and UK wide delivery which may be from 2 or more suppliers.
  • Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are available at an extra cost as you go through the buying process, you will require these material sections at some point in the installation process to complete the fitting. Please see pelmet option for material and installation details.
  • There is a maximum 2051mm floor to top of track height requirement for all variations (if using a 1981mm high door) which includes some track adjustable tolerances for discrepancies to wall and floor levels, please note that the surface fix brackets are over and above these height requirements.
  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
Additional Information

The track provided is not intended to be fully exposed, but to be hidden behind the pelmet. The pelmet is not included with the product, but can be purchased separately in the add-ons section.

Adjustment: Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Safety Glass Fitting Instructions

Soft Closer Fitting Instructions

Frequently asked questions

Please select your door first. Once you have chosen your door, you will then be able to add any add-ons you would like.

No, we are a supply-only company and do not offer a fitting service.

That said, we are experts in our field and are always happy to help with any questions you may have. We can advise on product care, fitting, hinges, locks, frames, and all other aspects of installation.

Please do not worry, deliveries may arrive with two different couriers. If you have received only part of your order, please allow a few more days for the remaining items to arrive.
