Solid
Self Assembly

All frames are cut to width and pre-drilled for site assembly. Facings are pre-mitred to suit each individual frame. All pins and screws are supplied for assembly. The frame widths will be exactly as required, legs are supplied 2095mm high for site cutting. No wall fixing screws or plugs are supplied to suit your home or project.

Important: All Thruframe products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com to suit your exact door dimensions.

This is a great quality Frame Lining and Architrave kit for single door openings and will suit all of our range of standard sizes, simply choose the door size you intend to fit.

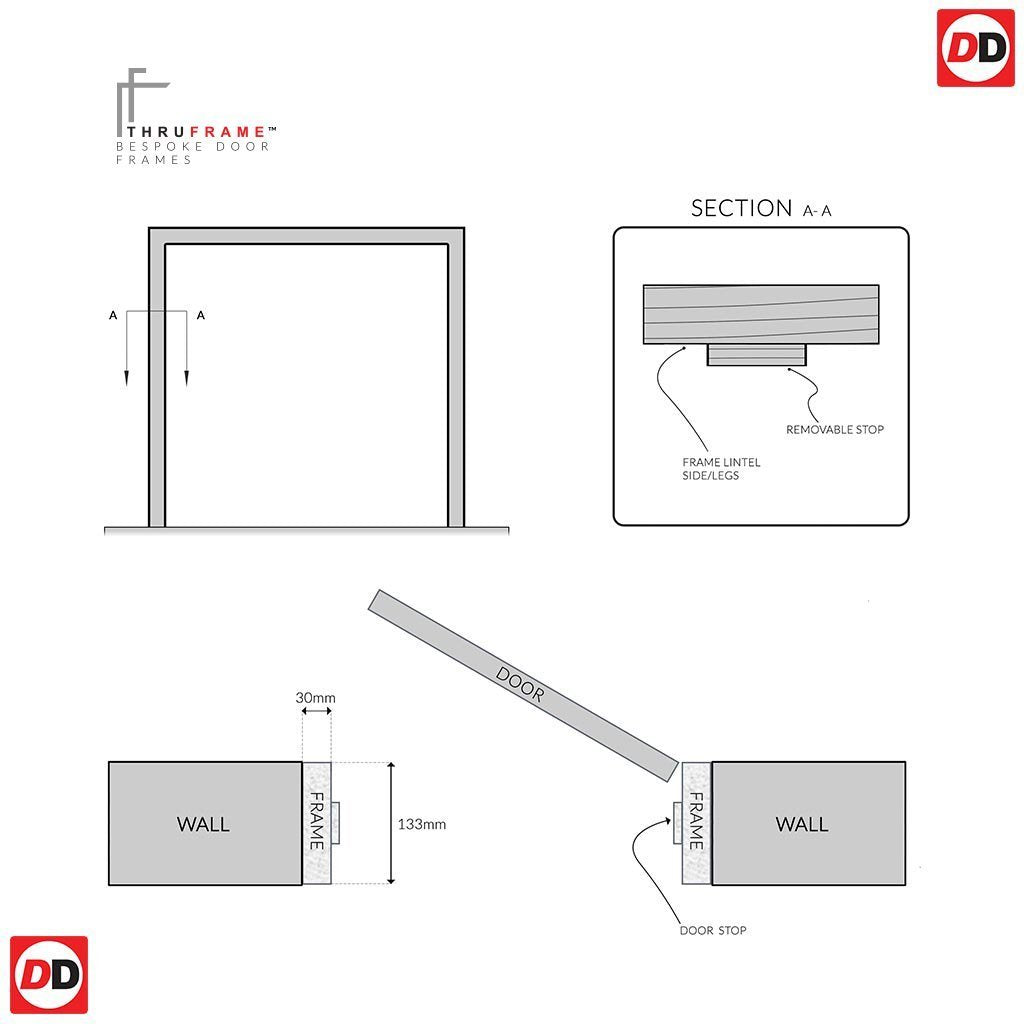

Thruframe Door Lining Frames are 94x30mm, 108x30mm or 133x30mm thick and are mainly used where there is a timber stud style partition wall or a robust wall to give extra stability, the price is per 6 piece pack including the door stops, to suit one doorway, sold in kit form, lining set shown is black primed on MDF core for stability.

Door and frame sizes - Table

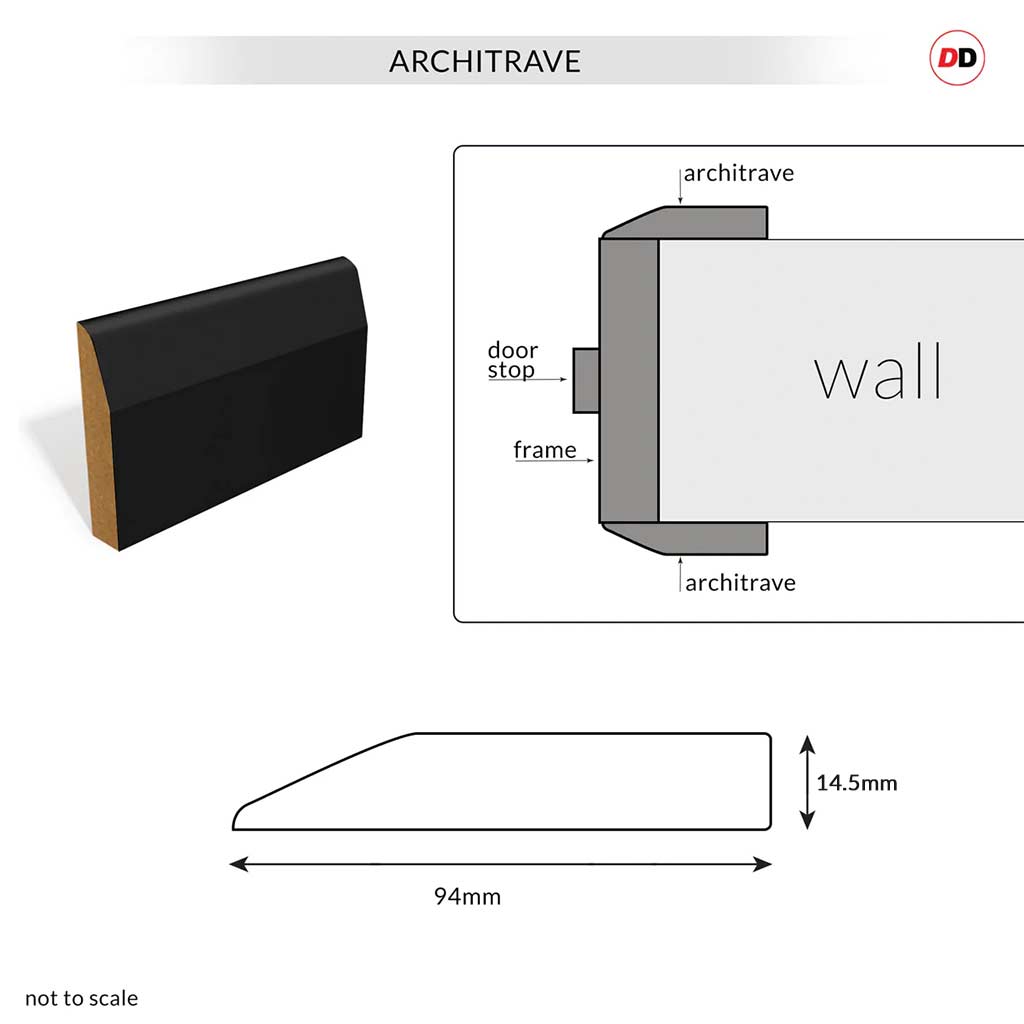

The Architraves are supplied as a kit, each pack is sufficient for both sides of single doors: 4 Legs, 2 Lintols - 6 piece pack.

Frame legs are supplied 2095mm long and 2 sets of architrave/facings legs are supplied 2170mm long all for site cutting.

The breadths of the frames and facings are all nominal sizes, this means that they can vary very slightly.

Colour
Black
Face
Primed
Material
MDF
Thickness
30mm
Frame Breadth
95mm, 108mm, 133mm
Adjustment
Frame legs are supplied 2095mm long and 2 sets of architrave/facings legs are supplied 2170mm long all for site cutting.
Skill Level
Medium DIY & Some Joinery Tools Required.
Construction
Solid
Frame Sizes

The Architraves are supplied as a kit, each pack is sufficient for both sides of single doors: 4 Legs, 2 Lintols - 6 piece pack.

Frame legs are supplied 2095mm long and 2 sets of architrave/facings legs are supplied 2170mm long all for site cutting.

Usage
Internal
Guarantee
12 months

MDF Door Lining Frame and Modern Architrave Set

Set Info

The Architraves are supplied as a kit, each pack is sufficient for both sides of single doors: 4 Legs, 2 Lintols - 6 piece pack.

Included Items
  • Single Door Frame seton a solid MDF core.
  • Architraves set on a solid MDF core.

Thruframe Door Lining Frames are 94x30mm, 108x30mm or 133x30mm thick and are mainly used where there is a timber stud style partition wall or a robust wall to give extra stability, the price is per 6 piece pack including the door stops, to suit one doorway, sold in kit form, lining set shown is black primed on MDF core for stability.

Additional Information

All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

DD

Made to Size Single Interior Black Primed MDF Door Lining Frame and Modern Architrave Set

PBTHRSGL94MTSMA

Sale priceFrom £371.96
Made to Order

This is a great quality Frame Lining and Architrave kit for single door openings and will suit all of our range of standard sizes, simply choose the door size you intend to fit.

4-7 working days

Select option:

Black Primed Kit, 30x94mm Broad
£371.96
Black Primed Kit, 30x108mm Broad
£382.51
Black Primed Kit, 30x133mm Broad
£399.25

Required Information:

This product requires additional information. Please complete the fields below. Pricing may update based on your selections.

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Hinge Packs

Hinge Packs (9)

Hinges

Hinges (9)

Door Stops

Door Stops (7)

Loading...

Solid
Self Assembly

All frames are cut to width and pre-drilled for site assembly. Facings are pre-mitred to suit each individual frame. All pins and screws are supplied for assembly. The frame widths will be exactly as required, legs are supplied 2095mm high for site cutting. No wall fixing screws or plugs are supplied to suit your home or project.

Important: All Thruframe products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com to suit your exact door dimensions.

This is a great quality Frame Lining and Architrave kit for single door openings and will suit all of our range of standard sizes, simply choose the door size you intend to fit.

Thruframe Door Lining Frames are 94x30mm, 108x30mm or 133x30mm thick and are mainly used where there is a timber stud style partition wall or a robust wall to give extra stability, the price is per 6 piece pack including the door stops, to suit one doorway, sold in kit form, lining set shown is black primed on MDF core for stability.

Door and frame sizes - Table

The Architraves are supplied as a kit, each pack is sufficient for both sides of single doors: 4 Legs, 2 Lintols - 6 piece pack.

Frame legs are supplied 2095mm long and 2 sets of architrave/facings legs are supplied 2170mm long all for site cutting.

The breadths of the frames and facings are all nominal sizes, this means that they can vary very slightly.

Colour
Black
Face
Primed
Material
MDF
Thickness
30mm
Frame Breadth
95mm, 108mm, 133mm
Adjustment
Frame legs are supplied 2095mm long and 2 sets of architrave/facings legs are supplied 2170mm long all for site cutting.
Skill Level
Medium DIY & Some Joinery Tools Required.
Construction
Solid
Frame Sizes

The Architraves are supplied as a kit, each pack is sufficient for both sides of single doors: 4 Legs, 2 Lintols - 6 piece pack.

Frame legs are supplied 2095mm long and 2 sets of architrave/facings legs are supplied 2170mm long all for site cutting.

Usage
Internal
Guarantee
12 months

MDF Door Lining Frame and Modern Architrave Set

Set Info

The Architraves are supplied as a kit, each pack is sufficient for both sides of single doors: 4 Legs, 2 Lintols - 6 piece pack.

Included Items
  • Single Door Frame seton a solid MDF core.
  • Architraves set on a solid MDF core.

Thruframe Door Lining Frames are 94x30mm, 108x30mm or 133x30mm thick and are mainly used where there is a timber stud style partition wall or a robust wall to give extra stability, the price is per 6 piece pack including the door stops, to suit one doorway, sold in kit form, lining set shown is black primed on MDF core for stability.

Additional Information

All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
