Made to Size Single Interior White Primed MDF Frame - For 30 Minute Fire Doors
All frames are cut to width and pre-drilled for site assembly. All pins and screws are supplied for assembly. The frame widths will be exactly as required, legs are supplied 2095mm high for site cutting. No wall fixing screws or plugs are supplied to suit your home or project.
Important: All Thruframe products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com to suit your exact door dimensions.
We deliver for free to most UK Mainland postcodes, subject to postcode exclusions and product suitability. Read more
White Primed Kit, 30x94mm Broad (PWTHRFCSGL94MTS)
White Primed Kit, 30x108mm Broad (PWTHRFCSGL108MTS)
White Primed Kit, 30x133mm Broad (PWTHRFCSGL133MTS)
A small range of door hinges that cover the most popular style/types and which we have found are best suited for our doors.
Interior white primed fire door frame kits for use with fire doors, make sure you choose or intend to use a fire door for use with this fire door frame as all 1/2 hour fire rated doors are 44 - 45mm thick, all these frames have intumescent fire seals as standard - seals and door stop supplied loose for site fitting.
We deliver door frames for a small charge, anywhere Mainland UK!
Only suitable for 30 minute fire rated doors.
Please check the frames suitability and acceptance with your fire or planning officer prior to purchase, the certification of the chosen fire door has specific frame requirements as tested and certified, our frame kit will in our opinion match or exceed the frame used in the individual fire door test - seals have been tested and certified individually.
Fire frame certification can only be supplied if you are buying the fire frame with a fire door and not when buying the frame as an individual product, it is the door that has a test certificate.
General information for door frame construction and Global Assessment testing requirements:
The global assessment assumes a door will be fitted in accordance with the way the door was tested in order to meet the result obtained during testing..... please check before purchase.
When using these frame kits they must be constructed to meet the following specification.
Material, Minimum Section Size (mm) Min Density (kg/m3) Softwood or Hardwood 70 x 30
- All door frame timber must meet or exceed class J30 as specified in BS EN 942: 2007
- A minimum 12mm deep planted or integral stop is adequate for single acting frames whilst double acting frames may be scalloped or square, our door stops are 25mm thick for extra safety and supplied loose for site fitting.
- When installing frame joints may be mortice and tenoned, mitred, half lapped or butted and with no gaps. All jointing methods require mechanical fixing with the appropriate size ring shank nails or screws.

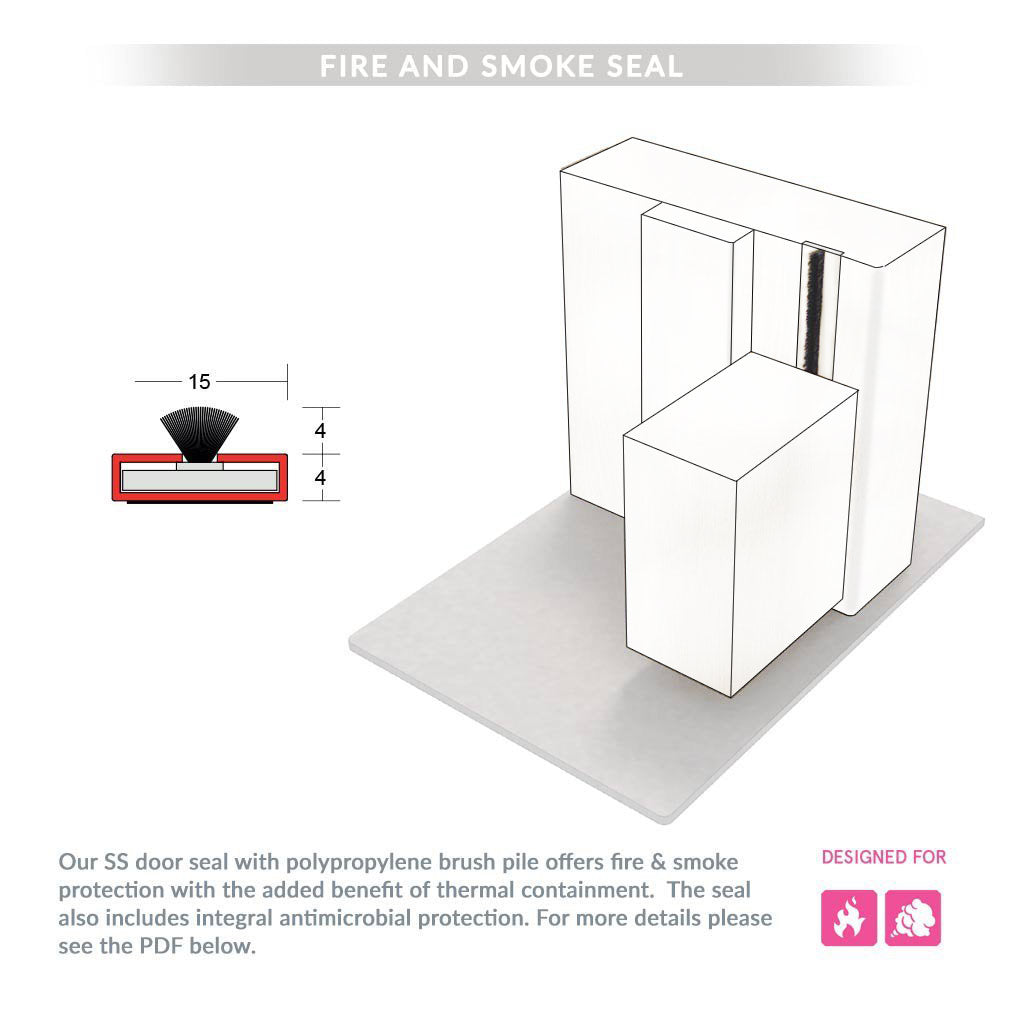

- Intumescent fire and smoke seals will be white with white frame kits and brown colour with oak frame kits.

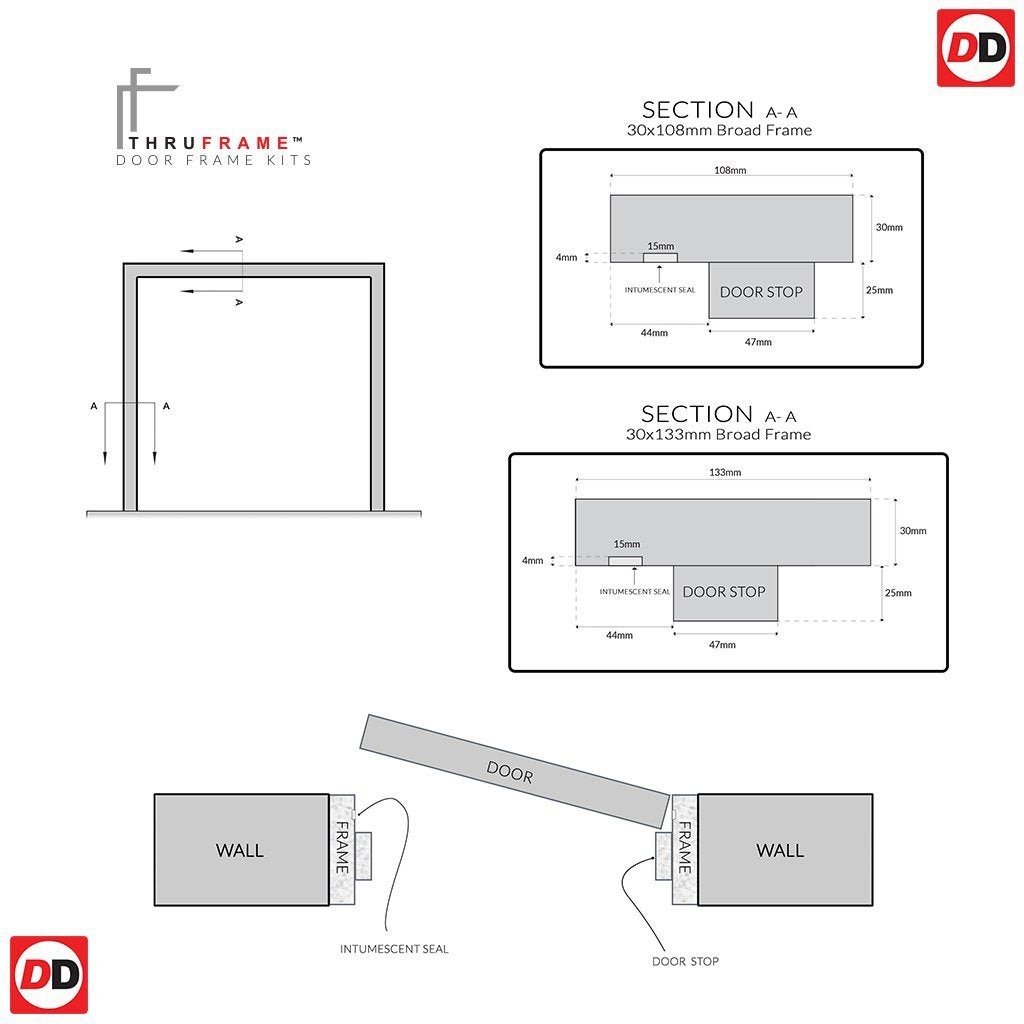

Thruframe Door Lining Frame Kits are 94x30mm, 108x30mm or 133x30mm thick and are mainly used where there is a solid wall, timber stud style partition wall or a robust wall to give extra stability, the price is per 6 piece pack frame legs and lintol and including 3 door stops and the 3 pieces of intumescent seals, to suit one doorway, sold in kit form.
Frame legs are supplied 2095mm high for site cutting.
Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
|Suggested Minimum Skill Level||Low DIY & Basic Joinery Tools Required.|
|Normal availability for our delivery service||See delivery icon on top of the product page.|
|Frame Breadth, from inside to outside||Choose from 94mm, 108mm or 133mm. All are substantial 30mm thick.|
|Notes||This frame is supplied in kit form, the frame legs may be longer than required to allow for site cutting, intumescent fire and smoke seals are supplied loose but the frame is routered and ready to accept them.|
|Important||All these items are supplied in kit form, not assembled. Please note all Thruframe products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as bespoke item created and manufacturered by DirectDoors.com|
