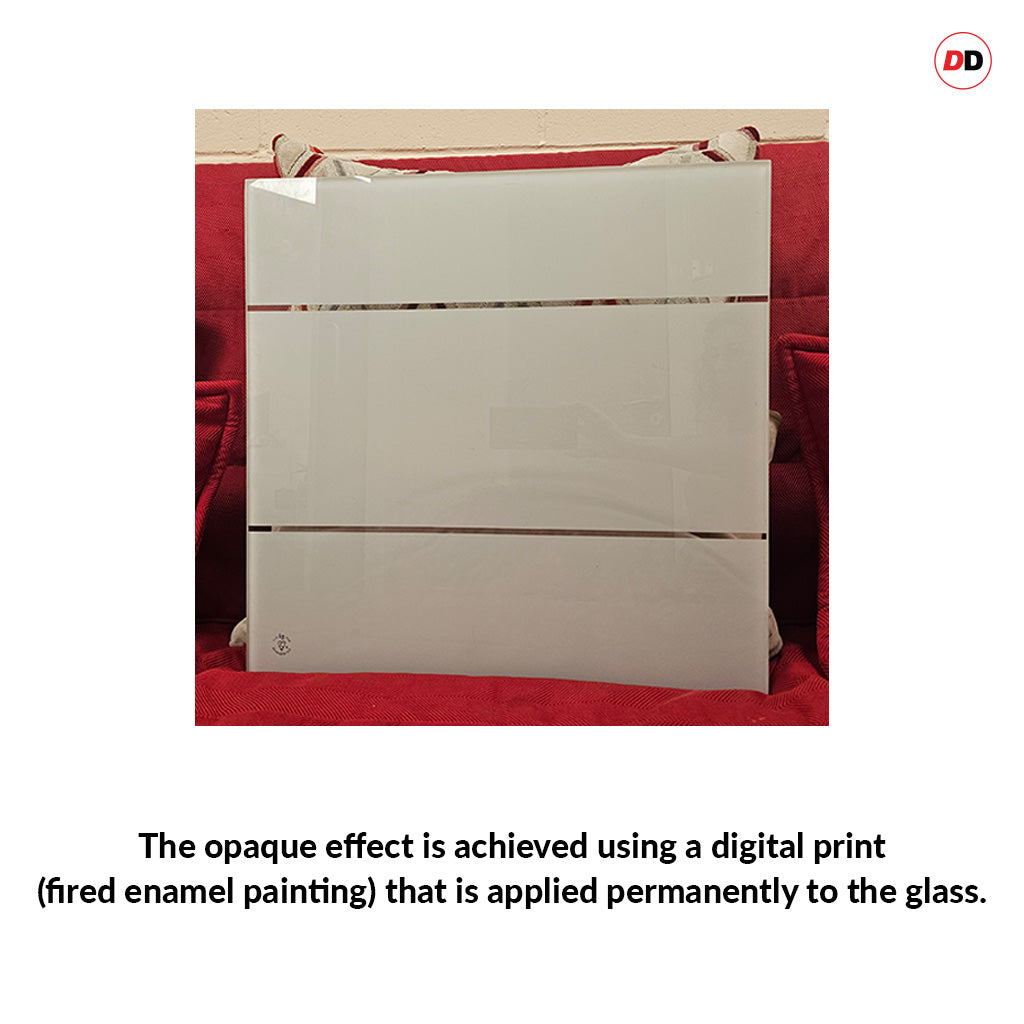

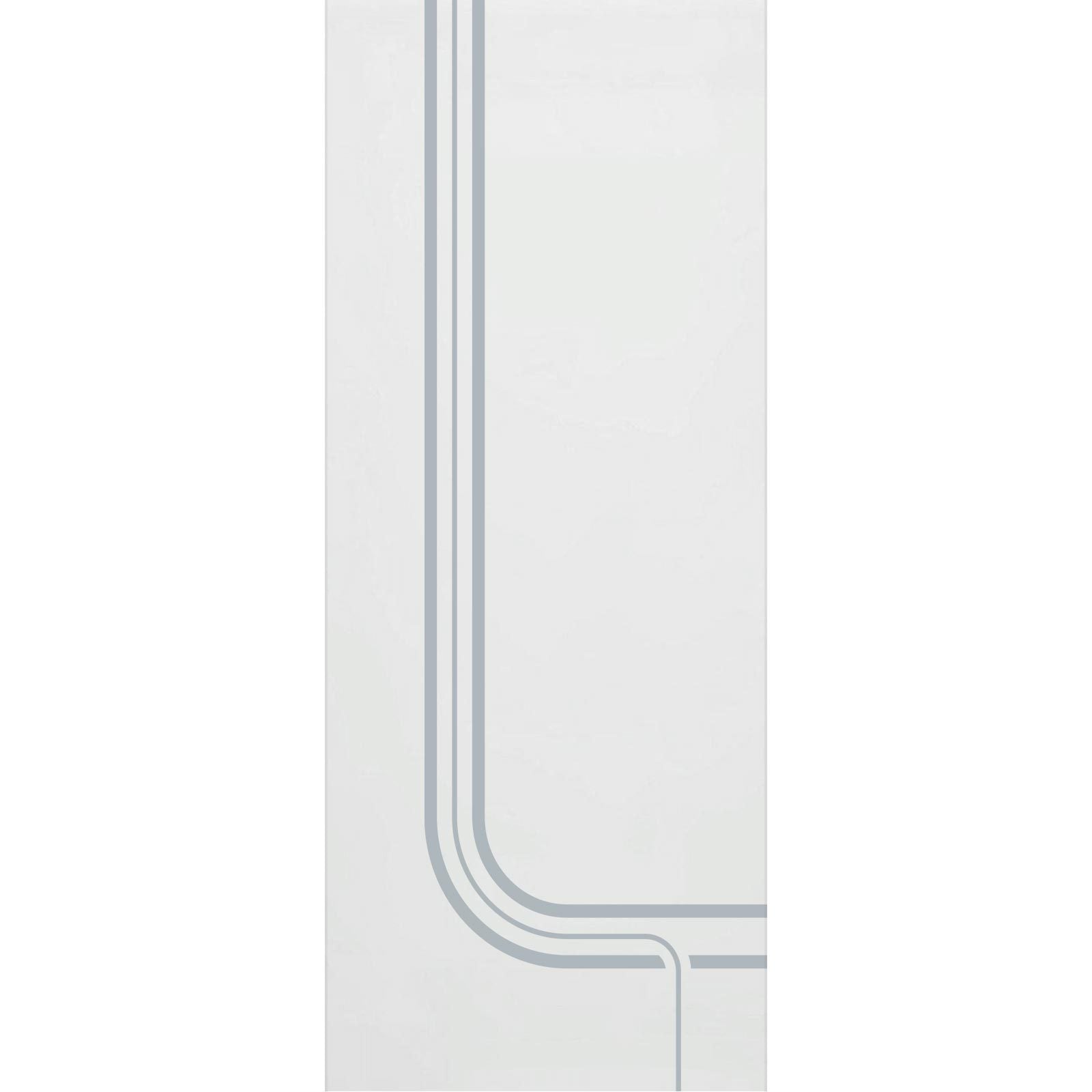

Holburn 8mm Obscure Glass - Clear Printed Design - Single Evokit Glass Pocket Door
Delivery as per our Delivery Icon above - Excellent
All pocket cassettes may be kerbside delivery only and not in to the home..... glass doors are delivered separately.
All doors can slide open left or right, you decide when installing them, delivery will be from two separate suppliers. Read more
2060x1290mm Wide/610mm Door (HOLOCD24-PS1)
2060x1470mm Wide/686mm Door (HOLOCD27-PS1)
2060x1650mm Wide/762mm Door (HOLOCD30-PS1)
2060x1720mm Wide/838mm Door (HOLOCD33-PS1)
2120x1310mm Wide/626mm Door (HOLOCD626-PS1)
2120x1510mm Wide/726mm Door (HOLOCD726-PS1)
2120x1710mm Wide/826mm Door (HOLOCD826-PS1)
2120x1910mm Wide/926mm Door (HOLOCD926-PS1)
System operation viewed from above:
Our new Interior Single Glass Pocket Door Systems have free delivery as standard, these pocket doors come with full fitting instructions and the door system allows you to slide the glass door straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings, the glass door is ready to fit but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details. All glass doors are 8mm thick safety glass.
See our "Dimensions PDF" for all sizes but use as a guide only.
Email email@example.com to receive a quote for any special sizes.
The idea is to build the pocket to the same thickness as the studwork - 75mm (3") or 100mm (4") - which are the two standard studwork sizes generally in use, so that you can directly continue the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of either 100mm (4") or 125mm (5").
Further layers of plasterboard can be added to increase the overall wall thickness, but other joinery work may be required. The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm or 79mm.

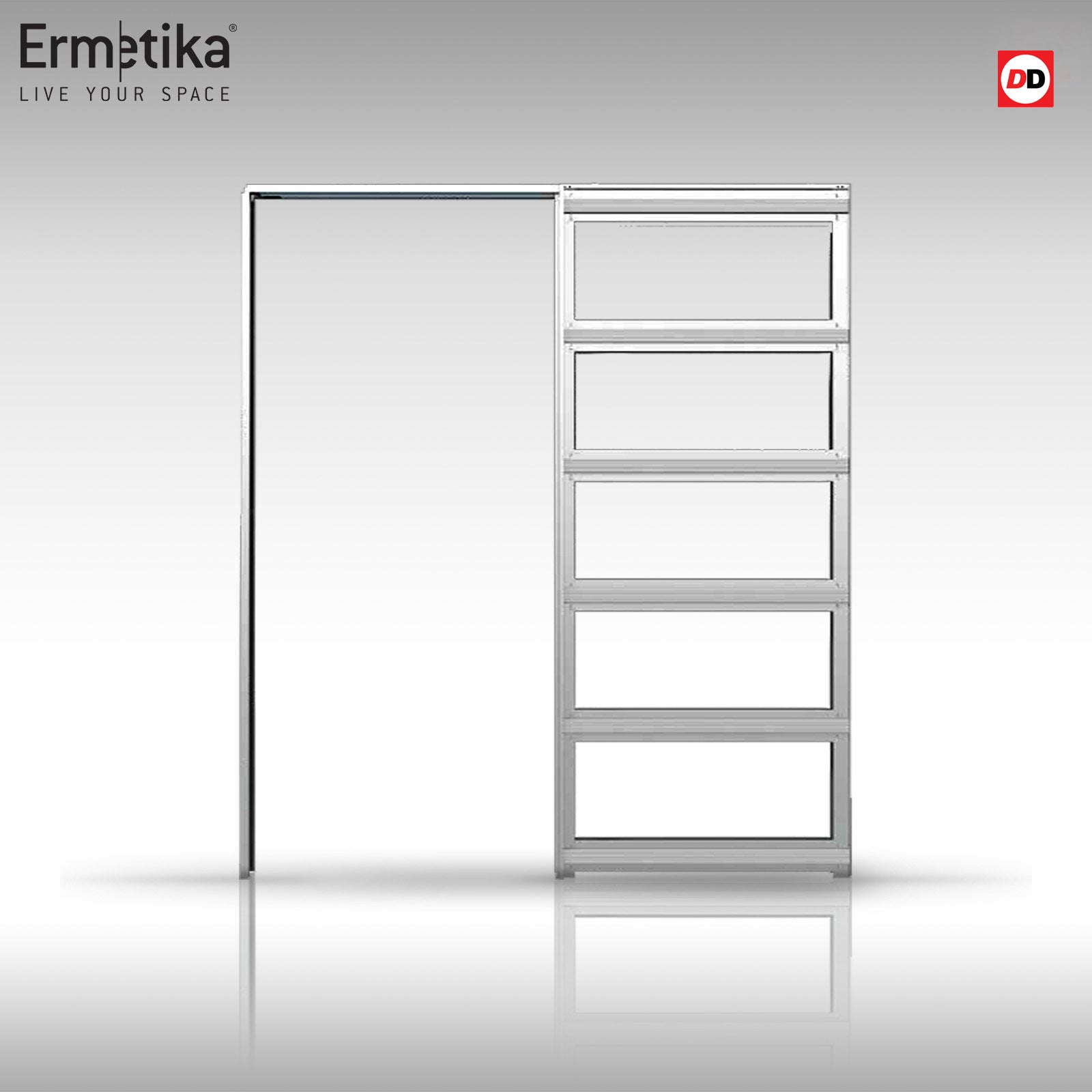

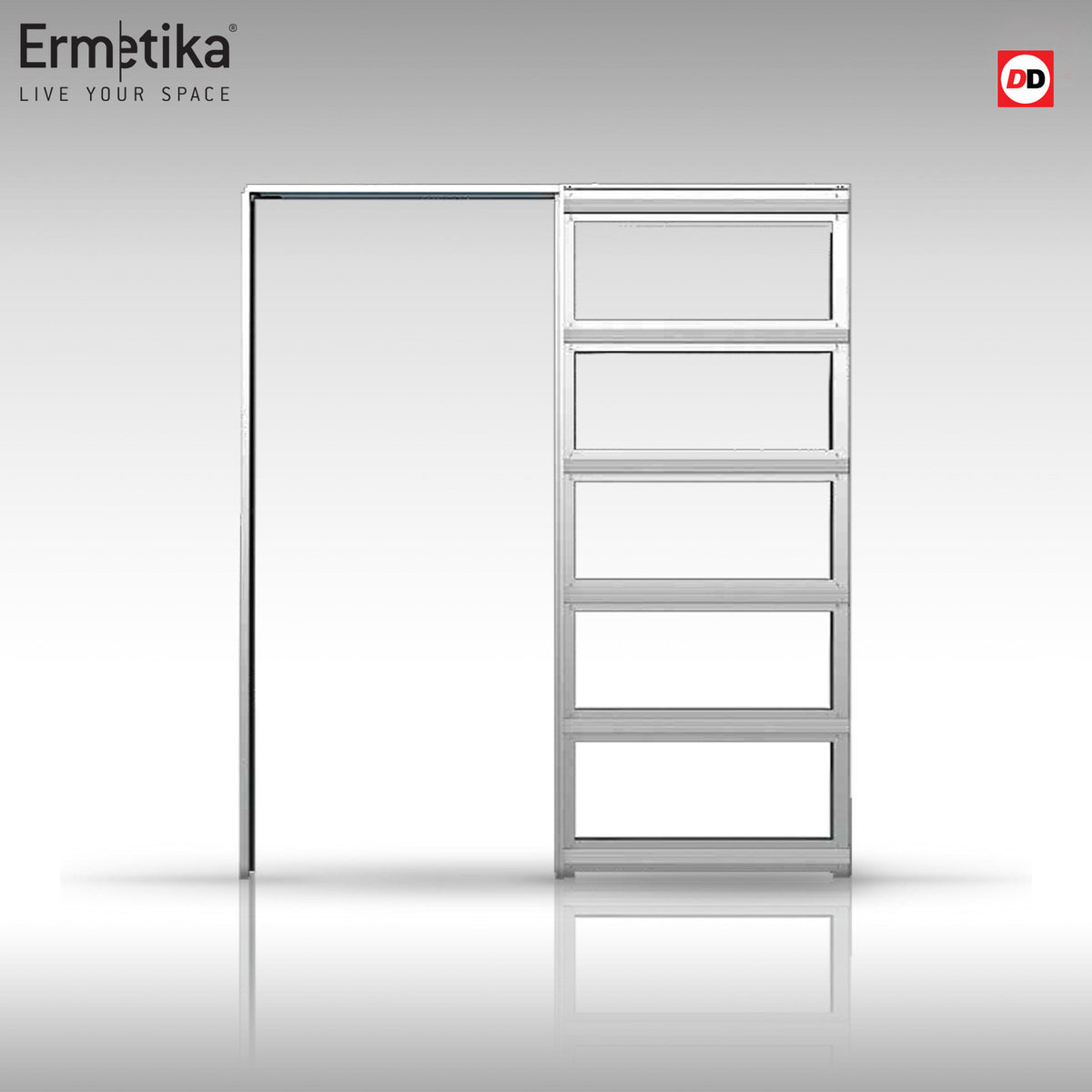

This system uses a standard pocket system kit but includes a kit for glass doors which includes clamps, floor guide and the set-up hardware, this allows you to fit the glass door onto the standard pocket system.
Soft Close accessory is included in the price to close the door slowly, handles can be purchased separately, this will be pre-fitted to the glass door.
The pocket door frame must be concealed with your own wall and architraves when installing.
|Dimensions||8mm glass door and a frame section of 100mm or 125mm external dimensions/54mm or 79mm internal cassette cavity.|
|Notes||The sizes listed above are for the overall glass door and pocket set which includes the metal pocket frame but does not include any architrave or plasterboard.|
|Important||All pocket door items are supplied in kit form.|
|Normal Availability for our Delivery Service||See delivery icon on top of the product page.|
|Adjustment||All jamb kits supplied to suit all pocket doors sizes and will therefore need cutting to height and width on site.|
|Price||The price quoted is for the door(s), pocket system frame, all track fittings but no handles.|
