This cavity door system is the perfect solution for all DIY lovers: with few simple frames include of: 6 horizontal strong bars 0.7mm thick on each side and a rail that can bear up to 100kg. The horizontal profiles and the vertical ones are 1.2mm thick.

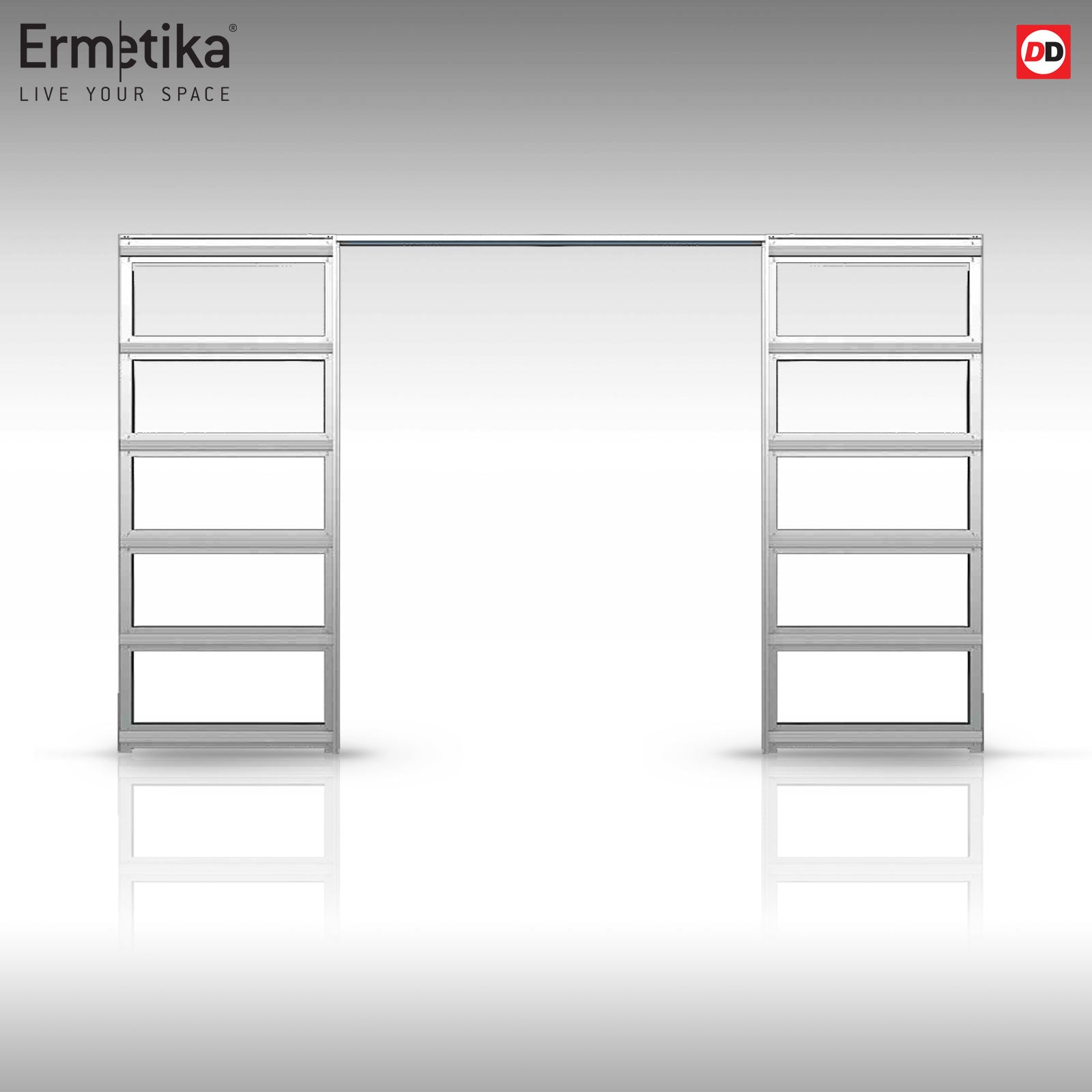

The structure is composed of a two metal frames and each frame contains of: 6 horizontal strong bars 0.7mm thick on each side and a rail that can bear up to 100kg. The horizontal profiles and the vertical ones are 1.2mm thick.
The idea is to build the pocket to the same thickness as the studwork - 75mm (3") which is the standard studwork size generally in use, so that you can directly continue using the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of either 100mm (4") four inches.
You can set up Evokit without any screws.
Dimensions & Sizes are listed below:
| Overall Dimension | Passage Size | Door Size (imperial) | Door Size (metric) |
| 2050mm x 2470mm | 1990mm x 1160mm | 1981mm x 610mm | 24" x 78" |
| 2050mm x 2830mm | 1990mm x 1320mm | 1981mm x 686mm | 27" x 78" |
| 2050mm x 3190mm | 1990mm x 1480mm | 1981mm x 762mm | 30" x 78" |
| 2050mm x 3330mm | 1990mm x 1620mm | 1981mm x 838mm | 33" x 78" |
| 2110mm x 2520mm | 2050mm x 1200mm | 2040mm x 626mm | 80 1⁄4" x 24 5⁄8" |
| 2110mm x 2920mm | 2050mm x 1400mm | 2040mm x 726mm | 80 1⁄4" x 28 5⁄8" |
| 2110mm x 3320mm | 2050mm x 1600mm | 2040mm x 826mm | 80 1⁄4" x 32 5⁄8" |
| 2110mm x 3720mm | 2050mm x 1800mm | 2040mm x 926mm | 80 1⁄4" x 36 5⁄8" |
- Suggested Minimum Skill Level
- Advanced DIY & Specialist Joinery Tools Required.
- Delivery
- See delivery icon on top of the products page.
Assembly Instructions
Dual Soft Closer/Opener Installation Video
How to Install Aspen Bathroom Lock
ERM
Absolute Frameless Pocket Door Kit for Double Doors - Ermetika
EVOKITABS610-PS2
Pocket cassette system only, no doors or accessories are included. Please note this pocket door kit is not suitable for hollow core doors.
We deliver for a small charge to most UK Mainland postcodes.

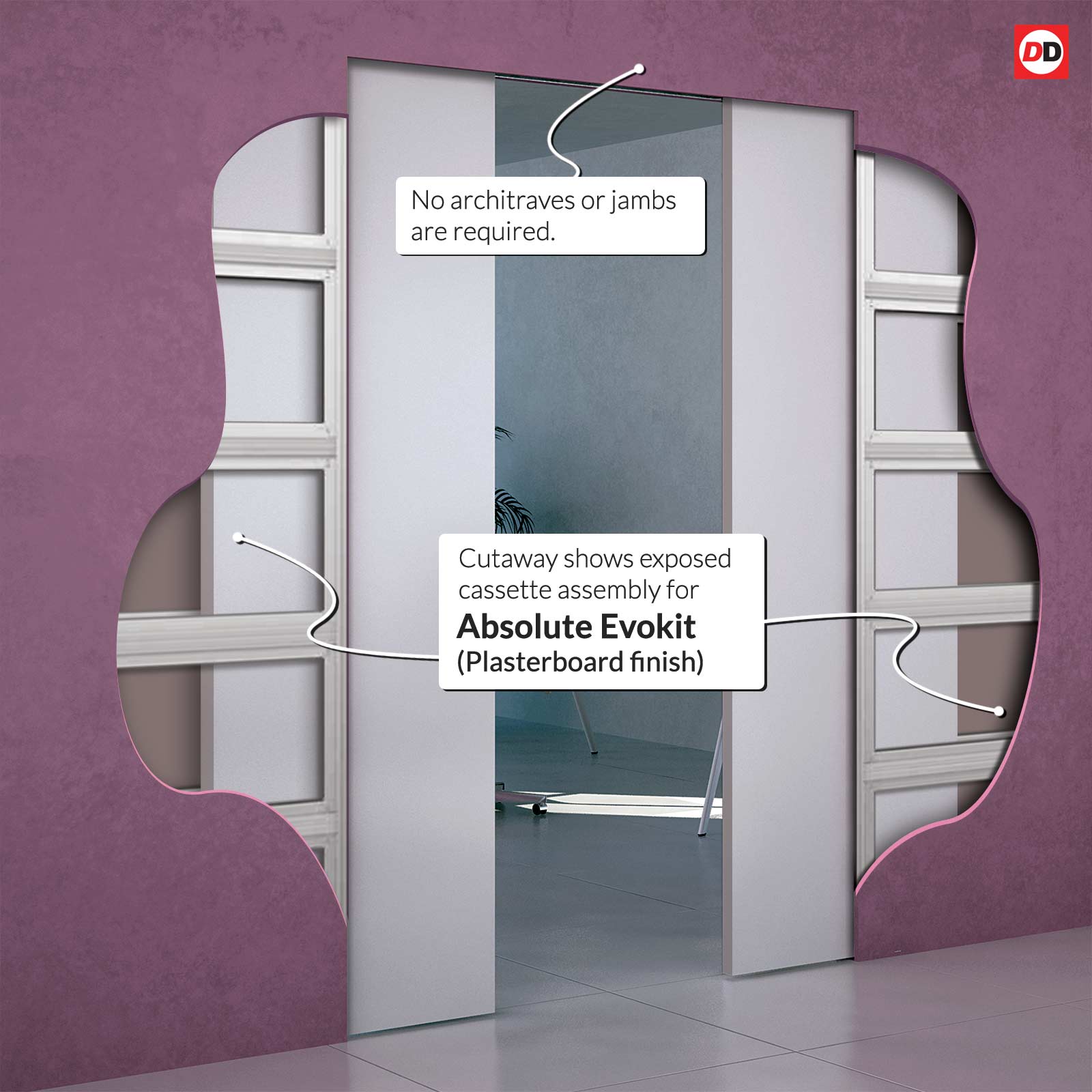

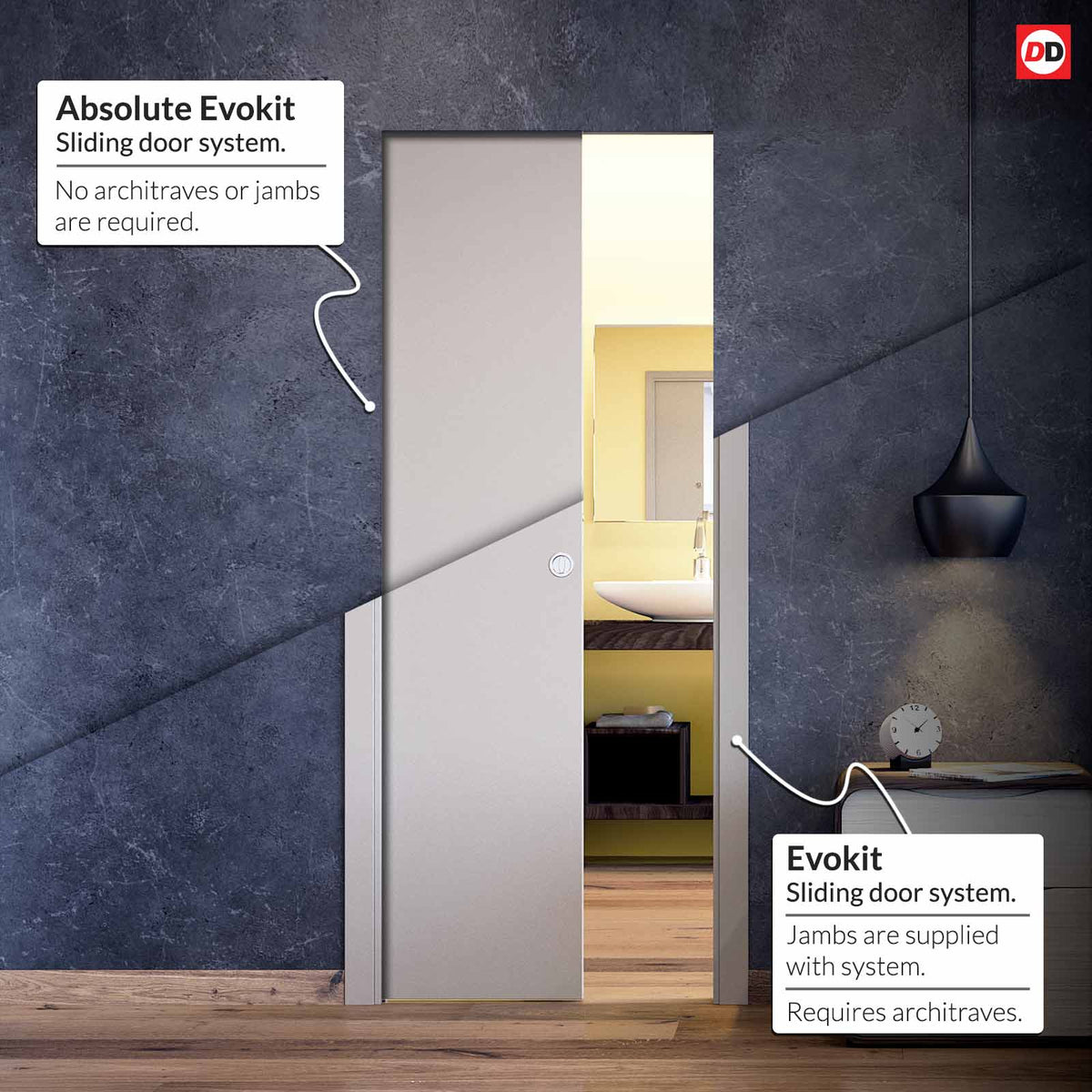

Absolute Evokit - when you don't want to see any architraves or jambs, just clean lines and a sophisticated system that setts you free from unnecessary detail.
Note: Care needed, sharp edges.
