Please click here to find our manufacturers care and decoration advice for this door.

Allow yourself the flexibility to fit the hinges to the left or the right, you decide when installing.

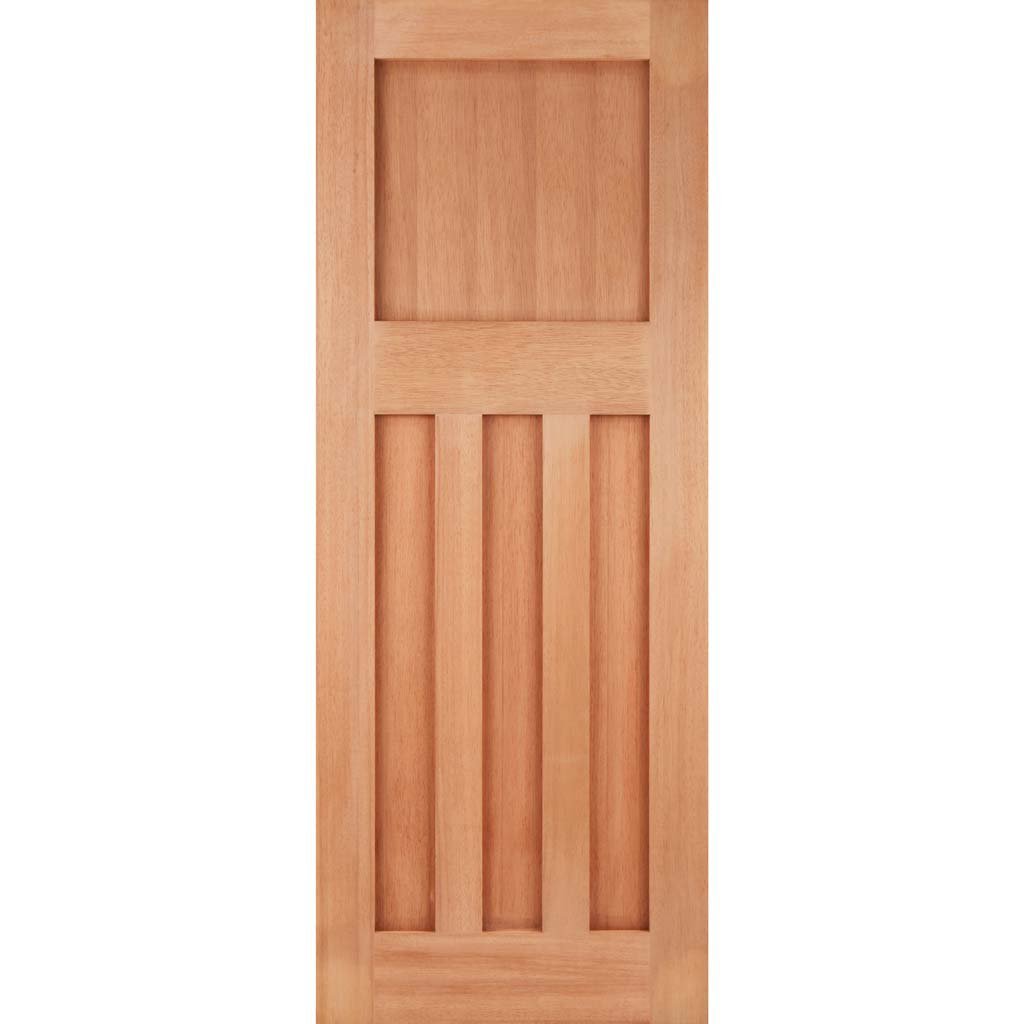

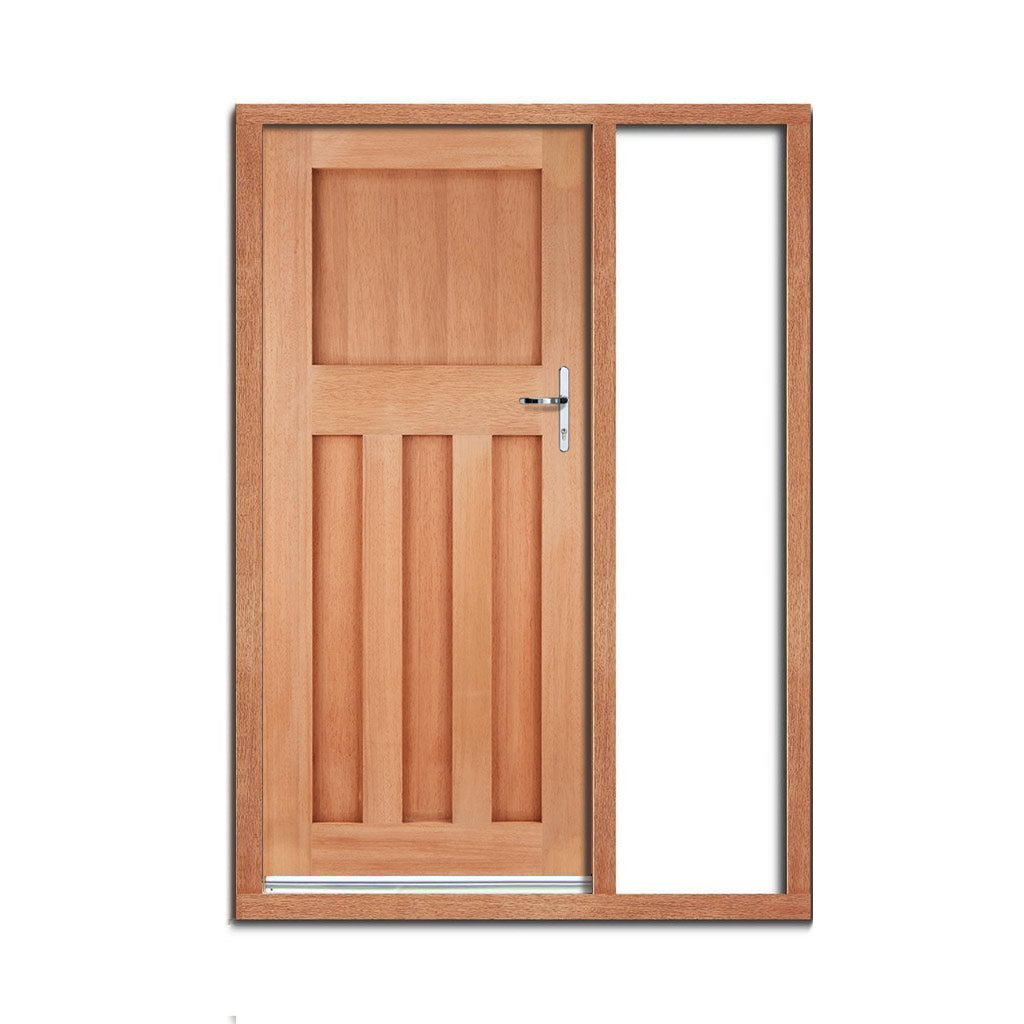

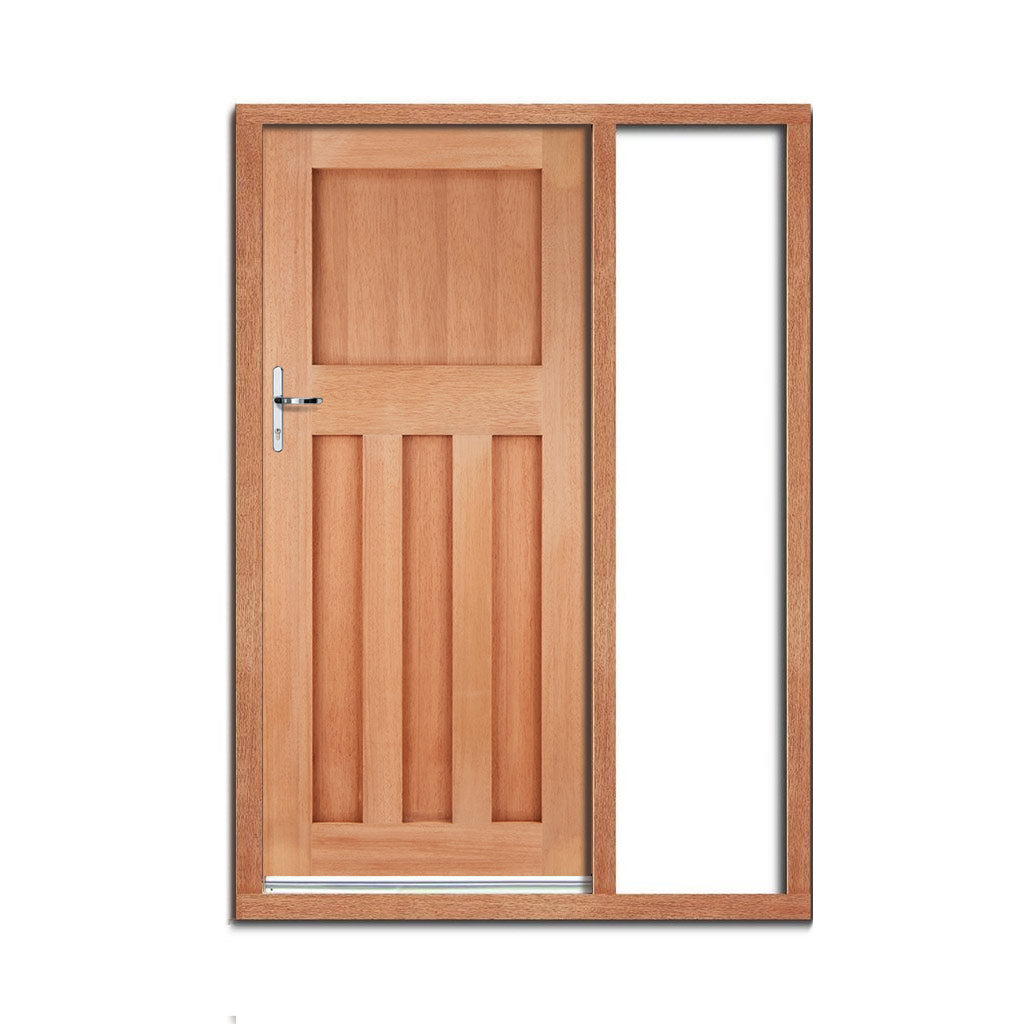

The beautiful DX30's Style Door and Frame Set with one unglazed Side Screen is shown without decoration, the door has an engineered core construction for greater strength and stability.

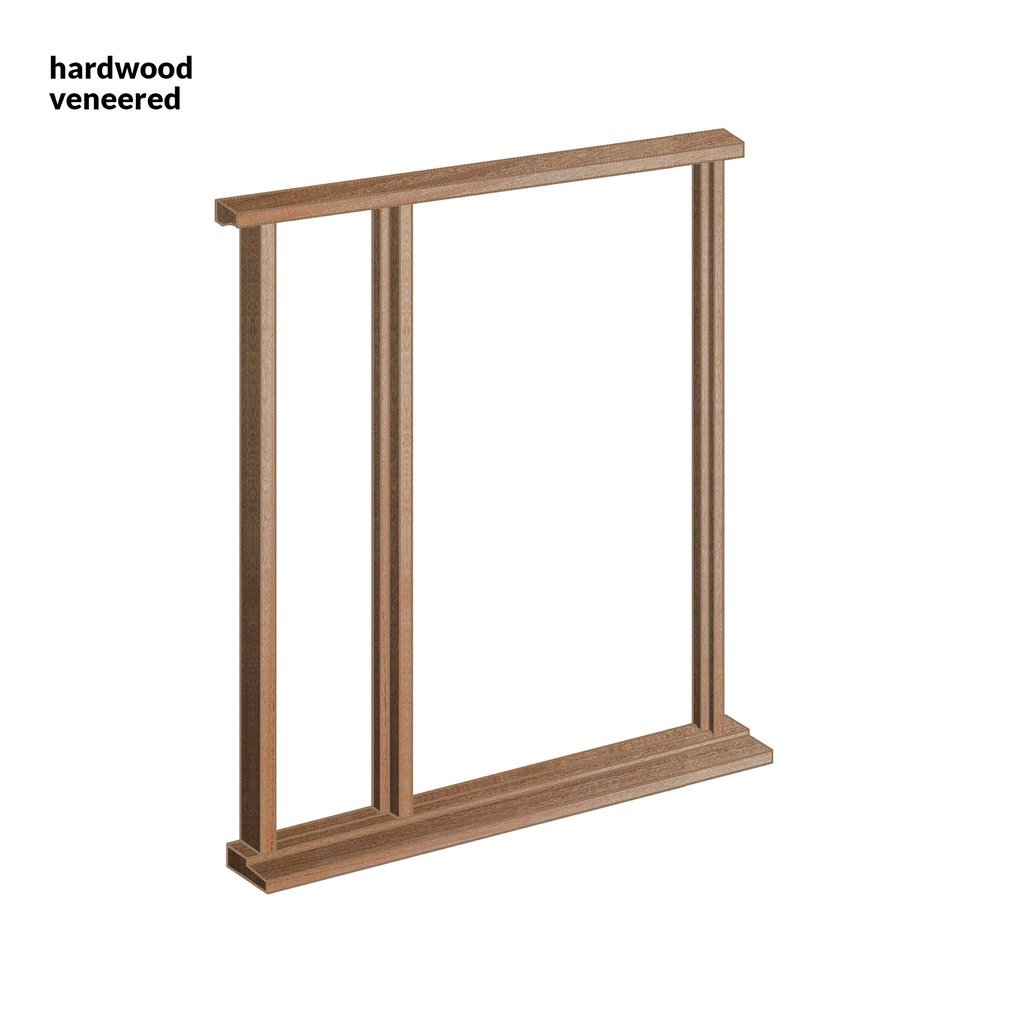

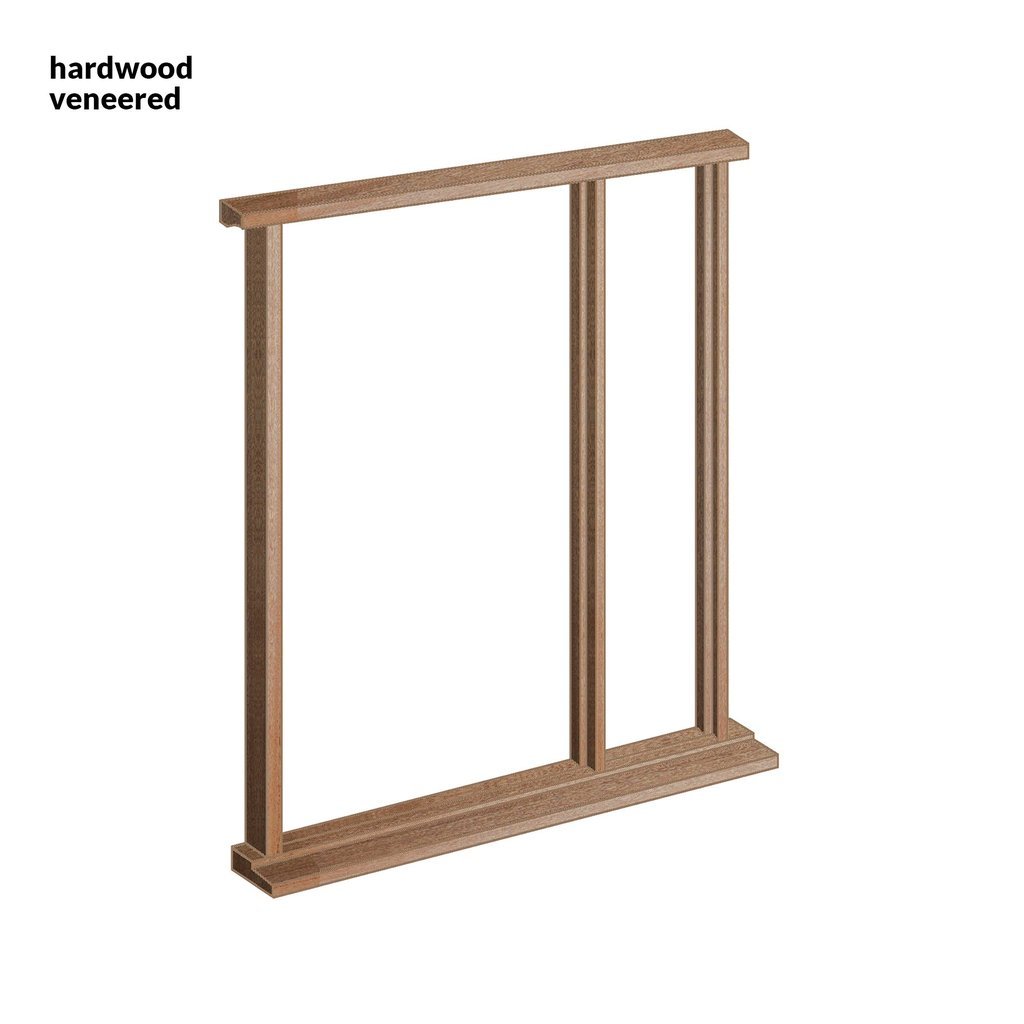

Kit Components; This DX30 door with a frame set and one unglazed Side Screen is sold in kit form, the door is panelled as shown, the main frame is in kit form ready to construct.

Sizes; The frame can be adjusted on site to suit the 1981x762mm, 1981x838mm and the 2032x813mm (if available) high door sizes.

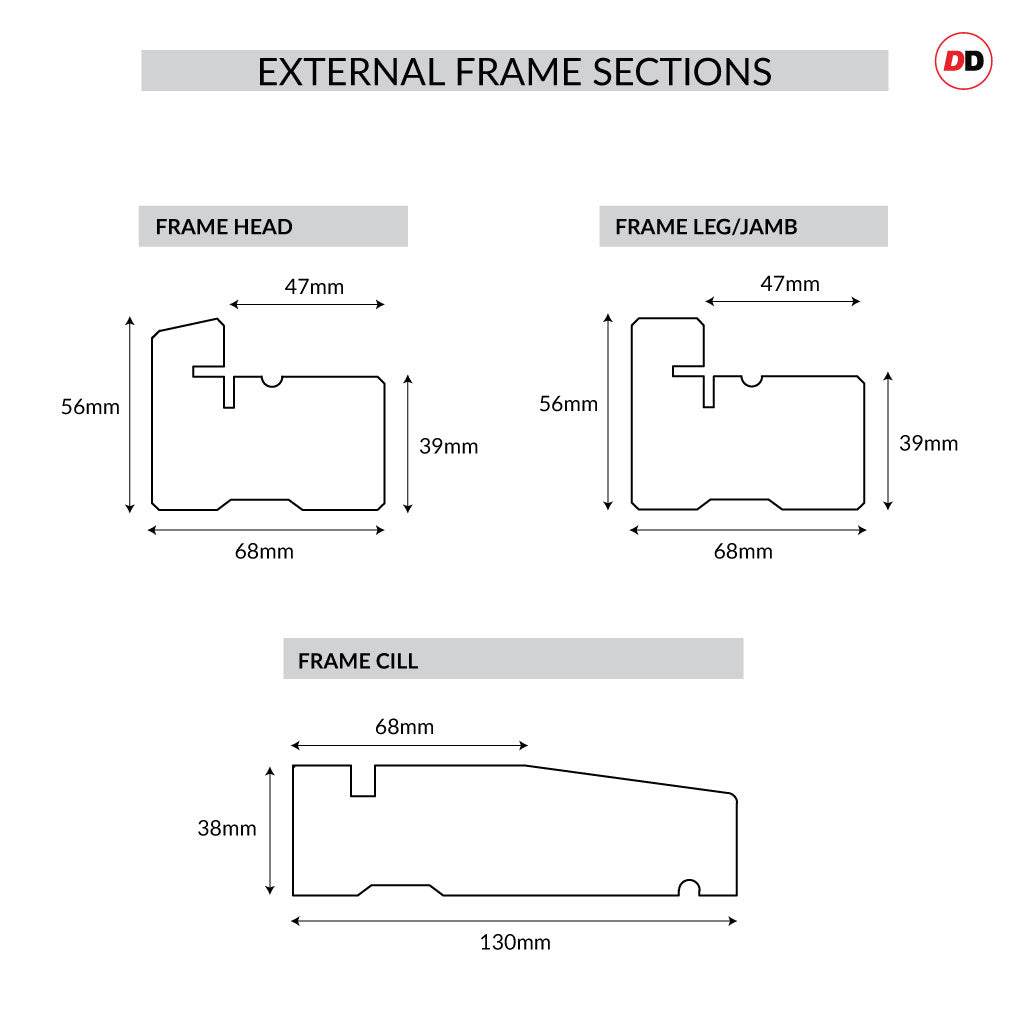

The overall frame height using the 1981mm door height is 2058mm high and 2109mm for the 2032mm high door, possible widths are 840mm wide for a 762mm door, 915mm for a 838mm door and 890mm for the 2032mm door (if available), all without any clearances for the door or any other fittings.

Possible adjustments; The frame will need cut to suit each door height and any Bry Dry or Cdx type draught excluder which would sit on top of the sill and between the door to provide the required draught proofing, discard any spare timber mullions that are not required.

All door stops are supplied and if you're not fitting side inset units but are fitting glazing to the sides you will need to source beading to suit this option.
