Stainless Steel Top Mounted Track: Wall to Door Distance
Stainless Steel Double Sliding Track for Wooden Doors - Top Mounted
Stainless Steel Top Mounted Track: Wall to Door Distance
Self-Assembly

Bring a touch of modern sophistication to your home with this elegant stainless steel double sliding door track. Its sleek, top-mounted design and beautiful stainless steel finish create a stylish feature that complements both contemporary and traditional interiors. Perfect for living rooms, dining areas, kitchens or home offices, it offers a space-saving way to connect your rooms, creating a bright, open and welcoming atmosphere while allowing you to enjoy separate spaces whenever you choose.
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Usage
Internal
Guarantee
12 months

Double Top Mounted Sliding Track

Configuration
Double
Finish
Stainless Steel
Included Items

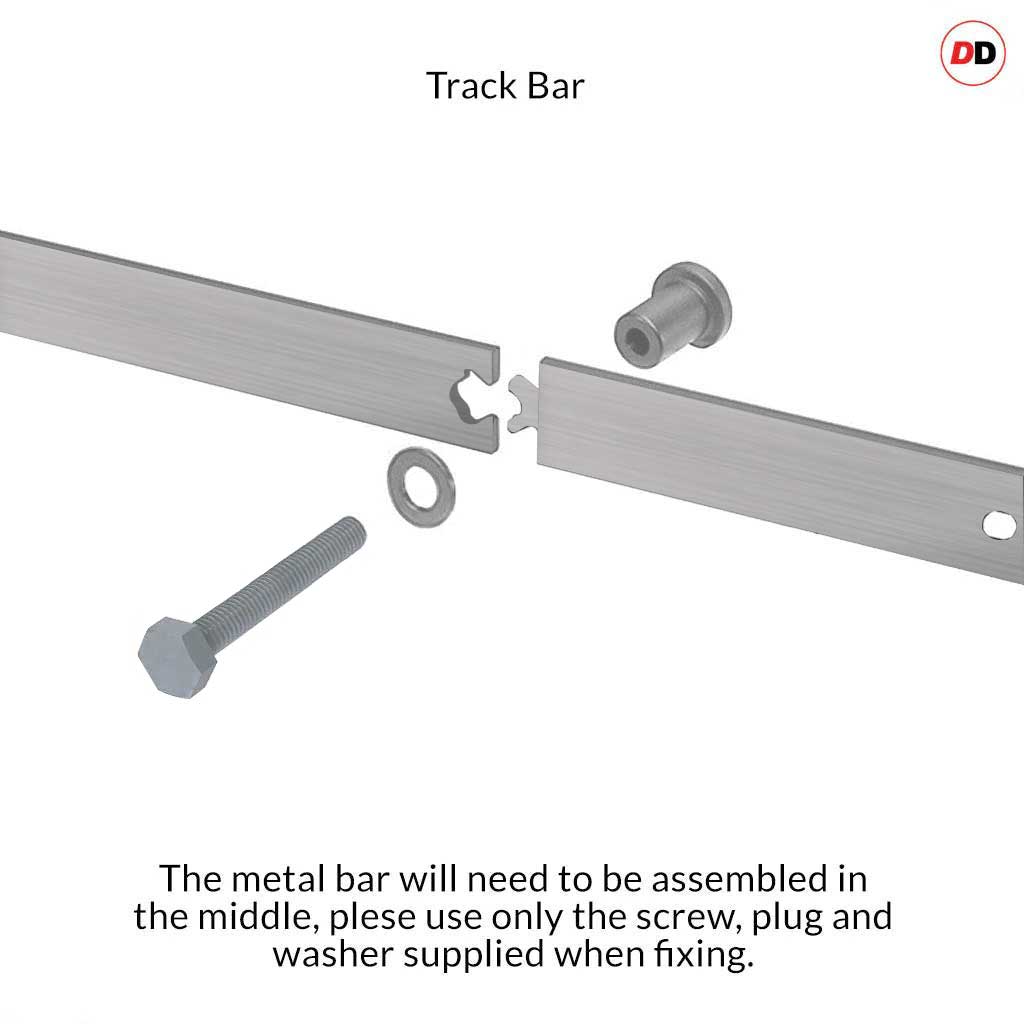

  • 2x Track - Please note the style of track stops may vary depending on the size chosen.

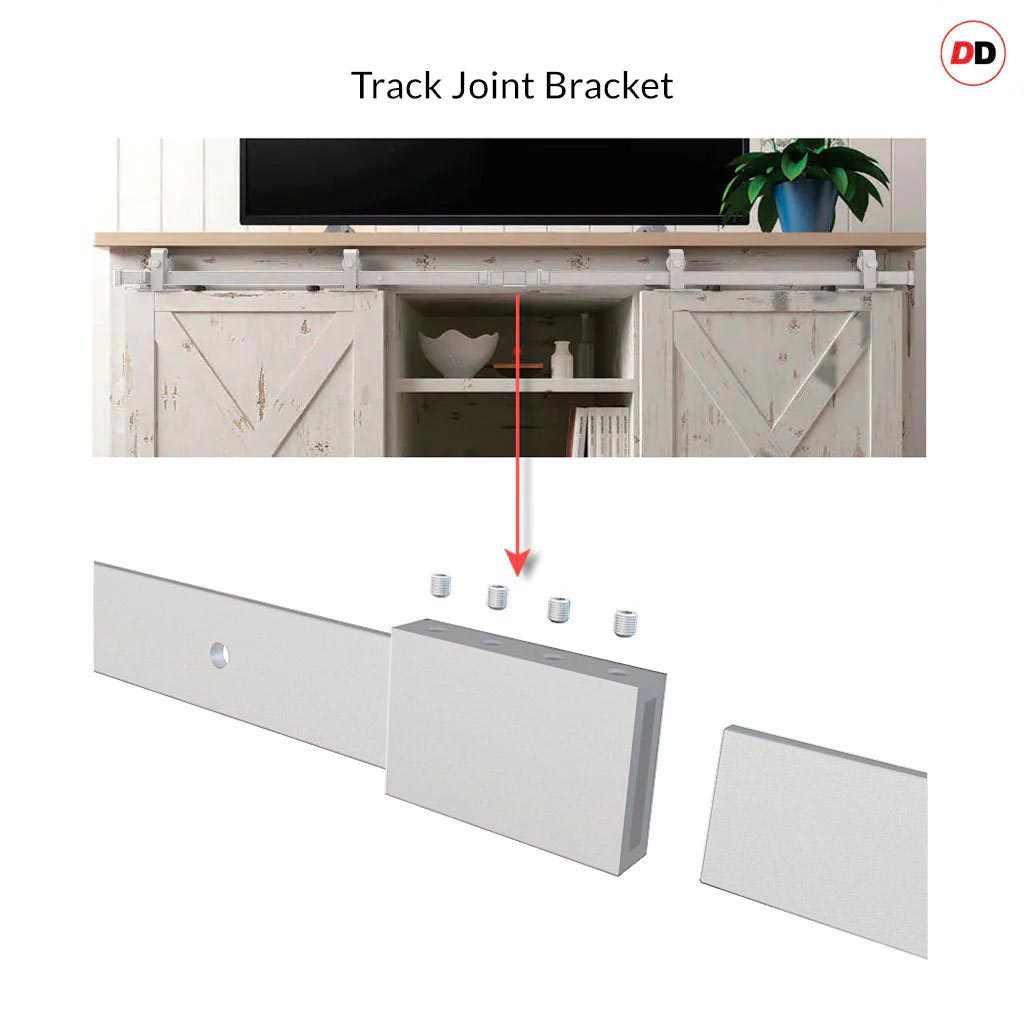

  • 1x Track Joint Bracket
  • 2x Sof Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • Depending on availability, a longer track may be supplied which suits all sizes.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door pair size so the doors "cover" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • A high-quality top mounted sliding track system finished in black, the top mounted track is screwed directly into the top of the door which gives the whole system a very sleek look. This track is suitable for a maximum weight of 80 kg per door.
  • There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.

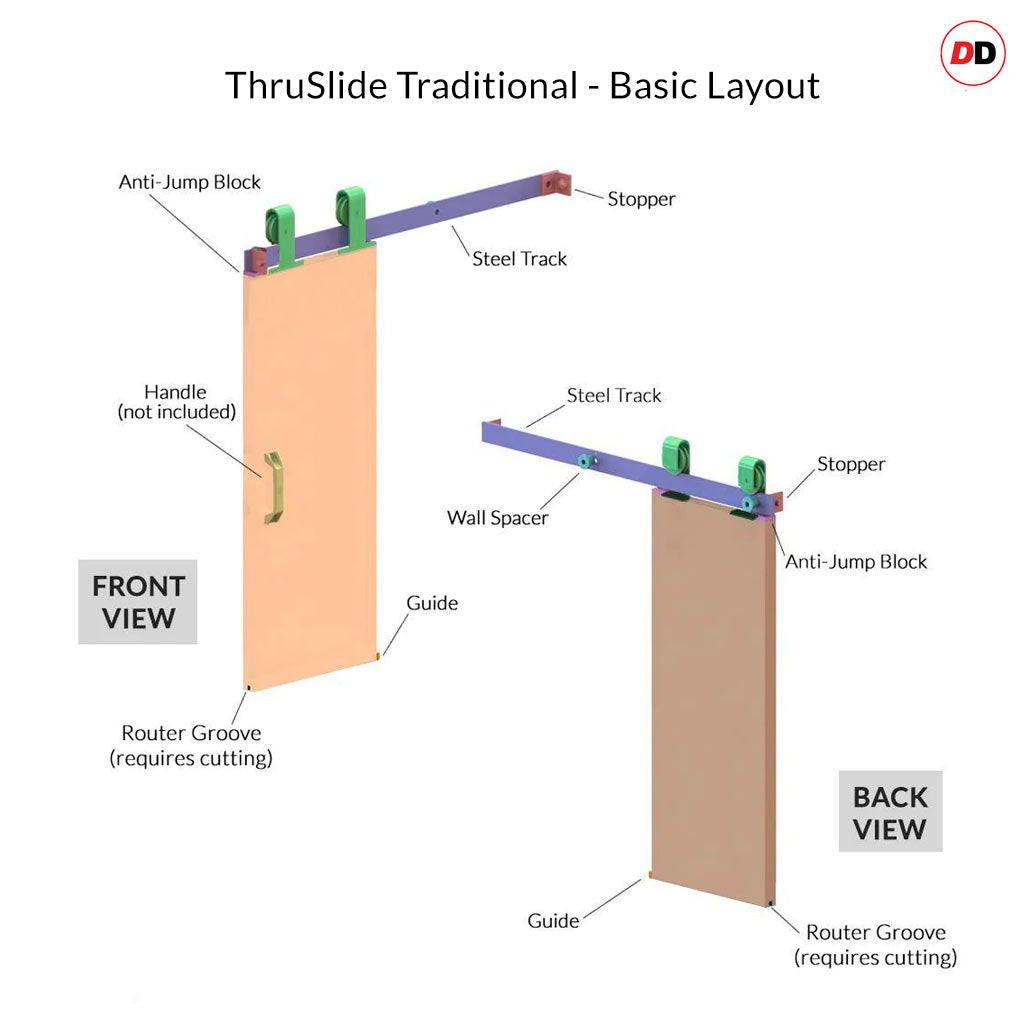

  • Doors will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.

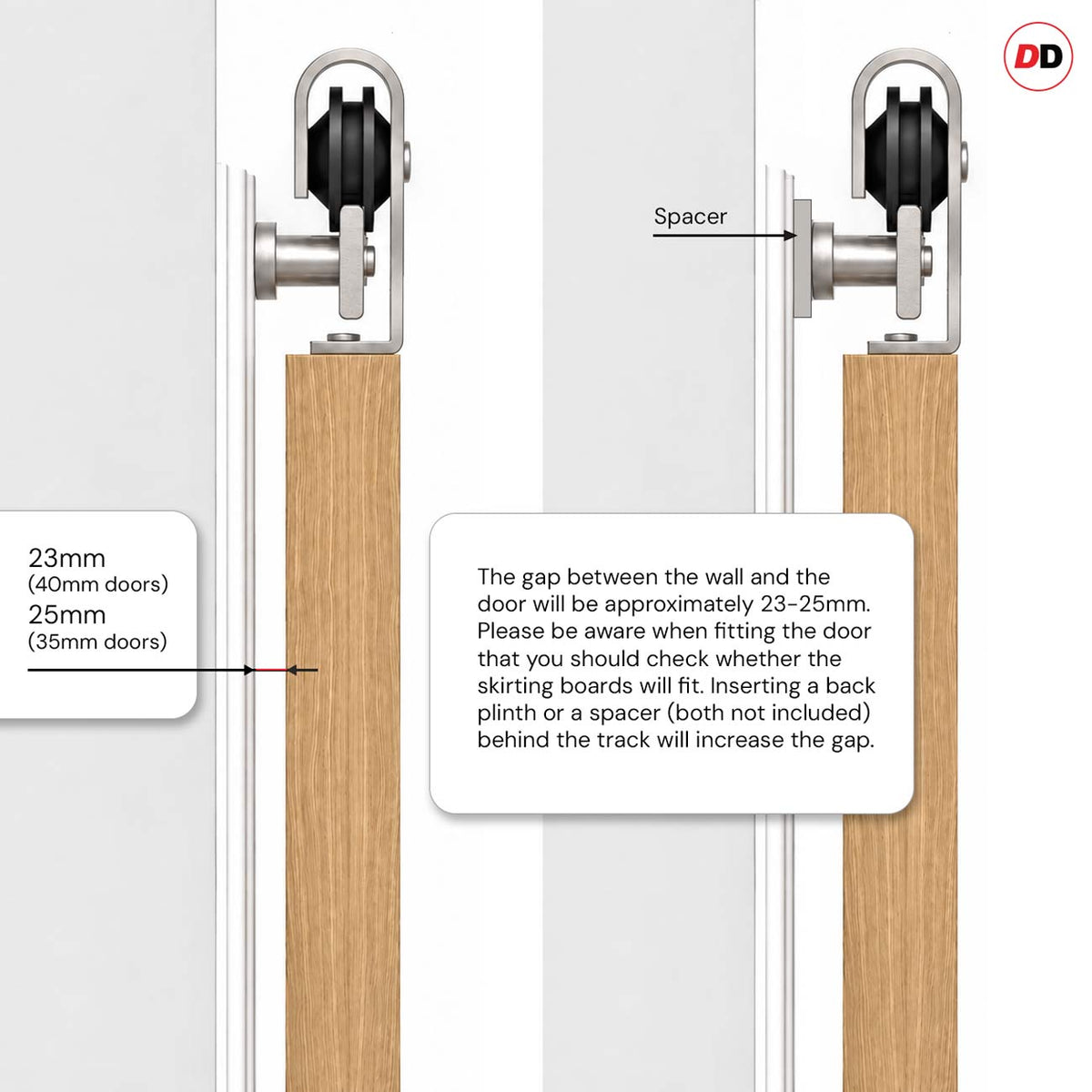

  • For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Top Mounted Track - 1500mm Fitting Instructions Top Mounted Track - Soft Closer Fitting Trak Overlap Guide

Soft Closer Fitting Video

EC

Stainless Steel Double Sliding Track for Wooden Doors - Top Mounted

BDH-A05-1500-SSS-686-2

Save 37% Was £299.67 £189.08
In stock

We deliver for a small charge, anywhere Mainland UK! In most instances, delivery will be the next working day if ordered before 11:30AM.

Important: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

The price shown is for the track only, the door is not included.

Note: For 35mm and 40mm doors. Track is not fire-rated and is not suitable for fire doors.

4-7 working days
iwocaPay trade finance options

Select option:
To suit 686mm Door - For Openings 1970mm High x 1352mm Wide
£189.08 RRP £299.67

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Pack

Flush Pull Handle Pack (12)

Loading...
Self-Assembly

Bring a touch of modern sophistication to your home with this elegant stainless steel double sliding door track. Its sleek, top-mounted design and beautiful stainless steel finish create a stylish feature that complements both contemporary and traditional interiors. Perfect for living rooms, dining areas, kitchens or home offices, it offers a space-saving way to connect your rooms, creating a bright, open and welcoming atmosphere while allowing you to enjoy separate spaces whenever you choose.
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Usage
Internal
Guarantee
12 months

Double Top Mounted Sliding Track

Configuration
Double
Finish
Stainless Steel
Included Items
  • 2x Track - Please note the style of track stops may vary depending on the size chosen.
  • 1x Track Joint Bracket
  • 2x Sof Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • Depending on availability, a longer track may be supplied which suits all sizes.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door pair size so the doors "cover" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • A high-quality top mounted sliding track system finished in black, the top mounted track is screwed directly into the top of the door which gives the whole system a very sleek look. This track is suitable for a maximum weight of 80 kg per door.
  • There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
  • Doors will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Top Mounted Track - 1500mm Fitting Instructions Top Mounted Track - Soft Closer Fitting Trak Overlap Guide

Soft Closer Fitting Video
