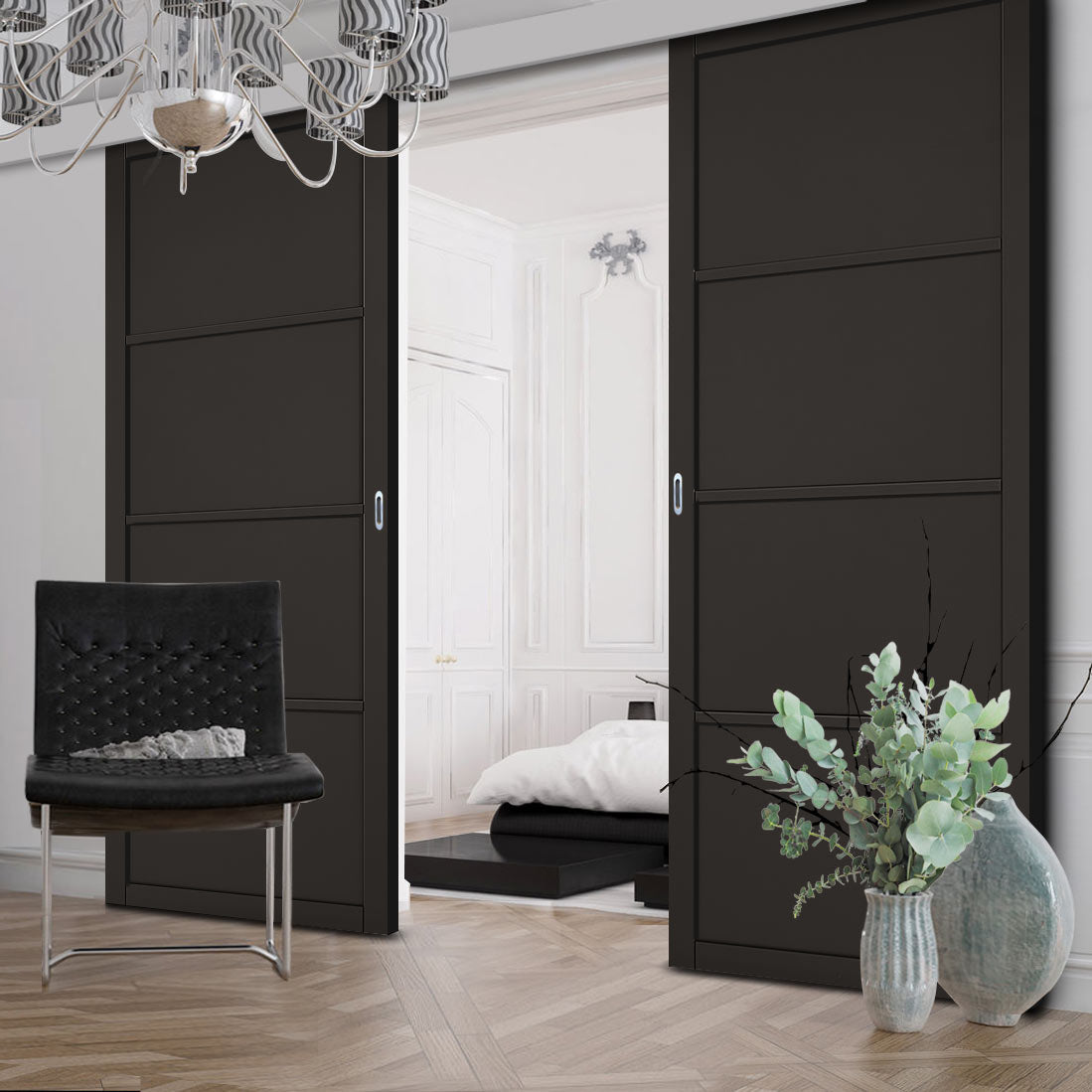

Double Sliding Door & Wall Track - Soho 4 Panel Door - Black Primed
Double Sliding Door & Wall Track - Soho 4 Panel Door - Black Primed
Double Sliding Door & Wall Track - Soho 4 Panel Door - Black Primed
Router Groove Requirement Diagram
Double Sliding Door & Wall Track - Soho 4 Panel Door - Black Primed
Double Sliding Door & Wall Track - Soho 4 Panel Door - Black Primed
Double Sliding Door & Wall Track - Soho 4 Panel Door - Black Primed
Double Sliding Door & Wall Track - Soho 4 Panel Door - Black Primed
Router Groove Requirement Diagram
Solid Core
Self Assembly

Industrial style doors that may not be steel but are the next best thing and made from warm lightly grained wood or wood substitutes and with the warmth that only a wooden door can offer, for those discerning customers that not only want something different but also require something different.

This double sliding door set is designed for wider openings and room-dividing layouts, giving the door a tidy sliding action and a finished surface and panel detailing. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Prefinished
Colour
Black
Face
Painted
Thickness
35mm, 40mm
Adjustment
This door can be trimmed by 5mm on each edge.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Wall Mounted Sliding Track

Configuration
Double
Door Quantity
2
Finish
Aluminium
Included Items
  • 2x Door
  • 1x Track - The track is not supplied pre-drilled. The pelmet to cover the track is not included.
  • 2x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see Add-ons section.

Technical Specs

Product Advice:

  • The supplied track will have a length equal to 4x the individual door width plus 100mm.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • Prices show the door and track combined cost, all prices are inclusive of vat and UK wide delivery which may be from 2 or more suppliers.
  • Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are not included.
  • There is a maximum 2051mm floor to top of track height requirement for all variations (if using a 1981mm high door) which includes some track adjustable tolerances for discrepancies to wall and floor levels, please note that the surface fix brackets are over and above these height requirements.
  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
Additional Information

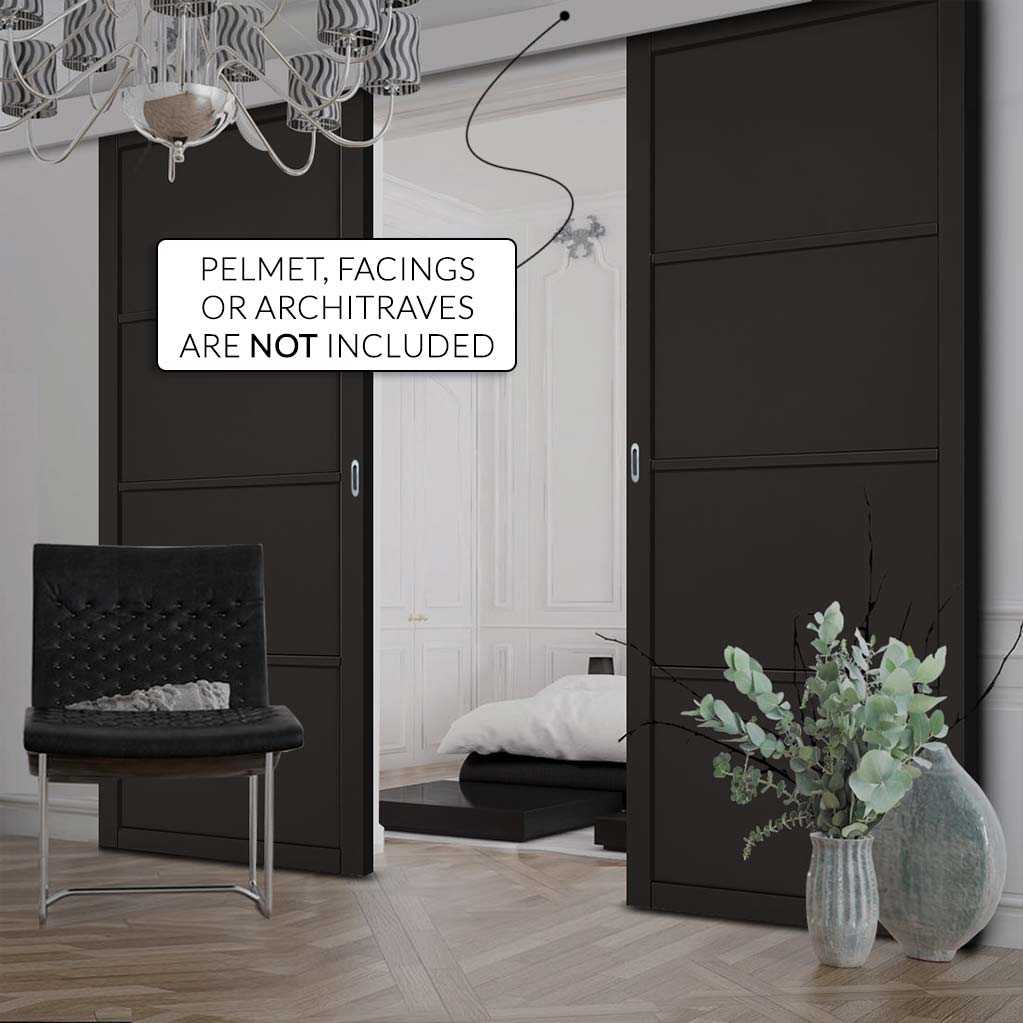

The track provided is not intended to be fully exposed, but to be hidden behind the pelmet. The pelmet is not included with the product, but can be purchased separately in the add-ons section.

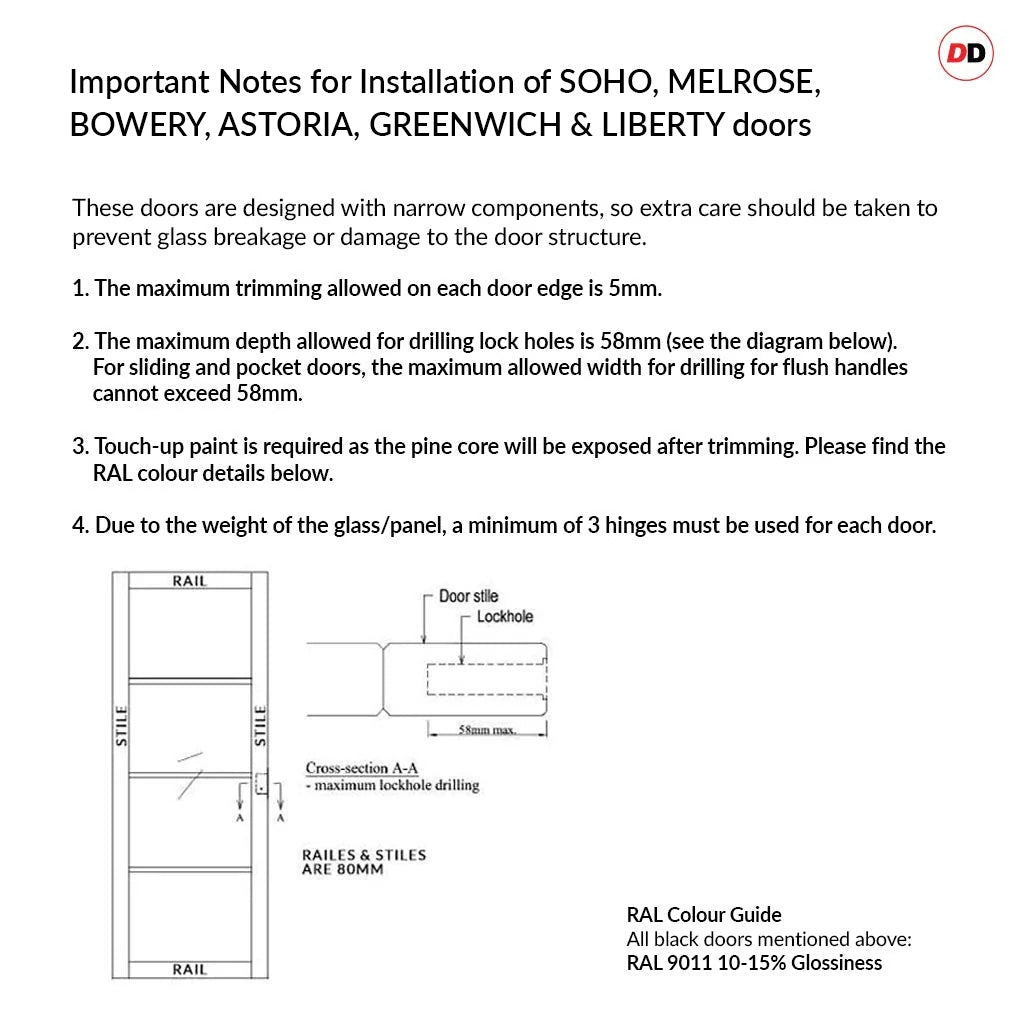

Adjustment: Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Note:All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
Fitting Instructions

Soft Closer Fitting Instructions

LPD

Double Sliding Door & Wall Track - Soho 4 Panel Door - Black Painted - Prefinished

SOHSOLBLA27-THRSUR-2

Save 3% Was £803.75 £781.47
In stock

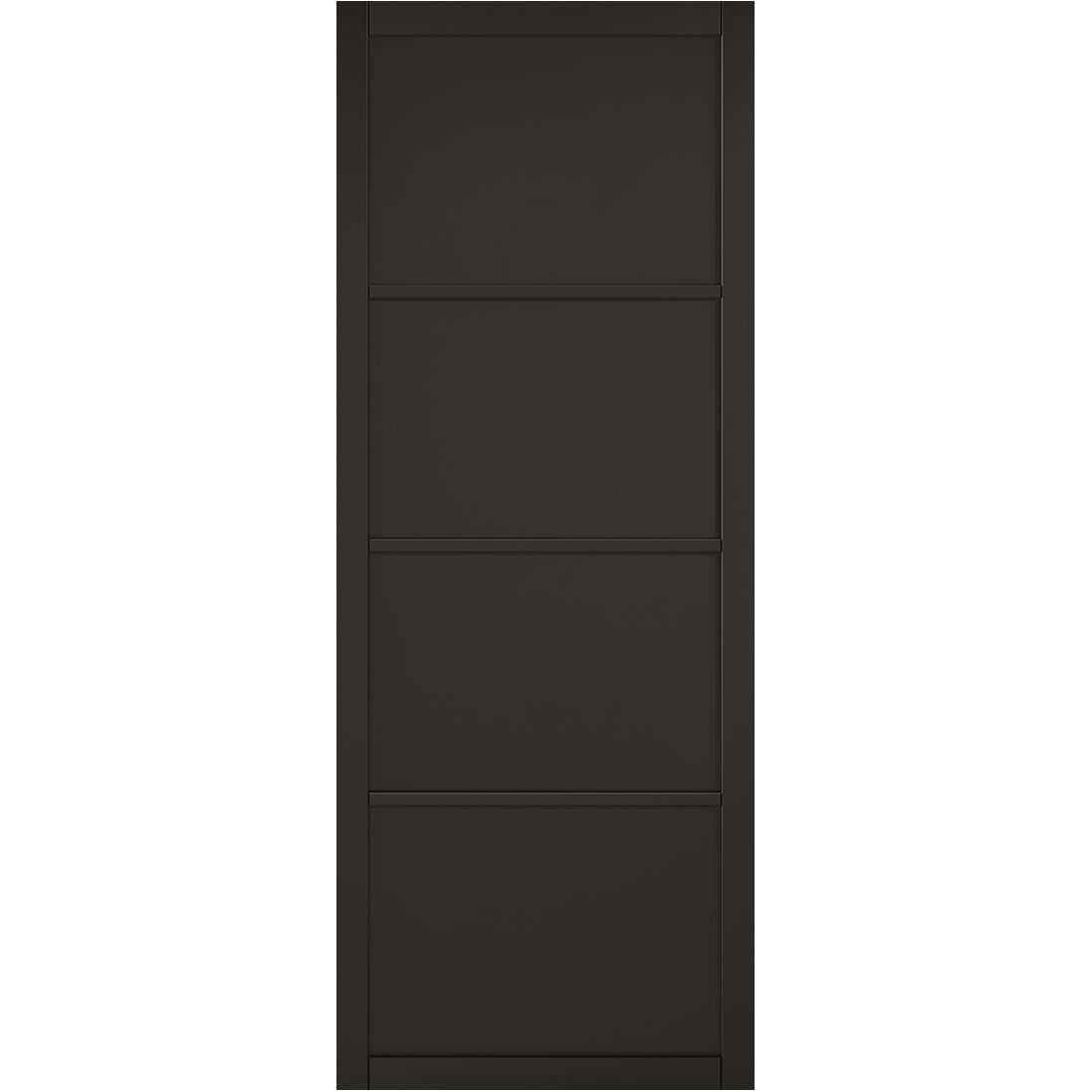

With Soho 4 Panel Door - Black Painted - Prefinished, the focus is on creating a cleaner, easier-to-use opening with a prefinished door surface, a bold black finish, four-panel detailing. It suits projects where you want the practicality of a sliding system without losing the character of a proper door design.

The design includes a prefinished door surface, a bold black finish and four-panel detailing, giving the product a clear visual identity while keeping the overall look easy to live with. Supplied as a coordinated sliding set, it is intended to bring together the door and sliding arrangement in one customer-friendly product.

Supplied in kit form and not assembled, so installation should be planned before ordering. A router is required for installation. Because applicable products are cut to size after order, cancellation restrictions may apply.

4-7 Working Days

Select option:
1981x686mm Doors - For Openings 1970mm High x 1352mm Wide
£781.47 RRP £803.75
1981x762mm Doors - For Openings 1970mm High x 1504mm Wide
£781.47 RRP £803.75
1981x838mm Doors - For Openings 1970mm High x 1656mm Wide
£781.47 RRP £803.75

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Sliding Door Pelmet

Sliding Door Pelmet (4)

Loading...
Solid Core
Self Assembly

Industrial style doors that may not be steel but are the next best thing and made from warm lightly grained wood or wood substitutes and with the warmth that only a wooden door can offer, for those discerning customers that not only want something different but also require something different.

This double sliding door set is designed for wider openings and room-dividing layouts, giving the door a tidy sliding action and a finished surface and panel detailing. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Prefinished
Colour
Black
Face
Painted
Thickness
35mm, 40mm
Adjustment
This door can be trimmed by 5mm on each edge.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Wall Mounted Sliding Track

Configuration
Double
Door Quantity
2
Finish
Aluminium
Included Items
  • 2x Door
  • 1x Track - The track is not supplied pre-drilled. The pelmet to cover the track is not included.
  • 2x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see Add-ons section.

Technical Specs

Product Advice:

  • The supplied track will have a length equal to 4x the individual door width plus 100mm.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • Prices show the door and track combined cost, all prices are inclusive of vat and UK wide delivery which may be from 2 or more suppliers.
  • Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are not included.
  • There is a maximum 2051mm floor to top of track height requirement for all variations (if using a 1981mm high door) which includes some track adjustable tolerances for discrepancies to wall and floor levels, please note that the surface fix brackets are over and above these height requirements.
  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
  • All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
Additional Information

The track provided is not intended to be fully exposed, but to be hidden behind the pelmet. The pelmet is not included with the product, but can be purchased separately in the add-ons section.

Adjustment: Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Note:All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
Fitting Instructions

Soft Closer Fitting Instructions

Frequently asked questions

Please select your door first. Once you have chosen your door, you will then be able to add any add-ons you would like.

No, we are a supply-only company and do not offer a fitting service.

That said, we are experts in our field and are always happy to help with any questions you may have. We can advise on product care, fitting, hinges, locks, frames, and all other aspects of installation.

Please do not worry, deliveries may arrive with two different couriers. If you have received only part of your order, please allow a few more days for the remaining items to arrive.
