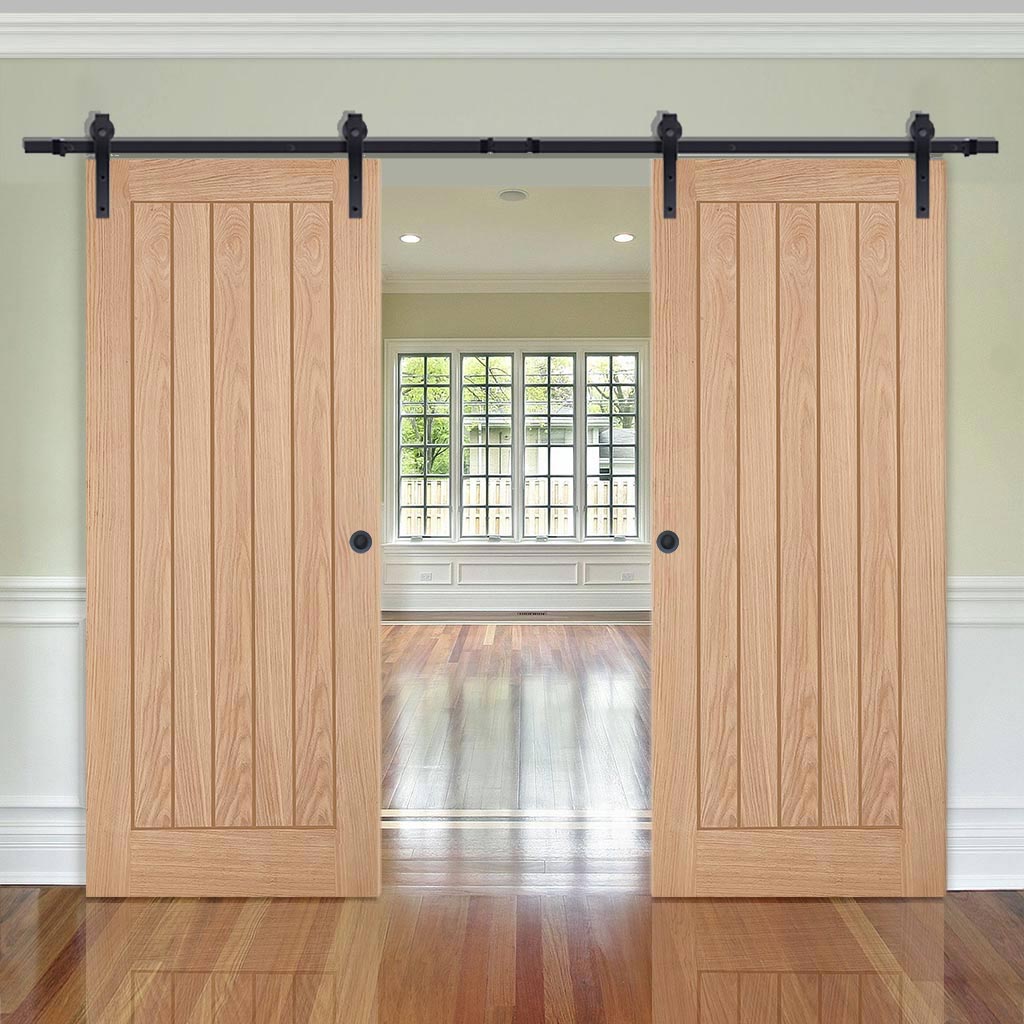

Double Sliding Door & Black Barn Track - Belize Oak Door - Unfinished

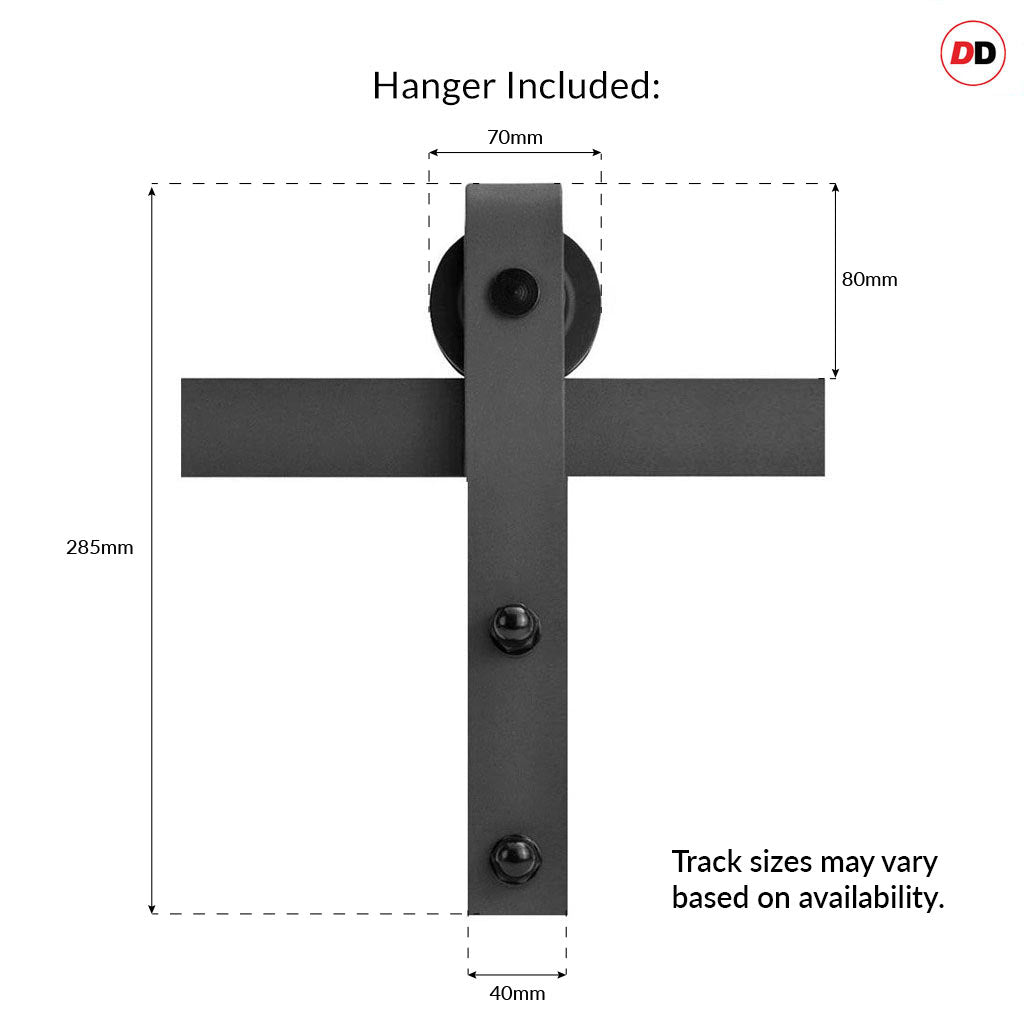

Straight Black track for barn style sliding doors on the white background

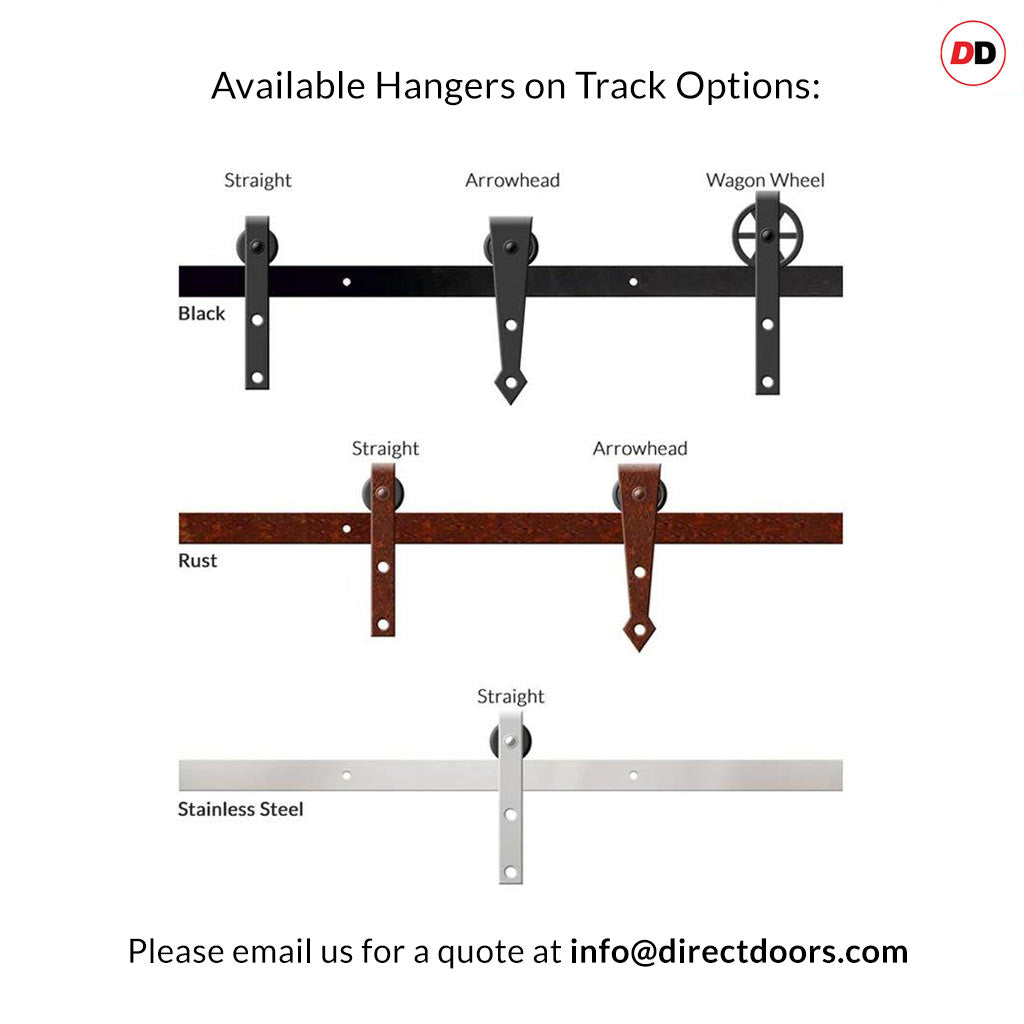

10 finishes of sliding door barn style tracks in 3 rows, 3 x black 2x rust 1x steel finish

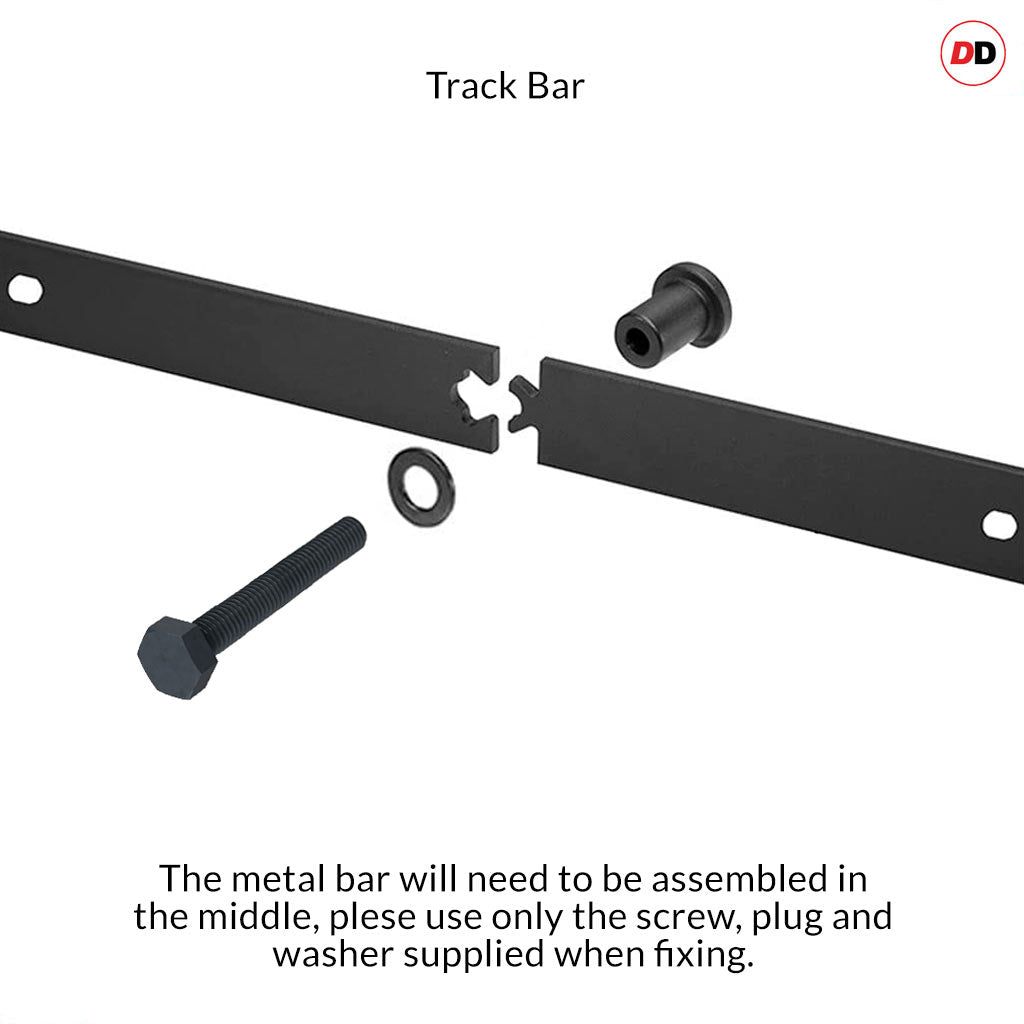

Track Bar Assembly

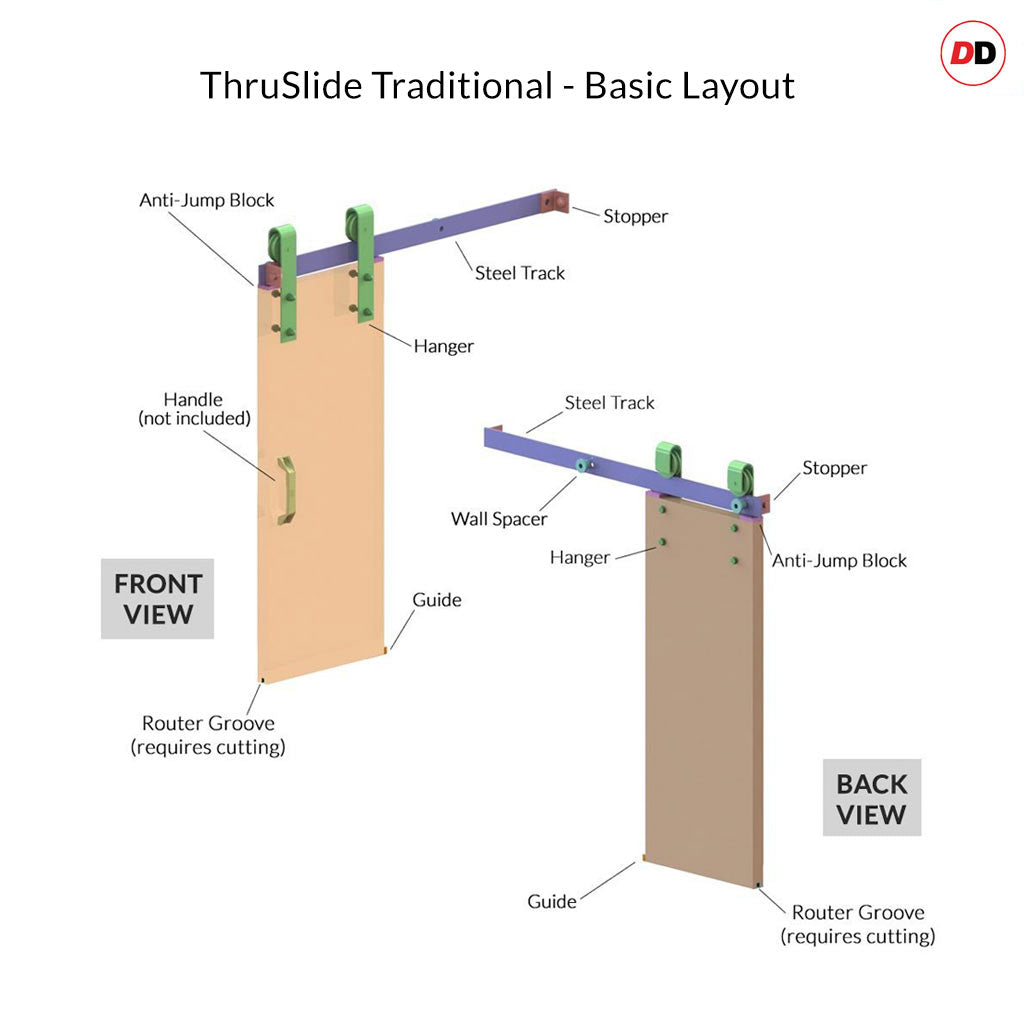

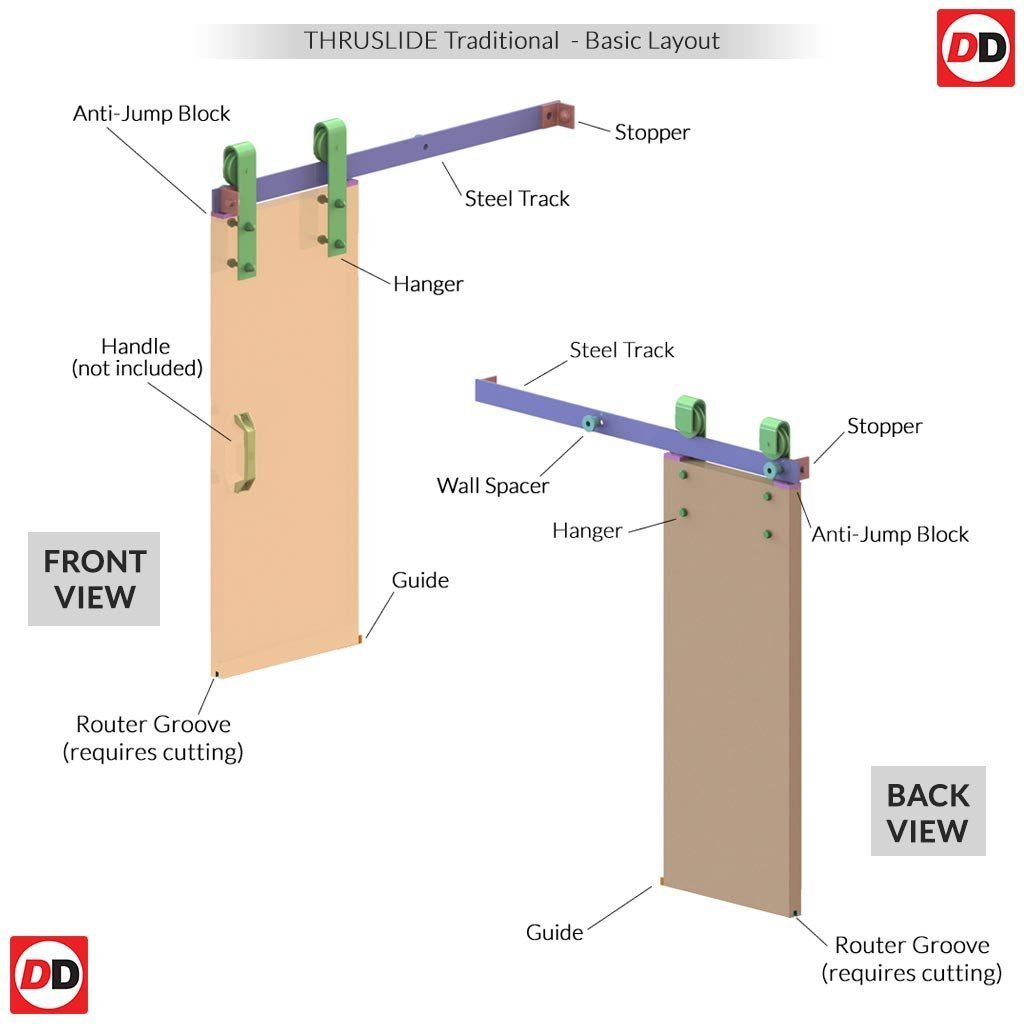

Basic Layout in a form of diagram showing front mounted sliding doors
A diagram showing a groove required in the bottom of sliding door(s)

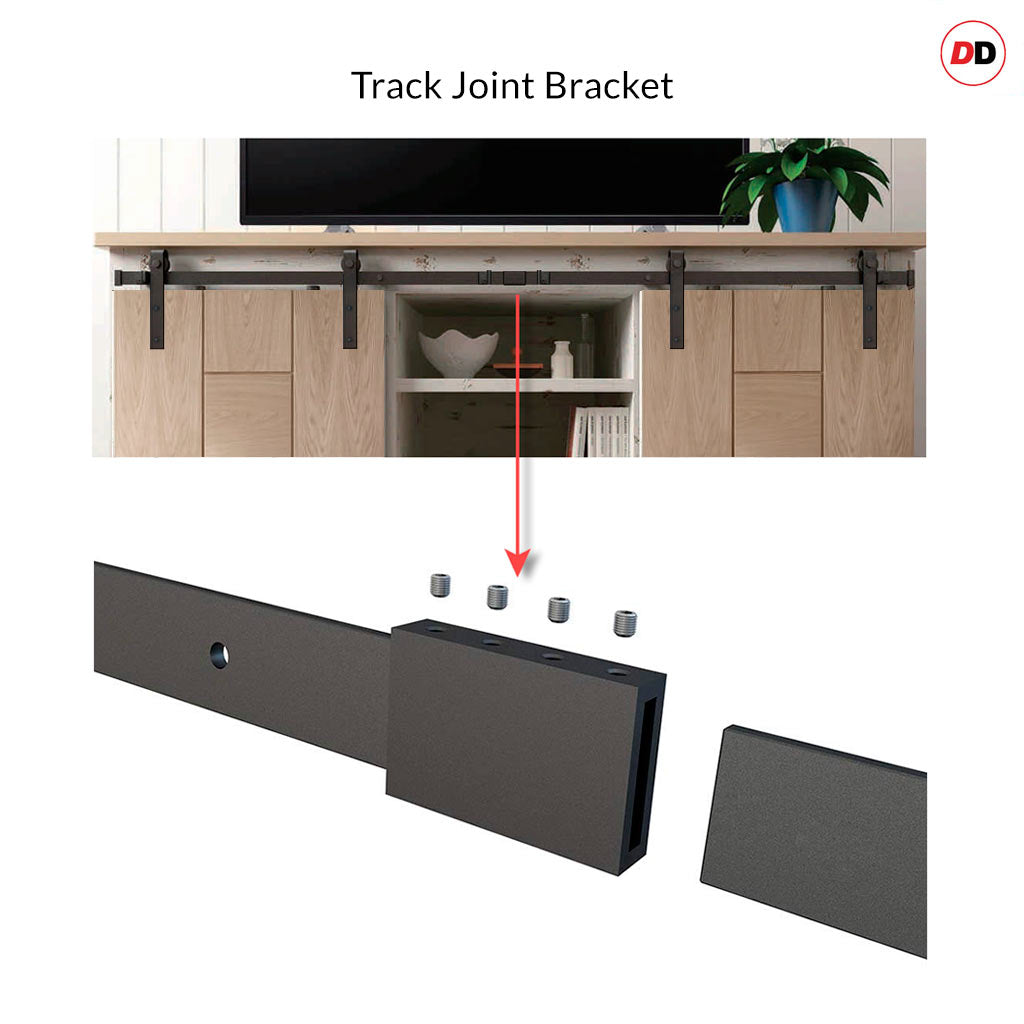

Track Joint Bracket connecting two single tracks
Solid Core
Self Assembly

The Belize Oak Door - Unfinished gives you a double sliding door set for wider openings and room-dividing layouts, with an unfinished surface and oak styling. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
Top & Bottom Rail Trimming Allowance: 3mm, Side Rails/Stiles Trimming Allowance: 5mm
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Black Front Mounted Sliding Track

Configuration
Single
Door Quantity
1
Finish
Black Coated Metal
Included Items
  • 1x Door
  • 1x Track - Please note the style of track stops may vary depending on the size chosen.
  • 1x Sof Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • We will always endeavour to supply the best size track available relative to the door size, 1500mm tracks are supplied for 686mm doors, 1830mm tracks are supplied for 762mm and 838mm doors.1500mm track overhang (L & R)
    64mm (L & R) - 686mm wide door1830mm track overhang (L & R)153mm (L & R) - 762mm wide door 77mm (L & R) - 838mm wide door
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • Prices show the door, track and wheel cost, all prices are inclusive of vat and UK wide delivery which may be from 2 suppliers.
  • There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • All doors are 35mm or 40mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Trak Overlap Guide 1500mm Fitting Instructions 1800mm Fitting Instructions Soft Closer Fitting Instructions

LPD

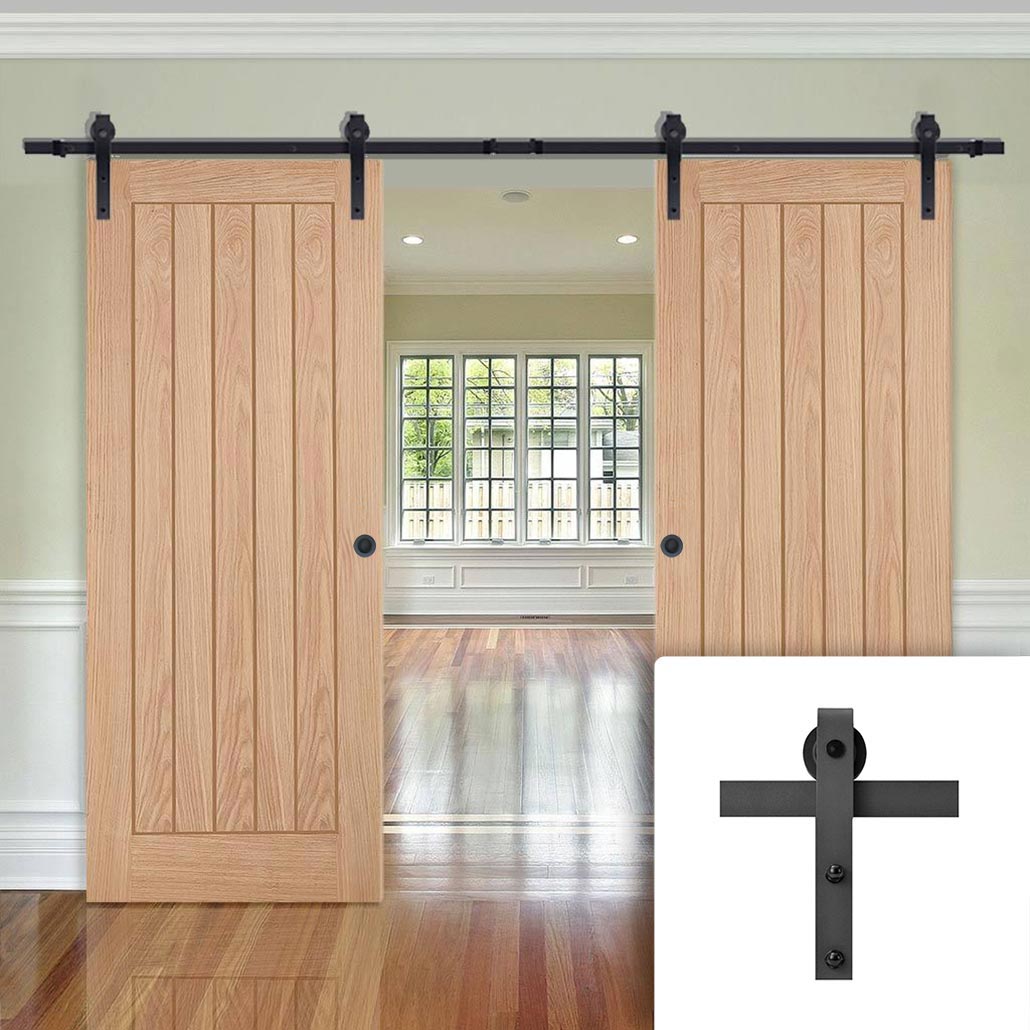

Double Sliding Door & Black Barn Track - Belize Oak Door - Unfinished

OBEL27-SBTDBL

From £369.59
In stock

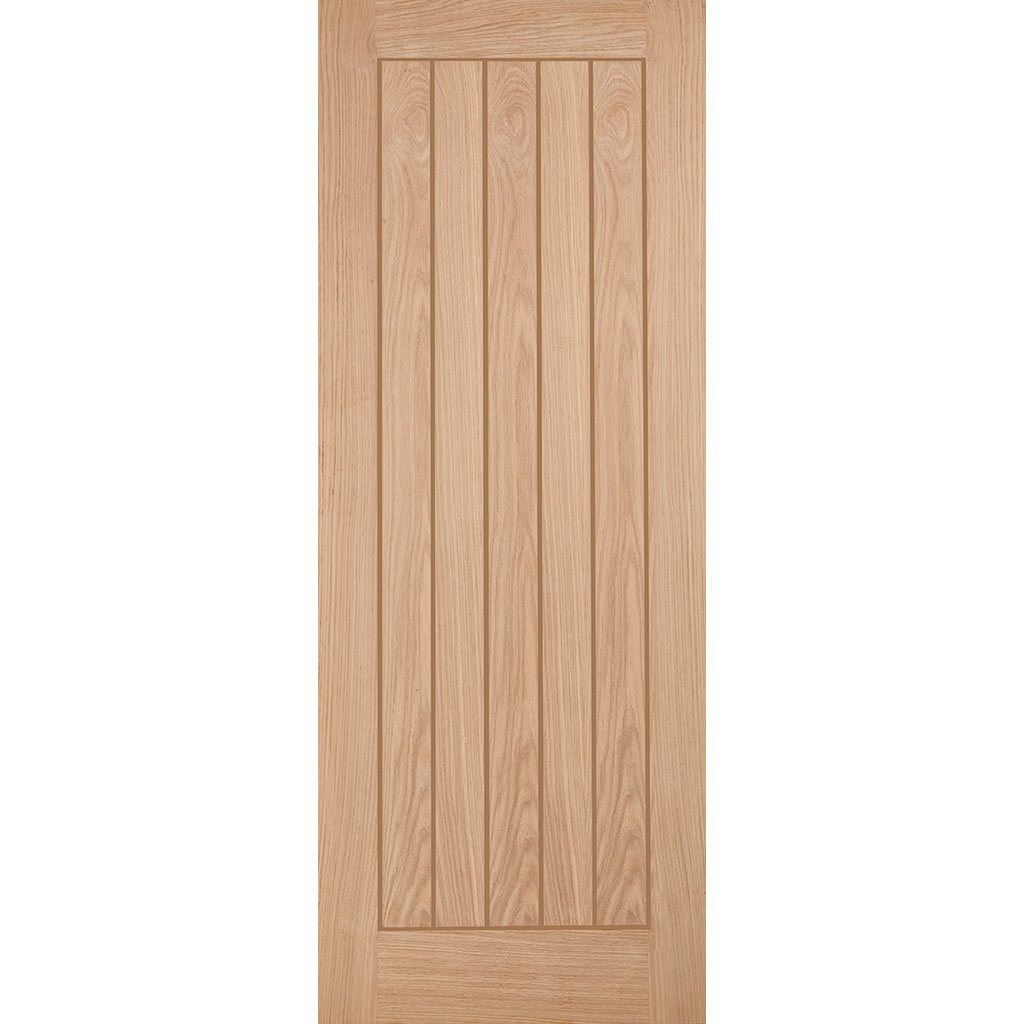

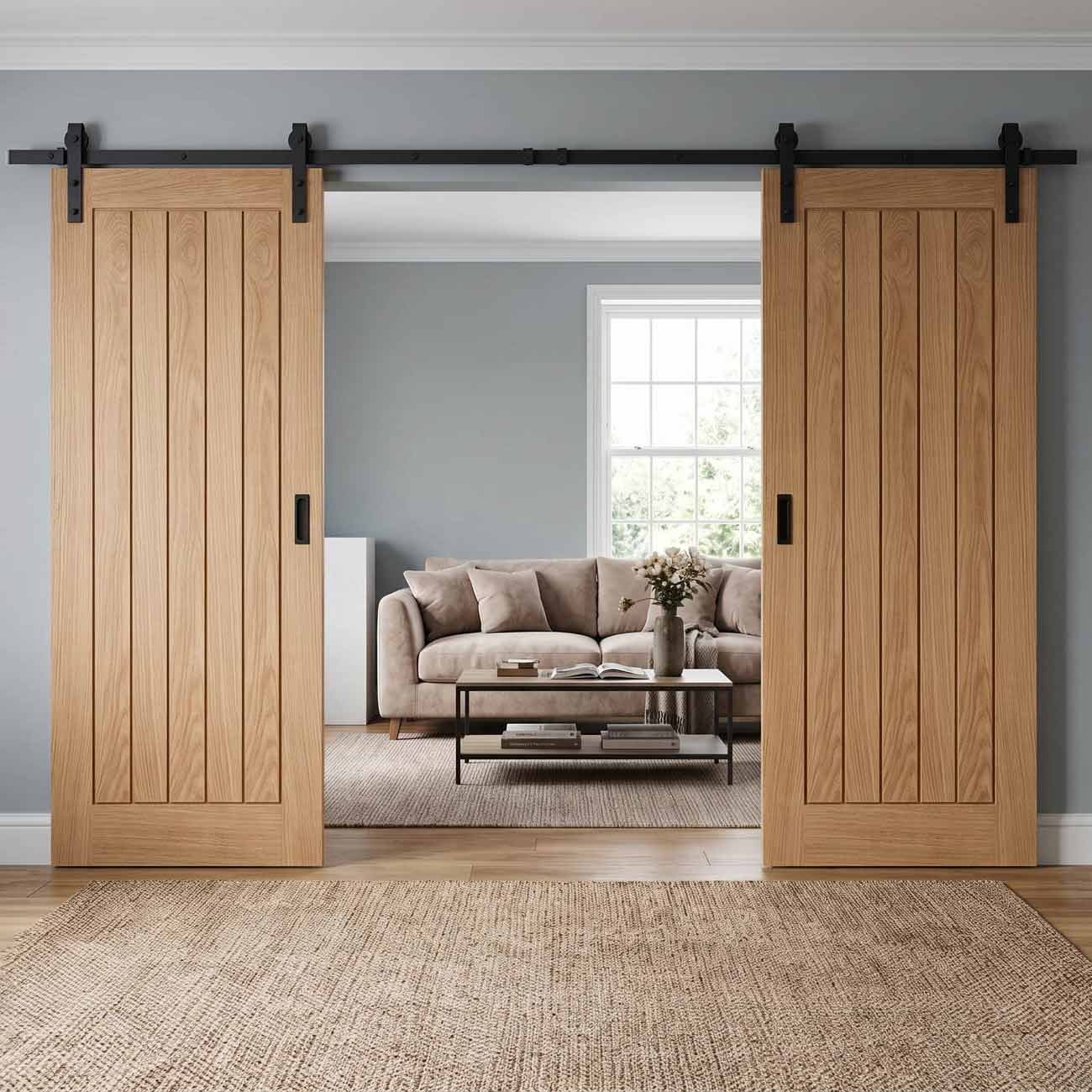

The Belize Oak Door - Unfinished brings a practical sliding solution into the home, combining the look of doors with a space-saving opening style. It is a strong choice where a hinged door would take up too much room, while still giving the doorway or wardrobe run a more finished appearance.

The design includes an unfinished surface ready for your chosen finish, oak styling and a bold black finish, giving the product a clear visual identity while keeping the overall look easy to live with. Supplied as a coordinated sliding set, it is intended to bring together the door and sliding arrangement in one customer-friendly product.

Supplied in kit form and not assembled, so installation should be planned before ordering. A router is required for installation. Because applicable products are cut to size after order, cancellation restrictions may apply.

4-7 Working Days

Select option:
1981x686mm Doors - For Openings 1970mm High x 1352mm Wide
£369.59
1981x762mm Doors - For Openings 1970mm High x 1504mm Wide
£379.19
1981x838mm Doors - For Openings 1970mm High x 1656mm Wide
£379.19

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Packs

Flush Pull Handle Packs (12)

Loading...
Solid Core
Self Assembly

The Belize Oak Door - Unfinished gives you a double sliding door set for wider openings and room-dividing layouts, with an unfinished surface and oak styling. Please note it is supplied in kit form and not assembled; cut to size after ordering, so it cannot be cancelled once placed.
Finish
Unfinished
Face
Oak
Material
Wood Veneer
Thickness
35mm, 40mm
Adjustment
Top & Bottom Rail Trimming Allowance: 3mm, Side Rails/Stiles Trimming Allowance: 5mm
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Construction
Solid Core
Usage
Internal
Guarantee
12 months
Manufacturer Advice
Please click here to find our manufacturers care and decoration advice for this door.

Black Front Mounted Sliding Track

Configuration
Single
Door Quantity
1
Finish
Black Coated Metal
Included Items
  • 1x Door
  • 1x Track - Please note the style of track stops may vary depending on the size chosen.
  • 1x Sof Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • We will always endeavour to supply the best size track available relative to the door size, 1500mm tracks are supplied for 686mm doors, 1830mm tracks are supplied for 762mm and 838mm doors.1500mm track overhang (L & R)
    64mm (L & R) - 686mm wide door1830mm track overhang (L & R)153mm (L & R) - 762mm wide door 77mm (L & R) - 838mm wide door
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • Prices show the door, track and wheel cost, all prices are inclusive of vat and UK wide delivery which may be from 2 suppliers.
  • There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
  • Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • All doors are 35mm or 40mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
  • Max door weight: This track is suitable for a maximum weight of 80 kg per door.
Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Trak Overlap Guide 1500mm Fitting Instructions 1800mm Fitting Instructions Soft Closer Fitting Instructions

Frequently asked questions

Please select your door first. Once you have chosen your door, you will then be able to add any add-ons you would like.

No, we are a supply-only company and do not offer a fitting service.

That said, we are experts in our field and are always happy to help with any questions you may have. We can advise on product care, fitting, hinges, locks, frames, and all other aspects of installation.

Please do not worry, deliveries may arrive with two different couriers. If you have received only part of your order, please allow a few more days for the remaining items to arrive.
