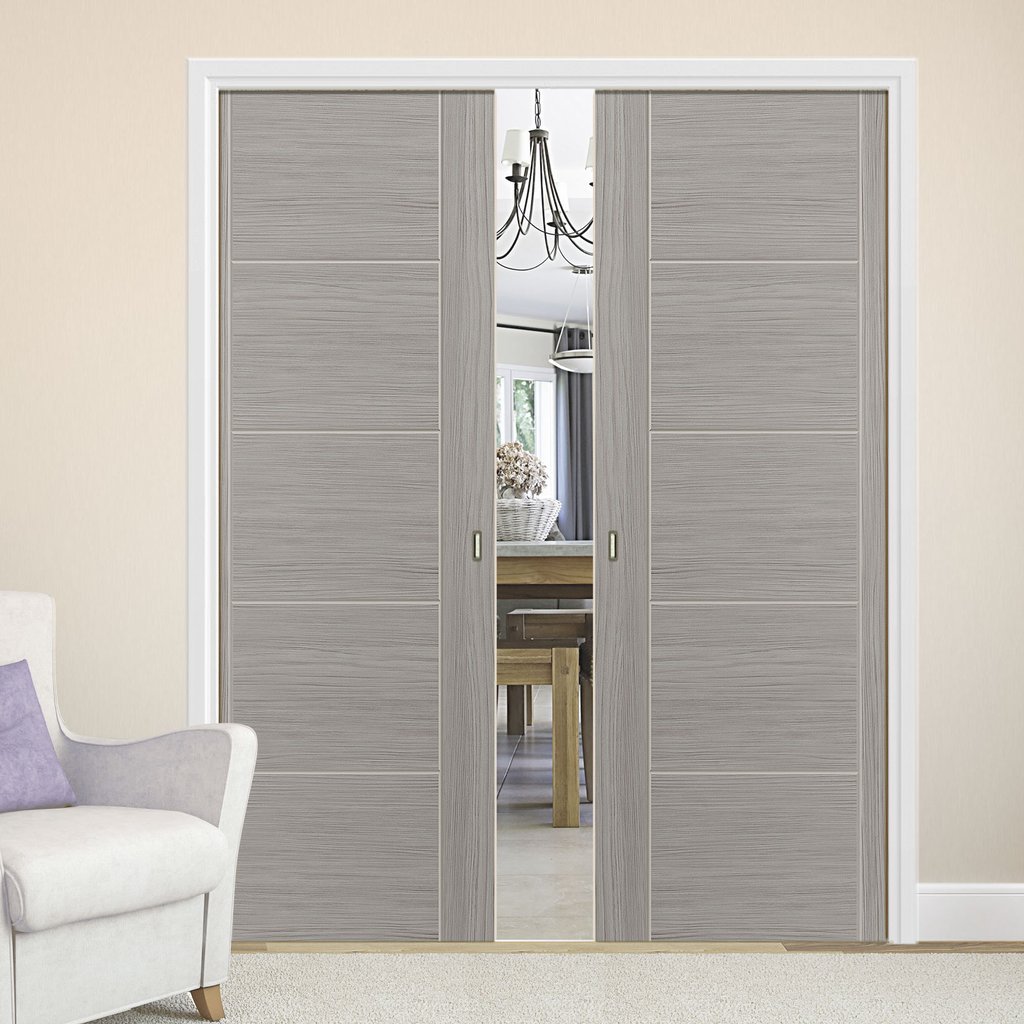

Evokit Standard Pocket Door System

Configuration

Double

Door Quantity

2

Included Items

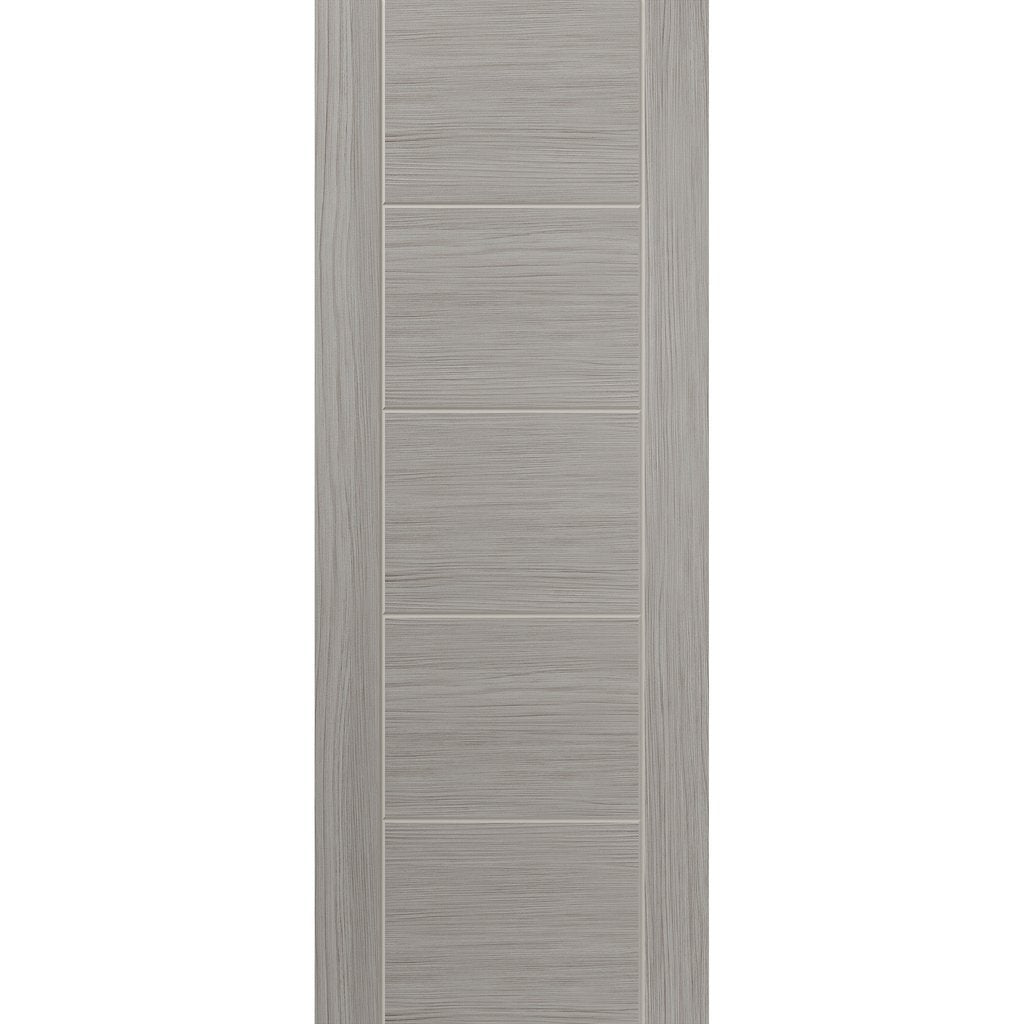

• 2x Door

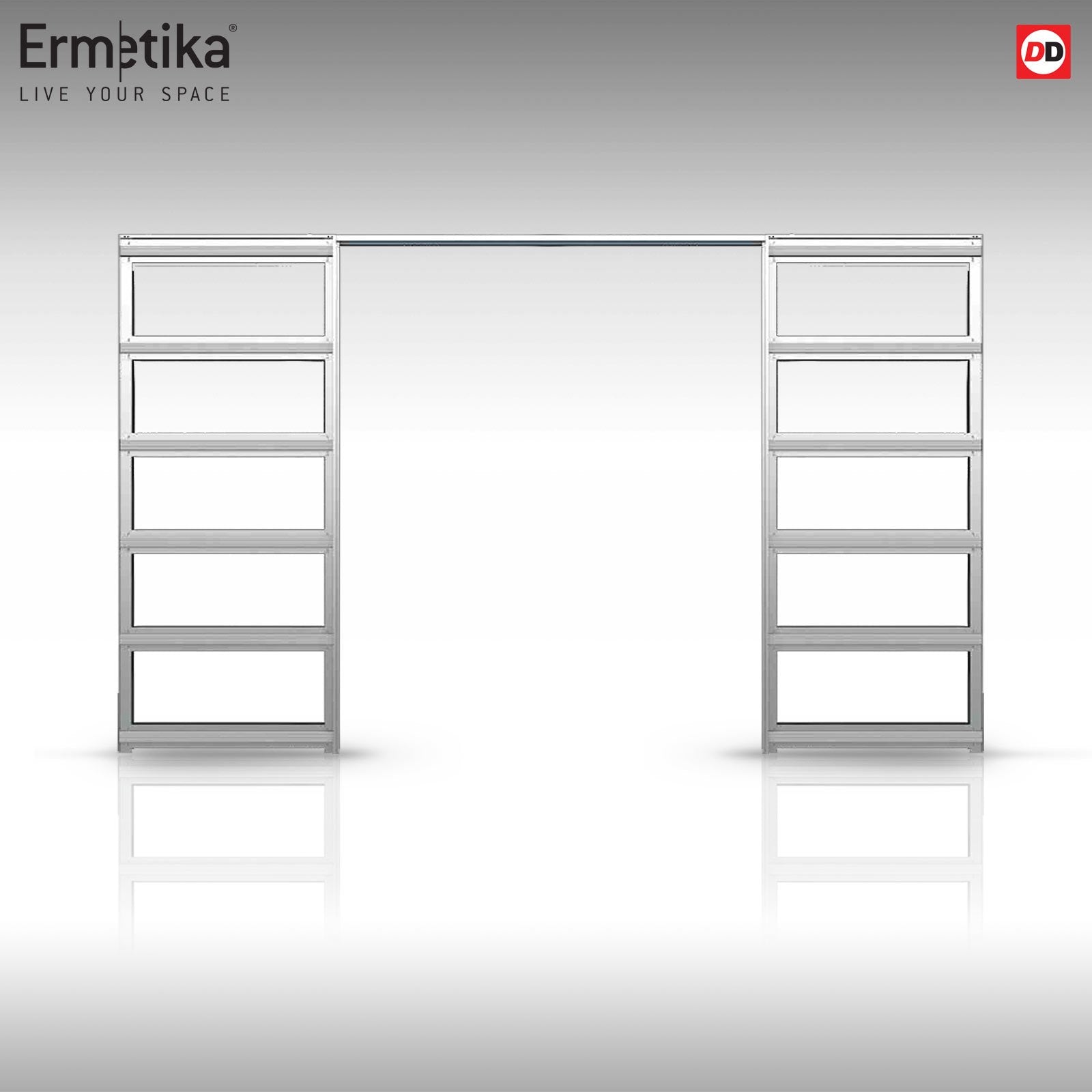

• 2x Sgl Pocket System Cassette

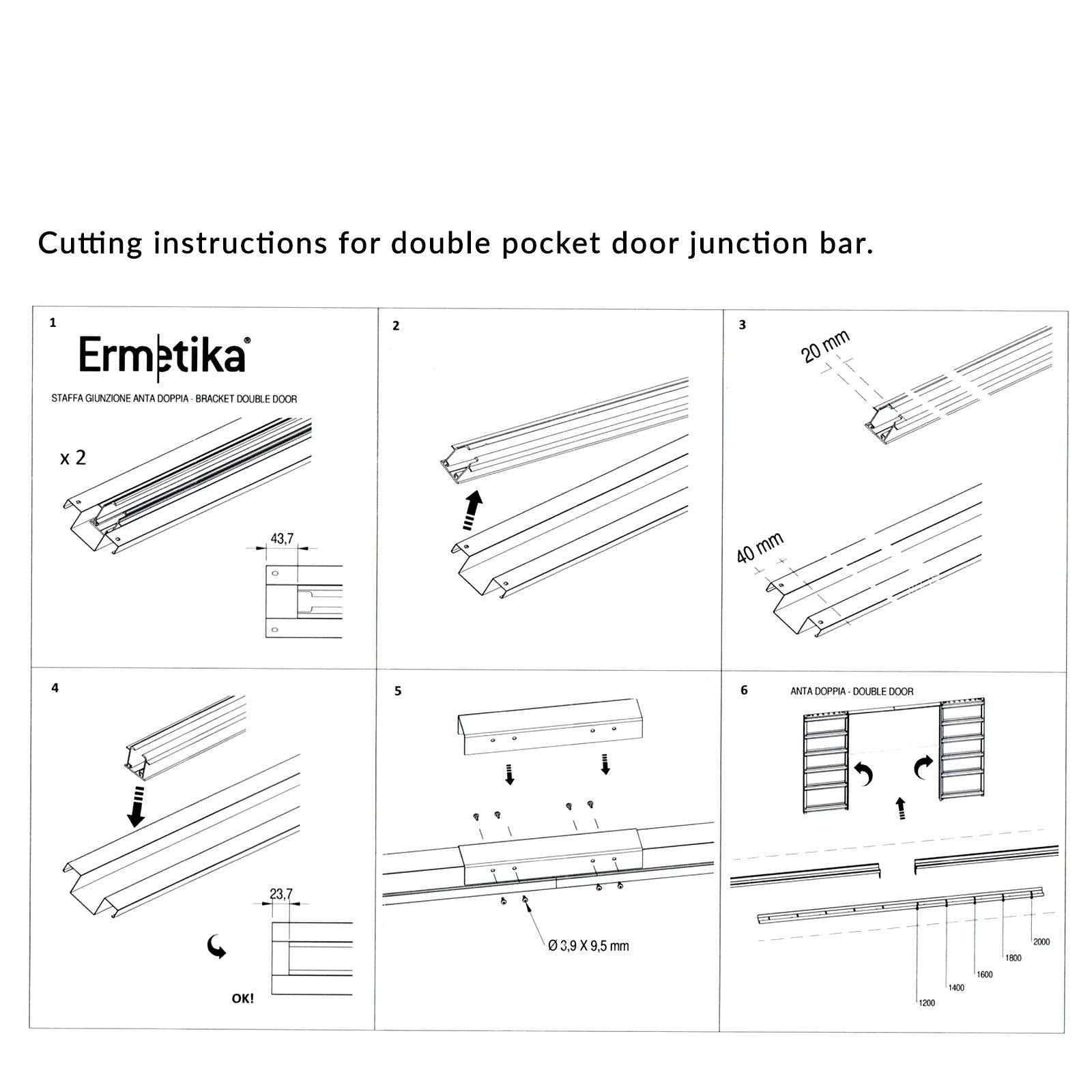

• 1x Dbl Doors Joint Bracket
• 2x EasyStop AB Dual soft closer/opener
• All track fittings

Handles, architraves, & plasterboard are not included.

All pocket door items are supplied in kit form, any glass is pre-installed in the door.

Technical Specs

See our "Dimensions PDF" for all sizes but use as a guide only.

Email info@directdoors.com to receive a quote for any special sizes.

The idea is to build the pocket to the same thickness as the studwork - 75mm (3") or 100mm (4") - which are the two standard studwork sizes generally in use, so that you can directly continue the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of either 100mm (4") or 125mm (5").

Further layers of plasterboard can be added to increase the overall wall thickness, but other joinery work may be required. The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm or 79mm.

Size limitations apply for the following items - Soft Close and Self Close - please refer to the individual accessory description.

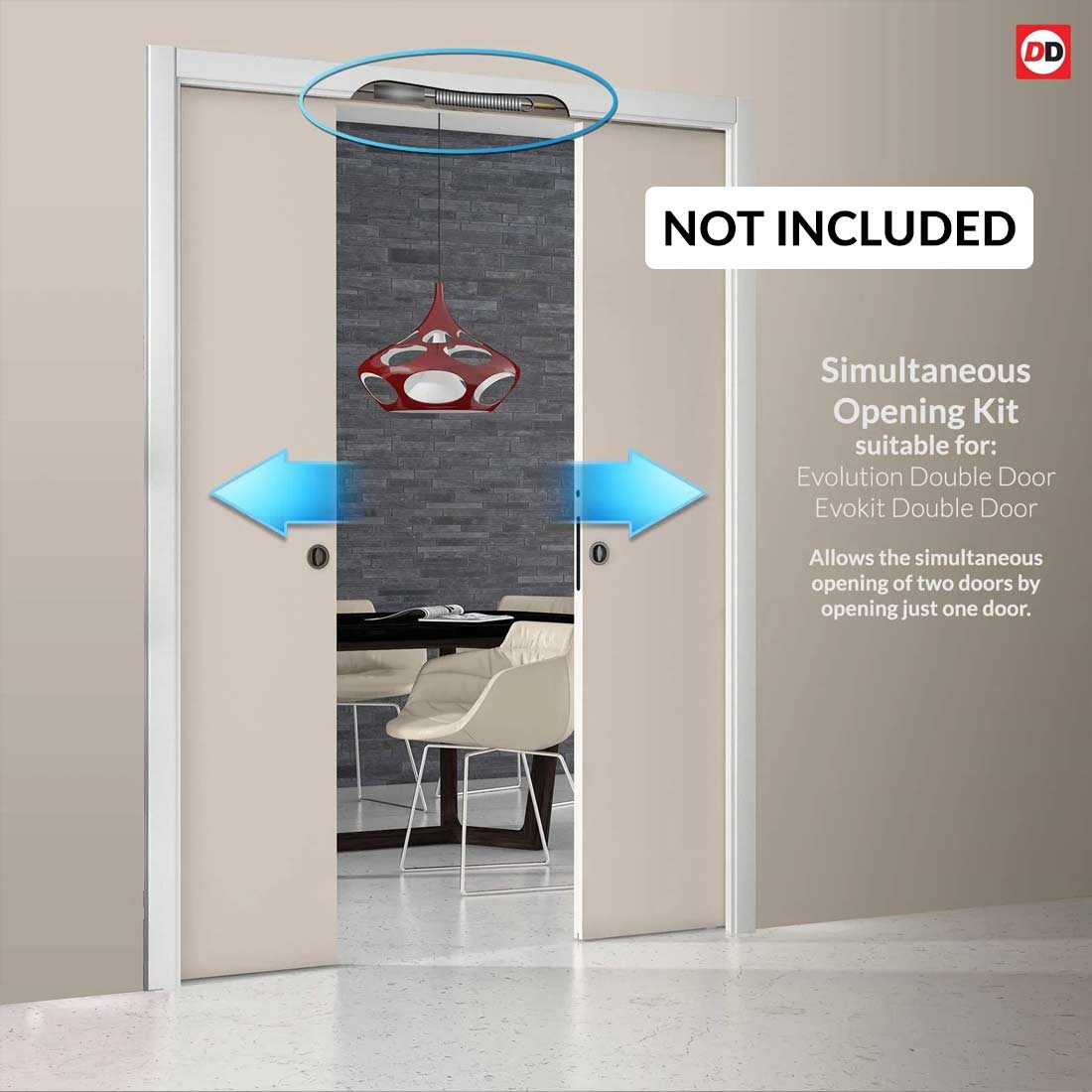

The Easy stop AB twin dual soft closer/opener is included, all other accessories for pocket doors including flush door handles can be purchased separately.

Please Note: If the Self Closing Kit is purchased, we will not include the Easy stop AB twin dual soft closer/opener as the two are not compatible and cannot work together.

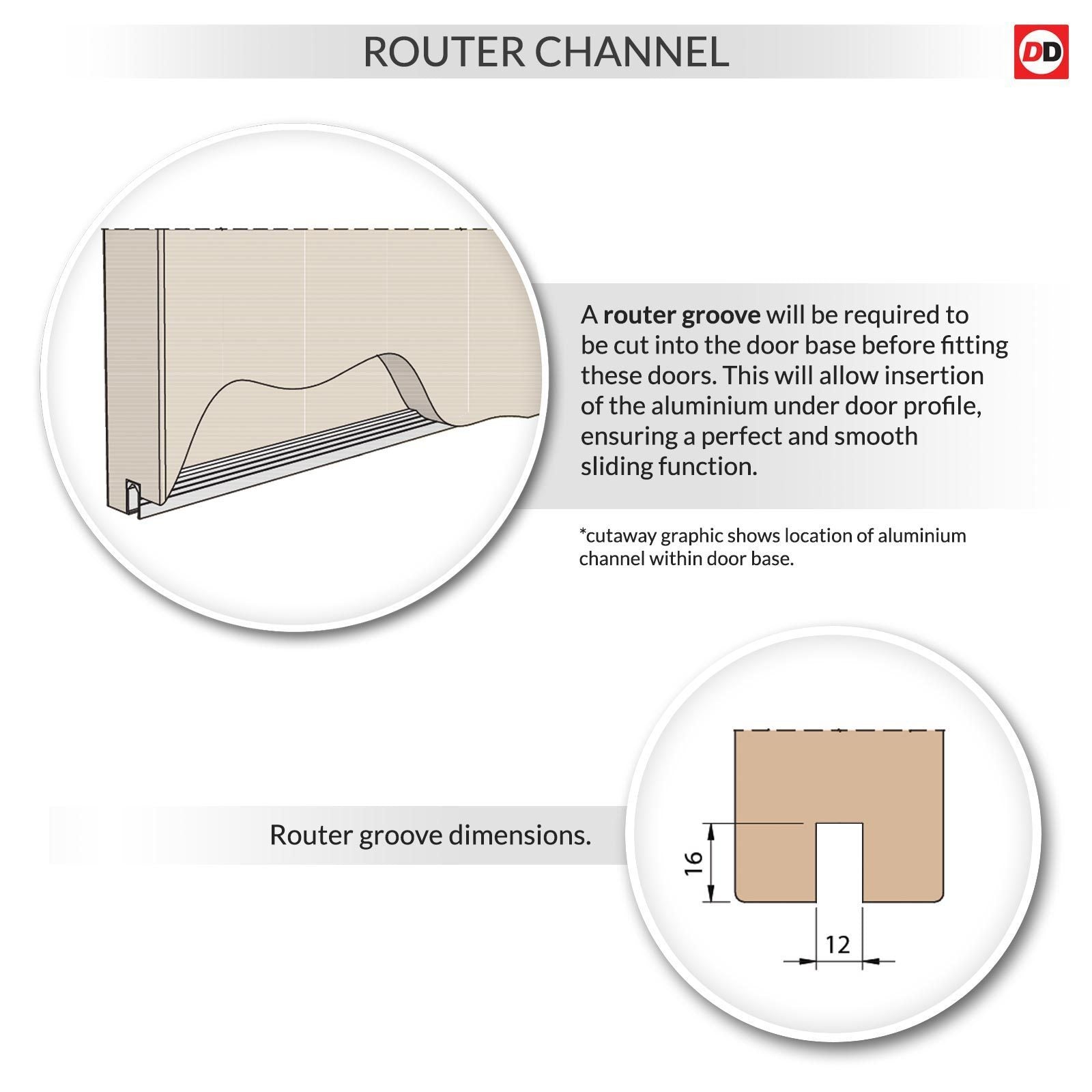

Doors will require a routered channel to be created in the bottom of each door to accommodate the supplied track guides.

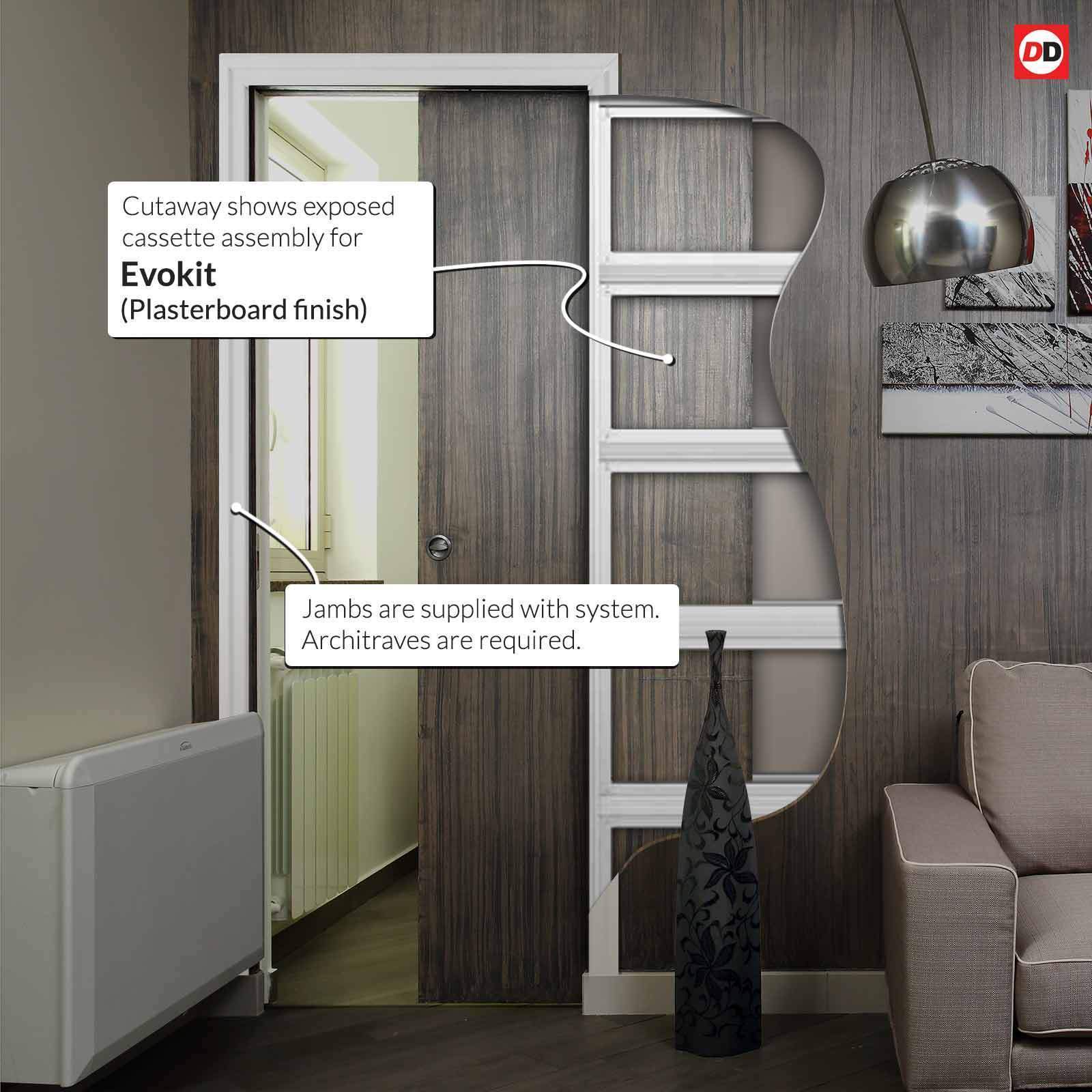

The pocket door frame must be concealed with your own wall and architraves when installing.

Additional Information

Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide. All jamb kits are supplied to suit all pocket doors sizes and will therefore need cutting to height and width on site.
