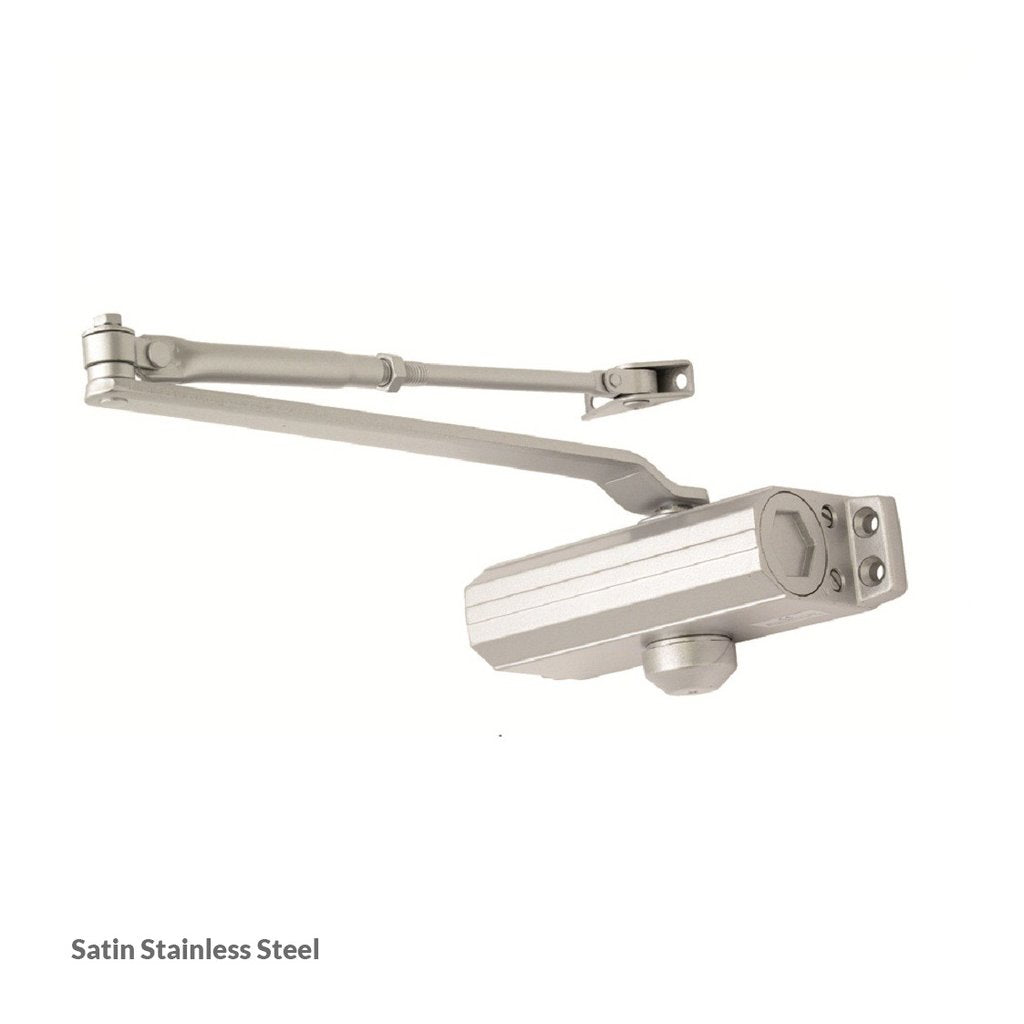

Contract Overhead Door Closer CDG003 Silver
Dimensions;
Max Door Width 900mm, Max Door Weight 60kg, Max Door Angle of opening180*

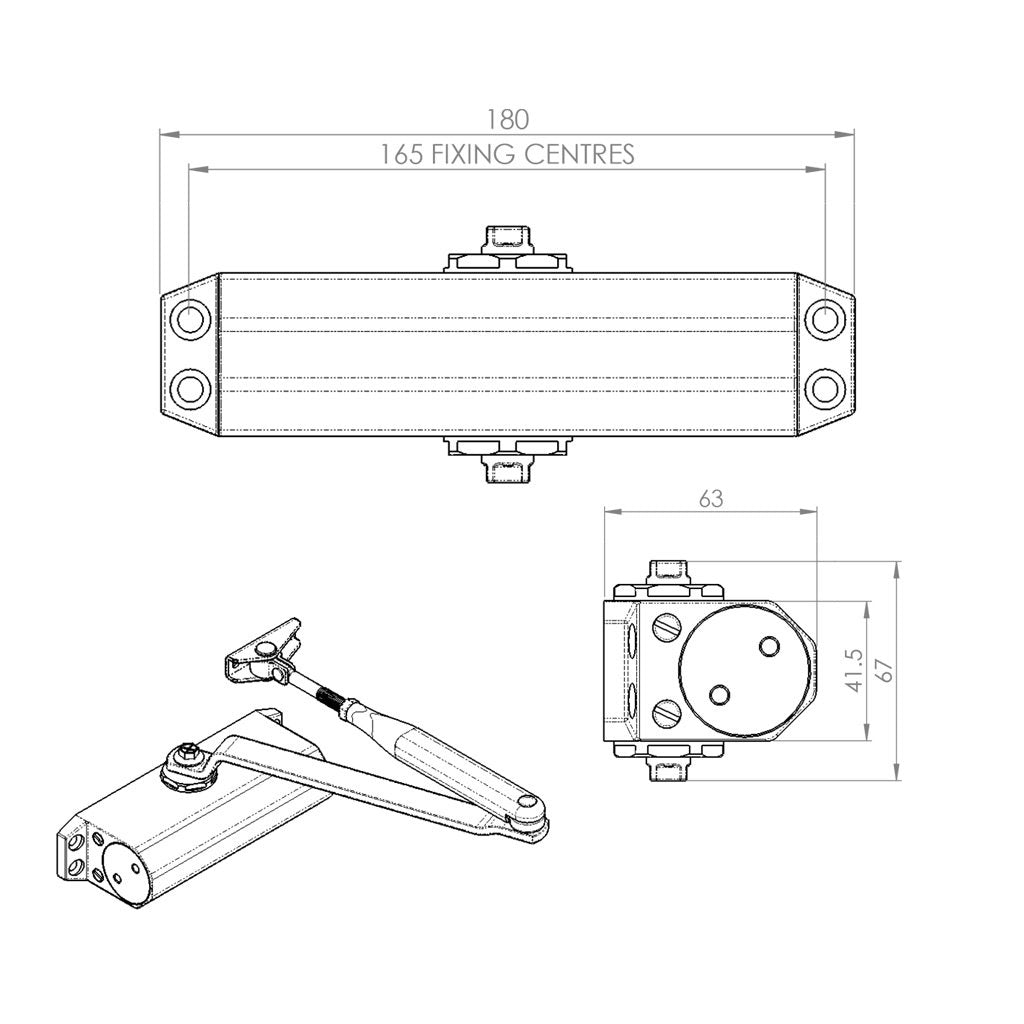

Overall sizes, 180x67mm with a 63mm projection from the door face, See the technical drawing image.
Fire rated to FD30 OR FD60
Fixed power size 3.
Silver only.
All door closers are special orders and are therefore non returnable.
- Suggested Minimum Skill Level
- Low DIY & Basic Joinery Tools Required.
- Guarantee
- 10 year mechanical guarantee.
- Fixing Centres
- 165mm to fixing hole centres, See the diagram if available for more detail.
- Dimensions
- 180x67mm with a 63mm projection from the door face, See the technical drawing image
- Approximate Weight of Product in Grammes – Kilogrammes
- 2000
- Building Regulations
- Complies with current building regulations.
- Special Orders
- This is a special order product and cannot be accepted for return and refund.
- Normal availability for our delivery service
- See delivery icon at the top of the product page.
CAR
Contract Overhead Door Closer CDG003 Silver
CDG003
