Aluminum Concealed Premium Double Sliding Wall Track for Wooden Doors

In Stock

1-2 working Days

Self Assembly

We deliver for a small charge, anywhere Mainland UK! In most instances, delivery will be the next working day if ordered before 11:30AM.

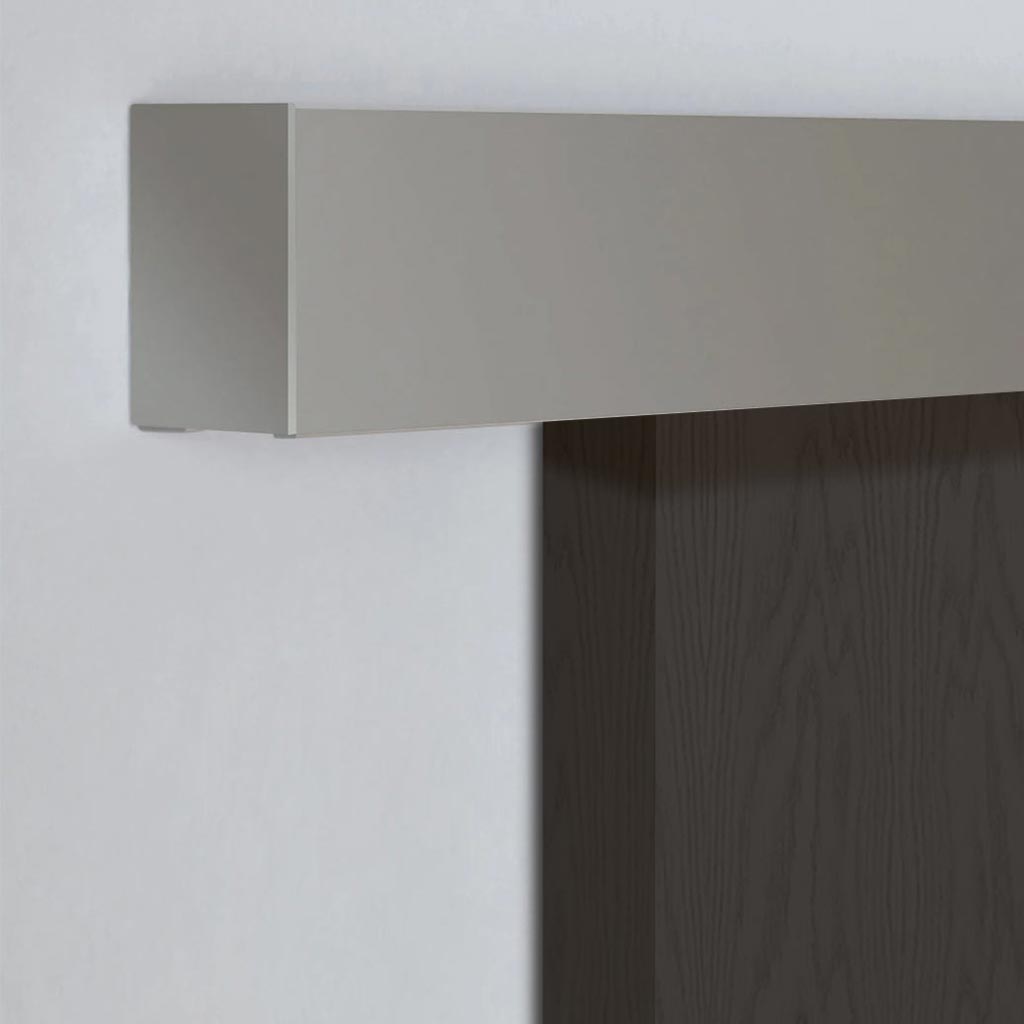

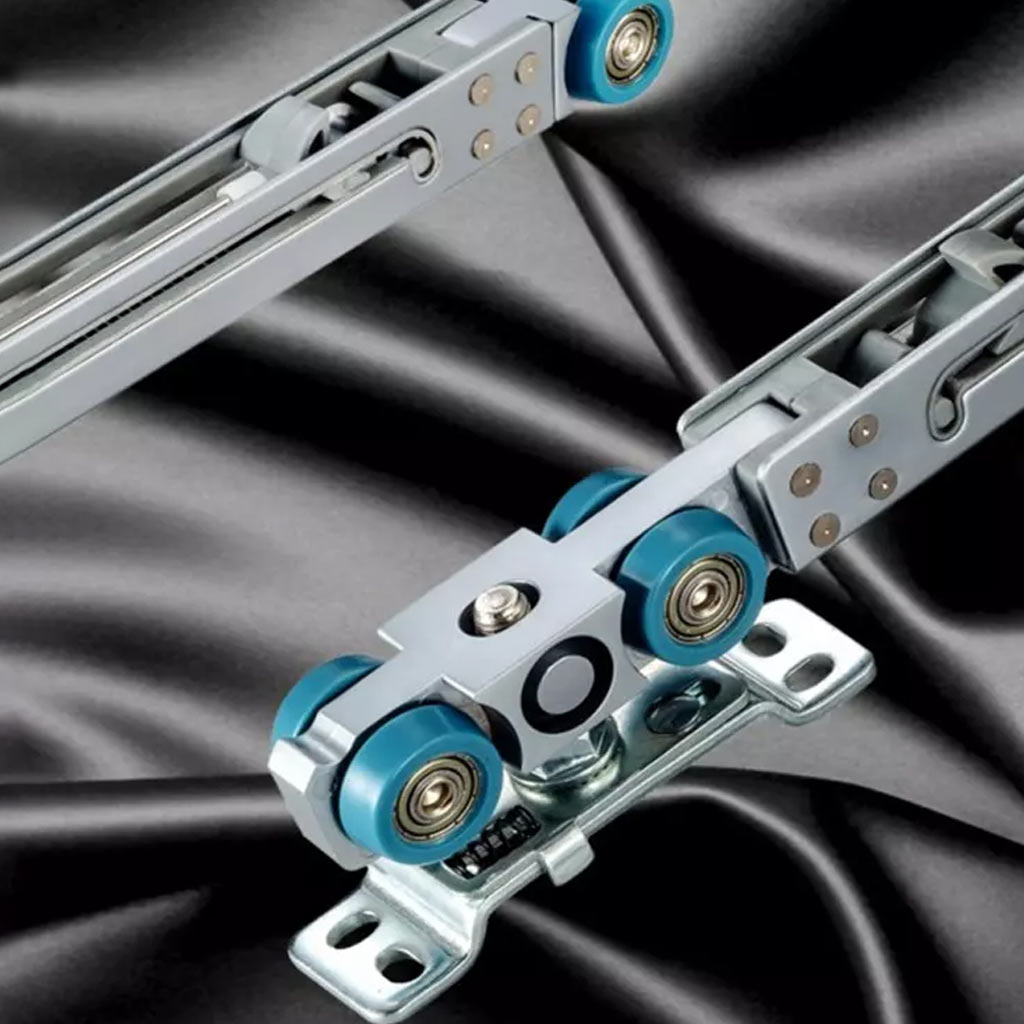

The Premium Double Sliding Track System is a sliding hardware system with concealed fittings and comes in with a sleek aluminium plate adding a modern touch throughout.

Important: All these items are supplied in kit form, not assembled. Please note all Eco-Urban range products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

We deliver for free to most UK Mainland postcodes, please note you may receive deliveries from 2 or more suppliers.
Read more

VARIANT

To suit 686mm Door - For Openings 1970mm High x 1352mm Wide (PREM-QH-1195-AL-1-1-686)

£360.18 RRP: £439.97

To suit 762mm Door - For Openings 1970mm High x 1504mm Wide (PREM-QH-1195-AL-1-1-762)

£360.18 RRP: £439.97

To suit 838mm Door - For Openings 1970mm High x 1656mm Wide (PREM-QH-1195-AL-1-1-838)

£360.18 RRP: £439.97

To suit 626mm Door - For Openings 2030mm High x 1232mm Wide (PREM-QH-1195-AL-1-1-626)

£360.18 RRP: £439.97

To suit 726mm Door - For Openings 2030mm High x 1432mm Wide (PREM-QH-1195-AL-1-1-726)

£360.18 RRP: £439.97

To suit 826mm Door - For Openings 2030mm High x 1632mm Wide (PREM-QH-1195-AL-1-1-826)

£360.18 RRP: £439.97

To suit 926mm Door - For Openings 2030mm High x 1832mm Wide (PREM-QH-1195-AL-1-1-926)

£360.18 RRP: £439.97

£0.00

i

Note: This product is a bespoke item and cannot be cancelled or returned after placing your order. By ticking this box, you confirm you are happy to proceed with the order and the timescale given with it.

i

Note:

2 pairs recommended per two door system.

All flush handles are sold separately and can be purchased at an additional cost.

Add Options
or
Choose productChoose options Choose requiredChoose optionsAdd To Basket Adding... Added To Basket Error

Add Options

Failed to load, please try again

Flush Pull Handle Pack (optional)

A range of flush pull handles perfect to match your sliding, folding or pocket doors.

Failed to load, please try again

+ £0.00

A router will be required for door installation.

Note: The supplied track will be 4 metres long, you may decide to cut it to a more appropriate length.

Product Advice:

  • The track is supplied 4000mm long.
  • Opening sizes; the best opening size to aim for is 30mm less in height and 60mm in width than your chosen door size so the door ""covers"" the full opening by 30mm all around, we have listed the overall dimensions in the door size options but you can choose to fit them to a smaller opening width/height, be careful as extra work may be required and the glass cannot be cut from the size supplied.
  • There is a maximum 52mm height requirement over and above any door height to the top of the track pelmet, this requirement for all doors includes some tolerances for discrepancies to wall and floor levels.
  • All Premium systems include soft closers but you must set the track door stops to prevent damage/destruction of glass upon closing.
  • Prices are inclusive of vat and UK wide delivery which may be from 2 suppliers.
  • Aluminium Coloured finish.
  • Doors are supplied with a small guide channel for fitting at the bottom on the floor below the glass door to facilitate smooth operation, no bottom doorway track is required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • Be very careful when setting any handle position and the track ""stop"" to prevent hand injuries, handles are an extra cost and they use the latest adhesive technology, there are no cut outs required to the glass.
  • See our full range of handles and fittings here.



Price Includes the track and soft close.
Supplier Delivery Timescale See delivery icon at the top of the product page.
Door Thickness To suit a 35mm or 40mm door.
Guarantee 12 months
Note The style of track stops may vary depending on the size chosen.
Note This track is not fire-rated and is not suitable for fire doors.
Important All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
Suggested Minimum Skill Level Advanced DIY & Specialist Joinery Tools Required.
Adjustment Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.
