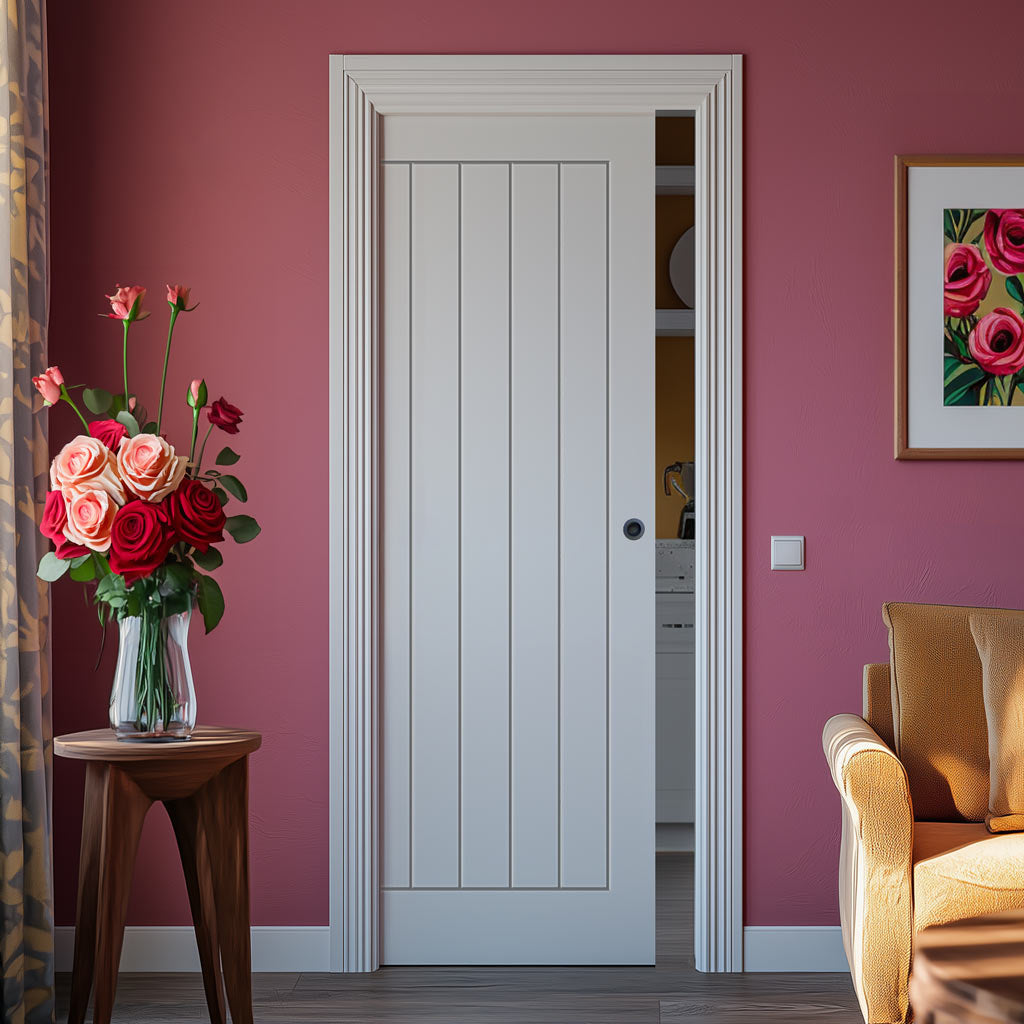

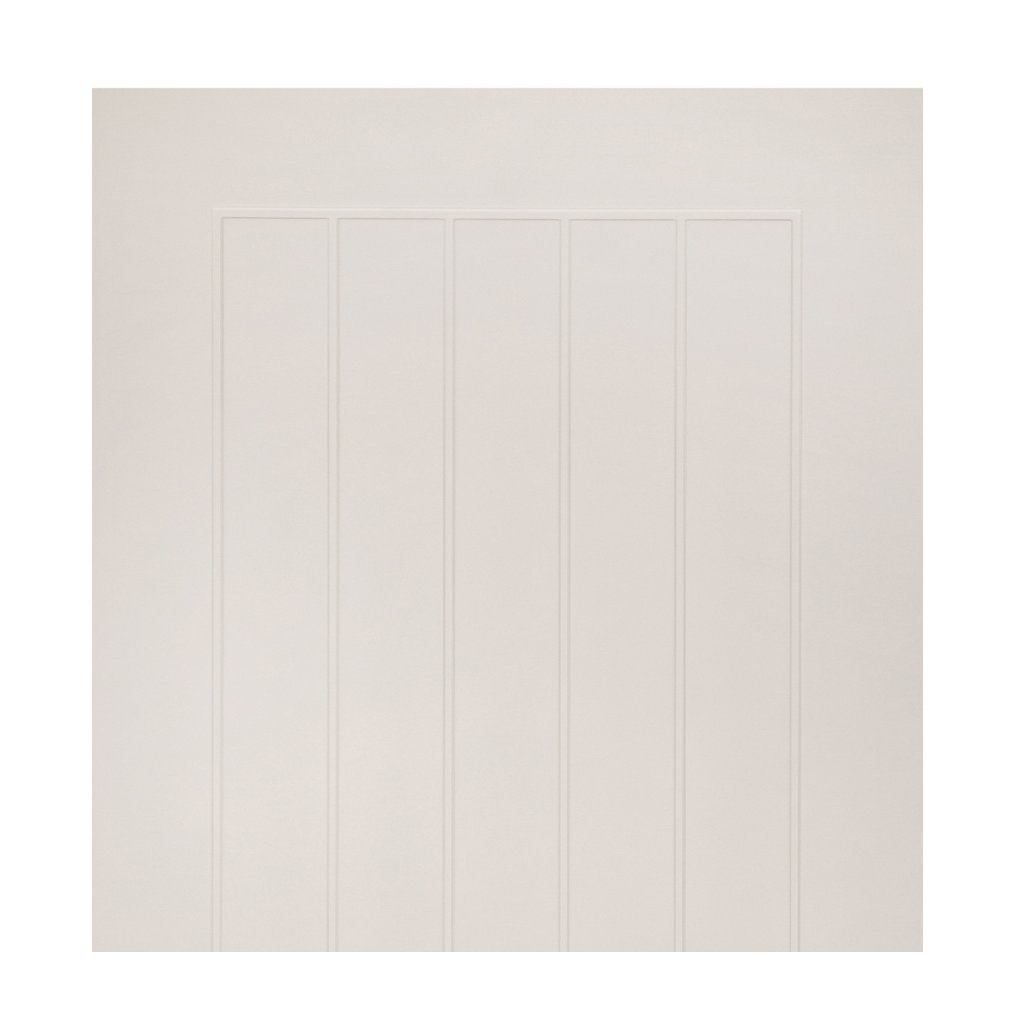

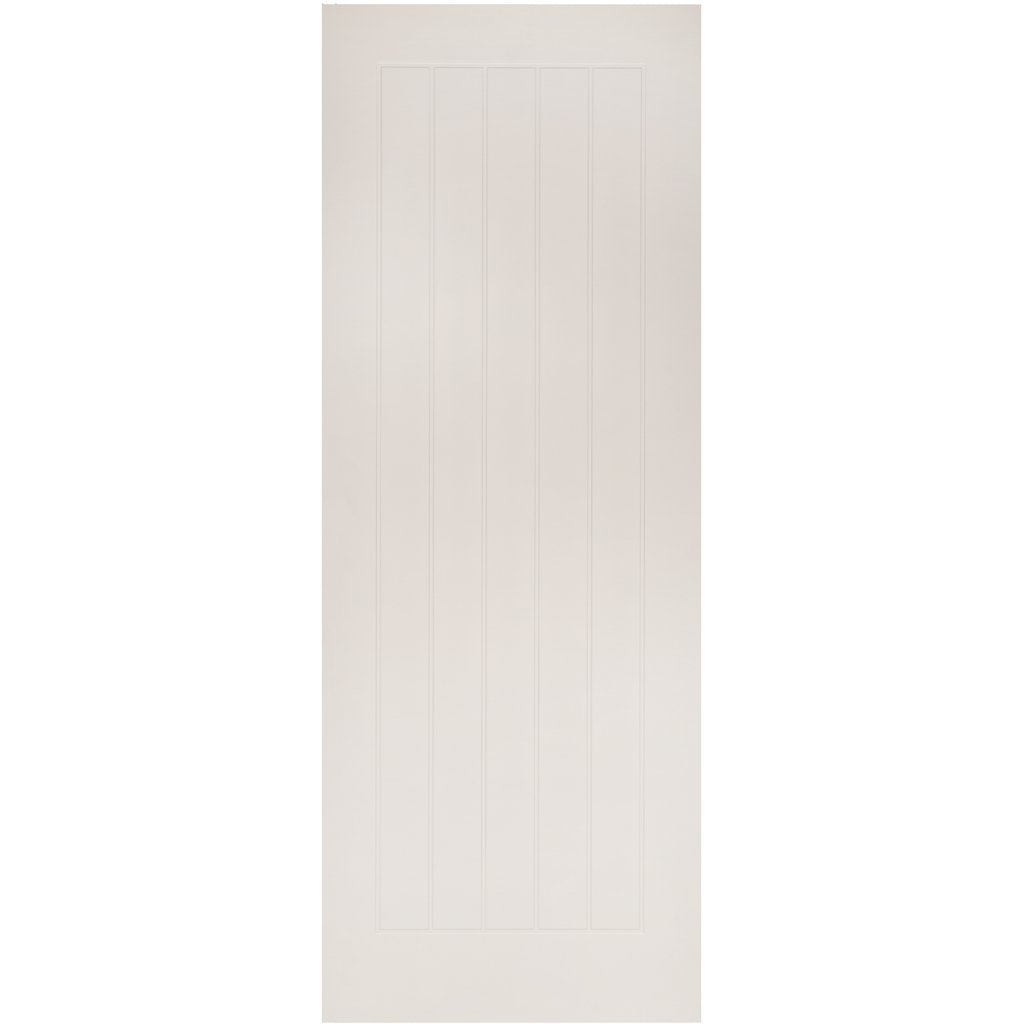

Ely Single Evokit Pocket Door - White Primed
|We are continuing to deliver this product with slight delays.|
All pocket cassettes may be kerbside delivery only and not in to the home..... doors are delivered separately.
All doors can slide open left or right, you decide when installing them, delivery will be from two separate suppliers.
PayPal Credit and Pay in 3 instalments available for Paypal users.
2060x1290mm Wide/1981x610mm Door (35ELYWHP610-PS1)
2060x1470mm Wide/1981x686mm Door (35ELYWHP686-PS1)
2060x1650mm Wide/1981x762mm Door (35ELYWHP762-PS1)
2060x1720mm Wide/1981x838mm Door (35ELYWHP838-PS1)
A router will be required for door(s) installation.
Please click here to find our manufacturers care and decoration advice for this door.
System operation viewed from above:
Our all new Interior Single Pocket Door Systems have a free delivery as standard, these pocket doors come with full fitting instructions and the door system allows you to slide the door straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings, the door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.
See our "Dimensions PDF" for all sizes but use as a guide only.
Email firstname.lastname@example.org to receive a quote for any special sizes.
The idea is to build the pocket to the same thickness as the studwork - 75mm (3") or 100mm (4") - which are the two standard studwork sizes generally in use, so that you can directly continue the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of either 100mm (4") or 125mm (5").
Further layers of plasterboard can be added to increase the overall wall thickness, but other joinery work may be required. The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm or 79mm.
Size limitations apply for the following items - Soft Close and Self Close - please refer to the individual accessory description.
All accessories for pocket doors including flush door handles and bathroom locks can be purchased separately.
Doors will require a routered channel to be created in the bottom of each door to accommodate the supplied track guides.
The pocket door frame must be concealed with your own wall and architraves when installing.
|Suggested Minimum Skill Level||Advanced DIY & Specialist Joinery Tools Required.|
|Dimensions||35mm or 40mm door (depending on choice and availability) and a frame section of 100mm or 125mm external dimensions/54mm or 79mm internal cassette cavity.|
|Notes||The sizes listed above are for the overall door and pocket set which includes the metal pocket frame but does not include any architrave or plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.|
|Important||All pocket door items are supplied in kit form, any glass is pre-installed in the door.|
|Normal Availability for our Delivery Service||See delivery icon on top of the product page.|
|Adjustment||Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide. All jamb kits supplied to suit all pocket doors sizes and will therefore need cutting to height and width on site.|
|Assembly||Self Assembly may take 3-4 hours|
|Construction||See core icon on top of the product page.|
|Price||The price quoted is for the door(s), pocket system frame, all track fittings but no handles, any glass shown is pre-installed in the doors.|
