Self Assembly 3-4 Hours

The structure is composed of a metal frame, horizontal strong bars 0.7mm thick on each side and a rail that can bear up to 100kg. The horizontal profiles and the vertical ones are 1.2mm thick.

You can set up Evokit without any screws.

Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Fire Rated
Yes
Usage
Internal
Guarantee
12 months

Fire Pocket Door System

Configuration
Single
Door Quantity
0
Included Items
  • 1x Pocket System Cassette
  • All track fittings

Nobody does it better, our fire rated pocket door system is also supplied with:

  • Fire rated wooden jamb kit
  • Intumescent fire seals
  • Fire rated self closer
  • Full accreditation to suit the UK market

Handles, architraves, & plasterboard are not included.

All pocket door items are supplied in kit form, any glass is pre-installed in the door.

Technical Specs

Sliding pocket door system for FD30 rated doors, Fully tested and approved sliding pocket door system for use with FD30 fire doors. Approved by Exova Warrington Fire Research.

See our "Dimensions PDF" for all sizes but use as a guide only.

Email info@directdoors.com to receive a quote for any special sizes.

The Ermetika pocket fire doors are available in standard widths for a finished wall thickness of100mm, the door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, the fire frame does have a fire retardant coating which if being redecorated must also be a fire retardant coating. Fireboard (plasterboard) for the wall and architraves are not supplied.

The system incorporates a galvanised factory constructed steel cassette section and a track set with all fittings, the timber jamb sections are supplied fully machined in kit form, doors may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.

The idea is to build the pocket to the same thickness as the studwork - 75mm (3") so that you can directly continue the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of 100mm (4").

Further layers of plasterboard can be added to increase the overall wall thickness, but other joinery work may be required. The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm.

Other items such as flush door pulls and bathroom locks can all be purchased separately, doors will require a routered channel to be created in the bottom of the door to accommodate the supplied track guide.

The pocket door frame must be concealed with your own wall and architraves when installing and every effort should be made to make sure any work is fully compliant.

Additional Information

Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide. All jamb kits are supplied to suit all pocket doors sizes and will therefore need cutting to height and width on site.

The sizes listed above are for the overall door and pocket set which includes the metal pocket frame and the Easy stop AB twin dual soft closer/opener but does not include a plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.

Fire Rated Cassette & Door Installation

Jamb Kit Installation

Plasterboard Evokit

ERM

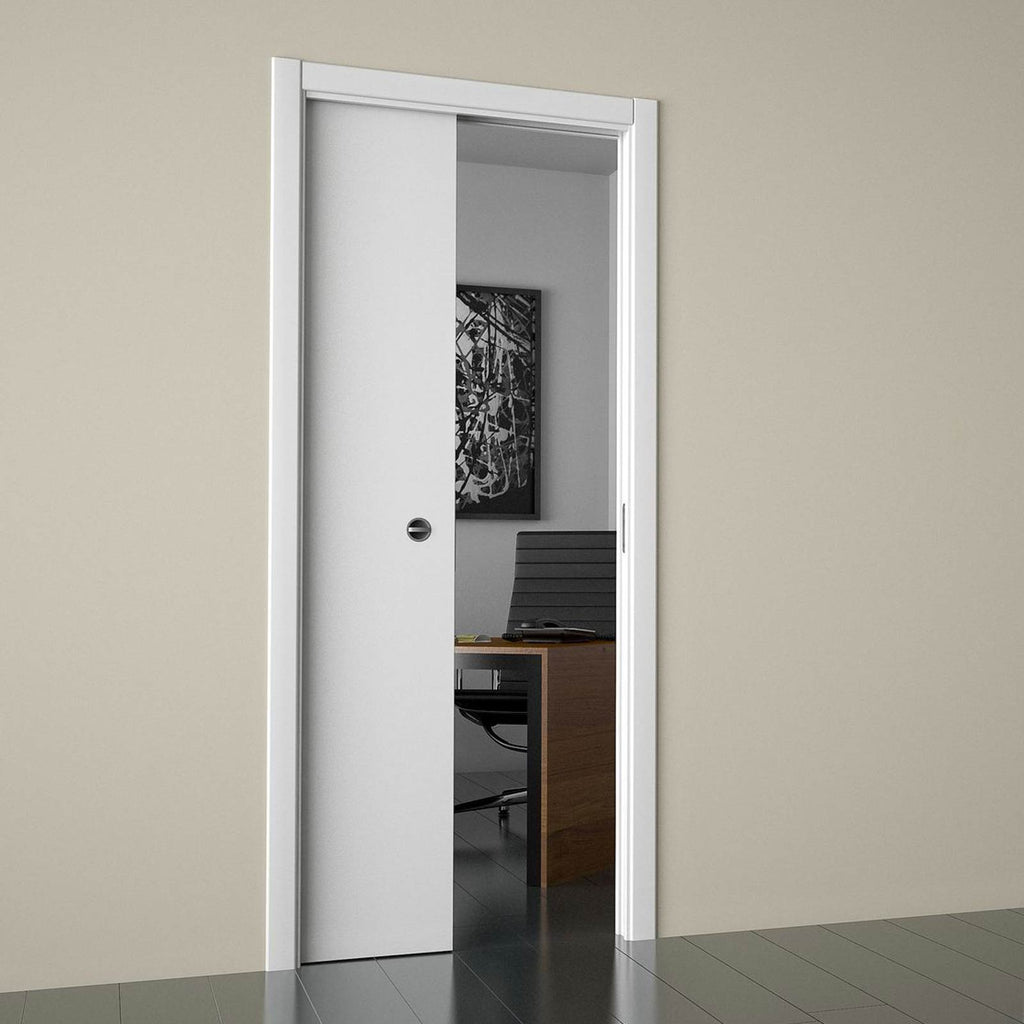

Fire Door Pocket Kit for Single Pocket Door - Ermetika Evokit

EVOKITFC610-PS1

Save 2% Regular priceWas £906.58 Sale priceFrom £884.25
In stock

Pocket cassette system complete with self-closer, no doors or accessories are included. Please note this pocket door kit is not suitable for hollow core doors.

We deliver for a small charge, anywhere Mainland UK!

This cavity door system is the perfect solution for all DIY lovers: with few simple steps Evokit allows you to insert a fire rated door into the wall cavity.

Note: Care needed, sharp edges.

4-7 working days

Select option:

Evokit Fire Single (1981X610)
£884.25 RRP £906.58
Evokit Fire Single (1981X686)
£884.25 RRP £906.58
Evokit Fire Single (1981X762)
£884.25 RRP £906.58
Evokit Fire Single (1981X838)
£884.25 RRP £906.58
Evokit Fire Single (2040X626)
£884.25 RRP £906.58
Evokit Fire Single (2040X726)
£884.25 RRP £906.58
Evokit Fire Single (2040X826)
£884.25 RRP £906.58
Evokit Fire Single (2040X926)
£855.47

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Door Facings

Door Facings (23)

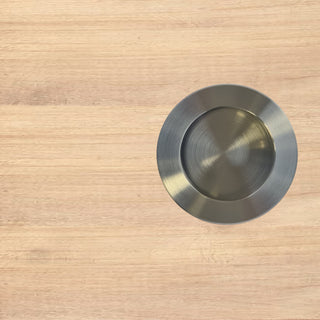

Flush Pull Handle Pack

Flush Pull Handle Pack (9)

Loading...

Self Assembly 3-4 Hours

The structure is composed of a metal frame, horizontal strong bars 0.7mm thick on each side and a rail that can bear up to 100kg. The horizontal profiles and the vertical ones are 1.2mm thick.

You can set up Evokit without any screws.

Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Fire Rated
Yes
Usage
Internal
Guarantee
12 months

Fire Pocket Door System

Configuration
Single
Door Quantity
0
Included Items
  • 1x Pocket System Cassette
  • All track fittings

Nobody does it better, our fire rated pocket door system is also supplied with:

  • Fire rated wooden jamb kit
  • Intumescent fire seals
  • Fire rated self closer
  • Full accreditation to suit the UK market

Handles, architraves, & plasterboard are not included.

All pocket door items are supplied in kit form, any glass is pre-installed in the door.

Technical Specs

Sliding pocket door system for FD30 rated doors, Fully tested and approved sliding pocket door system for use with FD30 fire doors. Approved by Exova Warrington Fire Research.

See our "Dimensions PDF" for all sizes but use as a guide only.

Email info@directdoors.com to receive a quote for any special sizes.

The Ermetika pocket fire doors are available in standard widths for a finished wall thickness of100mm, the door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, the fire frame does have a fire retardant coating which if being redecorated must also be a fire retardant coating. Fireboard (plasterboard) for the wall and architraves are not supplied.

The system incorporates a galvanised factory constructed steel cassette section and a track set with all fittings, the timber jamb sections are supplied fully machined in kit form, doors may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.

The idea is to build the pocket to the same thickness as the studwork - 75mm (3") so that you can directly continue the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of 100mm (4").

Further layers of plasterboard can be added to increase the overall wall thickness, but other joinery work may be required. The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm.

Other items such as flush door pulls and bathroom locks can all be purchased separately, doors will require a routered channel to be created in the bottom of the door to accommodate the supplied track guide.

The pocket door frame must be concealed with your own wall and architraves when installing and every effort should be made to make sure any work is fully compliant.

Additional Information

Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide. All jamb kits are supplied to suit all pocket doors sizes and will therefore need cutting to height and width on site.

The sizes listed above are for the overall door and pocket set which includes the metal pocket frame and the Easy stop AB twin dual soft closer/opener but does not include a plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.

Fire Rated Cassette & Door Installation

Jamb Kit Installation

Plasterboard Evokit

Frequently asked questions

Please select your door first. Once you have chosen your door, you will then be able to add any add-ons you would like.

No, we are a supply-only company and do not offer a fitting service.

That said, we are experts in our field and are always happy to help with any questions you may have. We can advise on product care, fitting, hinges, locks, frames, and all other aspects of installation.

Please do not worry, deliveries may arrive with two different couriers. If you have received only part of your order, please allow a few more days for the remaining items to arrive.
