Home › Door Fittings › Black Double Sliding Track for Wooden Doors - Top Mounted

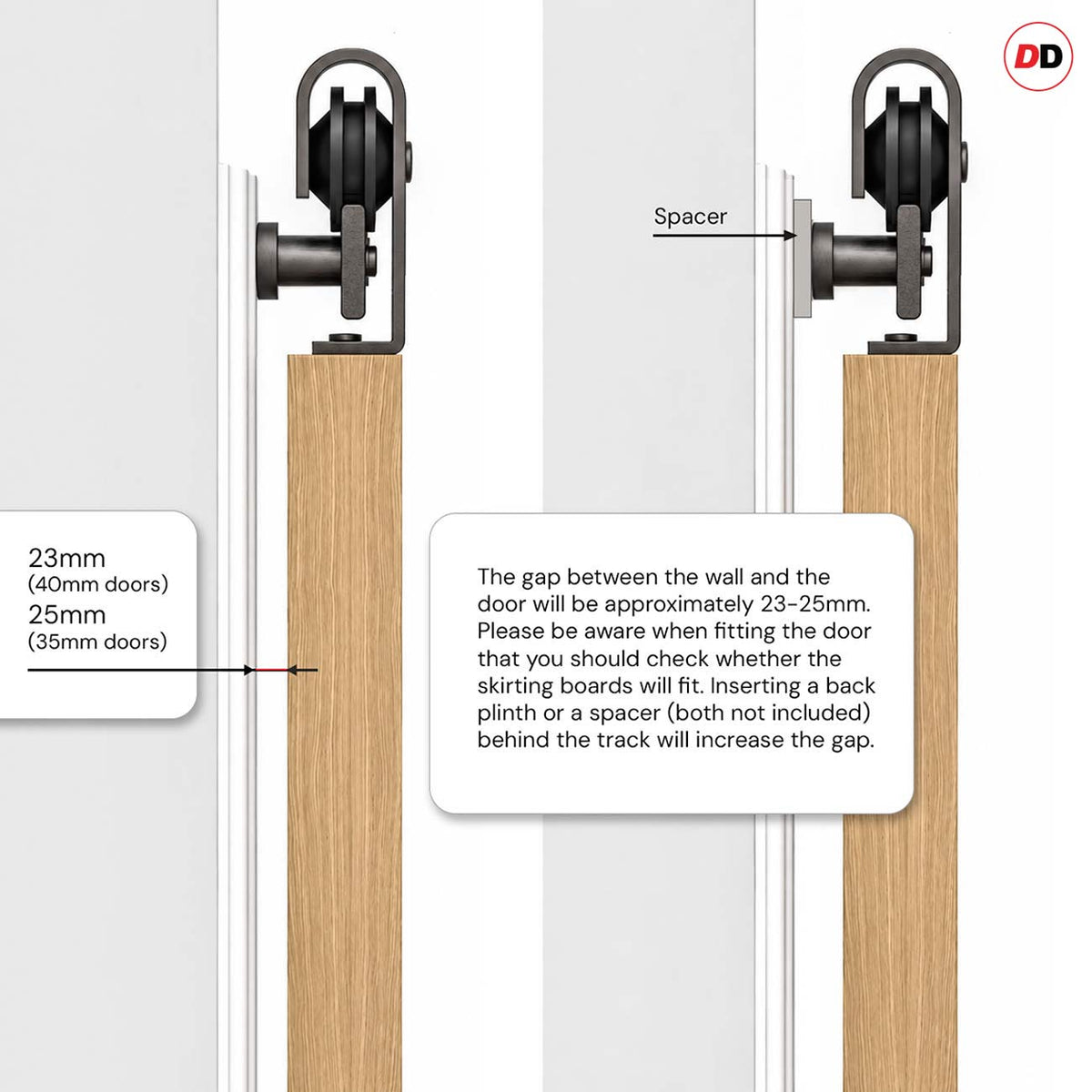

Black Top Mounted Track: Wall to Door Distance
Black Double Sliding Track for Wooden Doors - Top Mounted
Black Top Mounted Track: Wall to Door Distance
Self-Assembly

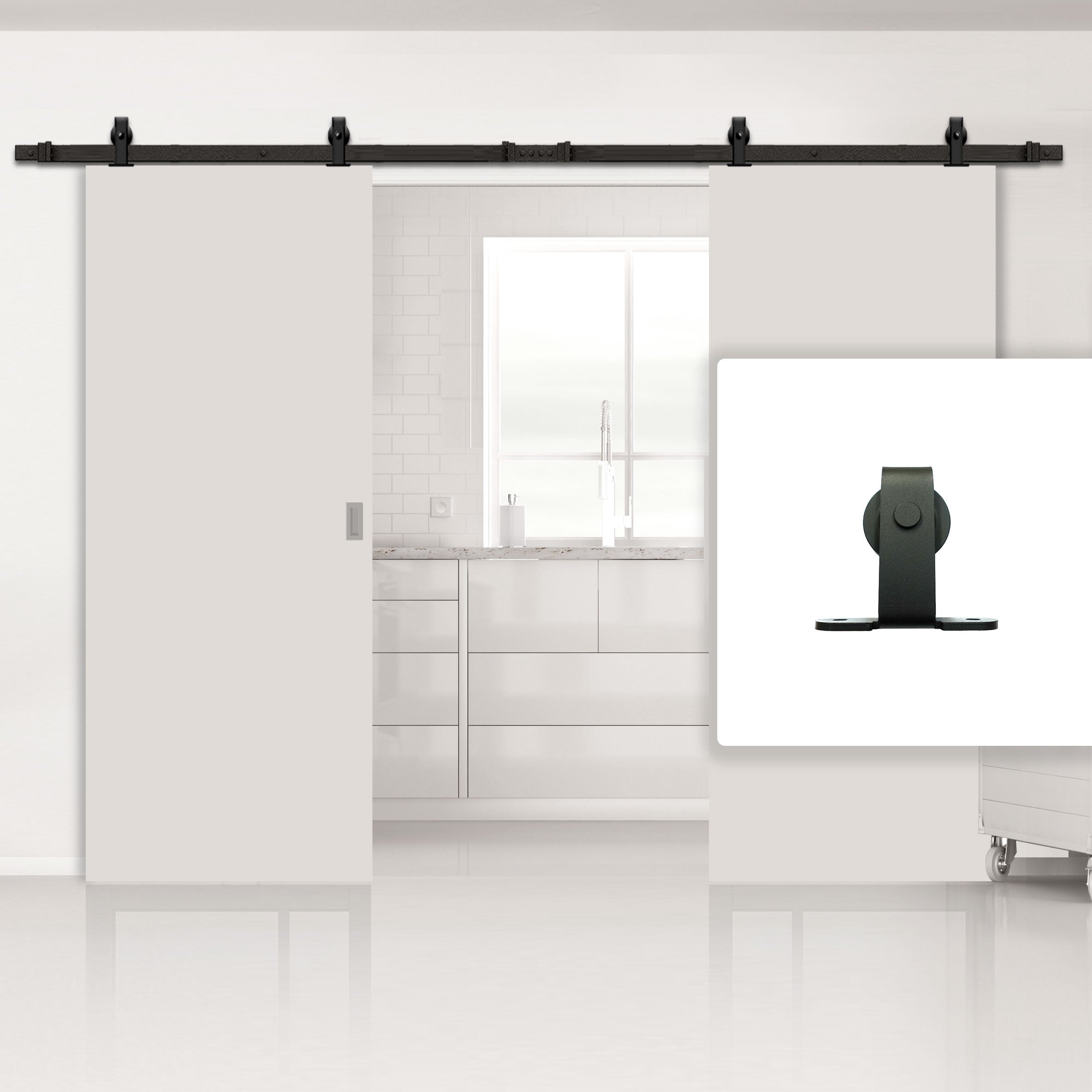

Transform your home with this stylish black double sliding door track, perfect for creating a beautiful, modern feature between living spaces. Ideal for connecting or separating living rooms, dining areas, kitchens or home offices, its sleek top-mounted design adds a contemporary industrial touch while making the most of your available space. A wonderful way to create an open, flowing feel between rooms while enjoying the flexibility of closing them off whenever you wish.
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Usage
Internal
Guarantee
12 months

Double Black Top Mounted Sliding Track

Configuration
Double
Finish
Black Coated Metal
Included Items

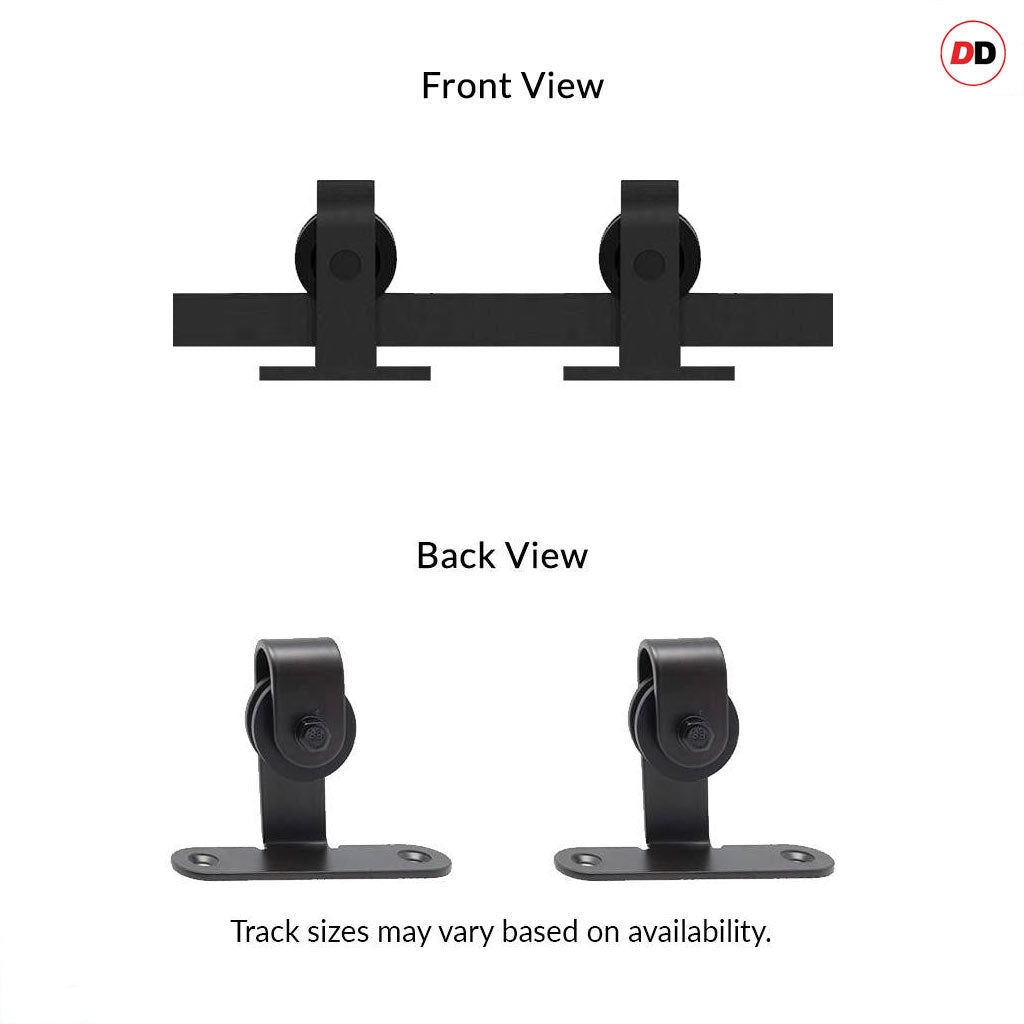

  • 2x Track - Please note the style of track stops may vary depending on the size chosen.

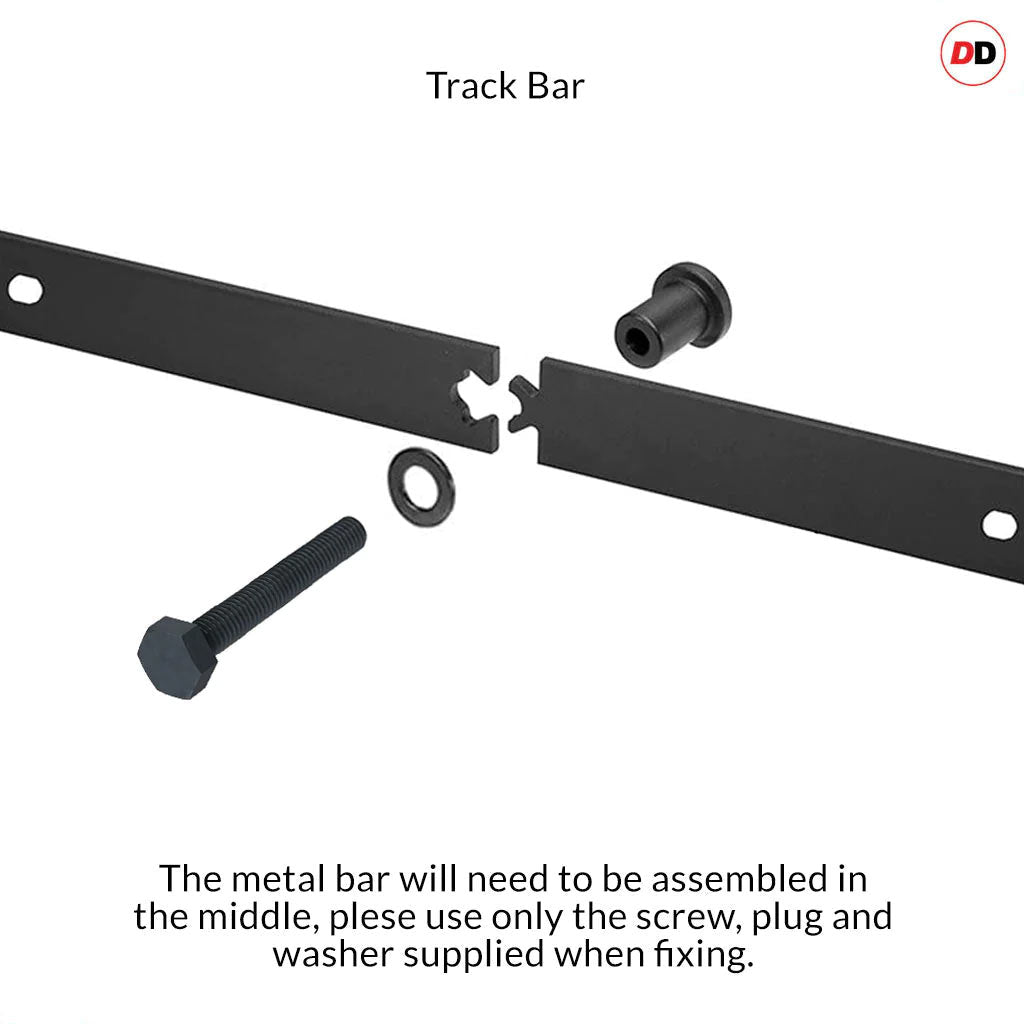

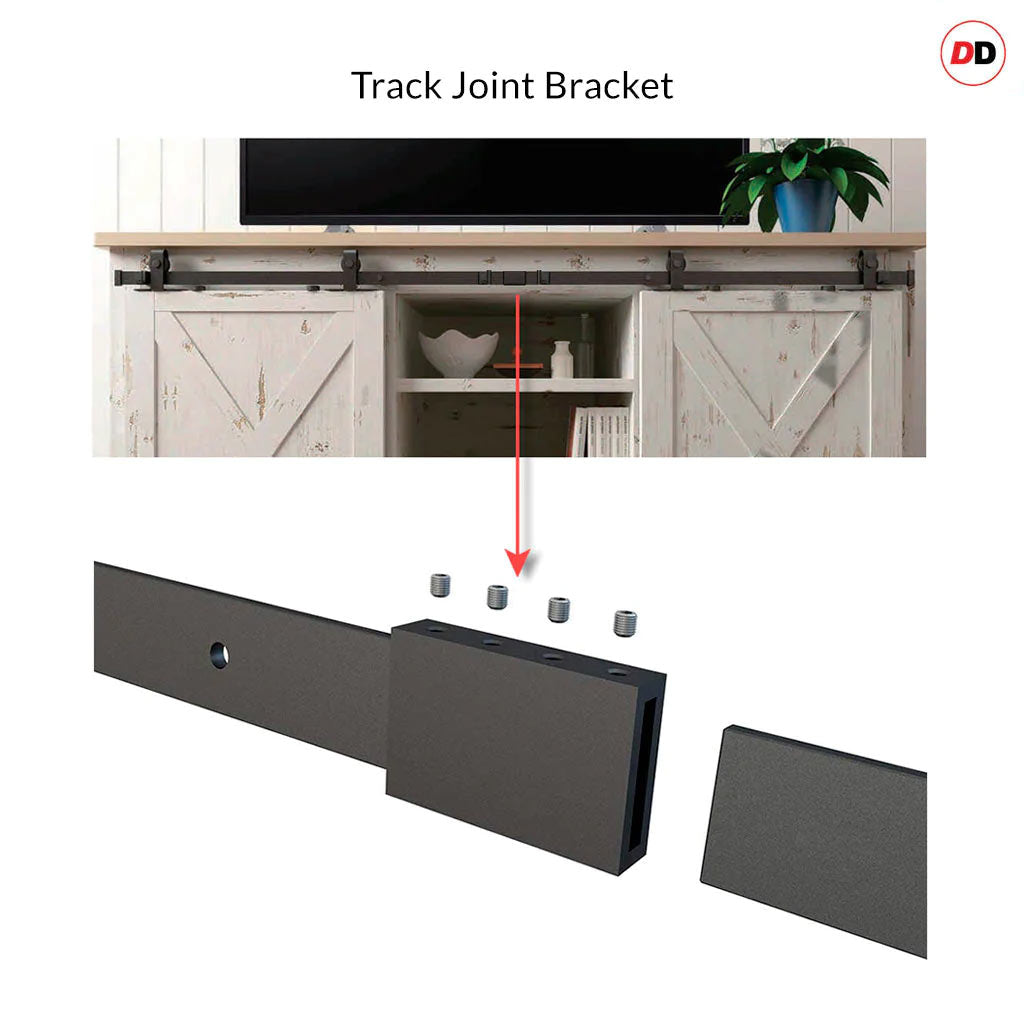

  • 1x Track Joint Bracket
  • 2x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • Depending on availability, a longer track may be supplied which suits all sizes.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door pair size so the doors "cover" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • A high-quality top mounted sliding track system finished in black, the top mounted track is screwed directly into the top of the door which gives the whole system a very sleek look. This track is suitable for a maximum weight of 80 kg per door.
  • There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.

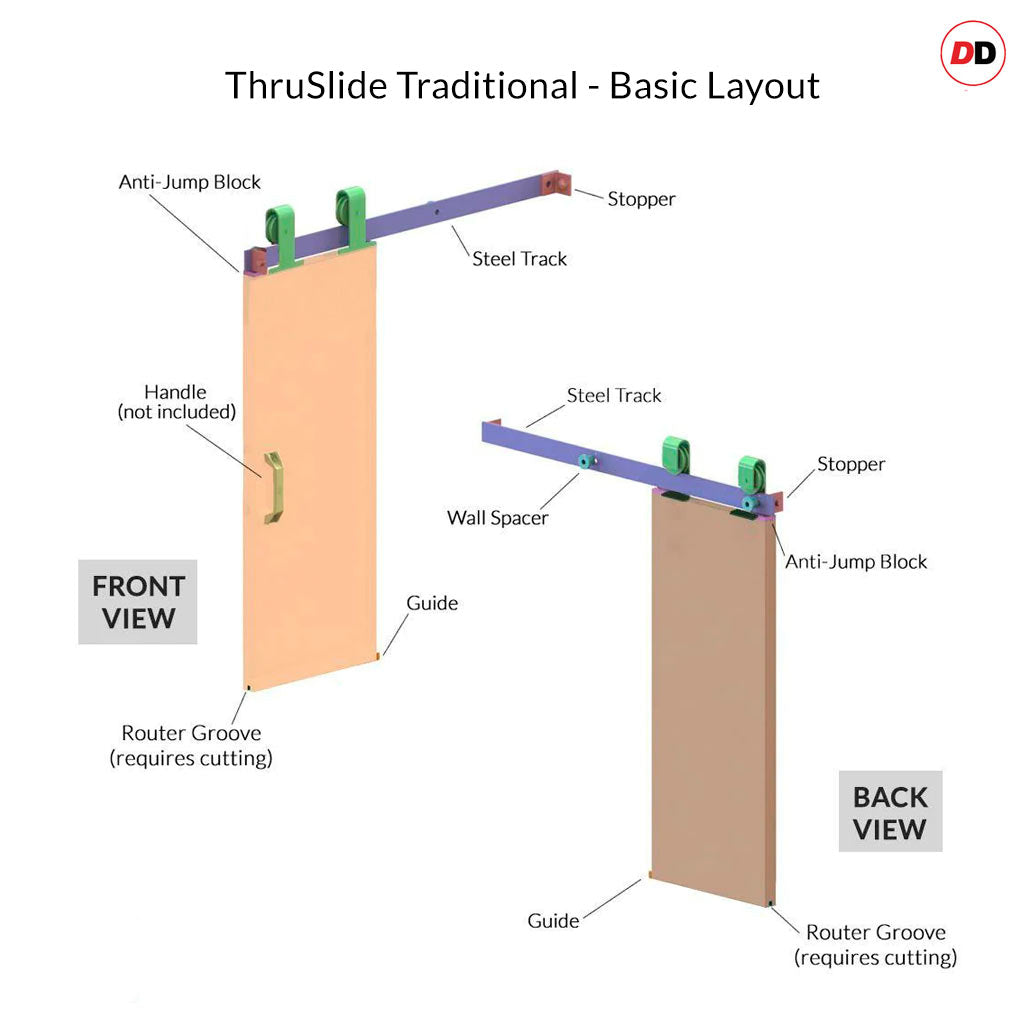

  • Doors will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Suits 35mm and 40mm thick doors only.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Top Mounted Track - 1500mm Fitting Instructions Top Mounted Track - 1830mm Fitting Instructions Top Mounted Track - 2100mm Fitting Instructions Top Mounted Track - Soft Closer Fitting Trak Overlap Guide

Soft Closer Fitting Video

EC

Black Double Sliding Track for Wooden Doors - Top Mounted

BDH-A05-1500-MBLK-610-2

Save 30% Was £224.79 From £156.64
In stock

We deliver for a small charge, anywhere Mainland UK! In most instances, delivery will be the next working day if ordered before 11:30AM.

Important: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

The track is not fire-rated and is not suitable for fire doors.

4-7 working days
iwocaPay trade finance options

Select option:
To suit 610mm Doors - For Openings 1970mm High x 1200mm Wide
£156.64 RRP £224.79
To suit 686mm Door - For Openings 1970mm High x 1352mm Wide
£156.64 RRP £224.79
To suit 762mm Door - For Openings 1970mm High x 1504mm Wide
£161.01 RRP £231.08
To suit 838mm Door - For Openings 1970mm High x 1656mm Wide
£161.01 RRP £231.08
To suit 626mm Doors - For Openings 2030mm High x 1232mm Wide
£156.64 RRP £224.79
To suit 726mm Doors - For Openings 2030mm High x 1432mm Wide
£161.01 RRP £224.79
To suit 826mm Doors - For Openings 2030mm High x 1632mm Wide
£161.01 RRP £224.79

Choose/Optional Add ons?

Select the extras you need, we'll bundle them with your door so everything arrives ready.

Flush Pull Handle Pack

Flush Pull Handle Pack (12)

Loading...
Self-Assembly

Transform your home with this stylish black double sliding door track, perfect for creating a beautiful, modern feature between living spaces. Ideal for connecting or separating living rooms, dining areas, kitchens or home offices, its sleek top-mounted design adds a contemporary industrial touch while making the most of your available space. A wonderful way to create an open, flowing feel between rooms while enjoying the flexibility of closing them off whenever you wish.
Thickness
35mm
Adjustment
Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel.
Skill Level
Advanced DIY & Specialist Joinery Tools Required.
Usage
Internal
Guarantee
12 months

Double Black Top Mounted Sliding Track

Configuration
Double
Finish
Black Coated Metal
Included Items
  • 2x Track - Please note the style of track stops may vary depending on the size chosen.
  • 1x Track Joint Bracket
  • 2x Soft Closer
  • Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

  • Depending on availability, a longer track may be supplied which suits all sizes.
  • Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door pair size so the doors "cover" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
  • The type of architrave used or existing can impact on visible clearances.
  • A high-quality top mounted sliding track system finished in black, the top mounted track is screwed directly into the top of the door which gives the whole system a very sleek look. This track is suitable for a maximum weight of 80 kg per door.
  • There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
  • Doors will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
  • For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
  • Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
  • Suits 35mm and 40mm thick doors only.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
Top Mounted Track - 1500mm Fitting Instructions Top Mounted Track - 1830mm Fitting Instructions Top Mounted Track - 2100mm Fitting Instructions Top Mounted Track - Soft Closer Fitting Trak Overlap Guide

Soft Closer Fitting Video
